Kubrick: Live CD to debrick Kindle 3, 4, and Touch

[ixtab]

Version 3.4

Here's a Live Linux System for all the frustrated Windows users who are trying to debrick a Kindle and are struggling with Windows' inability to correctly determine and install device drivers. Or for people who just want to debrick a Kindle, without diving into all the internals. And actually - it might even be useful for people who are familiar with those internals.

Spoiler:

To give credit where credit is due: here's the original Simple debricking methods for K5-Touch, K4-Mini, & K3-Keyboard thread, containing pretty much all the information without which Kubrick would never have been possible - a huge THANK YOU to everybody who provided invaluable insight and who developed the fundamental programs in the first place!

Kubrick Features:

• Installs a pristine 3.4 (K3), 4.1.1 (K4), or 5.1.2 (KT) firmware; other devices (K1, K2, KDX, Paperwhite) are not supported!
• Installs an SSH-enabled diags partition (K4/KT)
• Can (optionally) install the device jailbreak (K4/KT); the K3 image always includes the jailbreak.
• Can (optionally) reset internal configuration settings (K4/KT)
• Can (optionally) restore the Text-to-Speech files (KT)
• For K4 and KT devices, the latter optional actions can also be performed independently (i.e., without necessarily overwriting the main partition).

The entire procedure involves some 5 to 10 simple steps, and takes about 10 minutes on a K4 or KT, and about 2 hours on a K3 (the 2 hours are the time it needs to flash, not the time you need to configure it )

HOWTO:

1. Determine which file(s) you need, then download and unzip one or more of the following files:
   • Live CD ISO image, to debrick K4 and KT devices:
     • Note: you can also burn this image on a DVD.
     • Download (481 MB; ixtab, Version 3.4)
     • Mirror 1 (twobob, Version 3.4)
     • Mirror 2 (dsmid, Version 3.4)
   • Live CD ISO image, to debrick K3 devices:
     • Note: you can also burn this image on a DVD.
     • Download (384 MB; ixtab, Version 3.4)
     • Mirror 1 (twobob, Version 3.4)
     • Mirror 2 (dsmid, Version 3.4)
   • Live DVD ISO image, to debrick K3, K4, and KT devices:
     • Note: this image must be burned on a DVD; it is too large for a CD.
     • Download (783 MB; ixtab, Version 3.4)
     • Mirror 1 (dsmid, Version 3.4)
   • Live USB Stick disk image (required capacity >=1 GB):
     • Note: In addition to this file, one of the above ISO images is also REQUIRED. To update a USB stick to the newest Kubrick version, simply put the latest ISO image on the stick. Refer to the README.txt contained in the download for more information.
     • Download (1.5 MB; ixtab)
     • Mirror 1 (twobob)
     • Mirror 2 (dsmid)
2. Read the README.txt file.
3. Put the downloaded image file on your media of choice, by following the instructions contained in the README file.
4. Boot your computer from the CD/DVD or USB stick, and wait for the on-screen wizard to start.

Make sure that you are performing steps 3 and 4 with physical hardware, i.e., on a real computer, and with a real CD/DVD or USB stick, not in a virtual machine!

Spoiler:

Yes, I do know that it also works in a Virtual Machine, provided that you make sure the device (which enters 3 different modes) is actually seen by the VM in all of these modes. For the average end user, the VM simply constitutes another layer of potential trouble - which is why I don't suggest to run Kubrick in a VM.

While I thoroughly tested Kubrick many times on my devices, I can't guarantee that it will work on every hardware in every imaginable situation. In particular, if your Kindle is FUBAR for some reason (for instance, if you really screwed it up by erasing ALL of its data), this won't help either. But it should work in most more or less standard "my Kindle stopped working" situations.

If something goes wrong while debricking:

1. Start over from the beginning, and make sure that all your selections (in particular the device to debrick!) are correct. (Yes, there have been reports of people who screwed up because they chose the wrong device.)
2. Make sure that your Kindle is charged. If you keep having problems while debricking, stop - and charge the battery using a wall charger for at least 20 hours. Then restart the procedure. Discharged Kindles are the #1 cause of weird behavior.

Technical stuff:

Spoiler:

Acknowledgements:
Kubrick is based on the totally awesome SliTaz GNU/Linux distribution, and uses the equally awesome lanterna framework for the dialogs.

A few links (in no particular order), which I found to be very helpful while messing around with SliTaz:

• http://doc.slitaz.org/en:handbook:hacklivecd
• http://hg.slitaz.org/tazlito/raw-fil...azlito.en.html
• http://hg.slitaz.org/tazpkg/raw-file...tazpkg.en.html
• http://mirror.slitaz.org/packages/3.0/

Source code:
Well, the live system pretty much IS its own source code. The sources for the Java part (and a tad more) are here.

Version history:

• Version 3.4: Changed kernel configuration to include support for pretty much every PATA and SATA controller, to cover as many CD/DVD setups as possible
• Version 3.3: Bugfix to configure usbnetwork right after it was detected, instead of only when main partition is written
• Version 3.2: Bugfix to correctly support computers with multiple optical drives
• Version 3.1: Bugfix to only flash main kernel if main partition is to be flashed
• Version 3.0: Major overhaul - new kernel for better hardware support, massively better compression, K5 TTS reinstalls, new USB stick layout (can boot on Intel Mac devices), ...
• Version 2.1: Minor enhancements: splash screen, no screen blanking, proper poweroff
• Version 2.0: Added support for K3
• Version 1.0: Initial release

(OT) Another Kubrick reference:

Spoiler:

"Spit it out" by Slipknot, referring to Kubrick's movie "Shining". Warning: Noise ahead!

If you like Kubrick:
I sincerely hope that you find Kubrick useful. If it helped you to solve your Kindle problem, you are more than welcome to donate a little something... but don't give your money to me. Please donate for a much more important cause, namely: for a Literacy project in Laos. You will make not only me happy. Thank you!

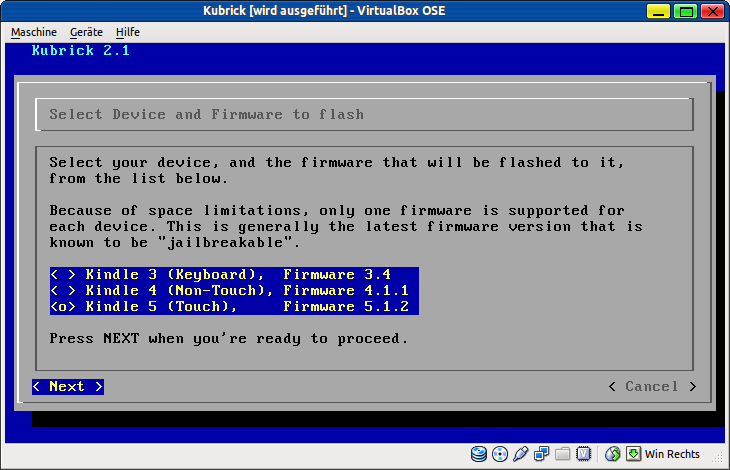

... Below are a few screenshots of what the UI looks like. Note that these were taken while running in a Virtual Machine, and are just a few examples. The entire procedure involves more actions, and should normally be performed on a "real" (physical!) computer, not in a Virtual Machine.

[lehbaurd]

Wow - this is a great resource for Windows users - Thanks

[ixtab]

Originally Posted by lehbaurd

Wow - this is a great resource for Windows users - Thanks

Thanks for the feedback. Does that mean that you actually tested it and can confirm that it's working?

[twobob]

Oh Okay... Added to pile to test tonight

Super resource

[lehbaurd]

Originally Posted by ixtab

Thanks for the feedback. Does that mean that you actually tested it and can confirm that it's working?

Er not yet - will be able to do that later this evening when I have access to my trusty Kindle!

[ixtab]

@lehbaurd, twobob: Muchas gracias!

It's not like I don't trust my own software, but so far I am the only person I know for whom this is confirmed to be working. I've tested it many times (heck, I could sell my K4 and KT as "factory fresh" any moment now ), but still, that only makes, well, one tested configuration (namely my netbook resetting those devices over and over).

[twobob]

I'll give you 20 bucks for the 4 hehehe

[bonjurkes]

Here comes newbie question.

I managed to put device in USB Downloader mode by pushing those power and home buttons, and red bar changed to green and moved to next step.

Now it says putting device into fastboot mode. In this step your device is going into ....

But it just stays red there, what should I do to make it continue?

[twobob]

ermmm that doesnt sound good.

[bonjurkes]

in what way?

I can put device into usb downloader mode, but after that just stays there.


I didn't messed with my device before, so what may be the problem?

[twobob]

erm... I will have to check the tool myself later to let you know.

Not in Windows right now.

And it takes forever to boot.

Later. apologies.

[ixtab]

Originally Posted by bonjurkes

in what way?

I can put device into usb downloader mode, but after that just stays there.
I didn't messed with my device before, so what may be the problem?

EDIT: This post is obsolete. The problem was caused by testing inside a Virtual Machine instead of on real hardware (see below). It's kept for reference.


There's nothing you can do to make it progress, because this situation is not expected to happen, so the program just waits indefinitely. When booting a device into fastboot mode, it is expected to end up there

But you can do something to help out, namely:
- reproduce the situation. You can just reboot the LiveCD, and perform the same steps again, and you should be getting into the same situation.
- switch to the second console (Press ALT+F2), then login there.
- enter "lsusb", and press ENTER
- post its output here. What's really important is the parts after the "ID" entries, so if you're "manually copying" stuff, you can ignore the Bus and Device output.

When entering fastboot mode, a device with ID 1949:d0d0 is expected to show up, but maybe that is different on your Kindle. Please post the lsusb output.

[bonjurkes]

First I would like to say sorry for wasting your times, because I tried all the progress in "virtualbox".

Using real dvd on real computer make the problem go away.

[ixtab]

So, we have the first report that it is working. Ironically (and totally unexpectedly, at least for me) it actually worked when run inside VMWare on Windows, but not when trying to run it on the physical hardware.

... Go figure

Anyway, I'll just shut up and wait now.

[edonor]

Hello:
Sorry if I say something inappropriate, how I can do this cd v.5.3.2 Jailbreak to KT from home?
Greetings.
