Kobo Aura H2O Battery Replacement Issue

CuddlesTheCat · 03-05-2025, 12:01 PM

Hi,

I recently replaced the battery on my Kobo Aura H2O. I suspect I accidentally broke the battery connector on the motherboard, one side of it seems bit too flexible. The Kobo now does power on depending on how the connector is plugged in, but always freezes at some point. Sometimes, it freezes during startup (three dots screen), sometimes it freezes after boot-up, sometimes it remains functional for a few hours and then freezes. The only thing that has affect is if I re-connect the battery connector and move it a bit forward or backward.

I also see the power light go from solid white to flashing white light during bootup. When I got this Kobo, it was completely dead so I have no idea is the flashing white light is part of normal boot process.

Has anyone had any experience with this? How can I fix this?

I've tried take some pictures but achieving good focus seems tricky.

JSWolf · 03-05-2025, 02:02 PM

If it's the battery connector on the board, you'd have to get another one, remove the one that's there and solder the other one.

Quoth · 03-05-2025, 03:23 PM

Or solder a pair of wires and plug and change the socket on the battery. That's what I did. This is a poor choice of connector and possibly why later ones are solder with no connector.

I've no idea who sells that poor design of PCB plug.

03-05-2025, 12:01 PM	#1

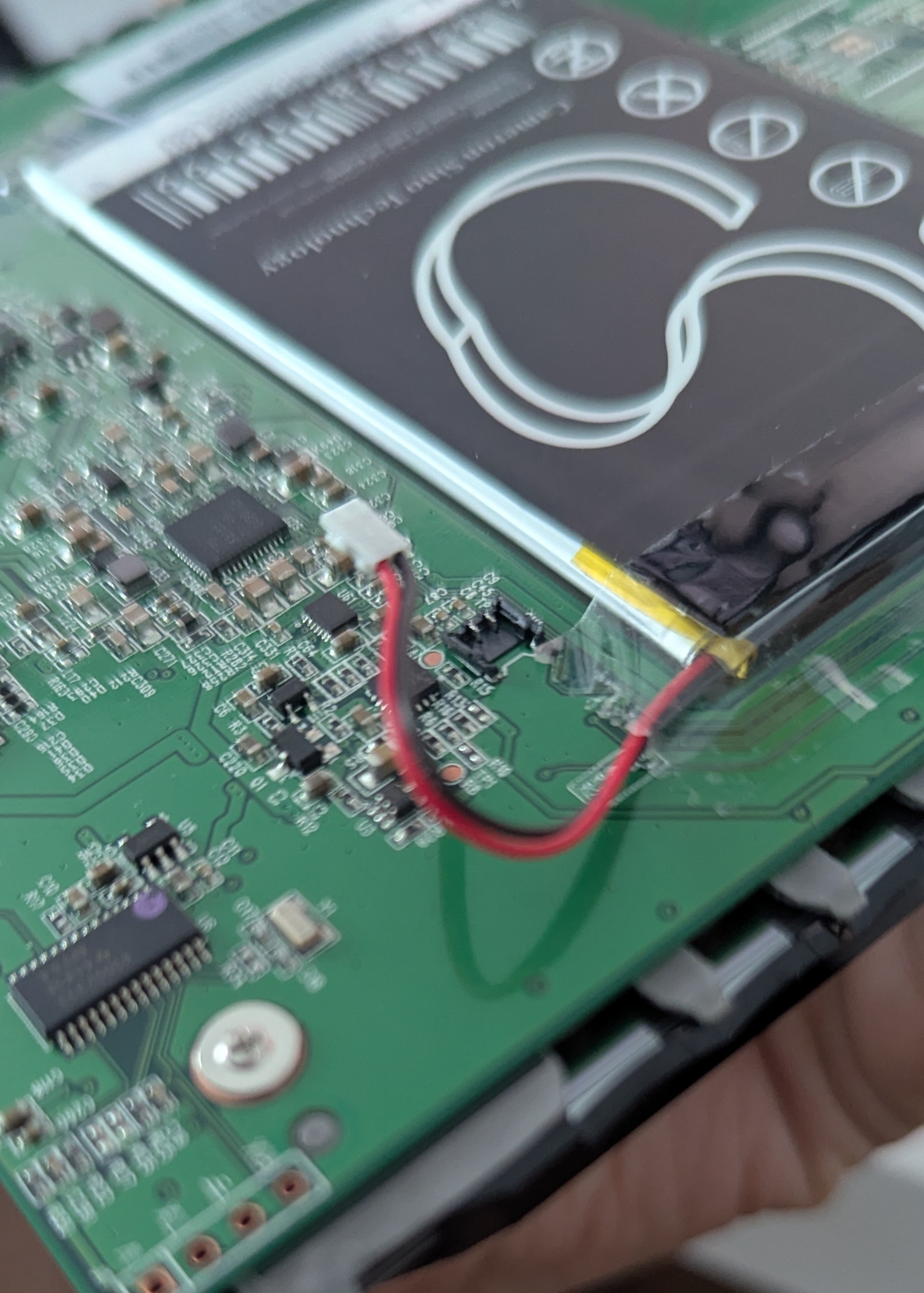

CuddlesTheCat Junior Member Posts: 2 Karma: 10 Join Date: Feb 2025 Device: Kobo Clara HD	Kobo Aura H2O Battery Replacement Issue Hi, I recently replaced the battery on my Kobo Aura H2O. I suspect I accidentally broke the battery connector on the motherboard, one side of it seems bit too flexible. The Kobo now does power on depending on how the connector is plugged in, but always freezes at some point. Sometimes, it freezes during startup (three dots screen), sometimes it freezes after boot-up, sometimes it remains functional for a few hours and then freezes. The only thing that has affect is if I re-connect the battery connector and move it a bit forward or backward. I also see the power light go from solid white to flashing white light during bootup. When I got this Kobo, it was completely dead so I have no idea is the flashing white light is part of normal boot process. Has anyone had any experience with this? How can I fix this? I've tried take some pictures but achieving good focus seems tricky. Attached Thumbnails

Similar Threads
Thread	Thread Starter	Forum	Replies	Last Post
Libra Replacement Battery for Kobo Libra H2O	ovalwonder	Kobo Reader	0	03-28-2022 08:50 AM
Sell Kobo Aura H2O + Case -- But with Battery Problem	ginger_rocket	Flea Market	3	07-06-2021 08:54 AM
Screen Issue (Kobo Aura H2O)	peteReads	Kobo Reader	2	01-03-2021 10:51 AM
Kobo Aura H2O Metadata issue	evenstr	Devices	4	12-11-2016 08:48 PM
Battery on Kobo Aura H2O went from 30 % to 0 % very fast	bonaldo2000	Kobo Reader	11	01-20-2015 02:25 AM

03-05-2025, 02:02 PM	#2
JSWolf Resident Curmudgeon Posts: 78,936 Karma: 144284074 Join Date: Nov 2006 Location: Roslindale, Massachusetts Device: Kobo Libra 2, Kobo Aura H2O, PRS-650, PRS-T1, nook STR, PW3	If it's the battery connector on the board, you'd have to get another one, remove the one that's there and solder the other one.

03-05-2025, 03:23 PM	#3
Quoth Still reading Posts: 13,637 Karma: 103503445 Join Date: Jun 2017 Location: Ireland Device: All 4 Kinds: epub eink, Kindle, android eink, NxtPaper	Or solder a pair of wires and plug and change the socket on the battery. That's what I did. This is a poor choice of connector and possibly why later ones are solder with no connector. I've no idea who sells that poor design of PCB plug.
