RegEx: Insert nbs between initials, etc.

[phossler]

Looking to see if there is a RegEx that will help to insert non-breaking spaces to join names, etc. so as to avoid a line wrap in the middle

For example. in the fragment below, I'd like to insert NBS after the 's' and before the "B' so that 'Thomas J. Beale' doesn't line wrap

by the name of Thomas J. Beale rode into Lynchburg and checked into the Washington Hotel.

I think I'll need two passes

#1 - A. B. Charles -- > A.nbsB.nbsC

Find: ([A-Z])\. ([A-Z])\. ([A-Z])
Replace: \1.\xA0\2.\3

#2 - A. Charles --> A.nbsC

Find: ([A-Z])\. ([A-Z])
Replace: \1.\xA0\2

The problem -- If a sentence ends with an upper case letter, it finds it

blah blah end of sentence T. Next sentence

Is there a better way to do the RE?

Eventually I'd like to extend this to joining dates. Maybe some others

March 22, 2021 --> Marchnbs22,nbs2021

[retiredbiker]

You are on the right track, but in this case I can't imagine a search where you would want to run a "replace all". The possibilities of non-name text fitting the search are pretty large no matter what. No regex string can tell if a word is a person's name.

For the "Thomas J. Beale" sorts of case, ([a-z])\. ([A-Z])\. ([A-Z]) with match case checked should work OK. Your other searches look OK, but I'd do "find and replace" throughout the book for any of them rather than "replace all". In your "A. B. Charles" case, I think you want another nbsp to go be tween the B and C in the replace string.

[theducks]

How about A.M. or P.M.
Really, do not use replace all. You can verify every Find (a skip)/Replace Find pretty fast. I keep Preview up on a monitor to validate 'context' issues

[phossler]

Originally Posted by retiredbiker

In your "A. B. Charles" case, I think you want another nbsp to go be tween the B and C in the replace string.

Yea, I was testing, copy, pasting all at once (you'd think I'd know better) and messed up

@retiredbiker
@theducks

While I'd like to be able to do a [Replace All] I didn't trust my RE, so I figured I'd ask more experienced users if there was more advanced way

A [Replace and find] takes longer but is safer

[Tex2002ans]

Originally Posted by phossler

I think I'll need two passes

Yep, that sounds about right.

Originally Posted by retiredbiker

For the "Thomas J. Beale" sorts of case, ([a-z])\. ([A-Z])\. ([A-Z]) with match case checked should work OK. Your other searches look OK, but I'd do "find and replace" throughout the book for any of them rather than "replace all". In your "A. B. Charles" case, I think you want another nbsp to go be tween the B and C in the replace string.

Agreed.

That's ~ the regex I use as well... except I use regex to normalize "First. Middle." into a single chunk:

F. A. Hayek -> F.A. Hayek
W. E. B. Du Bois -> W.E.B. Du Bois

or normalizing states/acronyms/times:

C. A. -> C.A.
N. Y. C. -> N.Y.C.
A. M. -> A.M.

Originally Posted by retiredbiker

You are on the right track, but in this case I can't imagine a search where you would want to run a "replace all". The possibilities of non-name text fitting the search are pretty large no matter what. No regex string can tell if a word is a person's name.

Exactly. Needs to be looked at on a case-by-case basis.*

Regex alone is "too dumb". To lower the errors, you'd need something that can actually parse the sentence structure.

Antidote is a grammarchecker, and is the only one I know of that can detect/combine First + Middle + Last Name (along with units + dates/times + [...]).

See their list of space detections:

https://documentation.antidote.info/...s/spaces-panel

Antidote was designed for French first, where "non-breaking thin spaces" are used all over the place around punctuation.

Side Note: I wrote a detailed analysis of Antidote in:

• "Does Tool Exist to Spellcheck/Grammarcheck by Category?"

I also discussed a few similar regexes over the years (like ALL CAPS->Smallcaps or Roman Numerals):

• "Alternate glyph support (font-variant-alternates)" (Posts #36 + #38)
• "Regex examples" (Posts #588 + #590)

Side Note #2: You may also be able to hackishly use Spellcheck Lists:

• Regular expression for removing blanks between letters (Posts #5 + #12)

I explained multiple methods to combine "e m p h a s i s" into "emphasis".

* Note: What I wrote in Post #12 in the topic above still applies:

Originally Posted by Tex2002ans

You can use Regex to do the vast bulk of the corrections, then manually fix the edge cases.

Better/faster to do:

• 95% correct with a 2-step regex.
• 5% manually find/correct/fix.

than:

• 100% manually fix.

So it's up to you where you want to spend your time and do your fixing.

Originally Posted by phossler

Eventually I'd like to extend this to joining dates. Maybe some others

March 22, 2021 --> Marchnbs22,nbs2021

To detect dates, I use these:

Search: (Jan|Feb|Mar|Apr|Aug|Sept|Oct|Nov|Dec)\. (\d)

Search: (January|February|March|April|May|June|July|August |September|October|November|December) (\d{1,2}),

They can be adjusted as needed.

[phossler]

Originally Posted by Tex2002ans

That's ~ the regex I use as well... except I use regex to normalize "First. Middle." into a single chunk:

F. A. Hayek -> F.A. Hayek
W. E. B. Du Bois -> W.E.B. Du Bois

or normalizing states/acronyms/times:

C. A. -> C.A.
N. Y. C. -> N.Y.C.
A. M. -> A.M.

Some good ideas there - thanks

Q1: Are there rules or is it personal choice that F. A. Hayek -> F.A. Hayek is correct? I typically use F. A. Hayek with spaces

Q2: I'd think that CA and NYC would be the correct acronym?

Q3: Related to Q1. I'm on the fence about A.M. vs A. M.. I think I prefer the no-space version, but are there any rules?

[theducks]

I have 3 names: Fn Mn Ln not FnMnLn or Fi.Mi.Ln
so I take it Personal when you get it wrong
(My real initials form another common nickname if not separated)

I use the Quality Check PI to Fix authors initials to all have spaces

[phossler]

So would you be/prefer

Fi. Mi. Ln

or

Fi.Mi. Ln

?

[theducks]

Originally Posted by phossler

So would you be/prefer

Fi. Mi. Ln

or

Fi.Mi. Ln

?

With spaces (the first). , but regular if in text as NBS would make crummy justification on many devices. Trade-off (I reallyhate huge gaps in text)

[Tex2002ans]

Originally Posted by theducks

With spaces (the first). , but regular if in text as NBS would make crummy justification on many devices. Trade-off (I reallyhate huge gaps in text)

Personally, in ebooks, I would avoid using these non-breaking spaces. They're going to cause more headaches than they're worth.

But for Print, see some of the notes below.

Side Note: In ebooks, the only non-breaking spaces I use is in 3- and 4+-dot ellipses.

Originally Posted by phossler

Q1: Are there rules or is it personal choice that F. A. Hayek -> F.A. Hayek is correct? I typically use F. A. Hayek with spaces

The most important thing is consistency throughout.

But this all comes down to preferences (Style Guides / House Styles).

For example, the publishers I do a lot of work for prefer the "F.M. Last" form.

If I run across a book where 90% are one way, and 10% are the other way, better to choose one and make it consistent (and I personally lean towards no space).

If the book is 100% correct though, then I don't mess with it. (This is very rare though, these types of inconsistencies sneak in all the time, just like mismatching hyphenation.)

- - - - -

Pass #1: Take care of the "easy".

Search: (\b[A-Z]\.) ([A-Z]\.) ([A-Z])
Replace: \1\2 \3

This catches "F. M. Last" -> "F.M. Last".

Pass #2: Take care of the "hard" + all the rest.

Search: (\b[A-Z]\.) ([A-Z])
Replace: \1 \2

This will catch "First M. Last" -> "First M. Last".

Exceptions

Depending on how the rest of the book deals with acronyms, there may be very few errors, or a ton. Here are a few examples you may run across:

I ran this on a ~2 million word journal.

Pass #1:

Many styles shorten journal/newspaper names:

I. Maurice Wormser, “The True Conception of Unilateral Contracts”, <i>Selected Readings</i>, pp. 307, 308–309. Compare Frederick Pollock, review of Clarence D. Ashley, <i>The Law of Contracts</i>, 28 <i>L. Q. Rev.</i> 100.

It would be wrong to merge this into "L.Q. Rev".

Pass #2:

U.S. (1 of these is a sentence-ender):

This distinction was originally continued in America, as evidenced by the placement of the bankruptcy clause in the commerce section of the U.S. Constitution.

“A single, ultimate arbiter of conflicts (e.g. the U.S. Supreme Court) is considered non-essential.”

The book was a landmark for the development of sociology in the U.S. Spencer emphasized a science of sociology which would teach men to think of social causation in a scientific way.

(If you're writing a book, don't end the sentence on an acronym like that... It's very poor form. Rewrite sentence instead. [Or go with the superior "US"!])

B.C. (sentence-ender?):

[...] the jurist-king of Babylonia who reigned in the 18th century B.C. Hammurabi provided for liquidation of the assets of the insolvent debtor and their distribution among creditors [...]

C.I.A. + F.B.I. (sentence-ender):

[...] as is also the case with para-military organizations like the C.I.A. and F.B.I. This often surreptitious attrition of popular control runs counter [...]

As you can see, this is where Natural Language Processing would cut down on the false hits. You need something smarter than plain ol' Regex IF you want to do mass search/replaces.

Side Note: LanguageTool detects some of this stuff in the backend while parsing sentences so it can recommend proper capitalization, but doesn't (yet) recommend non-breaking spaces like Antidote:

https://languagetool.org/

And tools like NTLK (Natural Language Toolkit) may detect even more of these cases:

https://www.nltk.org/index.html

Originally Posted by phossler

Q2: I'd think that CA and NYC would be the correct acronym?

Depends on the source. Again, consistency within a document/book matters... but, you could have:

Book titles:

Duncan Campbell, <i>War Plan UK: The Truth About Civil Defence in Britain</i> (London: Burnett, 1982).

Publisher locations:

Bruno Leoni, <i>Freedom and the Law</i> (Princeton, N. J.: D. Van Nostrand, 1961)

Quite often, when discussing voting, the party+state is combined:

Thomas Massie (R-KY)

Not smart to just Replace All or add/remove periods haphazardly. :P

Originally Posted by phossler

Q3: Related to Q1. I'm on the fence about A.M. vs A. M.. I think I prefer the no-space version, but are there any rules?

There are ~5 or 6 different styles for am/pm. See Posts #35–38:

https://www.mobileread.com/forums/sh...38#post3978438

(And I linked to a Wikipedia post describing some styles/conventions around the world.)

Side Note: Of course, just use the proper 24-hour clock and you won't have to deal with the am/pm nonsense!

Originally Posted by phossler

[...] but are there any rules?

If you're typesetting a physical print book though, there are some typographical guidelines you may want to follow. For example:

Titles:

• Mr. Smith -> Mr.~Smith
• Ms. Jones -> Ms.~Jones
• Dr. John Ioannidis -> Dr.~John Ioannidis

Saint/Street:

• St. Martin's Church -> St.~Martin's Church
• Meet me at Main St. and Example Blvd.

Roman Numerals:

• Charles V -> Charles~V
• King Louis XIV -> King Louis~XIV

Chapter/Part/Appendix:

• See Chapter 1 -> See Chapter~1
• Appendix A -> Appendix~A

Pages:

• See page 123 -> See page~123
• See pp. 123–150 -> See pp.~123–150

Volume:

• See vol. 1 -> See vol.~1

Editions:

• <i>Title of Book</i>, 2nd ed. -> <i>Title of Book</i>, 2nd~ed.

Ordinals:

• I scored 2nd place -> I scored 2nd~place

Variables:

• Look at line <i>y</i> -> Look at line~<i>y</i>

Equation/Figure Numbers:

• The solution is in Equation 1.2 -> The solution is in Equation~1.2
• Fig. 1.2 shows you the location -> Fig.~1.2 shows you the location

Units:

• Drive for 3.5 km -> Drive for 3.5~km
• Run for 2000 m -> Run for 2000~m

Maths/Equations*:

• a + b = c -> a~+~b~=~c

et al.

• This genius example (Tex et al., 2021) -> This genius example (Tex et~al., 2021)

For a few more examples, see:

TeX Stack Exchange: "When should I use non-breaking space?"

* Note: Proper maths typography is a whole other can of worms...

- - - - -

You could also skim Robert Bringhurst's "The Elements of Typographic Style" or relevant Style Guides.

For example, Bringhurst's Chapter 2.1.5 recommends:

2.1.5 Add little or no space within strings of initials.

Names such as W. B. Yeats and J. C. L. Prillwitz need hair spaces, thin spaces or no spaces at all after the intermediary periods. A normal word space follows the last period in the string.

Chapter 2.4.6:

2.4.6 Link short numerical and mathematical expressions with hard spaces.

All you may see on the keyboard is a space bar, but typographers use several invisible characters: the word space, fixed spaces of various sizes (em space, en space, thin space, figure space, etc) and a hard space or no-break space. The hard space will stretch, like a normal word space, when the line is justified, but it will not convert to a linebreak. Hard spaces are useful for preventing linebreaks within phrases such as 6.2 mm, 3 in., 4 × 4, or in phrases like page 3 and chapter 5.

When it is necessary to break longer algebraic or numerical expressions, such as a + b = c, the break should come at the equal sign or another clear logical pause.

Chicago Manual of Style:

9.20 Decimal places-European practice.

In European countries, except for Great Britain, the decimal point is represented by a comma. A thin, fixed space, not a comma, separates groups of three digits, whether to the left or to the right of the decimal point. (In electronic publications, a nonbreaking space may be used.) This practice reflects European-style SI usage (see 9.56). Canadians increasingly follow SI usage, retaining the decimal point (or, in French-language contexts, the comma) but using a thin space to separate groups of three digits. In US publications, US style should be followed, except in direct quotations. See also 10.61.

36 333,333 (European style)
36 333.333 (Canadian style)
36,333.333 (US and British style)

- - - - -

Speaking of other languages... languages like Polish/Czech have typographical rules on "single letters" at the end of lines:

TeX Stack Exchange: "one-letter word at the end of line"

So if dealing with those types of books, you may need to use non-breaking spaces. (Although this stuff really should be dealt with at the device/layout-algorithm level.)

[Brett Merkey]

It is clear that the last post of Tex2002ans went beyond the call of duty and should be enshrined as the authoritative source on the usage of non-breaking spaces in e-book construction. The Internet Gods will be duly notified.

[phossler]

Originally Posted by Brett Merkey

It is clear that the last post of Tex2002ans went beyond the call of duty and should be enshrined as the authoritative source on the usage of non-breaking spaces in e-book construction. The Internet Gods will be duly notified.

Agreed

I'm still reading and digesting the last one

His other post and the references also need to be enshrined

------------------------------------------------------------------------------

Now what the Calibre world needs is for a smart PI developer to capture the logic and options since RegEx would seem to be limited

[Tex2002ans]

Originally Posted by Brett Merkey

It is clear that the last post of Tex2002ans went beyond the call of duty and should be enshrined as the authoritative source on the usage of non-breaking spaces in e-book construction. The Internet Gods will be duly notified.

Originally Posted by phossler

Agreed

I'm still reading and digesting the last one

His other post and the references also need to be enshrined

All my ebook knowledge will be compiled/enshrined on my blog soon* (see my signature).

- - -

* ... eventually... (grumble grumble, two+ years later... where the hell is this time flying? )

Originally Posted by phossler

Now what the Calibre world needs is for a smart PI developer to capture the logic and options since RegEx would seem to be limited

Bits and pieces already exist...

But the reason why non-breaking spaces work better in Print is because they have access to:

• Justification at the paragraph level
• Microtypography
• Hyphenation

and you know exactly where text will land, so you can manually adjust if needed.

Ebooks do:

• Justification at the line level
• have piss-poor support for the various kinds of other spaces

  • See 2020: "Non-breaking spaces in ePUB"

  • 2019: "ellipses, with or without spaces?"

  • 2016: "Problem with inline image"

  • 2019: "No break space and alignment"
• and the Hyphenation (if it's supported/enabled) is subpar.

This is why it's easier to just use simple normal spaces in nearly all cases.

Adding &nbsp; willynilly all over the place, while it might keep some things together, would lead to horrible tradeoffs elsewhere. (Even making it horrible to read/search/spellcheck your code!)

Side Note: Yes, if the language rules demand certain spacing (like French with their thin spaced « guillemets »), a &nbsp; in your ebook would be "acceptable"... but tread lightly.

[phossler]

Originally Posted by Tex2002ans

All my ebook knowledge will be compiled/enshrined on my blog soon* (see my signature).

- - -

* ... eventually... (grumble grumble, two+ years later... where the hell is this time flying? )


Adding &nbsp; willynilly all over the place, while it might keep some things together, would lead to horrible tradeoffs elsewhere. (Even making it horrible to read/search/spellcheck your code!)

1. Looking forward to the blog

2. Mostly agree that &nbsp; everywhere would most likely mess up the reflow on an ereader, there are still some constructs that IMHO really do need a &nbsp; so that you don't REALLY bad line breaks:

blah blah blah and gave it to Dr.<nl>
Smith to blah blah

Since I don't this stuff for a living or for others (just me and my Kindle [sounds like a country western song]) 'house style' = 'my style' and if I decide I don't like it it's easy 'nuff to undo it. I've changed my mind many times to remove what seemed like a good thing at the time

3. Hope you get the blog online soon (Digital Slug??)

[Tex2002ans]

Originally Posted by phossler

2. Mostly agree that &nbsp; everywhere would most likely mess up the reflow on an ereader, there are still some constructs that IMHO really do need a &nbsp; so that you don't REALLY bad line breaks:

blah blah blah and gave it to Dr.<nl>
Smith to blah blah

Yep, but I only apply it in Print.

Mr./Mrs./Dr. are my biggest ones, so I sometimes just use a simple regex:

Search: (Mrs?|Drs?)\. ([A-Z])
Replace: \1.&nbsp;\2

I was digging through LanguageTool, and here's a more comprehensive one they use:

Search: \b(Atty|Sg?t|[SG]en|Ft|Gov|Hon|Prof|Mr?s|Mt|[DMJS]r|Col|Maj|L(ieu)?t|Brig|Capt|Cmdr|Cmnd|Revd?|Rep)\ .\s[A-Z]

That should also cover Prof./Col./Capt./Gov./Rev. and others.

* * *

But you have to think:

What are the actual chances of "Mr." or "p." landing at the end of a line?

• >95%+ exist within the line
• Only a handful are going to land at the very end of a line.

  • In ebooks, probably more likely, since it'll be read on skinnier devices + larger fonts

but we're still talking about a very small percentage.

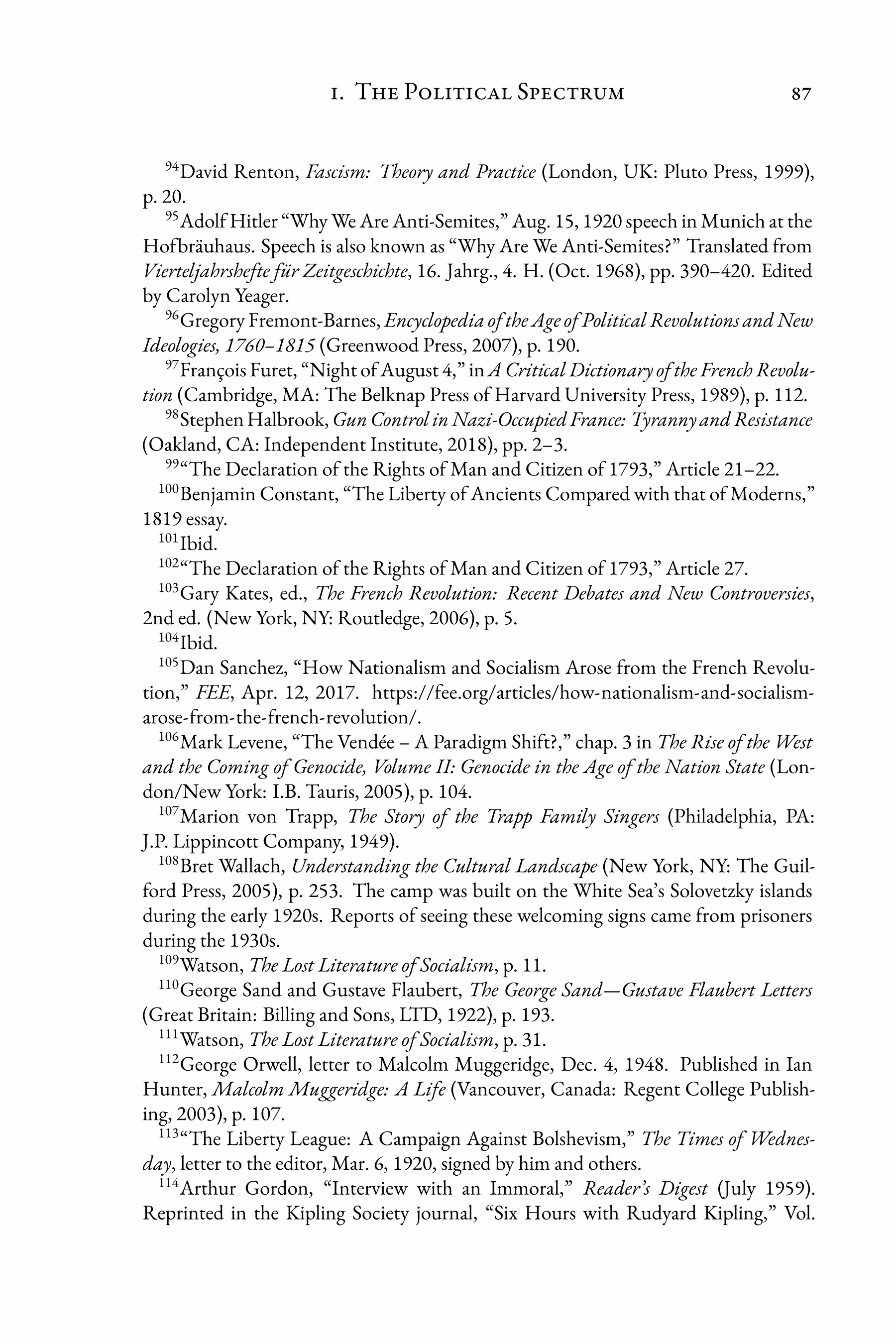

So, here's a real-life example from a history book I typeset last year (189k words, 595 pages).

Left = Normal Spaces throughout
Right = No-Break Spaces

1 "p." + 1 "F.M. Last":



1 "p." + 1 "pp.":



1 "No.":



And see if you can spot the no-break space here:



There were ~6000 no-break spaces added throughout the book:

• Most land in the middle of text, barely perceptible nudging.
• Only a small % of those actually ever land at the end of a line.

And as you can see in the 218 example above, paragraph-level justification + hyphenation automagically takes care of the vast majority of THOSE, so you see even LESS spacing/line-breaking problems. (A percentage of a percentage.)

Side Note: I searched the book for "p." + "pp.":

• 1425 total.
• 21 fell at the end of a line.

~1.5%.

The % is probably similar for all the other categories I listed earlier too.

So out of 6000 cases, ~90 might've made a readable difference.

(There was actually 1 case of "Sen." ending a page. Now that was an egregious issue.)

Originally Posted by phossler

Since I don't this stuff for a living or for others (just me and my Kindle [sounds like a country western song]) 'house style' = 'my style' and if I decide I don't like it it's easy 'nuff to undo it. I've changed my mind many times to remove what seemed like a good thing at the time

In ebooks, I kind of relate it to Soft Hyphens.

Sure, you can run the HyphenateThis plugin to try to correct for no/bad hyphenation on some devices... but definitely don't use it in a book you want to publish.

Originally Posted by phossler

3. Hope you get the blog online soon (Digital Slug??)

Yep, that's the title.

Originally Posted by phossler

1. Looking forward to the blog

Me too.

I've been prepping for quite a while (hence compiling/referencing all these links to old topics).

Plus I've been re-pumping myself up the past few weeks. I need to kick everything back into gear.
