Problem applying Jailbreak on Kindle Voyage

cookie_swap · 06-13-2015, 12:13 PM

Hi!

I have hooke my Kindle Voyage up to a serial interface and was able to login to recovery mode, change the root password, log into the normal OS and aplying the jailbreak. I also checked that the certificate exists at "/etc/uks/pubdevkey01.pem" and is correct. But I can not use self-signed .azw's or install an update (In this case the USB networking thingy). Can some please help me I'm getting depressions.

knc1 · 06-13-2015, 01:00 PM

Firmware version 5.6.x requires that you use MrPI (the Mobile Read, Package Installer).

To use self-signed azw (or anything), you must be signing with one of the (MKK) keys you installed when you ran the JB shell script from the command line.

I.E: the *.pem file is not the only thing that the JB for your device installs - but that should all have been handled for you when you ran its install script.

cookie_swap · 06-13-2015, 01:36 PM

Because information about applying the jailbreak on the Voyage are very fragmented I just want to make sure that everythin I did is correct.

Put the jailbreak files in the USB root
Mount /dev/mmcblk0p1 as /mnt/mmc
Run jb.sh
Reboot
Profit!

When people are saying that a jailbreak is not possible on version 5.6.2.1, do they mean impossible or that I need a UART connection? If I have done everything correct, is there a list with information what the Jailbreak script does? If not I would start looking at it and try to figure out what went wrong.

Any Ideads what else I could do would be apreciated.

NiLuJe · 06-13-2015, 02:50 PM

@cookie_swap: The current JB script doesn't handle being run from diags, has to be done from main.

(There's logic in previous versions to handle diags, though, if anyone cares).

cookie_swap · 06-13-2015, 03:29 PM

I only used diags to set the root password.
Actually I solved my problems. KUAL did not work because I was dumb. I put it in the USB root directory instead of the documents folder.

The "Update" button is still grayed out. But because KUAL is now working I was able to use NiLuJe's MobileRead Package Installer.

Just because of curiosity, does anyone know why the Update Button is grayed out?

knc1 · 06-13-2015, 04:09 PM

Quote:

Originally Posted by cookie_swap

I only used diags to set the root password.
Actually I solved my problems. KUAL did not work because I was dumb. I put it in the USB root directory instead of the documents folder.

The "Update" button is still grayed out. But because KUAL is now working I was able to use NiLuJe's MobileRead Package Installer.

Just because of curiosity, does anyone know why the Update Button is grayed out?

Because it is Amazon firmware series 5.5.x/5.6.x
Amazon disabled the recognition of our update_*.bin packages in those versions.
Which is why MrPI exists and why you have to use it.

NiLuJe · 06-13-2015, 08:06 PM

Well, at least that's another confirmation that KUAL runs on the KV, which wasn't a sure thing given the hard deprecation of Kindlets. Yay?.

knc1 · 06-13-2015, 08:45 PM

And didn't we have at least two reports of KUAL running on a KT2?

eschwartz · 06-14-2015, 11:26 AM

Note: easy way to tell if the MKK worked properly -- you will see the Kindlet but it will tell you your Kindle isn't a test Kindle.
If you don't see the Kindlet listed at all, the Kindle can't see it at all.

Glad you got it working.

cookie_swap · 06-14-2015, 12:47 PM

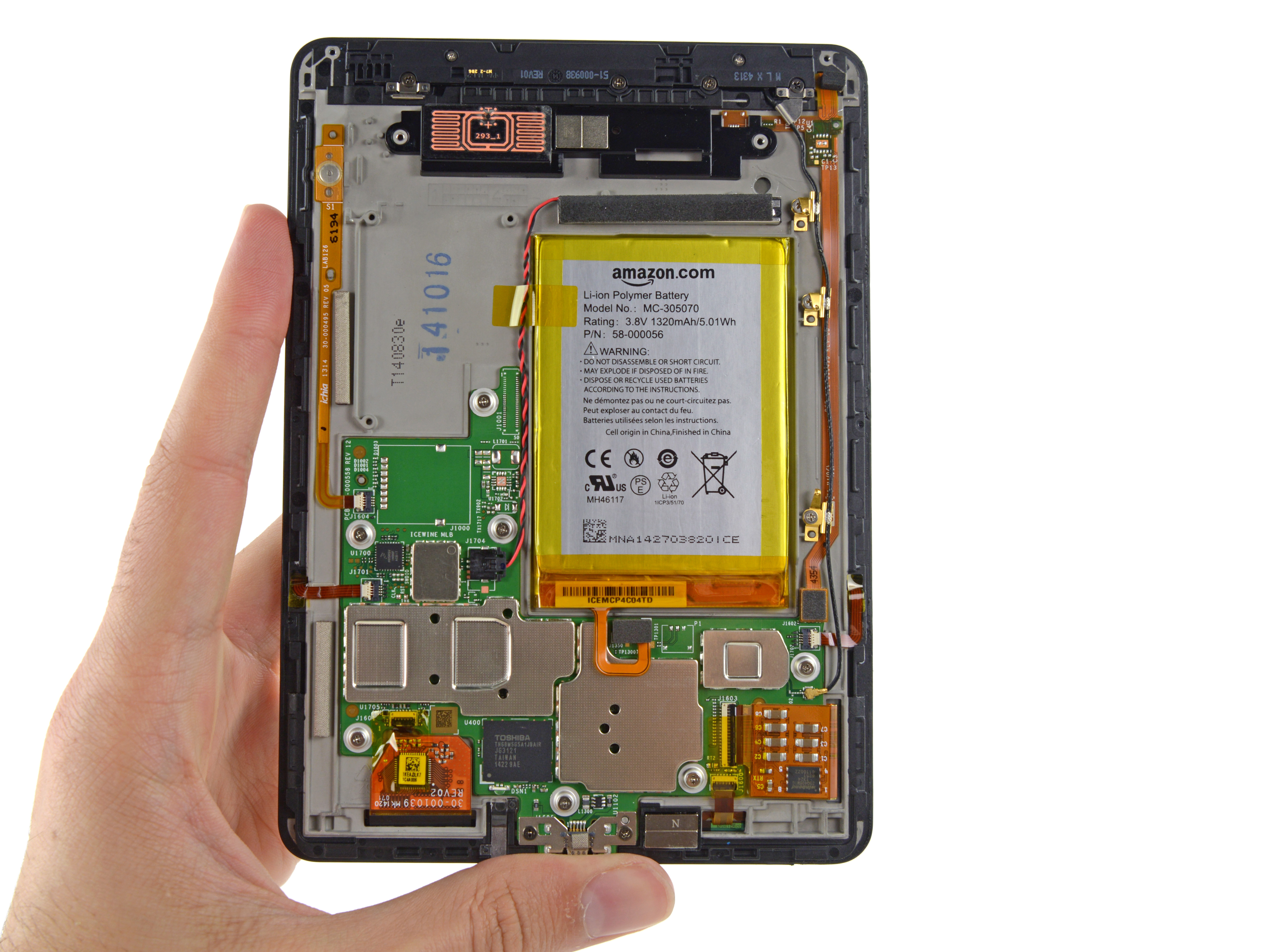

When setting up the serial connection I discovered something really strange. I first tried to use a BusPirate and TP13 (https://d3nevzfk7ii3be.cloudfront.ne...FsMJPmbvPLmRZs - Top right) as the 1V8 reference but I was only able to receive data. I then tried one of these cheapo UART/USB converter in combination with a logic level converter. Same problem here. I got it working by applying 3V3 on the Kindle. Has anybody else had that problem? I have never seen this behavior on any embedded system.

knc1 · 06-14-2015, 05:17 PM

You should not have seen it on a Kindle.

Recheck everything, you have something else wrong if that is required.

If you can't find out what is wrong yourself, take detailed pictures and attach to your next post.
