04-29-2015, 05:31 PM
|
#1 |
|
Member
  Posts: 11
Karma: 9794
Join Date: Aug 2013
Device: Kobo touch
|
Bypass the usb connector on kobo touch
The kobo usb connector is very delicat. It failed and while trying to re-solder the connector i accidentally teared it off the board including some leads.

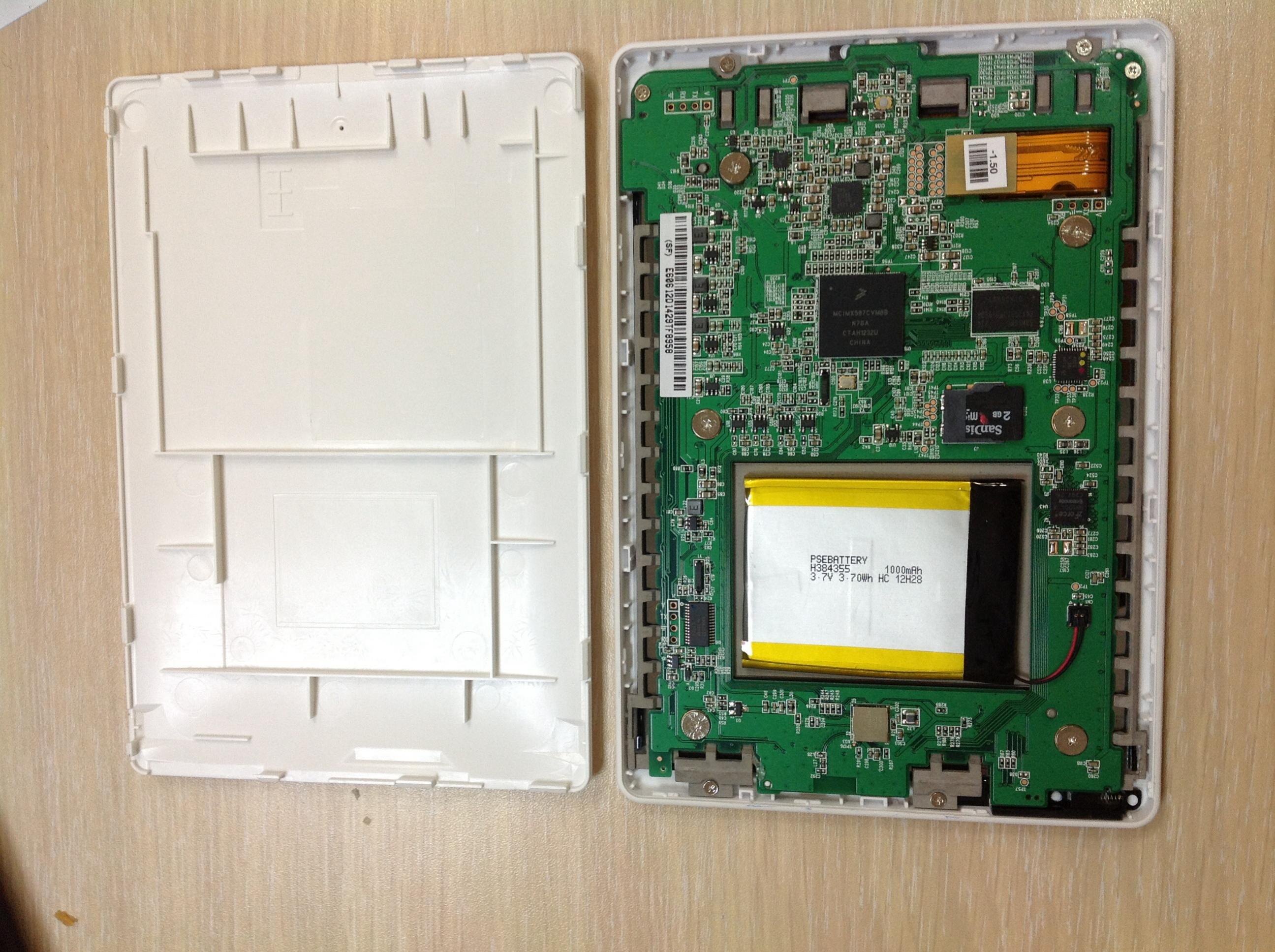

Decided to connect permanaetly a usb cale to points on the board. Managed to find the + and - points. Soldered the cable and it is charging ok. Need help to locate points on the borad were i can solder the data leads. Can you mark those points on the pc board photo attached? Help will very much apprechoated Moshe |
|
|
|
04-29-2015, 07:04 PM
|
#2 |
|
Member
Posts: 11
Karma: 9794
Join Date: Aug 2013
Device: Kobo touch
|
Kobo touch, bypassing usb
It looks like i already submitted the posr
|
|
|
|
