Need helps converting Leaf5 to Go7 - Page 3

Renate · Today, 05:44 AM

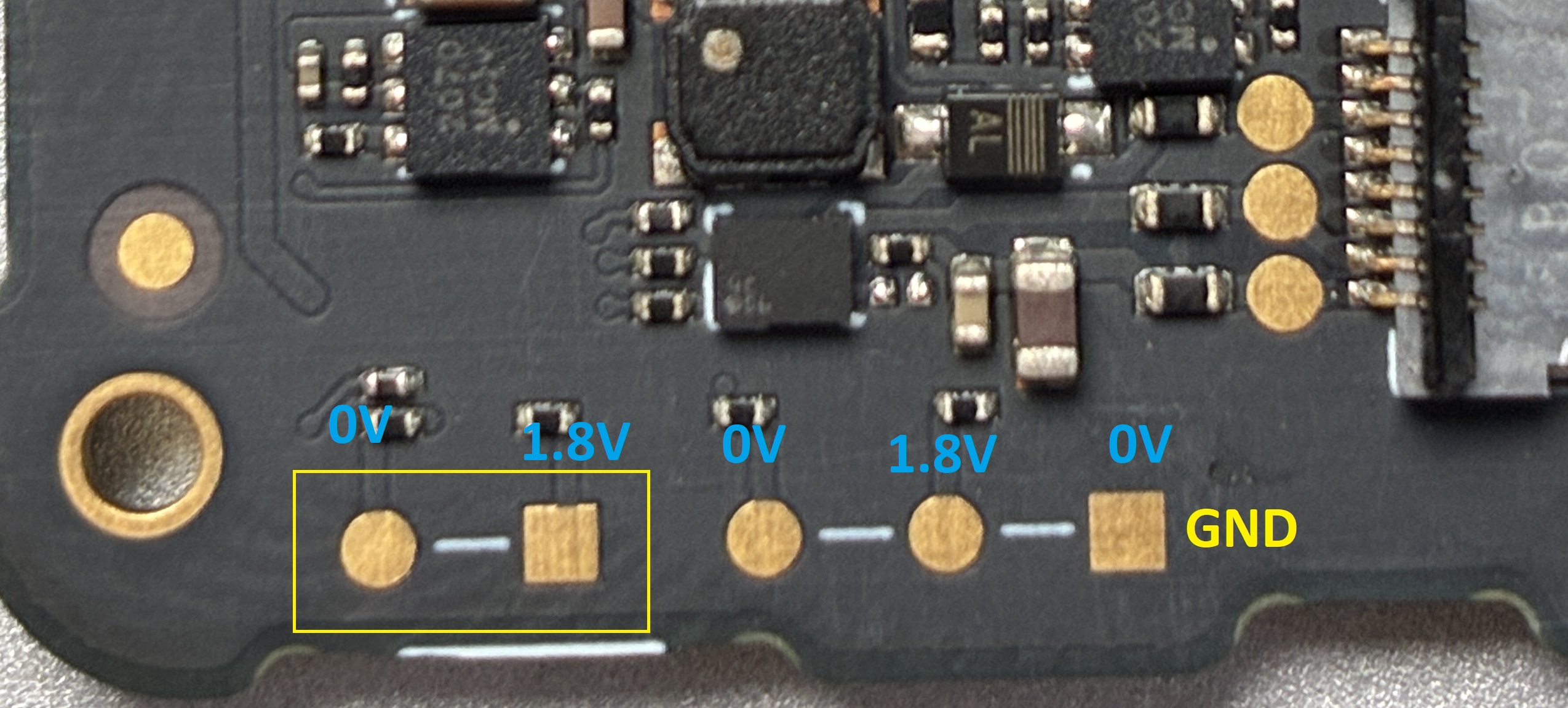

1.8V is the steady voltage source.
0V is a GPIO input with an internal pulldown resistor to ground.
This is true for all Qualcomm.

If you have a "diode test" mode on your DVM:
You can connect black to a ground (like a tin shield).
You can connect red to the "0V' point.
You can do a reset with the power button or adb reboot or however.

ronnie2024 · Today, 11:55 AM

Thank you Renate

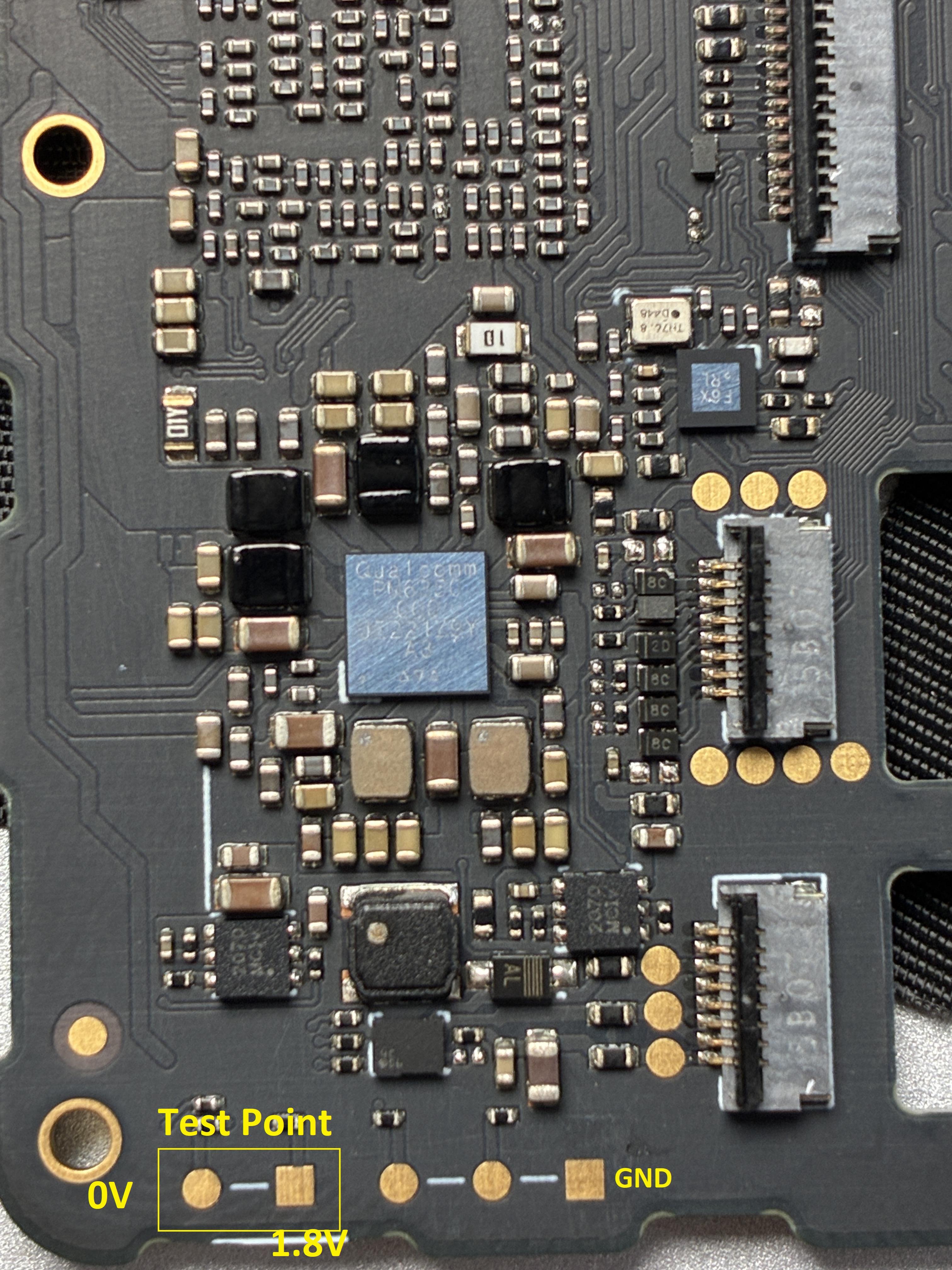

Those was the correct test point. I can boot to EDL mode successfully.

Today, 11:55 AM	#32
ronnie2024 Member Posts: 18 Karma: 10 Join Date: Feb 2025 Device: Boox Poke6	Thank you Renate Those was the correct test point. I can boot to EDL mode successfully. Attached Thumbnails
