Need helps converting Leaf5 to Go7

[vuanh1408]

Originally Posted by Renate

I see nothing for Leaf5.
Even the Go7 updates only came out recently.
It takes a while.
Besides, I though that you wanted to switch Leaf5 -> Go7

Model:  Go7 (English)
Finger: Onyx/Go7/Go7:11/2025-05-27_22-22_4.0-rel_05273_effe2ed7e/3390:user/release-keys
Link:   http://firmware-us.boox.com/b753c2ab6089082a058cb293082891fe/update.upx
Size:   1,923,950,996
MD5:    b753c2ab6089082a058cb293082891fe

Model:  Go7 (English)
Finger: Onyx/Go7/Go7:11/2025-06-12_21-37_4.0.3-rel_0612_68c009db9/3727:user/release-keys
Link:   http://firmware-us.boox.com/67a0177bcbbf64721e964815c76ffac6/update.upx
Size:   10,290,374
MD5:    67a0177bcbbf64721e964815c76ffac6

We're approaching the region of the bloatosphere where updates are 2 GB!

Yeah. I want to convert from leaf5 to go7. However, the touchscreen doesnt work on leaf5 after converting to go7. My friend who has some knowledge on modding rom for phone tells me that if he has the full ota rom for leaf5, it's possible for adding gg play services then i can flash the modded rom

[Renate]

I can't keep track of this stuff.
If the Go7 is not a good match, what is?
Does the Go7v2 fit better?

[vuanh1408]

Originally Posted by Renate

I can't keep track of this stuff.
If the Go7 is not a good match, what is?
Does the Go7v2 fit better?

There is no go7 v2, this is the first gen of go 7 (bw screen). Leaf5 is basically go7 without note taking function, so I guess there is no way to convert directly leaf5 to international like previous gen of leaf such as leaf2=leaf2p, leaf3=page

[Renate]

Oh, that's GoColor7 (Gen II).
I still don't know the actual model name of it.

[ronnie2024]

Hi Renate, I just tried to flash a leaf5 by a go7 2025 rom, but after successful boot to go7 rom, Its touch function does not work now. But i can control it on a laptop screen by your Grab app

[Renate]

There's probably hardware differences between the two models.
I really know nothing about either.

Did you save a full, raw backup of the original Leaf5?

If you can, you should run from rooted shell inscan and i2cscan on your device running both Leaf5 and Go7.

[ulqi]

So apparently getting the Go 7 firmware onto the Leaf 5 doesn't work because of the pen stuff (probably due to stylus support on the Go 7 and not the Leaf 5), and getting google play store sideloaded on the stock firmware doesn't work as well. Can you still sideload aurora store ?

[ronnie2024]

Originally Posted by ulqi

So apparently getting the Go 7 firmware onto the Leaf 5 doesn't work because of the pen stuff (probably due to stylus support on the Go 7 and not the Leaf 5), and getting google play store sideloaded on the stock firmware doesn't work as well. Can you still sideload aurora store ?

Hi Ulqi, Aurora works fine

[ronnie2024]

Hi Renate,
After some mistake my leaf5 bricked, then i teared down my Leaf5 to find edl active pins.
Can you guide me how to find them? It looks different than Pokes

[Renate]

Usually the easiest way is with an EDL cable.
You can usually make one yourself.
It may not work if your device is really bricked.

I don't think that I have a Microsoft account.
Why not just post the photos here?

[ronnie2024]

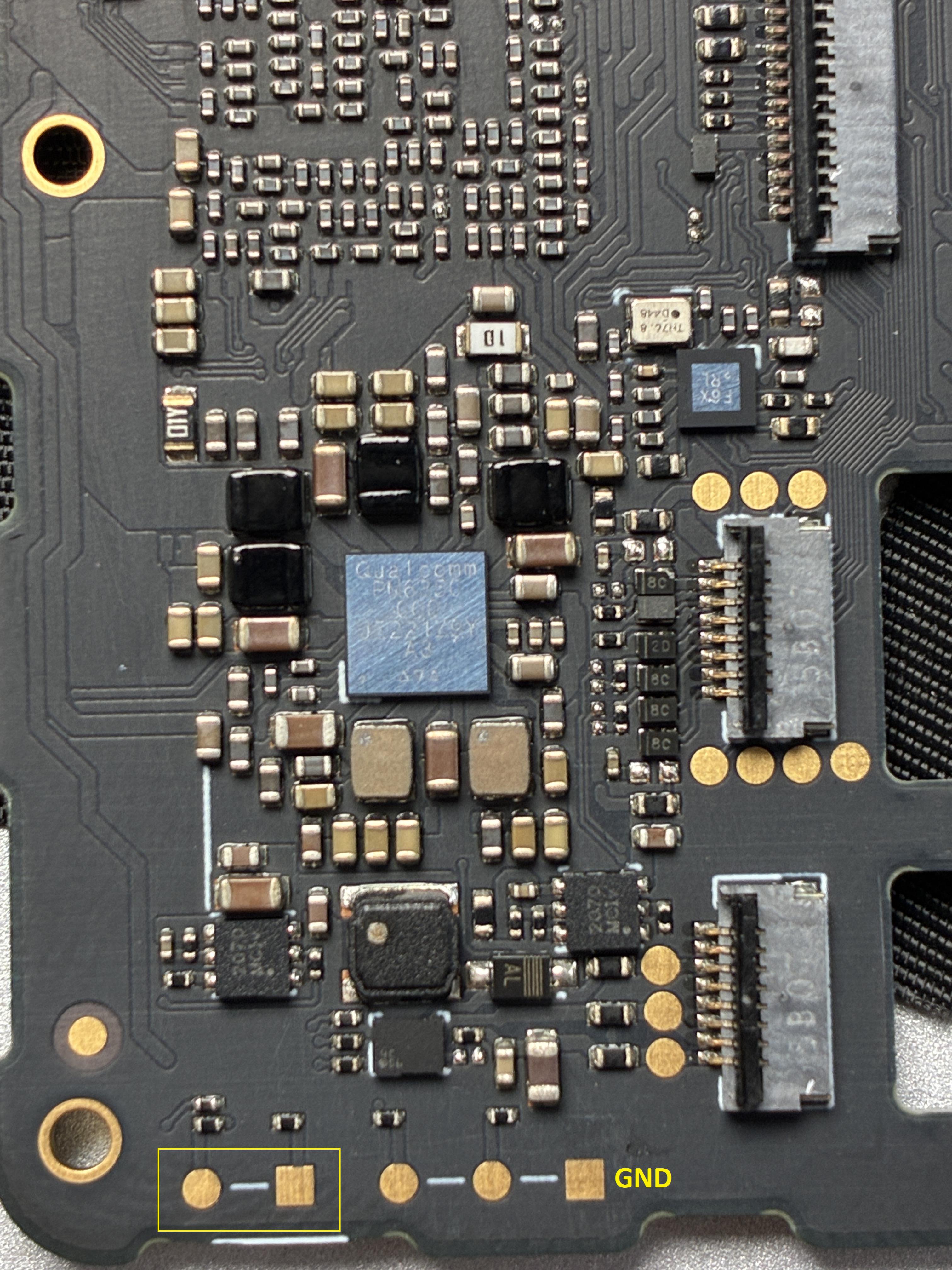

I just inserted some images on my last post -
And we can see its eink screen model is ed070kc5

[ronnie2024]

I think the test points are those 2 points

[ronnie2024]

I did some tests

[Renate]

Yes, that's very likely it.
Next to it is probably the UART: RX, TX, Gnd.

[ronnie2024]

If those 2 points are test points, so Boox uses pullup method, not pulldown method likes most of other brands. Right?
