downeaster59 · 12-08-2021, 11:04 AM

Quote:

Originally Posted by Renate

Everybody actually. UPS Stores for one. The UPS "Service Centers" (i.e. warehouses) are free, but they are few and far between and they try to have the worst hours and the worst service. The US Post Office has gotten positively hostile to General Delivery. They act as if they haven't been paid already for the transport. They add arbitrary local requirements. I use an unrelated business in town that charges me $5 a package.

I wasn't aware of any of this, either! Excuse my possible naïveté, but I wonder if this is a problem specific to your area or if this is something commonly found nationwide?

Renate · 12-08-2021, 02:13 PM

Quote:

Originally Posted by downeaster59

I wonder if this is a problem specific to your area or if this is something commonly found nationwide?

This is a problem for anyone in my situation. No address. Yes, I have a mailing service that receives my mail. They can scan my mail when I request it. That doesn't really help for packages. They'd have to forward them (which they can/will do) but it leaves me back at the same problem.

I dislike Amazon, but if they installed Amazon lockers in the next town over I would buy everything from them.

Unrelated rant: I dislike the US Postal Service (and other delivery services too, actually). They have tracking now on the internet. Fine, but certainly with the USPS there is a lot of delay in updating status. They report status as "Departing USPS Regional Destination Facility", but they never say where they are going. Is this just a road trip and they haven't made their minds up yet? Said USPS RDF is a two hour drive from here and there is nothing between it and me. My package "departed" (destination unknown) at 1:30 AM Wednesday morning. So, where is it and what's it doing? The bottom line is that the initial estimate was "delivery by Friday at 9 PM" and they will do anything to ensure that, including detaching the trailer and leaving it by the side of the highway for two days.

downeaster59 · 12-08-2021, 03:07 PM

@Renate: I can sympathize with the "No address" issue. Last year, I needed to move quickly from my abode in Maine and ended up living for several months in an apartment in the back of a church in the small town of Stratton, ME, near the Sugarloaf ski area. The problem I ran into was that, since no one had actually lived there before (though some had stayed there for personal retreats and the like), the location had no official USPS address! I could get a PO box at the local P.O., but this became a major problem for stuff like car insurance, internet service, or any physical deliveries. Some companies would deliver, some would not. Internet service? Nope. They couldn't find the address in their database. Car insurance? I only convinced them with photos of me, my car, and my location. I asked the local PO postmaster about it, but it was not a priority for them. Now I really appreciate living in a place with an official USPS address again!!

Back to our regularly scheduled topic: my Nook GL 4 is still due here tomorrow. It's in Louisville, KY now, according to UPS (pronounced Oops by some customers...). I am hopeful that I really will see it tomorrow...

downeaster59 · 12-09-2021, 06:11 AM

Well, this is bizarre! An hour ago, I saw that my shipment was in my area and loaded on a delivery vehicle. Then, I had an email from B&N telling me that my shipment is coming tomorrow and is in a different state!

I finally figured it out. B&N sent my GL4 and cover in separate shipments from the same place. Each took a different route, oddly enough. The GL4 is in this area, and the cover is in NJ.

Maybe I should wait and see what actually comes today - if anything!

Renate · 12-09-2021, 07:11 AM

I think that we're in quantum reality.
B&N sent me an email this morning saying the I'd get my Glow tomorrow.
I checked the USPS tracking. Yesterday (Wednesday) it said that it departed the RDF at 1:30 AM. Now the tracking history says that it arrived at 1:30 AM. It says that it departed the RDF early this morning. Unfortunately I don't have a screenshot from yesterday as proof. OTOH, the cover is following the same track and will arrive Monday. I'll try to capture this discrepancy if it repeats.

downeaster59 · 12-09-2021, 11:21 AM

Quote:

Originally Posted by Renate

I think that we're in quantum reality.
B&N sent me an email this morning saying the I'd get my Glow tomorrow.
I checked the USPS tracking. Yesterday (Wednesday) it said that it departed the RDF at 1:30 AM. Now the tracking history says that it arrived at 1:30 AM. It says that it departed the RDF early this morning. Unfortunately I don't have a screenshot from yesterday as proof. OTOH, the cover is following the same track and will arrive Monday. I'll try to capture this discrepancy if it repeats.

Our delivery stories are beginning to sound like a Twilight Zone episode!

They also remind me of this - if you're a fan of said show...

It's just simple physics...

Renate · 12-09-2021, 02:03 PM

I had to go to town this morning. I came back and now they say it's out for delivery. Ok, I'll take a post-prandial nap and head into town again.

Edit: MST3K rocks!

Renate · 12-09-2021, 04:27 PM

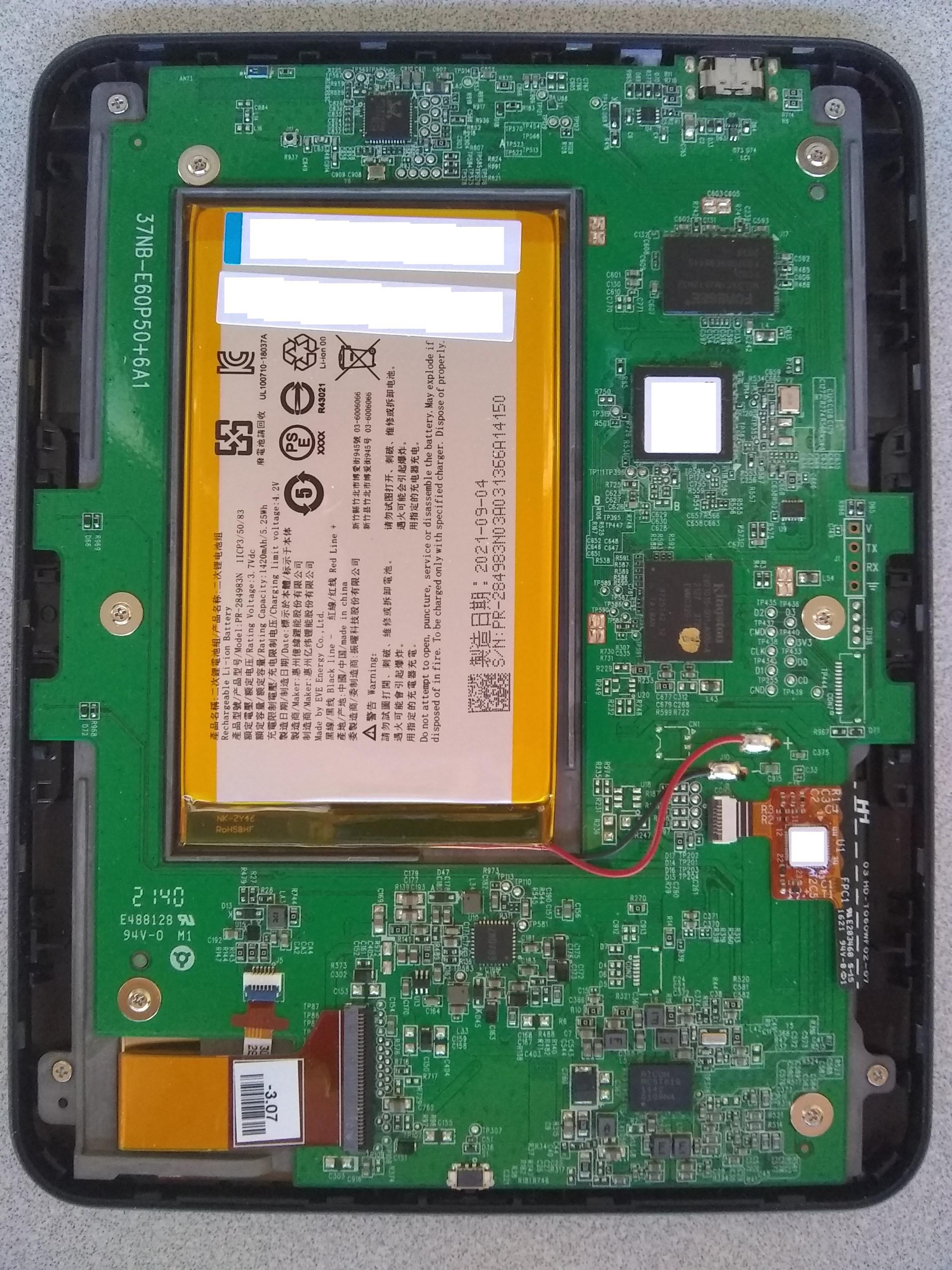

It ain't unboxing until you unbox it!

downeaster59 · 12-09-2021, 04:32 PM

Mine just arrived! I may not go quite so far in unboxing mine, but I'll be most curious about whatever you learn from your full unboxing!

Edit: I can't run mine yet. When I turned it on, a message came up that it was too cold but that I could try again in a few minutes. It's 28 degrees outside... but not inside! : )

Edit #2: On, and already downloading an update!

Renate · 12-09-2021, 05:15 PM

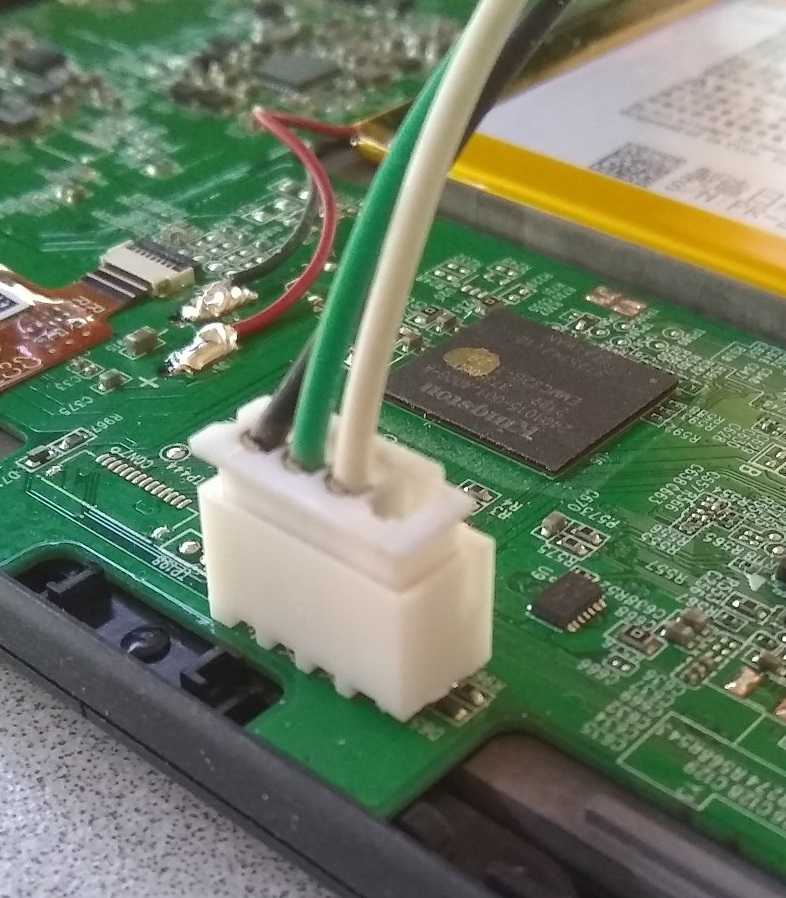

It ain't yours until you void the warranty!

Spoiler:

Code:

[74]HELLO! BOOT0 is starting! (May  5 2021 16:57:03)
[79]boot0 commit : 9ab89d99e8b5591581f7c80103967619ab93f65d

[96]set pll start
[106]rtc[0] value = 0x00000000
[109]rtc[1] value = 0x00000000
[112]rtc[2] value = 0x00000000
[115]rtc[3] value = 0x00000000
[118]rtc[4] value = 0x00000000
[120]rtc[5] value = 0x00000000
[123]DRAM BOOT DRIVE INFO: V1.15
[127]chip id check OK
[129]DRAM_VCC set to 1100 mv
[132]DRAM CLK =792 MHZ
[134]DRAM Type =8 (3:DDR3,4:DDR4,7:LPDDR3,8:LPDDR4)
[140]user define remapping used
[143]dx0: 65743021,dx1: 02654713,dx2: 03567412,dx3: 71652340
[182]Training result is = 00000007
[186]Actual DRAM SIZE =2048 M
[189]DRAM SIZE =2048 M,para1 = 0000310a,para2 = 08000000
[203]DRAM simple test OK.
[205]dram size =2048
[209]card no is 2
[210]sdcard 2 line count 8
[213][mmc]: mmc driver ver 2018-04-08 14:50
[217][mmc]: mmc 2 bias 00000004
[226][mmc]: ***Try MMC card 2***
[239][mmc]: MMC 5.1
[241][mmc]: HSDDR52/DDR50 8 bit
[244][mmc]: 50000000 Hz
[247][mmc]: 29844 MB
[249][mmc]: ***SD/MMC 2 init OK!!!***
[316]Loading boot-pkg Succeed(index=0).
[320]ram p=40000000,size=-./,),(-*,(
[328]ntx_hwconfig exist !
[330][NTX] Parsing boot_package.fex
[334]Entry_name        = scp
[344]Entry_name        = optee
[349]Entry_name        = u-boot
[359]Entry_name        = soc-cfg
[363]Entry_name        = dtb
[367]Entry_name        = logo
[370]Entry_name        = shutdowncharge
[374]Entry_name        = androidcharge
[378]Ready to disable icache.
[381]0xffffffff 0xffffffff
[383]0xff1affff 0xffffffff
[386]0xff101aff 0xffffffff
[389]0x1a1affff 0xffff281a
[391]0x111fffff 0xffffff09
[394]0x1d1bffff 0xffffff1a
[397]Jump to secend Boot.
MESSAGE: [0x0] TEE-CORE: OP-TEE version: 467fe7e5-dirty #3 Wed Nov 11 06:30:31 UTC 2020 arm
MESSAGE: [0x0] TEE-CORE: arisc version: [7d58474-20211024T122454B1024_122932]


U-Boot 2014.07 (Nov 05 2021 - 04:12:07) Allwinner Technology , Build: jenkins-Build_Android_Image_repoway_release_Gentoo-118

uboot commit : dc6927f35632ca94be8426e709af341965f97220

secure enable bit: 0
normal mode: with secure monitor
I2C:   ready
[0.442]pmbus:   ready
axp: get node[charger0] error
axp_probe error
[0.447]PMU: cpux 1008 Mhz,AXI=504 Mhz
[0.450]PLL6=600 Mhz,AHB1=200 Mhz, APB1=100Mhz MBus=400Mhz
DRAM:  2 GiB
Relocation Offset is: 75649000
axp: get node[charger0] error
gic: sec monitor mode
[0.558]power on cpu1
[0.568]power on cpu2
workmode = 0,storage type = 2
[0.569]MMC:      2
sdc2 signal voltage is 1.8V
Set PC power mode bit to 1.8V
SUNXI SD/MMC: 2
[NTX] EMMC need_tuning:0
Best spd md: 4-HS400, freq: 3-100000000
Normal
AW partition init ok
[0.590]out of usb burn from boot: without usb
[NTX] Read env.fex from 1286
boot mode: 0
ntx_hw_early_init()
ram p=40000000,size=2147483648
mmc2(part 0) is current device
mmc read 0xae583068 0x3ff 0x1

MMC read: dev # 2, block # 1023, count 1 ... 1 blocks read: OK
mmc read 0xbffffe00 0x400 0x1

MMC read: dev # 2, block # 1024, count 1 ... 1 blocks read: OK

 hwcfgp=bffffe00,pcb=100,customer=0

ntx_hw_late_init()
RC5T619_regulator_init : DC1(Core2_0V9_CPU) : 1162500uV, DC2(Core1_0V9_CPUSLDO) : 1000000uV
RC5T619_watchdog(1,32)
do not find fastboot status flag
--------fastboot partitions--------
-total partitions:15-
-name-        -start-       -size-
UDISK       : 7d000000      c9c00200
bootloader  : 1000000       2000000
env         : 3000000       1000000
boot        : 4000000       2000000
system      : 6000000       40000000
vendor      : 46000000      f000000
misc        : 55000000      1000000
recovery    : 56000000      2000000
cache       : 58000000      20000000
metadata    : 78000000      1000000
private     : 79000000      1000000
frp         : 7a000000      80000
empty       : 7a100000      f00000
dto         : 7b000000      1000000
media_data  : 7c000000      1000000
---------------------------------
sn          :
boot_env    :
boot_package:
hwcfg       :
ntxfw       :
kernel      :
waveform    :
boot0       :
-----------------------------------
reading ULI/factory/snum.txt
** Unable to read file ULI/factory/snum.txt **
load file(ULI/factory/snum.txt) error
Hit any key to stop autoboot: -1
[part_name]:boot  , start_block:131072l ,rblock:65536l
[NTX][sunxi_flash_read_all] boot read start:131072l====
[NTX] compare ANDR_BOOT_MAGIC
ntx_prebootm : cmd=setenv snum  5014610006845000
mmc2(part 0) is current device
Writing recovery BCB to misc partition...
mmc read 0xae58293c 0x402 0x1

MMC read: dev # 2, block # 1026, count 1 ... 1 blocks read: OK
hwcfg UIStyle=2,partype=2,rootfstype=2
_detect_bootmode(1450)

 hwcfgp=bffffe00,pcb=100,customer=0

ESDin=0,UPGKey=0,PWRKey=0,USBin=0x0,BootESD=0,MenuKey=-1
mmc read 0xae5828e0 0x401f 0x1

MMC read: dev # 2, block # 16415, count 1 ... 1 blocks read: OK
mmc read 0xbf9d0200 0x4020 0x317e

MMC read: dev # 2, block # 16416, count 12670 ... 12670 blocks read: OK
mmc read 0xae5828e0 0x405 0x1

MMC read: dev # 2, block # 1029, count 1 ... 1 blocks read: OK
[WARNING] Binaries load sequence should Lo->Hi !
mmc read 0xbf9cdc00 0x406 0x13

MMC read: dev # 2, block # 1030, count 19 ... 19 blocks read: OK
Kernel RAM visiable size=2041M->2041M
RC5T619_charge_enable : CHGCTL1<=0x20 ok
Kernel load addr 0x40008000 size 15968 KiB
Kernel command line: selinux=1 androidboot.selinux=permissive buildvariant=user
RAM disk load addr 0x42000000 size 1246 KiB
android.hardware = sun8iw15p1
[1.956]
Starting kernel ...

Booting Linux on physical CPU 0x0
Linux version 4.9.56 (build@dnjplatbuild07) (gcc version 5.3.1 20160412 (Linaro GCC 5.3-2016.05) ) #1 SMP PREEMPT Fri Nov 5 04:17:15 EDT 2021
Kernel commit : dc6927f35632ca94be8426e709af341965f97220
CPU: ARMv7 Processor [410fc075] revision 5 (ARMv7), cr=10c5387d
CPU: div instructions available: patching division code
CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
OF: fdt:Machine model: sun8iw15
bootconsole [earlycon0] enabled
cma: Reserved 128 MiB at 0xb7800000
Memory policy: Data cache writealloc
psci: probing for conduit method from DT.
psci: PSCIv0.2 detected in firmware.
psci: Using standard PSCI v0.2 function IDs
psci: MIGRATE_INFO_TYPE not supported.
percpu: Embedded 15 pages/cpu @e5588000 s31744 r8192 d21504 u61440
Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 521110
Kernel command line: earlyprintk=sunxi-uart,0x01c28000 initcall_debug=0 console=ttyS0,115200 loglevel=7 root=/dev/mmcblk0p5 init=/init partitions=UDISK@mmcblk0p1:bootloader@mmcblk0p2:env@mmcblk0p3:boot@mmcblk0p4:system@mmcblk0p5:vendor@mmcblk0p6:misc@mmcblk0p7:recovery@mmcblk0p8:cache@mmcblk0p9:metadata@mmcblk0p10:private@mmcblk0p11:frp@mmcblk0p12:empty@mmcblk0p13:dto@mmcblk0p14:media_data@mmcblk0p15 cma=128M vmalloc=400M snum=ac0014253245876208e no_console_suspend selinux=1 androidboot.selinux=permissive buildvariant=user hwcfg_p=0xbffffe00 hwcfg_sz=110 waveform_p=0xbf9d0200 waveform_sz=6486688 ntxfw_p=0xbf9cdc00 ntxfw_sz=9474 mem=2041M androidboot.serialno=5014610006845000 androidboot.hardware=sun8iw15p1 boot_type=2 dram_clk=792 gpt=1
PID hash table entries: 4096 (order: 2, 16384 bytes)
Dentry cache hash table entries: 131072 (order: 7, 524288 bytes)
Inode-cache hash table entries: 65536 (order: 6, 262144 bytes)
Memory: 1774552K/2089984K available (9216K kernel code, 634K rwdata, 3048K rodata, 1024K init, 877K bss, 184360K reserved, 131072K cma-reserved, 1328128K highmem)
Virtual kernel memory layout:
    vector  : 0xffff0000 - 0xffff1000   (   4 kB)
    fixmap  : 0xffc00000 - 0xfff00000   (3072 kB)
    vmalloc : 0xe7000000 - 0xff800000   ( 392 MB)
    lowmem  : 0xc0000000 - 0xe6800000   ( 616 MB)
    pkmap   : 0xbfe00000 - 0xc0000000   (   2 MB)
    modules : 0xbf000000 - 0xbfe00000   (  14 MB)
      .text : 0xc0008000 - 0xc0a00000   (10208 kB)
      .init : 0xc0e00000 - 0xc0f00000   (1024 kB)
      .data : 0xc0f00000 - 0xc0f9ea98   ( 635 kB)
       .bss : 0xc0fa0000 - 0xc107b4e4   ( 878 kB)
SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
Preemptible hierarchical RCU implementation.
        Build-time adjustment of leaf fanout to 32.
NR_IRQS:16 nr_irqs:16 16
clocksource: timer: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 79635851949 ns
arm_arch_timer: Architected cp15 timer(s) running at 24.00MHz (phys).
clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
Switching to timer-based delay loop, resolution 41ns
Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=80000)
pid_max: default: 32768 minimum: 301
Security Framework initialized
SELinux:  Initializing.
Mount-cache hash table entries: 2048 (order: 1, 8192 bytes)
Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes)
CPU: Testing write buffer coherency: ok
ftrace: allocating 31912 entries in 94 pages
ntx_parse_cmdline():cp cmdline=earlyprintk=sunxi-uart,0x01c28000 initcall_debug=0 console=ttyS0,115200 loglevel=7 root=/dev/mmcblk0p5 init=/init partitions=UDISK@mmcblk0p1:bootloader@mmcblk0p2:env@mmcblk0p3:boot@mmcblk0p4:system@mmcblk0p5:vendor@mmcblk0p6:misc@mmcblk0p7:recovery@mmcblk0p8:cache@mmcblk0p9:metadata@mmcblk0p10:private@mmcblk0p11:frp@mmcblk0p12:empty@mmcblk0p13:dto@mmcblk0p14:media_data@mmcblk0p15 cma=128M vmalloc=400M snum=ac0014253245876208e no_console_suspend selinux=1 androidboot.selinux=permissive buildvariant=user hwcfg_p=0xbffffe00 hwcfg_sz=110 waveform_p=0xbf9d0200 waveform_sz=6486688 ntxfw_p=0xbf9cdc00 ntxfw_sz=9474 mem=2041M androidboot.serialno=5014610006845000 androidboot.hardware=sun8iw15p1 boot_type=2 dram_clk=792 gpt=1
hwcfg_size_setup() hwcfg_szie=110
hwcfg_p_setup() hwcfg_p=bffffe00,vaddr=e7011e00,size=110,pcb=0x64
[ntx_parse_cmdline-384] boot_port= not found !!!
ntxfw_size_setup() ntxfw_size=9474
ntxfw[0],"E60P54_dualfl_hdr_210705",type=0x6,sz=16
lm3630fl dual color table : 11 temperatures ,c1_pwr=0xa,c2_pwr=0x6
ntxfw[1],"E60P54_dualfl_tab_210705",type=0x7,sz=9284
ntxfw_p_setup() ntxfw_p=bf9cdc00,vaddr=e7014c00,size=9474,name="E60P54",ver=0.0.0.0,items=2
CPU0: update cpu_capacity 1024
CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
Setting up static identity map for 0x40100000 - 0x40100058
CPU1: update cpu_capacity 1024
CPU1: thread -1, cpu 1, socket 0, mpidr 80000001
CPU2: update cpu_capacity 1024
CPU2: thread -1, cpu 2, socket 0, mpidr 80000002
CPU3: update cpu_capacity 1024
CPU3: thread -1, cpu 3, socket 0, mpidr 80000003
Brought up 4 CPUs
SMP: Total of 4 processors activated (192.00 BogoMIPS).
CPU: All CPU(s) started in SVC mode.
devtmpfs: initialized
VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5
clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6370867519511994 ns
futex hash table entries: 1024 (order: 4, 65536 bytes)
atomic64_test: passed
pinctrl core: initialized pinctrl subsystem
regulator-dummy: no parameters
NET: Registered protocol family 16
DMA: preallocated 256 KiB pool for atomic coherent allocations
dump_class_init,859, success
cpuidle: using governor menu
sunxi iommu: irq = 22
hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.
hw-breakpoint: maximum watchpoint size is 8 bytes.
sun8iw15p1-r-pinctrl r_pio: initialized sunXi PIO driver
sun8iw15p1-pinctrl pio: initialized sunXi PIO driver
sunxi hwspinlock vbase:0xe7062000
iommu: Adding device 1c0e000.ve to group 0
iommu: Adding device disp to group 0
iommu: Adding device soc@03000000:eink_idx@01400000 to group 0
iommu: Adding device soc@03000000:eink_dec@01400000 to group 0
iommu: Adding device soc@03000000:edma@01400400 to group 0
iommu: Adding device 1480000.g2d to group 0
pstore: using zlib compression
console [pstore-1] enabled
pstore: Registered ramoops as persistent store backend
ramoops: attached 0x60000@0x48106000, ecc: 0/0
sunxi_ddr_auto_selfrefresh_probe(132):membase=e70c7030
pwm module init!
[ARISC] :sunxi-arisc driver v3.00
[ARISC] :sunxi-arisc driver v3.00 startup succeeded
Read ricoh619_temp_detect 1
PMU: ricoh61x_i2c_init:
[ricoh61x_i2c_init-1905] twi2 addr 0x32
SCSI subsystem initialized
usbcore: registered new interface driver usbfs
usbcore: registered new interface driver hub
usbcore: registered new device driver usb
sunxi_i2c_probe()1341 - [I2C0] failed to get regulator id
sunxi_i2c_probe()1341 - [I2C1] failed to get regulator id
sunxi_i2c_probe()1341 - [I2C2] failed to get regulator id
ricoh61x_i2c_detect: Detected chip ricoh619 at adapter 2, address 0x32
PMU: ricoh61x_i2c_probe:
ricoh61x_pre_init,line=1509
ricoh61x irq gpio 359
invalid dc_det gpio: -2
ricoh61x chg gpio 358
ricoh61x bat_low gpio 36
ricoh61x_i2c_probe: ricoh619_pmic_sleep=0
PMU: ricoh61x_irq_init: g_full_flag: 0, CHGSTS1: 0x20
ricoh619 2-0032: watchdog enabled in uboot
ricoh61x_irq_init: ricoh619_pmic_irq=1
[ricoh61x_i2c_probe-1648] pm_power_off c070b350, arm_pm_restart c070b314
media: Linux media interface: v0.10
Linux video capture interface: v2.00
ion_parse_dt_heap_common: id 0 type 0 name sys_user align 1000
ion_parse_dt_heap_common: id 1 type 1 name sys_contig align 1000
ion_parse_dt_heap_common: id 2 type 2 name carveout align 1000
ion_parse_dt_heap_common: id 4 type 4 name cma align 1000
ion_parse_dt_heap_common: id 6 type 6 name secure align 1000
drm_base=0x40000000
drm_size=0x0
tee_base=0x2000000
Advanced Linux Sound Architecture Driver Initialized.
Bluetooth: Core ver 2.22
NET: Registered protocol family 31
Bluetooth: HCI device and connection manager initialized
Bluetooth: HCI socket layer initialized
Bluetooth: L2CAP socket layer initialized
Bluetooth: SCO socket layer initialized
PMU: ricoh61x_regulator_init
PMU: ricoh61x_regulator_probe
RICOH619_DC1: 1162 mV
RICOH619_DC2: 1000 mV
RICOH619_DC3: 600 <--> 3300 mV at 3300 mV
random: fast init done
RICOH619_DC4 at 1700000uv suspend
RICOH619_DC4: at 1800 mV
RICOH619_DC5: Bringing 1200000uV into 1100000-1100000uV
__ricoh61x_set_voltage() RICOH619_DC5 set to 1100000uv
RICOH619_DC5 at 1100000uv suspend
RICOH619_DC5: 1100 mV
RICOH619_LDO1 at 3000000uv suspend
RICOH619_LDO1: 3300 mV
RICOH619_LDO2: 3300 mV
RICOH619_LDO3: at 900 mV
RICOH619_LDO4: at 1800 mV
RICOH619_LDO5: at 3300 mV
RICOH619_LDO6: at 600 mV
RICOH619_LDO7: at 3300 mV
RICOH619_LDO8: 1800 mV
RICOH619_LDO9: at 1800 mV
RICOH619_LDO10 at 3000000uv suspend
RICOH619_LDO10: at 3300 mV
RICOH619_LDORTC1: 1800 mV
RICOH619_LDORTC2: at 3300 mV
PMU RTC: ricoh61x_rtc_probe, ricoh61x driver run at 24H-mode
PMU RTC: we never using periodic function and interrupt
ricoh61x_rtc_Pon_get_clr, PON=1 -- CTRL2=0x10
PMU: ricoh61x_rtc_probe Set default time
PMU: ricoh61x_rtc_set_time
rtc_ricoh619 rtc_ricoh619: PMU: print_time *** rtc-time : 1/1/2012 0:0:0 *****
PMU: ricoh61x_rtc_probe register rtc device
PMU: ricoh61x_rtc_read_alarm
rtc_ricoh619 rtc_ricoh619: PMU: read alarm: 1/1/2011 0:0:0 *****
rtc_ricoh619 rtc_ricoh619: rtc core: registered rtc_ricoh619 as rtc0
[ricoh61x_irq_sync_unlock-280] set 0xAE to 0x60
RICOH61x RTC Register Success
clocksource: Switched to clocksource arch_sys_counter
VFS: Disk quotas dquot_6.6.0
VFS: Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
get androidboot.mode fail
PMIC0: sy7636_name = sy7636
PMIC0: sy7636_twi_id = 1
PMIC0: sy7636_twi_addr = 0x62
PMIC0: sy7636_wakeup = 132
PMIC0: sy7636_vcom = 131
PMIC0: sy7636_powerup = 133
PMIC0: xon is invalid.
PMIC0: sy7636_powergood = 231
PMIC0: sy7636_int = 134
PMIC0: sy7636_powerall = 230
PMIC0: sy7636_ldo = vcc-pmic0
PMIC0: sy7636_on_delay1 = 2
PMIC0: sy7636_on_delay2 = 2
PMIC0: sy7636_on_delay3 = 2
PMIC0: sy7636_on_delay4 = 2
PMIC0: get vldo fail
PMIC0: get vpdd fail
PMIC0: get vddh_ext fail
PMIC0: get vpdd_len fail
PMIC0: get vp_ext fail
PMIC0: get vee_ext fail
PMIC0: get xon_off_delay_us fail
PMIC0: get xon_off_day_delay_us fail
PMIC0: get xon_on_delay_us fail
PMIC1: cannot find config node(sy7636_slave)
sy7636_i2c_detect: Detected chip sy7636 at adapter 1, address 0x62
PMIC0: there is no xon pin declared
sy7636_regs_init() VPDD_LEN=0x0
sy7636_regs_init() VEE_VP_EXT=0x20
sy7636_regs_init() VCOM_ADJ1=0x7d
sy7636_regs_init() VCOM_ADJ2=0x0
sy7636_regs_init() VLDO_ADJ=0x66
sy7636_regs_init() PWRON_DLY=0xaa
master pmic has not initial yet
get vcom sucess, chip VCOM -2 mV, match config VCOM 0 mV ... init finish
hw_init master pmic ok
init master pmic ok
NET: Registered protocol family 2
TCP established hash table entries: 8192 (order: 3, 32768 bytes)
TCP bind hash table entries: 8192 (order: 4, 65536 bytes)
TCP: Hash tables configured (established 8192 bind 8192)
UDP hash table entries: 512 (order: 2, 16384 bytes)
UDP-Lite hash table entries: 512 (order: 2, 16384 bytes)
NET: Registered protocol family 1
sunxi budget cooling probe start !
CPU freq cooling register Success
CPU hotplug cooling register Success
CPU budget cooling register Success
Trying to unpack rootfs image as initramfs...
Freeing initrd memory: 1248K
hw perfevents: enabled with armv7_cortex_a7 PMU driver, 5 counters available
audit: initializing netlink subsys (disabled)
audit: type=2000 audit(1.523:1): initialized
workingset: timestamp_bits=14 max_order=19 bucket_order=5
Registering sdcardfs 0.1
ntfs: driver 2.1.32 [Flags: R/W].
fuse init (API version 7.26)
NET: Registered protocol family 38
bounce: pool size: 64 pages
Block layer SCSI generic (bsg) driver version 0.4 loaded (major 249)
io scheduler noop registered
io scheduler deadline registered
io scheduler cfq registered (default)
sunxi_suspend_init, 0x40020000, 0x0, 0x800
CPUS version : 7d58474-20211024T122454B1024_122932
uart uart0: get regulator failed
uart0: ttyS0 at MMIO 0x5000000 (irq = 195, base_baud = 1500000) is a SUNXI
sw_console_setup()1679 - console setup baud 115200 parity n bits 8, flow n
console [ttyS0] enabled
console [ttyS0] enabled
bootconsole [earlycon0] disabled
bootconsole [earlycon0] disabled
uart uart1: get regulator failed
uart1: ttyS1 at MMIO 0x5000400 (irq = 196, base_baud = 1500000) is a SUNXI
misc dump reg init
G2D: Module initialized.major:247
brd: module loaded
loop: module loaded
zram: Added device: zram0
[NAND]Failed to insmod nand!!!
sunxi-bt bt: bt_power_name (vcc-wifi)
sunxi-bt bt: io_regulator_name (vcc-wifi-io)
sunxi-bt bt: bt_rst gpio=202  mul-sel=1  pull=1  drv_level=1  data=0
sunxi-bt bt: block state already is 1
sunxi-wlan wlan: wlan_busnum (1)
sunxi-wlan wlan: wlan_power_name (vcc-wifi)
sunxi-wlan wlan: io_regulator_name (vcc-wifi-io)
sunxi-wlan wlan: wlan_regon gpio=228  mul-sel=1  pull=0  drv_level=1  data=0
sunxi-wlan wlan: get gpio chip_en failed
sunxi-wlan wlan: wlan_hostwake gpio=203  mul-sel=6  pull=0  drv_level=0  data=0
libphy: Fixed MDIO Bus: probed
tun: Universal TUN/TAP device driver, 1.6
tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
PPP generic driver version 2.4.2
PPP BSD Compression module registered
PPP Deflate Compression module registered
PPP MPPE Compression module registered
NET: Registered protocol family 24
PPTP driver version 0.8.5
usbcore: registered new interface driver rtl8150
usbcore: registered new interface driver r8152
usbcore: registered new interface driver asix
usbcore: registered new interface driver ax88179_178a
usbcore: registered new interface driver cdc_ether
usbcore: registered new interface driver smsc75xx
usbcore: registered new interface driver smsc95xx
usbcore: registered new interface driver net1080
usbcore: registered new interface driver cdc_subset
usbcore: registered new interface driver zaurus
usbcore: registered new interface driver MOSCHIP usb-ethernet driver
usbcore: registered new interface driver cdc_ncm
ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
get ehci0-controller, regulator_io is no nocare
[sunxi-ehci0]: probe, pdev->name: 5101000.ehci0-controller, sunxi_ehci: 0xc1069404, 0x:e9280000, irq_no:c9
sunxi-ehci 5101000.ehci0-controller: SW USB2.0 'Enhanced' Host Controller (EHCI) Driver
sunxi-ehci 5101000.ehci0-controller: new USB bus registered, assigned bus number 1
sunxi-ehci 5101000.ehci0-controller: irq 201, io mem 0xe537d610
sunxi-ehci 5101000.ehci0-controller: USB 0.0 started, EHCI 1.00
usb usb1: New USB device found, idVendor=1d6b, idProduct=0002
usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
usb usb1: Product: SW USB2.0 'Enhanced' Host Controller (EHCI) Driver
usb usb1: Manufacturer: Linux 4.9.56 ehci_hcd
usb usb1: SerialNumber: sunxi-ehci
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 1 port detected
[ehci0-controller]: sunxi_usb_disable_ehci
[sunxi-ehci0]: remove, pdev->name: 5101000.ehci0-controller, sunxi_ehci: 0xc1069404
sunxi-ehci 5101000.ehci0-controller: remove, state 1
usb usb1: USB disconnect, device number 1
sunxi-ehci 5101000.ehci0-controller: USB bus 1 deregistered
ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
get ohci0-controller, regulator_io is no nocare
[sunxi-ohci0]: probe, pdev->name: 5101000.ohci0-controller, sunxi_ohci: 0xc1068bb4
sunxi-ohci 5101000.ohci0-controller: SW USB2.0 'Open' Host Controller (OHCI) Driver
sunxi-ohci 5101000.ohci0-controller: new USB bus registered, assigned bus number 1
sunxi-ohci 5101000.ohci0-controller: irq 202, io mem 0xe537da00
usb usb1: New USB device found, idVendor=1d6b, idProduct=0001
usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
usb usb1: Product: SW USB2.0 'Open' Host Controller (OHCI) Driver
usb usb1: Manufacturer: Linux 4.9.56 ohci_hcd
usb usb1: SerialNumber: sunxi-ohci
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 1 port detected
[ohci0-controller]: sunxi_usb_disable_ohci
[sunxi-ohci0]: remove, pdev->name: 5101000.ohci0-controller, sunxi_ohci: 0xc1068bb4
sunxi-ohci 5101000.ohci0-controller: remove, state 1
usb usb1: USB disconnect, device number 1
sunxi-ohci 5101000.ohci0-controller: USB bus 1 deregistered
usbcore: registered new interface driver cdc_acm
cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
usbcore: registered new interface driver uas
usbcore: registered new interface driver usb-storage
usbcore: registered new interface driver ums-alauda
usbcore: registered new interface driver ums-cypress
usbcore: registered new interface driver ums-datafab
usbcore: registered new interface driver ums_eneub6250
usbcore: registered new interface driver ums-freecom
usbcore: registered new interface driver ums-isd200
usbcore: registered new interface driver ums-jumpshot
usbcore: registered new interface driver ums-karma
usbcore: registered new interface driver ums-onetouch
usbcore: registered new interface driver ums-realtek
usbcore: registered new interface driver ums-sddr09
usbcore: registered new interface driver ums-sddr55
usbcore: registered new interface driver ums-usbat
usbcore: registered new interface driver usbserial
usbcore: registered new interface driver option
usbserial: USB Serial support registered for GSM modem (1-port)
usb_serial_number:20080411
input: ntx_event0 as /devices/platform/ntx_event0/input/input0
usbcore: registered new interface driver xpad
usbcore: registered new interface driver usb_acecad
usbcore: registered new interface driver aiptek
usbcore: registered new interface driver gtco
usbcore: registered new interface driver hanwang
usbcore: registered new interface driver kbtab
sunxi_ctp_startup: ctp_power_io is invalid.
get ctp_max_touch_number is fail, -22
ctp_android_revert_x_flag not available, use linux setting: 0
ctp_android_revert_y_flag not available, use linux setting: 0
ctp_android_exchange_x_y_flag not available, use linux setting: 0
[sunxi_ctp_init-193]...
__ricoh61x_set_voltage() RICOH619_DC3 set to 3300000uv
info.name:cyttsp5_i2c_adapter
info.twi_id:1
info.screen_max_x:1448
info.screen_max_y:1072
info.revert_x_flag:0
info.revert_y_flag:0
info.exchange_x_y_flag:0
sunxi_ctp_startup: ctp_power_io is invalid.
get ctp_max_touch_number is fail, -22
ctp_android_revert_x_flag not available, use linux setting: 0
ctp_android_revert_y_flag not available, use linux setting: 0
ctp_android_exchange_x_y_flag not available, use linux setting: 0
[sunxi_ctp_init-193]...
RICOH619_DC3: Failed to create debugfs directory
__ricoh61x_set_voltage() RICOH619_DC3 set to 3300000uv
wakeup gpio_request is failed
info.twi_id:1
info.screen_max_x:1448
info.screen_max_y:1072
info.revert_x_flag:0
info.revert_y_flag:0
info.exchange_x_y_flag:0
sunxi_ctp_startup: ctp_power_io is invalid.
get ctp_max_touch_number is fail, -22
ctp_android_revert_x_flag not available, use linux setting: 0
ctp_android_revert_y_flag not available, use linux setting: 0
ctp_android_exchange_x_y_flag not available, use linux setting: 0
[sunxi_ctp_init-193]...
RICOH619_DC3: Failed to create debugfs directory
__ricoh61x_set_voltage() RICOH619_DC3 set to 3300000uv
wakeup gpio_request is failed
info.twi_id:1
info.screen_max_x:1448
info.screen_max_y:1072
info.revert_x_flag:0
info.revert_y_flag:0
info.exchange_x_y_flag:0
sunxi_ctp_startup: ctp_power_io is invalid.
get ctp_max_touch_number is fail, -22
ctp_android_revert_x_flag not available, use linux setting: 0
ctp_android_revert_y_flag not available, use linux setting: 0
ctp_android_exchange_x_y_flag not available, use linux setting: 0
[sunxi_ctp_init-193]...
RICOH619_DC3: Failed to create debugfs directory
__ricoh61x_set_voltage() RICOH619_DC3 set to 3300000uv
wakeup gpio_request is failed
info.twi_id:1
info.screen_max_x:1448
info.screen_max_y:1072
info.revert_x_flag:0
info.revert_y_flag:0
info.exchange_x_y_flag:0
*********************************************
sunxi_ctp_startup: ctp_power_io is invalid.
get ctp_max_touch_number is fail, -22
ctp_android_revert_x_flag not available, use linux setting: 0
ctp_android_revert_y_flag not available, use linux setting: 0
ctp_android_exchange_x_y_flag not available, use linux setting: 0
[sunxi_ctp_init-193]...
RICOH619_DC3: Failed to create debugfs directory
__ricoh61x_set_voltage() RICOH619_DC3 set to 3300000uv
wakeup gpio_request is failed
info.ctp_used:1
info.twi_id:1
info.screen_max_x:1448
info.screen_max_y:1072
info.revert_x_flag:0
info.revert_y_flag:0
info.exchange_x_y_flag:0
info.irq_gpio_number:360
info.wakeup_gpio_number:236
***CTP*** ctp_wakeup:status:0, ms = 2
cyttsp5_i2c_adapter 1-0024: cyttsp5_init: INIT CYTTSP RST gpio=236 and IRQ gpio=360 r=0
cyttsp5_i2c_adapter 1-0024: cyttsp5_startup_: Operational mode
cyttsp5_i2c_adapter 1-0024: cyttsp5_startup_: Reading report descriptor
cyttsp5_i2c_adapter 1-0024: cyttsp5 Protocol Version: 1.6
input: cyttsp5_mt as /devices/platform/soc/twi1/i2c-1/1-0024/input/input1
==== PCB:100  FL_PWM:2 ====
cyttsp5_i2c_init: Parade TTSP I2C Driver (Built TTDA.03.08.874312) ret=0
*********************************************
cyttsp5_i2c_adapter 1-0024: cyttsp5_loader_probe: Successful probe 1-0024
cyttsp5_loader_init: Parade TTSP FW Loader Driver (Built TTDA.03.08.874312) rc=0
*********************************************
davidpeng,gtp_init: Line:2862
sunxi_ctp_startup: ctp_power_io is invalid.
get ctp_max_touch_number is fail, -22
ctp_android_revert_x_flag not available, use linux setting: 0
ctp_android_revert_y_flag not available, use linux setting: 0
ctp_android_exchange_x_y_flag not available, use linux setting: 0
[sunxi_ctp_init-193]...
RICOH619_DC3: Failed to create debugfs directory
__ricoh61x_set_voltage() RICOH619_DC3 set to 3300000uv
wakeup gpio_request is failed
*** ctp_name set to cyttsp5_i2c_adapter !
sunxi_gsensor_startup: gsensor is not used
[sunxi_gsensor_startup_524] gsensor script_get_err
mma865x_init: gsensor-bma2x2 fetch paras err.
sunxi_gsensor_startup: gsensor is not used
[sunxi_gsensor_startup_524] gsensor script_get_err
BMA2X2_init: gsensor-bma2x2 fetch paras err.
sunxi_gsensor_startup: gsensor is not used
[sunxi_gsensor_startup_524] gsensor script_get_err
mc32x0_init: err.
sunxi_gsensor_startup: gsensor is not used
[sunxi_gsensor_startup_524] gsensor script_get_err
[Warring] kx122_init : input_sensor_startup err.
[P15USB30216C_init_914]  twi2 addr 0x1D
probe:name = P15USB30216C,flag =0,addr = 29,adapter = 2
input: P15USB30216C as /devices/virtual/input/input2
[P15USB30216C_probe_739] gpio:357
[P15USB30216C_probe_743] irq:29
[P15USB30216C_probe_752] _0a5_fault:-2
sunxi_i2c_do_xfer()1037 - [i2c2] incomplete xfer (status: 0x48, dev addr: 0x1d)
sunxi_i2c_xfer()910 - [i2c2] Retrying transmission 1/3
sunxi_i2c_do_xfer()1037 - [i2c2] incomplete xfer (status: 0x48, dev addr: 0x1d)
sunxi_i2c_xfer()910 - [i2c2] Retrying transmission 2/3
sunxi_i2c_do_xfer()1037 - [i2c2] incomplete xfer (status: 0x48, dev addr: 0x1d)
sunxi_i2c_xfer()910 - [i2c2] Retrying transmission 3/3
[P15USB30216C] i2c_master_recv failed !!
P15USB30216C: probe of 2-001d failed with error -1
i2c /dev entries driver
sunxi cedar version 0.1
cedar_ve: cedar-ve the get irq is 194
VE: get debugfs_mpp_root is NULL, please check mpp

VE: sunxi ve debug register driver failed!

google_vp9: sunxi google vp9 version 0.1
PMU: ricoh61x_battery_init
PMU: ricoh61x_battery_probe : version is RICOH61x_BATTERY_VERSION: 2014.02.21 V3.1.0.0-Solution1 2015/02/09
ricoh619_battery_dt_init alarm-vol-mv=-1
ricoh619_battery_dt_init voltage-drop-chk=0
ricoh619_battery_dt_init voltage drop en pin is invalid.
ricoh619_battery_dt_init type_n=0
ricoh619-battery ricoh619-battery: alarm_vol_mv=3550
ricoh619-battery ricoh619-battery: fg_poff_vbat=3600
ricoh61x_battery_probe type_n=0,temp is 1
[B300] Ricoh Enable Temp Detect !!!
ricoh61x_battery_probe() TempDetect=1
ricoh61x_battery_probe info->num=11,temp is 12
PMU FG_RESET : ricoh61x_init_battery : initial pswr = 0
PMU : ricoh61x_init_battery : first attached battery
PMU : ricoh61x_init_battery : POWER off history 0x0a is 0x00
PMU : ricoh61x_init_battery : POWER control function 0x0d is 0x00
PMU: ricoh61x_set_OCV_table : 00% voltage = 3677600 uV
PMU: ricoh61x_set_OCV_table : 10% voltage = 3704500 uV
PMU: ricoh61x_set_OCV_table : 20% voltage = 3753300 uV
PMU: ricoh61x_set_OCV_table : 30% voltage = 3776500 uV
PMU: ricoh61x_set_OCV_table : 40% voltage = 3789900 uV
PMU: ricoh61x_set_OCV_table : 50% voltage = 3814400 uV
PMU: ricoh61x_set_OCV_table : 60% voltage = 3879100 uV
PMU: ricoh61x_set_OCV_table : 70% voltage = 3927900 uV
PMU: ricoh61x_set_OCV_table : 80% voltage = 3984100 uV
PMU: ricoh61x_set_OCV_table : 90% voltage = 4054900 uV
PMU: ricoh61x_set_OCV_table : 100% voltage = 4140400 uV
PMU : ricoh61x_set_OCV_table : target_vsys is 3087 target_ibat is 275
PMU : ricoh61x_scaling_OCV_table : setting value of cuttoff_vol(3162) is out of range(3677600)
PMU : ricoh61x_scaling_OCV_table : new table
PMU : ricoh61x_scaling_OCV_table : ocv_table 0 is 36764 v
PMU : ricoh61x_scaling_OCV_table : ocv_table 1 is 37033 v
PMU : ricoh61x_scaling_OCV_table : ocv_table 2 is 37509 v
PMU : ricoh61x_scaling_OCV_table : ocv_table 3 is 37753 v
PMU : ricoh61x_scaling_OCV_table : ocv_table 4 is 37888 v
PMU : ricoh61x_scaling_OCV_table : ocv_table 5 is 38132 v
PMU : ricoh61x_scaling_OCV_table : ocv_table 6 is 38779 v
PMU : ricoh61x_scaling_OCV_table : ocv_table 7 is 39267 v
PMU : ricoh61x_scaling_OCV_table : ocv_table 8 is 39829 v
PMU : ricoh61x_scaling_OCV_table : ocv_table 9 is 40537 v
PMU : ricoh61x_scaling_OCV_table : ocv_table 10 is 41380 v
PMU : ricoh61x_init_charger : GCHGDET (0xDA) is 0x0
PMU : ricoh61x_init_charger : after CHGISET_REG (0xb8) is 0x44 info->ch_ichg is 0xff info->ch_icchg is 0x1
PMU : ricoh61x_init_charger : before BATSET1_REG (0xba) is 0x41 info->ch_vbatovset is 0xff
PMU : ricoh61x_init_charger : after BATSET1_REG (0xba) is 0x49 info->ch_vbatovset is 0xff
PMU : ricoh61x_init_charger : before BATSET2_REG (0xbb) is 0x33 info->ch_vrchg is 0xff info->ch_vfchg is 0xff
PMU : ricoh61x_init_charger : test test val 48, val2 3 vfchg 4200
PMU : ricoh61x_init_charger : test test val 64, val2 1 icchg 100
PMU : ricoh61x_init_charger : 100 min 4114000, 100 max 4238000 vfchg 4200 icchg 100 rbat 221
PMU: ricoh61x_init_fgsoca : * 00% voltage = 3676400 uV
PMU: ricoh61x_init_fgsoca : * 10% voltage = 3703200 uV
PMU: ricoh61x_init_fgsoca : * 20% voltage = 3750900 uV
PMU: ricoh61x_init_fgsoca : * 30% voltage = 3775300 uV
PMU: ricoh61x_init_fgsoca : * 40% voltage = 3788700 uV
PMU: ricoh61x_init_fgsoca : * 50% voltage = 3813100 uV
PMU: ricoh61x_init_fgsoca : * 60% voltage = 3877800 uV
PMU: ricoh61x_init_fgsoca : * 70% voltage = 3926700 uV
PMU: ricoh61x_init_fgsoca : * 80% voltage = 3982900 uV
PMU: ricoh61x_init_fgsoca : * 90% voltage = 4053700 uV
PMU: ricoh61x_init_fgsoca : * 100% voltage = 4137900 uV
measure_vbatt_ADC():3819000 uV
calc_soc_by_voltageMethod(): FG not ready , getting vbatt=3819000uV from ADC .
PMU: ricoh61x_init_fgsoca : * Rbat = 221 mOhm   n_cap = 1377 mAH
sunxi gpu cooling probe start !
[get_supply_state 4767] supply_state: 0
[get_supply_state 4767] supply_state: 0
CPU gpu cooling register Success
device-mapper: uevent: version 1.0.3
[get_supply_state 4767] supply_state: 0
[get_supply_state 4767] supply_state: 0
[get_supply_state 4767] supply_state: 0
device-mapper: ioctl: 4.35.0-ioctl (2016-06-23) initialised: dm-devel@redhat.com
Bluetooth: HCI UART driver ver 2.2.407c1dd.20200812-195651
Bluetooth: HCI H4 protocol initialized
Bluetooth: HCI Realtek H5 protocol initialized
rtk_btcoex: rtk_btcoex_init: version: 1.2
rtk_btcoex: create workqueue
rtk_btcoex: alloc buffers 1408, 2240 for ev and l2
sunxi_cpufreq_init: only one opp_table
[sunxi_cpufreq_init-378] /cpus/cpu@0.
[cpu_freq] ERR: Unable to get regulator
[cpu_freq] DBG: freq: 1800000000
[cpu_freq] DBG: num:0, volatge:1160, freq:1800000000, axi_div:3 ,sunxi_cpufreq_set_vf
[cpu_freq] DBG: freq: 1608000000
[cpu_freq] DBG: num:1, volatge:1160, freq:1608000000, axi_div:3 ,sunxi_cpufreq_set_vf
[cpu_freq] DBG: freq: 1512000000
[cpu_freq] DBG: num:2, volatge:1040, freq:1512000000, axi_div:3 ,sunxi_cpufreq_set_vf
[cpu_freq] DBG: freq: 1416000000
[cpu_freq] DBG: num:3, volatge:1000, freq:1416000000, axi_div:3 ,sunxi_cpufreq_set_vf
[cpu_freq] DBG: freq: 1200000000
[cpu_freq] DBG: num:4, volatge:940, freq:1200000000, axi_div:3 ,sunxi_cpufreq_set_vf
[cpu_freq] DBG: freq: 1008000000
[cpu_freq] DBG: num:5, volatge:880, freq:1008000000, axi_div:3 ,sunxi_cpufreq_set_vf
[cpu_freq] DBG: freq: 816000000
[cpu_freq] DBG: num:6, volatge:880, freq:816000000, axi_div:3 ,sunxi_cpufreq_set_vf
[cpu_freq] DBG: freq: 720000000
[cpu_freq] DBG: num:7, volatge:880, freq:720000000, axi_div:3 ,sunxi_cpufreq_set_vf
[cpu_freq] DBG: freq: 480000000
[cpu_freq] DBG: num:8, volatge:880, freq:480000000, axi_div:3 ,sunxi_cpufreq_set_vf
cpuidle: enable-method property 'psci' found operations
cpuidle: enable-method property 'psci' found operations
cpuidle: enable-method property 'psci' found operations
cpuidle: enable-method property 'psci' found operations
sunxi-mmc sdc2: SD/MMC/SDIO Host Controller Driver(v3.10 2018-4-27 16:25)
sunxi-mmc sdc2: regulator prop vmmc,str vcc-emmc
sunxi-mmc sdc2: regulator prop vqmmc,str vcc-pc
sunxi-mmc sdc2: regulator prop vdmmc,str none
deviceless supply none not found, using dummy regulator
sunxi-mmc sdc2: set host busy
sunxi-mmc sdc2: sdc set ios:clk 0Hz bm PP pm UP vdd 21 width 1 timing LEGACY(SDR12) dt B
sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
sunxi-mmc sdc2: detmode:alway in(non removable)
sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
sunxi-mmc sdc0: SD/MMC/SDIO Host Controller Driver(v3.10 2018-4-27 16:25)
sunxi-mmc sdc0: regulator prop vmmc,str vcc-sdc
sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
sunxi-mmc sdc0: regulator prop vqmmc,str vcc-pf
sunxi-mmc sdc0: regulator prop vdmmc,str vcc-pf
RICOH619_LDO5: Failed to create debugfs directory
sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 8 timing LEGACY(SDR12) dt B
sunxi-mmc sdc0: set host busy
sunxi-mmc sdc0: Got CD GPIO
sunxi-mmc sdc0: sdc set ios:clk 0Hz bm PP pm UP vdd 21 width 1 timing LEGACY(SDR12) dt B
sunxi-mmc sdc0: Switching to 3.3V signalling voltage ok
sunxi-mmc sdc0: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
sunxi-mmc sdc0: detmode:gpio irq
sunxi-mmc sdc1: SD/MMC/SDIO Host Controller Driver(v3.10 2018-4-27 16:25)
sunxi-mmc sdc1: /aliases ID not available
sunxi-mmc sdc1: regulator prop vmmc,str vcc-wifi
sunxi-mmc sdc1: regulator prop vqmmc,str vcc-pg
sunxi-mmc sdc1: regulator prop vdmmc,str vcc-pg
RICOH619_LDO1: Failed to create debugfs directory
sunxi-mmc sdc1: set host busy
sunxi-mmc sdc1: sdc set ios:clk 0Hz bm PP pm UP vdd 21 width 1 timing LEGACY(SDR12) dt B
sunxi-mmc sdc1: Switching to 3.3V signalling voltage ok
sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
sunxi-mmc sdc1: detmode:manually by software
mmc_gpio_get_cd() wifi power state=0
sunxi-mmc sdc1: sdc set ios:clk 0Hz bm PP pm OFF vdd 0 width 1 timing LEGACY(SDR12) dt B
led_classdev_register():led name=on_led register as NTX green led
[EMCE]:Current Controller is EMMC!
[EMCE]:VER:0x100200
hidraw: raw HID events driver (C) Jiri Kosina
usbcore: registered new interface driver usbhid
usbhid: USB HID core driver
ashmem: initialized
optee: probing for conduit method from DT.
optee: initialized driver
get lm3630a_twi_addr2 failed, -22
[lm3630a_i2c_init-2705] twi0 addr=0x36,addr2=0x0 , gpio:352
lm3630a_bl 0-0036: LM3630A[1] chip rev=0x02.
encode module init
usbcore: registered new interface driver snd-usb-audio
failed to get gpio-spk gpio from dts,spk_gpio:-2
sunxi-codec-machine sndcodec: codec-aif1 <-> i2s mapping ok
sunxi-codec-machine sndcodec: codec-aif2 <-> bb-dai mapping ok
sunxi-codec-machine sndcodec: codec-aif2 <-> bb-dai mapping ok
sunxi-codec-machine sndcodec: codec-aif3 <-> bb-dai mapping ok
input: audiocodec sunxi Audio Jack as /devices/platform/soc/sndcodec/sound/card0/input3
u32 classifier
    Actions configured
Netfilter messages via NETLINK v0.30.
nfnl_acct: registering with nfnetlink.
nf_conntrack version 0.5.0 (16384 buckets, 65536 max)
ctnetlink v0.93: registering with nfnetlink.
xt_time: kernel timezone is -0000
ipip: IPv4 and MPLS over IPv4 tunneling driver
gre: GRE over IPv4 demultiplexor driver
ip_gre: GRE over IPv4 tunneling driver
IPv4 over IPsec tunneling driver
ip_tables: (C) 2000-2006 Netfilter Core Team
arp_tables: arp_tables: (C) 2002 David S. Miller
Initializing XFRM netlink socket
NET: Registered protocol family 10
mip6: Mobile IPv6
ip6_tables: (C) 2000-2006 Netfilter Core Team
sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
NET: Registered protocol family 17
NET: Registered protocol family 15
Bluetooth: RFCOMM TTY layer initialized
Bluetooth: RFCOMM socket layer initialized
Bluetooth: RFCOMM ver 1.11
Bluetooth: HIDP (Human Interface Emulation) ver 1.2
Bluetooth: HIDP socket layer initialized
Registering SWP/SWPB emulation handler
registered taskstats version 1
Key type encrypted registered
[gpio_keys_get_devtree_pdata-719] gpio 356, flag 1
gpio-keys soc@03000000:gpio-keys: Andorid keycode not available, Power use linux keycode: 0x74
[gpio_keys_get_devtree_pdata-719] gpio 362, flag 1
gpio-keys soc@03000000:gpio-keys: Andorid keycode not available, Home use linux keycode: 0x66
[gpio_keys_get_devtree_pdata-719] gpio 354, flag 1
gpio-keys soc@03000000:gpio-keys: Andorid keycode not available, PageUp use linux keycode: 0xc0
[gpio_keys_get_devtree_pdata-719] gpio 355, flag 1
gpio-keys soc@03000000:gpio-keys: Andorid keycode not available, LPageUp use linux keycode: 0xbf
[gpio_keys_get_devtree_pdata-719] gpio 361, flag 1
gpio-keys soc@03000000:gpio-keys: Andorid keycode not available, PageDown use linux keycode: 0xc2
[gpio_keys_get_devtree_pdata-719] gpio 363, flag 1
gpio-keys soc@03000000:gpio-keys: Andorid keycode not available, LPageDown use linux keycode: 0xc1
[sunxi_pinctrl_gpio_set_debounce-763] do not do HW debounce for PL ...
[sunxi_pinctrl_gpio_set_debounce-763] do not do HW debounce for PL ...
[sunxi_pinctrl_gpio_set_debounce-763] do not do HW debounce for PL ...
[sunxi_pinctrl_gpio_set_debounce-763] do not do HW debounce for PL ...
[sunxi_pinctrl_gpio_set_debounce-763] do not do HW debounce for PL ...
[sunxi_pinctrl_gpio_set_debounce-763] do not do HW debounce for PL ...
rtc_ricoh619 rtc_ricoh619: setting system clock to 2012-01-01 00:00:03 UTC (1325376003)
Bluetooth: Starting self testing
Bluetooth: ECDH test passed in 33825 usecs
Bluetooth: SMP test passed in 60 usecs
Bluetooth: Finished self testing
ALSA device list:
  #0: audiocodec
Freeing unused kernel memory: 1024K
sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 8 timing MMC-HS200 dt B
init: init first stage started!
sunxi-mmc sdc2: sdc set ios:clk 150000000Hz bm PP pm ON vdd 21 width 8 timing MMC-HS200 dt B
mmc0: new HS200 MMC card at address 0001
mmcblk0: mmc0:0001 TX2932 29.1 GiB
mmcblk0boot0: mmc0:0001 TX2932 partition 1 4.00 MiB
mmcblk0boot1: mmc0:0001 TX2932 partition 2 4.00 MiB
mmcblk0rpmb: mmc0:0001 TX2932 partition 3 4.00 MiB
 mmcblk0: p1 p2 p3 p4 p5 p6 p7 p8 p9 p10 p11 p12 p13 p14 p15
init: Using Android DT directory /proc/device-tree/firmware/android/
EXT4-fs (mmcblk0p6): mounted filesystem with ordered data mode. Opts: barrier=1
init: [libfs_mgr]__mount(source=/dev/block/by-name/vendor,target=/vendor,type=ext4)=0: Success
EXT4-fs (mmcblk0p5): mounted filesystem with ordered data mode. Opts: barrier=1
init: [libfs_mgr]__mount(source=/dev/block/by-name/system,target=/system,type=ext4)=0: Success
init: Skipped setting INIT_AVB_VERSION (not in recovery mode)
init: Loading SELinux policy
audit: type=1403 audit(1325376004.046:2): policy loaded auid=4294967295 ses=4294967295
sunxi-mmc sdc0: sdc set ios:clk 0Hz bm PP pm OFF vdd 0 width 1 timing LEGACY(SDR12) dt B
selinux: SELinux: Loaded policy from /vendor/etc/selinux/precompiled_sepolicy

audit: type=1404 audit(1325376004.073:3): enforcing=1 old_enforcing=0 auid=4294967295 ses=4294967295
selinux: SELinux: Loaded file_contexts

audit: type=1400 audit(1325376004.113:4): avc:  granted  { read } for  pid=1 comm="init" name="urandom" dev="tmpfs" ino=8896 scontext=u:r:init:s0 tcontext=u:object_r:tmpfs:s0 tclass=chr_file
audit: type=1400 audit(1325376004.133:5): avc:  granted  { open } for  pid=1 comm="init" path="/dev/kmsg" dev="tmpfs" ino=8894 scontext=u:r:init:s0 tcontext=u:object_r:tmpfs:s0 tclass=chr_file
init: init second stage started!
init: Using Android DT directory /proc/device-tree/firmware/android/
selinux: SELinux: Loaded file_contexts

selinux: SELinux: Loaded property_contexts from /system/etc/selinux/plat_property_contexts & /vendor/etc/selinux/nonplat_property_contexts.

init: Running restorecon...
init: waitid failed: No child processes
init: Couldn't load property file: Unable to open '/odm/default.prop': No such file or directory: No such file or directory
init: Created socket '/dev/socket/property_service', mode 666, user 0, group 0
init: Parsing file /init.rc...
init: Added '/init.environ.rc' to import list
cgroup: init (1) created nested cgroup for controller "memory" which has incomplete hierarchy support. Nested cgroups may change behavior in the future.
ueventd: ueventd started!
ueventd: Parsing file /ueventd.rc...
ueventd: Parsing file /vendor/ueventd.rc...
ueventd: Unable to open '/vendor/ueventd.rc': No such file or directory
ueventd: Parsing file /odm/ueventd.rc...
ueventd: Unable to open '/odm/ueventd.rc': No such file or directory
ueventd: Parsing file /ueventd.sun8iw15p1.rc...
selinux: SELinux: Loaded file_contexts

[get_supply_state 4767] supply_state: 0
[get_supply_state 4767] supply_state: 0
[get_supply_state 4767] supply_state: 0
cgroup: "memory" requires setting use_hierarchy to 1 on the root
selinux: SELinux: Loaded file_contexts

ueventd: Coldboot took 0.176 seconds
keychord: using input dev soc@03000000:gpio-keys for fevent
keychord: using input dev cyttsp5_mt for fevent
keychord: using input dev audiocodec sunxi Audio Jack for fevent
E60P54_android:/ #

downeaster59 · 12-09-2021, 05:18 PM

@Renate: Go for it!!

downeaster59 · 12-09-2021, 05:25 PM

First impressions:

The GL 4 looks a lot like the GL 3 of a few years back, with a few subtle differences. I had gotten used to tapping the screen to turn pages, but I like the buttons! The warm/cold light seems easy to adjust.

This device is light and easy to hold. Text looks good.

For all you rooters out there, there's no obvious way to activate developer settings as there was with the GL 3. I've tapped everything tappable! In fact, if you start tapping "App Version" repeatedly, a window pops up asking you if you want to do a full sync of your Nook!

I like the fact that there's a USB-C port. That helps me streamline my cord collection!

I'm liking this device thus far.

Edit: Is B&N up to their old tricks of partitioning free space? When I connected the GL4 to my Mac, it came up as a Nook drive with 5.36 GB of storage... Not liking this...

Renate · 12-09-2021, 05:56 PM

Tap build number.
I don't see an UMS 5.63 or whatever.

Code:

|E60P54_android:/ # df
Filesystem            1K-blocks    Used Available Use% Mounted on
tmpfs                    953948     484    953464   1% /dev
/dev/block/mmcblk0p6     233972   72960    161012  32% /vendor
/dev/block/mmcblk0p5     999820  762444    237376  77% /system
tmpfs                    953948       0    953948   0% /mnt
/dev/block/mmcblk0p15     16128       0     16127   0% /oem
/dev/block/mmcblk0p11     16128       0     16127   0% /private
/dev/block/mmcblk0p9     499656    1428    498228   1% /cache
/dev/block/mmcblk0p1   28469248 2964632  25504616  11% /data
/data/media            28469248 2964632  25504616  11% /mnt/runtime/default/emulated
/dev/loop0              5232656      48   5232608   1% /mnt/media_rw/spsd

FWIW the buttons are:

F10 F11

F9 F12

downeaster59 · 12-09-2021, 06:11 PM

No build number. If you tap "app version", the Nook will ask you after a few taps if you really want to do a full sync. I tried tapping everything else in that screen. No luck!

This is odd. Under "manage storage", I see that I have over 28GB available. Why would my Mac list it as 5GB, I wonder?

Edit: B&N, you magnificent bastard! I read your book! I found it!! You have to tap the Nook logo directly over the "Check for system update" button under "About". Yes!

Edit #2: adb devices works as expected.

Renate · 12-09-2021, 06:14 PM

Oh, maybe they cut that out of their settings. Can you get to the stock settings?

Hmm, it doesn't seem to respect "full screen" (i.e. no status bar) from an app.

12-09-2021, 02:03 PM	#202
Renate Onyx-maniac Posts: 3,930 Karma: 17500001 Join Date: Feb 2012 Device: Nook NST, Glow2, 3, 4, '21, Kobo Aura2, Poke3, Poke5, Go6	I had to go to town this morning. I came back and now they say it's out for delivery. Ok, I'll take a post-prandial nap and head into town again. Edit: MST3K rocks! Last edited by Renate; 12-09-2021 at 02:06 PM.

12-09-2021, 04:27 PM	#203
Renate Onyx-maniac Posts: 3,930 Karma: 17500001 Join Date: Feb 2012 Device: Nook NST, Glow2, 3, 4, '21, Kobo Aura2, Poke3, Poke5, Go6	It ain't unboxing until you unbox it! Attached Thumbnails

12-09-2021, 04:32 PM	#204
downeaster59 Wizard Posts: 1,251 Karma: 2957301 Join Date: Apr 2014 Location: Rochester, NY Device: Boox Go 10.3, Kobo Libra 2	Mine just arrived! I may not go quite so far in unboxing mine, but I'll be most curious about whatever you learn from your full unboxing! Edit: I can't run mine yet. When I turned it on, a message came up that it was too cold but that I could try again in a few minutes. It's 28 degrees outside... but not inside! : ) Edit #2: On, and already downloading an update! Last edited by downeaster59; 12-09-2021 at 04:47 PM.

12-09-2021, 05:25 PM	#207
downeaster59 Wizard Posts: 1,251 Karma: 2957301 Join Date: Apr 2014 Location: Rochester, NY Device: Boox Go 10.3, Kobo Libra 2	First impressions: The GL 4 looks a lot like the GL 3 of a few years back, with a few subtle differences. I had gotten used to tapping the screen to turn pages, but I like the buttons! The warm/cold light seems easy to adjust. This device is light and easy to hold. Text looks good. For all you rooters out there, there's no obvious way to activate developer settings as there was with the GL 3. I've tapped everything tappable! In fact, if you start tapping "App Version" repeatedly, a window pops up asking you if you want to do a full sync of your Nook! I like the fact that there's a USB-C port. That helps me streamline my cord collection! I'm liking this device thus far. Edit: Is B&N up to their old tricks of partitioning free space? When I connected the GL4 to my Mac, it came up as a Nook drive with 5.36 GB of storage... Not liking this... Last edited by downeaster59; 12-09-2021 at 05:54 PM.

12-09-2021, 06:11 PM	#209
downeaster59 Wizard Posts: 1,251 Karma: 2957301 Join Date: Apr 2014 Location: Rochester, NY Device: Boox Go 10.3, Kobo Libra 2	No build number. If you tap "app version", the Nook will ask you after a few taps if you really want to do a full sync. I tried tapping everything else in that screen. No luck! This is odd. Under "manage storage", I see that I have over 28GB available. Why would my Mac list it as 5GB, I wonder? Edit: B&N, you magnificent bastard! I read your book! I found it!! You have to tap the Nook logo directly over the "Check for system update" button under "About". Yes! Edit #2: adb devices works as expected. Last edited by downeaster59; 12-09-2021 at 06:16 PM.

12-08-2021, 03:07 PM	#198
downeaster59 Wizard Posts: 1,251 Karma: 2957301 Join Date: Apr 2014 Location: Rochester, NY Device: Boox Go 10.3, Kobo Libra 2	@Renate: I can sympathize with the "No address" issue. Last year, I needed to move quickly from my abode in Maine and ended up living for several months in an apartment in the back of a church in the small town of Stratton, ME, near the Sugarloaf ski area. The problem I ran into was that, since no one had actually lived there before (though some had stayed there for personal retreats and the like), the location had no official USPS address! I could get a PO box at the local P.O., but this became a major problem for stuff like car insurance, internet service, or any physical deliveries. Some companies would deliver, some would not. Internet service? Nope. They couldn't find the address in their database. Car insurance? I only convinced them with photos of me, my car, and my location. I asked the local PO postmaster about it, but it was not a priority for them. Now I really appreciate living in a place with an official USPS address again!! Back to our regularly scheduled topic: my Nook GL 4 is still due here tomorrow. It's in Louisville, KY now, according to UPS (pronounced Oops by some customers...). I am hopeful that I really will see it tomorrow...

12-09-2021, 06:11 AM	#199
downeaster59 Wizard Posts: 1,251 Karma: 2957301 Join Date: Apr 2014 Location: Rochester, NY Device: Boox Go 10.3, Kobo Libra 2	Well, this is bizarre! An hour ago, I saw that my shipment was in my area and loaded on a delivery vehicle. Then, I had an email from B&N telling me that my shipment is coming tomorrow and is in a different state! I finally figured it out. B&N sent my GL4 and cover in separate shipments from the same place. Each took a different route, oddly enough. The GL4 is in this area, and the cover is in NJ. Maybe I should wait and see what actually comes today - if anything!

12-09-2021, 07:11 AM	#200
Renate Onyx-maniac Posts: 3,930 Karma: 17500001 Join Date: Feb 2012 Device: Nook NST, Glow2, 3, 4, '21, Kobo Aura2, Poke3, Poke5, Go6	I think that we're in quantum reality. B&N sent me an email this morning saying the I'd get my Glow tomorrow. I checked the USPS tracking. Yesterday (Wednesday) it said that it departed the RDF at 1:30 AM. Now the tracking history says that it arrived at 1:30 AM. It says that it departed the RDF early this morning. Unfortunately I don't have a screenshot from yesterday as proof. OTOH, the cover is following the same track and will arrive Monday. I'll try to capture this discrepancy if it repeats.

12-09-2021, 05:18 PM	#206
downeaster59 Wizard Posts: 1,251 Karma: 2957301 Join Date: Apr 2014 Location: Rochester, NY Device: Boox Go 10.3, Kobo Libra 2	@Renate: Go for it!!

12-09-2021, 06:14 PM	#210
Renate Onyx-maniac Posts: 3,930 Karma: 17500001 Join Date: Feb 2012 Device: Nook NST, Glow2, 3, 4, '21, Kobo Aura2, Poke3, Poke5, Go6	Oh, maybe they cut that out of their settings. Can you get to the stock settings? Hmm, it doesn't seem to respect "full screen" (i.e. no status bar) from an app. Attached Thumbnails Last edited by Renate; 12-09-2021 at 06:23 PM.

Similar Threads
Thread	Thread Starter	Forum	Replies	Last Post
Why I am avoiding the nook GlowLight [2013 nook GlowLight]	anmanwar@aol.com	Barnes & Noble NOOK	20	04-24-2018 12:16 PM
Adding cover thumbnails to the Nook ST (Nook Color & Nook Glowlight): how-to	kalwisti	Barnes & Noble NOOK	0	10-31-2014 04:15 PM
Barnes & Noble One Week Sale on Nook STR, Glowlight, Nook HD	charmian	Deals and Resources (No Self-Promotion or Affiliate Links)	6	09-26-2013 10:36 AM
Ended Nook Glowlight and Oberon Cover (for Nook Touch or Glowlight)	puglover333	Flea Market	1	09-20-2012 08:11 AM
