Elipsa New Kobo (N604) [Elipsa - ed.]

[trekk]

Originally Posted by Amon_Re

I'm pretty sure they both have exactly the same number of pixels,

No, they have not. The Kobo Forma’s 8-inch screen has a resolution of 1440 × 1920 pixels at 300 ppi, the Elipsa’s 10.3-inch E Ink Carta 1200 touchscreen actually pushes slightly less pixels: 1404 x 1872 at 227 ppi.

[davidfor]

Originally Posted by ottischwenk

Yes.

Yes they did? Or yes you have proof? And if so, what is it?

But it's stupid to like a product you have no idea about just because it's from Kobo.

And the converse is try. It's stupid to hate product you have no idea about just because it's from it's from a company you do not like.

Incidentally, based on the existing configuration, I can say that the product will be like all Kobo products that I have examined - just so good that it is not very obvious how badly it was developed.

That's the closest thing you have said to a reasonable statement. As the larger portion of the function is not changing, if you don't like that, then you probably won't like the rest. And we won't truly know about the new stuff until people play with it more.

[ottischwenk]

Originally Posted by davidfor

Yes they did? Or yes you have proof? And if so, what is it?

I have a proof, and that statement should suffice.

[Calenorn]

Originally Posted by ottischwenk

I have a proof, and that statement should suffice.

Certainly. We all trust you implicitly.

[Amon_Re]

Originally Posted by trekk

No, they have not. The Kobo Forma’s 8-inch screen has a resolution of 1440 × 1920 pixels at 300 ppi, the Elipsa’s 10.3-inch E Ink Carta 1200 touchscreen actually pushes slightly less pixels: 1404 x 1872 at 227 ppi.

I stand corrected.

[geek1011]

Originally Posted by geek1011

I think I might be able to dig up what the AVRCP key stuff is for though, which should clear things up a bit. For anyone interested, here's the hex I need to figure out the encoding of to be able to give a more confident response about what the A2DP and AVRCP stuff is for:

I have everything important. It's a bit underwhelming though, and kinda inconclusive. It looks like the real key mapping is done in Nickel rather than Kobo's input plugin, and I don't have time right now to do deeper digging there.

 000  {1364017488 1 38 0}
 016  {KEY_SELECT -1 Key_Select 0 0 0}
 028  {KEY_UP -1 Key_Up 0 0 0}
 040  {KEY_DOWN -1 Key_Down 0 0 0}
 052  {KEY_LEFT -1 Key_Left 0 0 0}
 064  {KEY_RIGHT -1 Key_Right 0 0 0}
 076  {KEY_MENU -1 Key_Menu 0 0 0}
 088  {KEY_PROGRAM -1 Key_HomePage 0 0 0}
 100  {KEY_FAVORITES -1 Key_Favorites 0 0 0}
 112  {KEY_EXIT -1 Key_Escape 0 0 0}
 124  {KEY_0 -1 Key_0 0 0 0}
 136  {KEY_1 -1 Key_1 0 0 0}
 148  {KEY_2 -1 Key_2 0 0 0}
 160  {KEY_3 -1 Key_3 0 0 0}
 172  {KEY_4 -1 Key_4 0 0 0}
 184  {KEY_5 -1 Key_5 0 0 0}
 196  {KEY_6 -1 Key_6 0 0 0}
 208  {KEY_7 -1 Key_7 0 0 0}
 220  {KEY_8 -1 Key_8 0 0 0}
 232  {KEY_9 -1 Key_9 0 0 0}
 244  {KEY_DOT -1 Key_Period 0 0 0}
 256  {KEY_ENTER -1 Key_Enter 0 0 0}
 268  {KEY_CHANNELUP -1 Key_ChannelUp 0 0 0}
 280  {KEY_CHANNELDOWN -1 Key_ChannelDown 0 0 0}
 292  {KEY_LAST -1 Key_MediaLast 0 0 0}
 304  {KEY_CONFIG -1 Key_View 0 0 0}
 316  {KEY_INFO -1 Key_View 0 0 0}
 328  {KEY_POWER2 -1 Key_Escape 0 0 0}
 340  {KEY_VOLUMEUP -1 Key_VolumeUp 0 0 0}
 352  {KEY_VOLUMEDOWN -1 Key_VolumeDown 0 0 0}
 364  {KEY_MUTE -1 Key_VolumeMute 0 0 0}
 376  {KEY_PLAYCD -1 Key_MediaPlay 0 0 0}
 388  {KEY_STOPCD -1 Key_MediaStop 0 0 0}
 400  {KEY_PAUSECD -1 Key_MediaPause 0 0 0}
 412  {KEY_NEXTSONG -1 Key_MediaNext 0 0 0}
 424  {KEY_PREVIOUSSONG -1 Key_MediaPrevious 0 0 0}
 436  {KEY_RECORD -1 Key_MediaRecord 0 0 0}
 448  {KEY_REWIND -1 Key_AudioRewind 0 0 0}
 460  {KEY_FASTFORWARD -1 Key_AudioForward 0 0 0}
 472  EOF

Spoiler:

package main

import (
	"bufio"
	"encoding/binary"
	"fmt"
	"io"
	"os"
	"strconv"
	"strings"
)

func init() {
	if err := loadKeys(); err != nil {
		panic(err)
	}
	if err := loadLinuxKeys(); err != nil {
		panic(err)
	}
}

func main() {
	m, err := keyMap()
	if err != nil {
		panic(err)
	}
	_ = m

}

type QtKey int32

func (k QtKey) String() string {
	if n, ok := QtKeys[int32(k)]; ok {
		return n
	}
	return fmt.Sprintf("QtKey(%d)", k)
}

var QtKeys map[int32]string

func loadKeys() error {
	QtKeys = map[int32]string{}

	f, err := os.Open("/usr/include/qt5/QtCore/qnamespace.h")
	if err != nil {
		return err
	}
	defer f.Close()

	r := bufio.NewScanner(f)
	for r.Scan() {
		tok := r.Text()
		if !strings.HasPrefix(tok, "        Key_") {
			continue
		}
		spl := strings.Split(tok, " = ")
		if v, err := strconv.ParseInt(strings.Split(spl[1], ",")[0], 0, 32); err != nil {
			if !strings.HasPrefix(spl[1], "Key") {
				return err
			}
		} else {
			QtKeys[int32(v)] = strings.TrimSpace(spl[0])
		}
	}
	if err := r.Err(); err != nil {
		return err
	}

	return nil
}

type LinuxKey int16

func (k LinuxKey) String() string {
	if n, ok := LinuxKeys[int16(k)]; ok {
		return n
	}
	return fmt.Sprintf("LinuxKey(%d)", k)
}

var LinuxKeys map[int16]string

func loadLinuxKeys() error {
	LinuxKeys = map[int16]string{}

	f, err := os.Open("/usr/include/linux/input-event-codes.h")
	if err != nil {
		return err
	}
	defer f.Close()

	r := bufio.NewScanner(f)
	for r.Scan() {
		tok := r.Text()
		if !strings.HasPrefix(tok, "#define KEY_") {
			continue
		}
		spl := strings.Fields(tok)
		if v, err := strconv.ParseInt(spl[2], 0, 16); err != nil {
			if !strings.HasPrefix(strings.TrimLeft(spl[2], "("), "KEY_") {
				return err
			}
		} else {
			LinuxKeys[int16(v)] = strings.TrimSpace(spl[1])
		}
	}
	if err := r.Err(); err != nil {
		return err
	}

	return nil
}

type KeyMap struct {
	KeyMapHeader
	Entry []KeyMapEntry
}

type KeyMapHeader struct {
	Magic int32
	H2    int32
	H3    int32
	H4    int32
}

type KeyMapEntry struct {
	In LinuxKey
	E1 int16
	Out QtKey
	E2 int8
	E3 int8
	E4 int16
}

func keyMap() (*KeyMap, error) {
	f, err := os.Open("/home/patrick/src/qrc/test/17623/keys/avrcp.qmap")
	if err != nil {
		panic(err)
	}
	defer f.Close()

	var m KeyMap

	if off, err := f.Seek(0, io.SeekCurrent); err != nil {
		return nil, err
	} else {
		fmt.Printf("% 04d  ", off)
	}
	if err := binary.Read(f, binary.BigEndian, &m.KeyMapHeader); err != nil {
		panic(err)
	}
	fmt.Printf("%v\n", m.KeyMapHeader)

	for {
		var it KeyMapEntry
		if off, err := f.Seek(0, io.SeekCurrent); err != nil {
			return nil, err
		} else {
			fmt.Printf("% 04d  ", off)
		}
		if err := binary.Read(f, binary.BigEndian, &it); err == io.EOF {
			fmt.Printf("EOF\n")
			break
		} else if err != nil {
			return nil, err
		}
		fmt.Printf("%v\n", it)
		m.Entry = append(m.Entry, it)
	}

	return &m, nil
}

[Pjama]

Originally Posted by Uncle Robin

A limitation of the feature whose specific application we are strictly forbidden to identify is that quoting circumvents it. Were someone else to assiduously reply with lengthy, comprehensive quoting of a person on one's own list, the content one chose not to see is effectively rendered very visible. Sadly.

Correct, I tried using it once for someone who had Mr. Burns from the Simpsons as his avatar. It was not successful. Posting frequency and obnoxiousness meant he took over the thread and was quoted endlessly.

The Kobo forum is so anarchic compared to the Kindle forum.

Anyway, when people start getting their new Elipsas, please start a nice new thread so we can hear about them without all the noise - Sturm und Drang.

[Semwize]

@geek1011

What is the new 'Dark mode' feature in the reading settings? Same as 'Invert Screen'? Then why was it called differently.

[davidfor]

Originally Posted by Semwize

What is the new 'Dark mode' feature in the reading settings? Same as 'Invert Screen'? Then why was it called differently.

Because marketing got involved Don't all systems have a "Dark mode" now?

But, hopefully it is more complete than "Invert screen". That literally just swapped the light and dark. Which meant that images would be inverted as well as text. If it is done properly, the images should also be handled better. Have any of the reviews showed the dark mode in action? I know some mentioned it, but, I don't remember seeing a screenshot.

[davidfor]

Originally Posted by ottischwenk

I have a proof, and that statement should suffice.

Honestly, based on the conclusions you have posted about various things, yes, I'd like to see it. But, I don't expect you will post any proof. My interactions with Kobo about tolino devices suggested the opposite. It may have changed, but, if it did it wasn't a quick "sack everyone", but, a much slower transition.

[Semwize]

Originally Posted by davidfor

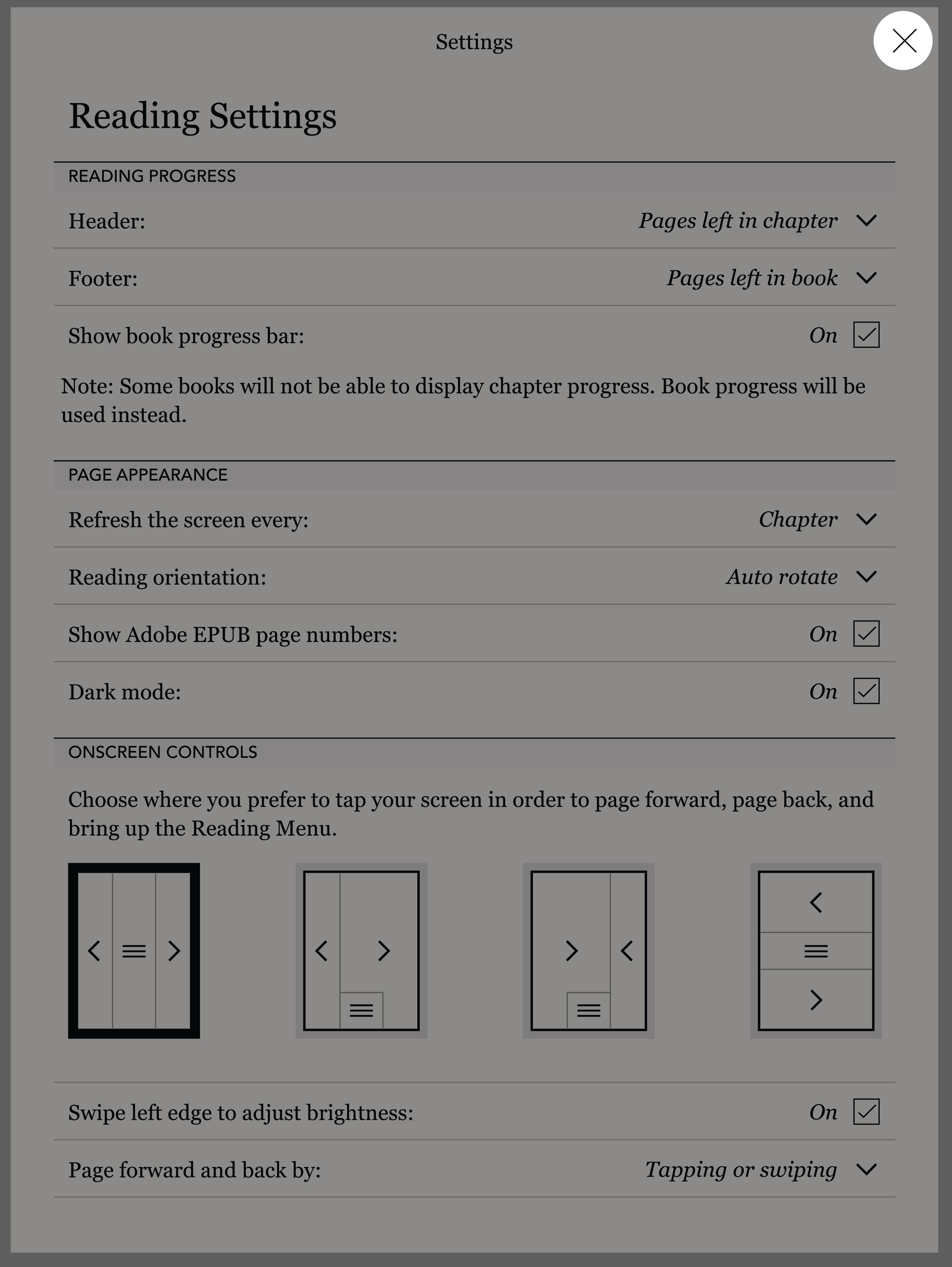

Have any of the reviews showed the dark mode in action? I know some mentioned it, but, I don't remember seeing a screenshot.

I did not see...

I looking at what new features appeared in firmware 4.28, there are quite a few of them, including 'Dark Mode'.

Originally Posted by davidfor

screenshot

It turns out that this is already on the site Kobo
https://help.kobo.com/hc/en-us/artic...o-Elipsa-only-

[christianbk]

I've been looking at reviews of this device and am frustrated at the lack of looking at little things, like dark mode functionality.

I have the dev mode enabled on my Forma, but yeah, it's an inversion and not an actual dark mode like what Kindle eink devices have.

I do like seeing on the Kobo help page that "Note: Images are not colour inverted." That means to me that there is some functionality built out here instead of a straight inversion.

I'm still on the fence for this device. So much so.

[DNSB]

Originally Posted by Semwize

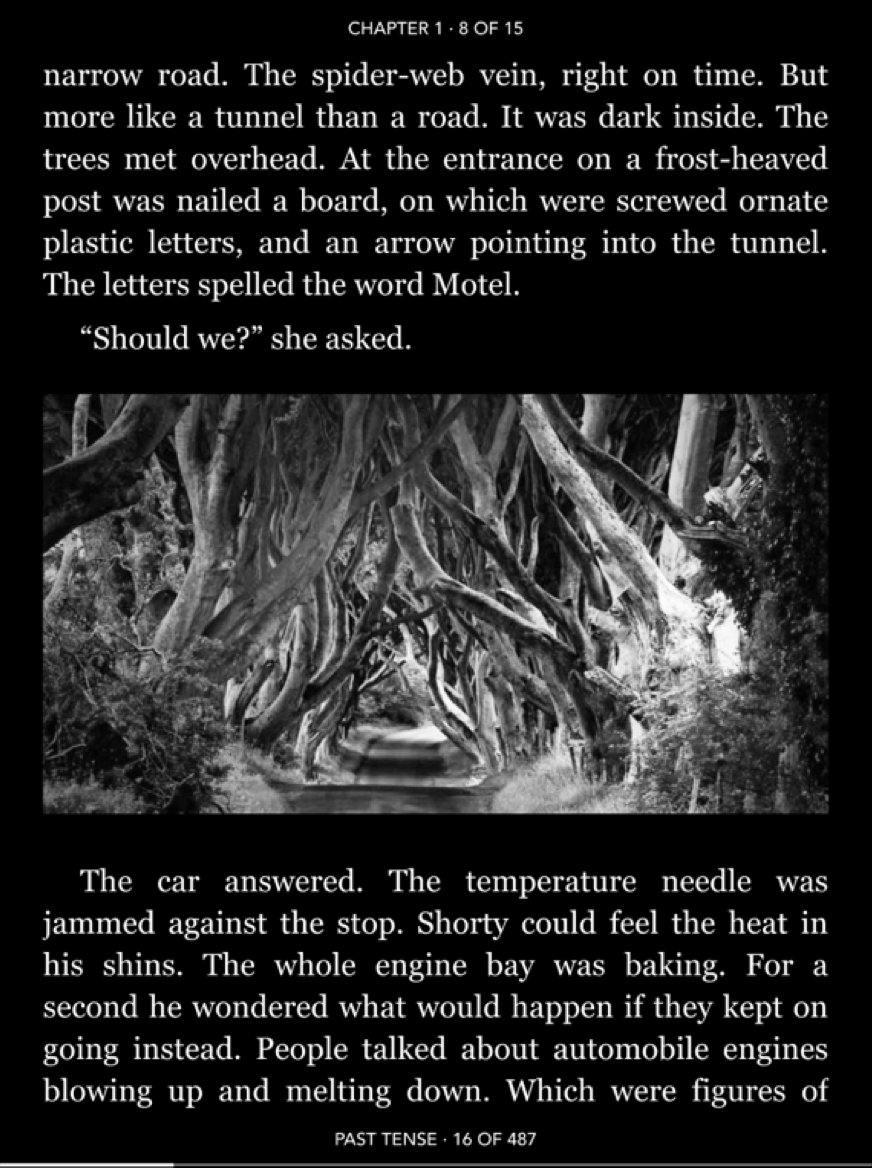

Attachment 187735 Attachment 187736

Sadly the image in the screenshot looks inverted.

[pso33]

Originally Posted by christianbk

I've been looking at reviews of this device and am frustrated at the lack of looking at little things, like dark mode functionality.

I have the dev mode enabled on my Forma, but yeah, it's an inversion and not an actual dark mode like what Kindle eink devices have.

I do like seeing on the Kobo help page that "Note: Images are not colour inverted." That means to me that there is some functionality built out here instead of a straight inversion.

I'm still on the fence for this device. So much so.

Install koreader, you can define gesture to switch inversion on/off, not having to navigate in menus, just for such a little thing.
It is very convenient to switch it on before going to sleep (relieves eye).
With koreader you can read PDFs, too (kobo's software for PDF reading is very limited).

I'm sure koreader will also be very soon available for new models.

[salamanderjuice]

Originally Posted by DNSB

Sadly the image in the screenshot looks inverted.

It doesn't to me. Shadows under trees are dark as expected, parts above hit by sunlight are lighter, etc.
