Instructions for patching firmware 4.4.9298 - Page 4

jcn363 · 05-14-2017, 10:50 AM

Quote:

Originally Posted by jackie_w

I think I may be able to come up with something similar that will work in GeoffR's libnickel.so.1.0.0.patch file.
...
Watch this space in the next few days ...

oren64 · 05-14-2017, 12:05 PM

New version to patch `Chapers progress increasing size in Kepub`.

jackie_w · 05-14-2017, 05:54 PM

This is a patch which will allow you to customise the appearance of the text in the dictionary pop-up widget and full-screen dictionary page. It can be found in kobopatch's libnickel.so.1.0.0.yaml file.

You can customise one or more of the following:

font-family (choose any font on your device, built-in or sideloaded)
font-size
line-height

As far as I can tell (trial and error) these are the current unpatched Kobo defaults:

Code:

         font-family    font-size   line-height
         -----------    ---------   -----------
    Glo: Georgia        23px        1.4em
    H2O: Georgia        29px        1.4em
  GloHD: Georgia        32px        1.4em
AuraONE: Georgia        42px        1.4em

... so work out your new custom font-size/line-height settings using these as a guideline.

The first 3 screenshots date from firmware 4.4.9298 when the patch was new:

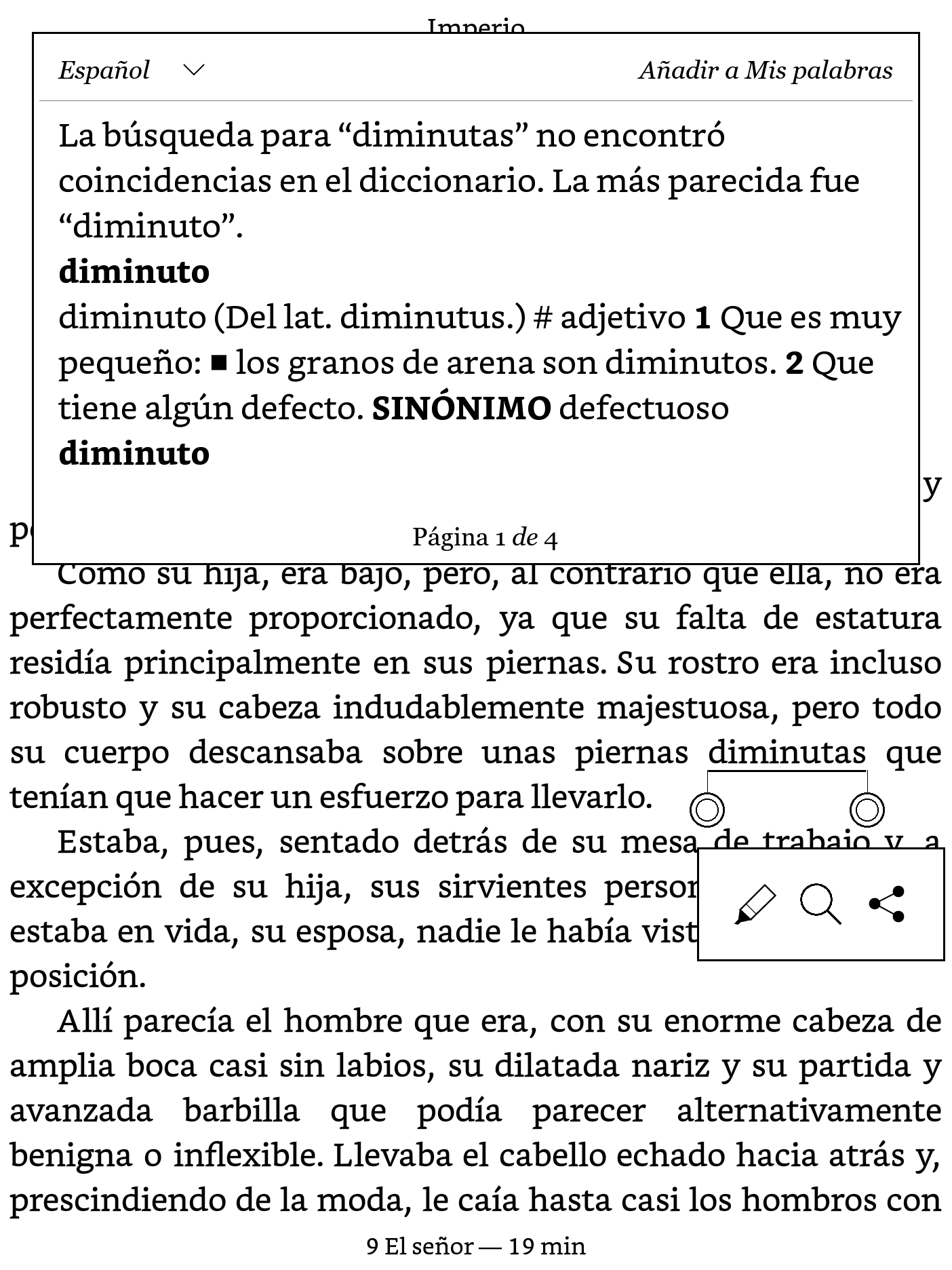

unpatched KA1 [**]

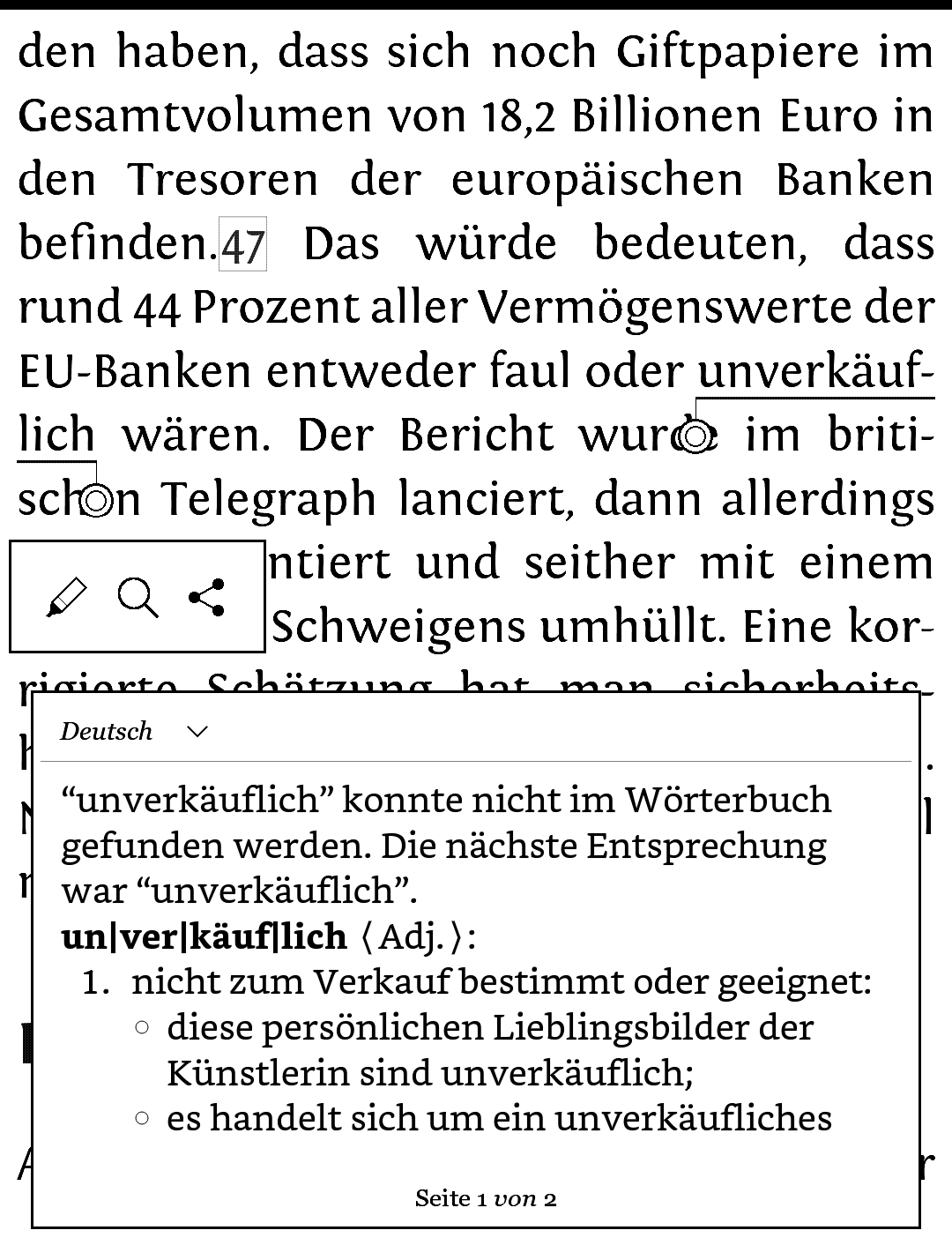

patched KA1: font-family: "Gill Sans", font-size: 38px, line-height: 1.1em

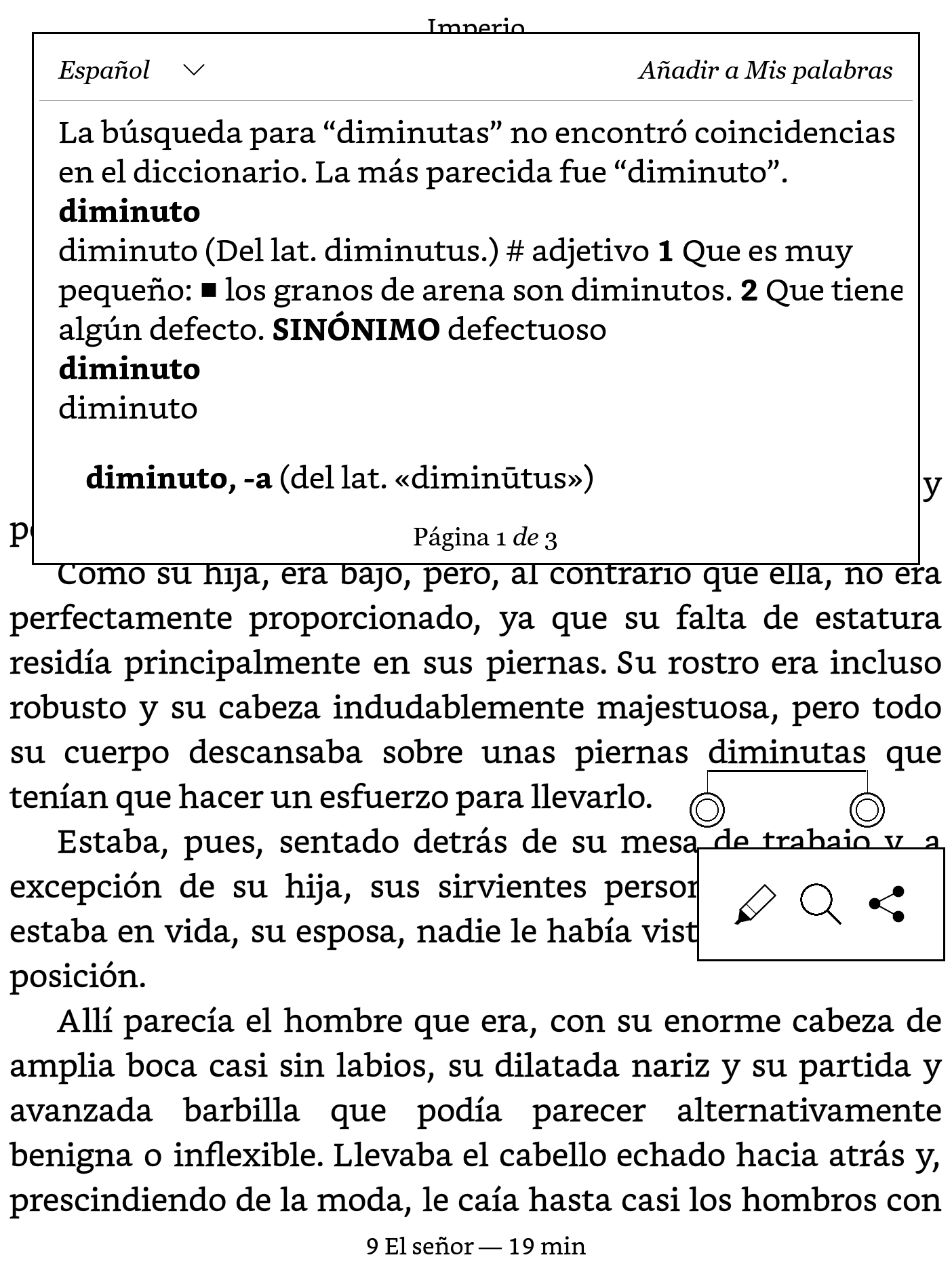

patched KA1: font-family: Bookerly, font-size: 45px, line-height: 1.4em

[**] Let me rephrase that. By 'unpatched' I mean before this particular patch was enabled. My other dictionary patch `Dictionary pop-up - increase available text area` (in nickel.yaml) is already enabled in all 3 of the screenshots. The 2 dictionary patches are not dependent on each other. Enable either, both or neither as you wish.

Note:
If you own several different Kobo models it is unlikely that you will be able to find one custom font-size which will look good on all your devices so you may need to run the patch process multiple times with a different settings.

Update for firmware 4.17.13694

This update should benefit those who have also installed some of the many custom dictionaries posted elsewhere in the Kobo forum.

Custom dictionaries often appear to have many blank lines. The aim of this update is to remove some of that excess whitespace in both pop-up and full-screen dictionary widgets.

This update will not adversely affect patch users who only use Kobo's built-in dictionaries. Patch customisation looks pretty much the same as ever.

The last 3 attached screenshots are taken from firmware 4.17.13694.
Each shows both the pop-up and full-screen widgets for a custom dictionary [Oxford English]

4. unpatched KA1
5. patched Forma: WITHOUT customisation of font-family/font-size/line-height
6. patched Forma: WITH customisation. font-family: Arial, font-size: 32px, line-height: 1.30em

Screenshots 4-6 do NOT have my 2nd dictionary patch enabled, Dictionary pop-up - increase available text area.

Enabling this 2nd patch would also reduce the header and left/right margins inside the pop-up widget reclaiming a little more room for the dictionary definition

Unfortunately, due to Kobo changes, the 2nd patch can no longer increase the box-size of the pop-up widget nor reduce the height of the 'Page x of y' footer.

GeoffR · 05-15-2017, 01:31 AM

Here are some keyboard patches for the Glo, they should also change the keys on other devices but I'm not sure whether they will be arranged in the right order.

Hopefully others can confirm whether it suits other devices too, or else work off the notes in this example to create new patches for those devices.

`Cyrillic keyboard` (paste into libnickel.so.1.0.0.patch):

Spoiler:

Code:

<Patch>
patch_name = `Cyrillic keyboard`
patch_enable = `no`
# patch_group = `Keyboard alternatives`
#
## Replaces keys on the Extended Latin keypad with Cyrillic alternatives.
##
## Note that after the device boots, the keypad might just show blank squares
## until after the first book has been opened.
##
## Also note that long-pressing keys on the base keypad will no longer show
## the appropriate list of Extended Latin keys.
#
# Enable uppercase for `ß` key
replace_bytes = 708434, 00 26, 01 26
# Enable uppercase for `ƒ` key
#replace_bytes = 708414, 80 F0 01 00, 01 20 01 20
#
# Replace layout sign
find_base_address = `ÉÀÇ`
replace_string = 0000, `ÉÀÇ`, `абв`
#
# Change keyboard keys (1- or 2-byte characters only)
# Row positions based on Glo, might be different for other devices:
find_base_address = `ý\0ÿ\0š\0ž\0`
# Top row, left to right (10 keys):
replace_string = 000C, `æ`, `й`
replace_string = 000F, `œ`, `ф`
replace_string = 0012, `þ`, `þ`
replace_string = 0006, `š`, `š`
replace_string = 0009, `ž`, `ž`
replace_string = 0018, `ŀ`, `ŀ`
replace_string = FFFFFF8C, `ƒ`, `ƒ`
replace_string = 001B, `μ`, `μ`
replace_string = 001E, `ª`, `ª`
replace_string = 0021, `º`, `º`
# Second row, left to right (11 keys):
replace_string = 0024, `à`, `ц`
replace_string = 0036, `è`, `у`
replace_string = 0042, `ì`, `к`
replace_string = 0045, `ò`, `е`
replace_string = 0048, `ù`, `н`
replace_string = 0027, `á`, `г`
replace_string = 0039, `é`, `ш`
replace_string = 004B, `í`, `щ`
replace_string = 004E, `ó`, `з`
replace_string = 0051, `ú`, `х`
replace_string = 0000, `ý`, `ъ`
# Third row, left to right (11 keys):
replace_string = 002A, `â`, `ы`
replace_string = 003C, `ê`, `в`
replace_string = 0060, `î`, `а`
replace_string = 0054, `ô`, `п`
replace_string = 0066, `û`, `р`
replace_string = 002D, `ä`, `о`
replace_string = 003F, `ë`, `л`
replace_string = 0063, `ï`, `д`
replace_string = 0057, `ö`, `ж`
replace_string = 0069, `ü`, `э`
replace_string = 0003, `ÿ`, `ё`
# Bottom row, left to right (10 keys):
replace_string = 0030, `ã`, `я`
replace_string = 006C, `ñ`, `ч`
replace_string = 005A, `õ`, `с`
replace_string = 0033, `å`, `м`
replace_string = FFFFFF89, `ß`, `и`
replace_string = 006F, `ç`, `т`
replace_string = 0072, `đ`, `ь`
replace_string = 005D, `ø`, `б`
replace_string = 0015, `ĳ`, `ю`
replace_string = 0075, `ł`, `.`
</Patch>

`Arabic keyboard` (paste into libnickel.so.1.0.0.patch):

Spoiler:

Code:

<Patch>
patch_name = `Arabic keyboard`
patch_enable = `no`
# Multi-version patch: 4.4.9298+
# patch_group = `Keyboard alternatives`
#
## Replaces keys on the Extended Latin keypad with Arabic alternatives.
##
## Note that after the device boots, the keypad might just show blank squares
## until after the first book has been opened.
##
## Also note that long-pressing keys on the base keypad will no longer show
## the appropriate list of Extended Latin keys.
#
# Enable uppercase for `ß` key
#replace_bytes = 708434, 00 26, 01 26
# Enable uppercase for `ƒ` key
#replace_bytes = 708414, 80 F0 01 00, 01 20 01 20
# Replace layout sign
find_base_address = `ÉÀÇ`
replace_string = 0000, `ÉÀÇ`, `ع`
# Change keyboard layout
find_base_address = `ý\0ÿ\0š\0ž\0`
# Top row, left to right (10 keys):
replace_string = 000C, `æ`, `ذ`
replace_string = 000F, `œ`, `ض`
replace_string = 0012, `þ`, `þ`
replace_string = 0006, `š`, `š`
replace_string = 0009, `ž`, `ž`
replace_string = 0018, `ŀ`, `ŀ`
replace_string = FFFFFF8C, `ƒ`, `ƒ`
replace_string = 001B, `μ`, `μ`
replace_string = 001E, `ª`, `ª`
replace_string = 0021, `º`, `º`
# Second row, left to right (11 keys):
replace_string = 0024, `à`, `ص`
replace_string = 0036, `è`, `ث`
replace_string = 0042, `ì`, `ق`
replace_string = 0045, `ò`, `ف`
replace_string = 0048, `ù`, `غ`
replace_string = 0027, `á`, `ع`
replace_string = 0039, `é`, `ه`
replace_string = 004B, `í`, `خ`
replace_string = 004E, `ó`, `ح`
replace_string = 0051, `ú`, `ج`
replace_string = 0000, `ý`, `د`
# Third row, left to right (11 keys):
replace_string = 002A, `â`, `ش`
replace_string = 003C, `ê`, `س`
replace_string = 0060, `î`, `ي`
replace_string = 0054, `ô`, `ب`
replace_string = 0066, `û`, `ل`
replace_string = 002D, `ä`, `ا`
replace_string = 003F, `ë`, `ت`
replace_string = 0063, `ï`, `ن`
replace_string = 0057, `ö`, `م`
replace_string = 0069, `ü`, `ك`
replace_string = 0003, `ÿ`, `ط`
# Bottom row, left to right (10 keys):
replace_string = 0030, `ã`, `ئ`
replace_string = 006C, `ñ`, `ء`
replace_string = 005A, `õ`, `ؤ`
replace_string = 0033, `å`, `ر`
replace_string = FFFFFF89, `ß`, `ى`
replace_string = 006F, `ç`, `ة`
replace_string = 0072, `đ`, `و`
replace_string = 005D, `ø`, `ز`
replace_string = 0015, `ĳ`, `ظ`
replace_string = 0075, `ł`, `.`
</Patch>

Edit: I'll add more keyboard patches to this post when I get time.

oren64 · 05-15-2017, 02:46 AM

`Hebrew keyboard - for Mini/Touch/Glo/Aura` (paste into libnickel.so.1.0.0.patch):

Spoiler:

Code:

<Patch>
patch_name = `Hebrew keyboard`
patch_enable = `no`
# Multi-version patch: 4.4.9298+
# patch_group = `Keyboard alternatives`
#
## Replaces keys on the Extended Latin keypad with Hebrew alternatives.
##
## Note that after the device boots, the keypad might just show blank squares
## until after the first book has been opened.
##
## Also note that long-pressing keys on the base keypad will no longer show
## the appropriate list of Extended Latin keys.
#
# Enable uppercase for `ß` key
#replace_bytes = 708434, 00 26, 01 26
# Enable uppercase for `ƒ` key
#replace_bytes = 708414, 80 F0 01 00, 01 20 01 20
#
# Replace layout sign
find_base_address = `ÉÀÇ`
replace_string = 0000, `ÉÀÇ`, `אב`
#
# Change keyboard keys (1- or 2-byte characters only)
# Row positions based on Glo, might be different for other devices:
find_base_address = `ý\0ÿ\0š\0ž\0`
# Top row, left to right (10 keys):
# You can edit the top row as you like
replace_string = 000C, `æ`, `!`
replace_string = 000F, `œ`, `?`
replace_string = 0012, `þ`, `-`
replace_string = 0006, `š`, `_`
replace_string = 0009, `ž`, `(`
replace_string = 0018, `ŀ`, `)`
replace_string = FFFFFF8C, `ƒ`, `[`
replace_string = 001B, `μ`, `]`
replace_string = 001E, `ª`, `:`
replace_string = 0021, `º`, `;`
# Second row, left to right (11 keys):
replace_string = 0024, `à`, `/`
replace_string = 0036, `è`, `'`
replace_string = 0042, `ì`, `ק`
replace_string = 0045, `ò`, `ר`
replace_string = 0048, `ù`, `א`
replace_string = 0027, `á`, `ט`
replace_string = 0039, `é`, `ו`
replace_string = 004B, `í`, `ן`
replace_string = 004E, `ó`, `ם`
replace_string = 0051, `ú`, `פ`
replace_string = 0000, `ý`, `"`
# Third row, left to right (11 keys):
replace_string = 002A, `â`, `ש`
replace_string = 003C, `ê`, `ד`
replace_string = 0060, `î`, `ג`
replace_string = 0054, `ô`, `כ`
replace_string = 0066, `û`, `ע`
replace_string = 002D, `ä`, `י`
replace_string = 003F, `ë`, `ח`
replace_string = 0063, `ï`, `ל`
replace_string = 0057, `ö`, `ך`
replace_string = 0069, `ü`, `ף`
replace_string = 0003, `ÿ`, `,`
# Bottom row, left to right (10 keys):
replace_string = 0030, `ã`, `ז`
replace_string = 006C, `ñ`, `ס`
replace_string = 005A, `õ`, `ב`
replace_string = 0033, `å`, `ה`
replace_string = FFFFFF89, `ß`, `נ`
replace_string = 006F, `ç`, `מ`
replace_string = 0072, `đ`, `צ`
replace_string = 005D, `ø`, `ת`
replace_string = 0015, `ĳ`, `ץ`
replace_string = 0075, `ł`, `.`
</Patch>

`Hebrew keyboard - for AuraHD/GloHD/H2O` (paste into libnickel.so.1.0.0.patch):

Spoiler:

Code:

<Patch>
patch_name = `Hebrew keyboard - for AuraHD/GloHD/H2O`
patch_enable = `no`
# Multi-version patch: 4.4.9298+
# patch_group = `Keyboard alternatives`
#
## Replaces keys on the Extended Latin keypad with Hebrew alternatives.
##
## Note that after the device boots, the keypad might just show blank squares
## until after the first book has been opened.
##
## Also note that long-pressing keys on the base keypad will no longer show
## the appropriate list of Extended Latin keys.
#
# Enable uppercase for `ß` (sharp s) key
#replace_bytes = 708434, 00 26, 01 26
# Replace layout sign
find_base_address = `ÉÀÇ`
replace_string = 0000, `ÉÀÇ`, `ÉÀÇ`
# Change keyboard layout
find_base_address = `ý\0ÿ\0š\0ž\0`
# (Top row cannot be changed.)
# Second row, left to right (12 keys):
replace_string = 000C, `æ`, `/`
replace_string = 0024, `à`, `'`
replace_string = 0036, `è`, `ק`
replace_string = 0042, `ì`, `ר`
replace_string = 0045, `ò`, `א`
replace_string = 0048, `ù`, `ט`
replace_string = 0027, `á`, `ו`
replace_string = 0039, `é`, `ן`
replace_string = 004B, `í`, `ם`
replace_string = 004E, `ó`, `פ`
replace_string = 0051, `ú`, `]`
replace_string = 0000, `ý`, `[`
# Third row, left to right (12 keys):
replace_string = 000F, `œ`, `ש`
replace_string = 002A, `â`, `ד`
replace_string = 003C, `ê`, `ג`
replace_string = 0060, `î`, `כ`
replace_string = 0054, `ô`, `ע`
replace_string = 0066, `û`, `י`
replace_string = 002D, `ä`, `ח`
replace_string = 003F, `ë`, `ל`
replace_string = 0063, `ï`, `ך`
replace_string = 0057, `ö`, `ף`
replace_string = 0069, `ü`, `,`
replace_string = 0003, `ÿ`, `"`
# Fourth row, left to right (10 keys):
replace_string = 0030, `ã`, `ז`
replace_string = 006C, `ñ`, `ס`
replace_string = 005A, `õ`, `ב`
replace_string = 0033, `å`, `ה`
replace_string = FFFFFF89, `ß`, `נ`
replace_string = 006F, `ç`, `מ`
replace_string = 0072, `đ`, `צ`
replace_string = 005D, `ø`, `ת`
replace_string = 0015, `ĳ`, `ץ`
replace_string = 0075, `ł`, `.`
</Patch>

`Hebrew keyboard - for AuraOne` (paste into libnickel.so.1.0.0.patch):

Spoiler:

Code:

<Patch>
patch_name = `Hebrew keyboard- for AuraOne`
patch_enable = `no`
# Multi-version patch: 4.4.9298+
# patch_group = `Keyboard alternatives`
#
## Replaces keys on the Extended Latin keypad with Hebrew alternatives.
##
## Note that after the device boots, the keypad might just show blank squares
## until after the first book has been opened.
##
## Also note that long-pressing keys on the base keypad will no longer show
## the appropriate list of Extended Latin keys.
#
# Enable uppercase for `ß` (sharp s) key
replace_bytes = 708434, 00 26, 01 26
# Replace layout sign
find_base_address = `ÉÀÇ`
replace_string = 0000, `ÉÀÇ`, `ÉÀÇ`
# Change keyboard layout
find_base_address = `ý\0ÿ\0š\0ž\0`
# Top row, left to right (10 keys):
replace_string = 0000, `ý`, `/`
replace_string = 0003, `ÿ`, `'`
replace_string = 0006, `š`, `ק`
replace_string = 0009, `ž`, `ר`
replace_string = 000C, `æ`, `א`
replace_string = 000F, `œ`, `ט`
replace_string = 0012, `þ`, `ו`
replace_string = FFFFFF89, `ß`, `ן`
replace_string = 0015, `ĳ`, `ם`
replace_string = 0018, `ŀ`, `פ`
# Second row, left to right (10 keys):
replace_string = 0024, `à`, `ש`
replace_string = 0027, `á`, `ד`
replace_string = 002A, `â`, `ג`
replace_string = 002D, `ä`, `כ`
replace_string = 0030, `ã`, `ע`
replace_string = 0033, `å`, `י`
replace_string = 0036, `è`, `ח`
replace_string = 0039, `é`, `ל`
replace_string = 003C, `ê`, `ך`
replace_string = 003F, `ë`, `ף`
# Third row, left to right (10 keys):
replace_string = 0045, `ò`, `ז`
replace_string = 004E, `ó`, `ס`
replace_string = 0054, `ô`, `ב`
replace_string = 0057, `ö`, `ה`
replace_string = 005A, `õ`, `נ`
replace_string = 005D, `ø`, `מ`
replace_string = 0042, `ì`, `צ`
replace_string = 004B, `í`, `ת`
replace_string = 0060, `î`, `ץ`
replace_string = 0063, `ï`, `.`
# Fourth row, left to right (10 keys):
replace_string = 0048, `ù`, `!`
replace_string = 0051, `ú`, `?`
replace_string = 0066, `û`, `,`
replace_string = 0069, `ü`, `"`
replace_string = 006C, `ñ`, `)`
replace_string = 006F, `ç`, `(`
replace_string = 0072, `đ`, `-`
replace_string = 0075, `ł`, `_`
</Patch>

Edit: GeoffR I didn't see you add the Hebrew Keyboard.
Hebrew Keyboard I post is more closer to the real Hebrew Keyboard, it have the characters that are missing in your keyboard like comma and quotation marks.

Edit 2: Multi-version patch: 4.4.9298+

Martina Schein · 05-15-2017, 03:01 AM

Quote:

Originally Posted by jackie_w

New patch: `Dictionary text font-family/font-size/line-height - beta`

Thank you very much. The patch works fine on my H2O.

first screenshot = unpatched
second screenshot= 40px 1.3 Bockerly

GeoffR · 05-15-2017, 03:11 AM

Quote:

Originally Posted by oren64

Edit: GeoffR I didn't see you add the you add the Hebrew Keyboard.
Hebrew Keyboard I post is more closer to the real Hebrew Keyboard, it have the characters that are missing in your keyboard like comma and quotation marks.

Thanks oren64, I'll use your one. Just note that you can comment out the code that enables uppercase and make it into a multi-version patch:

Code:

# Enable uppercase for `ß` key
#replace_bytes = 708434, 00 26, 01 26

GeoffR · 05-15-2017, 07:40 AM

Here are template patches for the three different keyboard layouts. I am assuming the layouts haven't changed, so let me know if they have.

To create a keyboard patch just replace the right-most value in each of the replace_string lines. Only 1- or 2-byte characters can be used, so keyboards for some languages are not possible.

Layout for Mini/Touch/Glo/Aura:

Code:

æ œ þ š ž ŀ ƒ μ ª º
à è ì ò ù á é í ó ú ý
â ê î ô û ä ë ï ö ü ÿ
  ã ñ õ å ß ç đ ø ĳ ł

`Keyboard template - Mini/Touch/Glo/Aura` (paste into libnickel.so.1.0.0.patch):

Spoiler:

Code:

<Patch>
patch_name = `Keyboard template - Mini/Touch/Glo/Aura`
patch_enable = `no`
# patch_group = `Keyboard alternatives`
#
## Replaces keys on the Extended Latin keypad with alternatives.
##
## Note that after the device boots, the keypad might just show blank squares
## until after the first book has been opened.
##
## Also note that long-pressing keys on the base keypad will no longer show
## the appropriate list of Extended Latin keys.
#
# Enable uppercase for `ß` (sharp s) key
replace_bytes = 708434, 00 26, 01 26
# Enable uppercase for `ƒ` (script f) key
replace_bytes = 708414, 80 F0 01 00, 01 20 01 20
# Replace layout sign
find_base_address = `ÉÀÇ`
replace_string = 0000, `ÉÀÇ`, `ÉÀÇ`
# Change keyboard layout
find_base_address = `ý\0ÿ\0š\0ž\0`
# Top row, left to right (10 keys):
replace_string = 000C, `æ`, `æ`
replace_string = 000F, `œ`, `œ`
replace_string = 0012, `þ`, `þ`
replace_string = 0006, `š`, `š`
replace_string = 0009, `ž`, `ž`
replace_string = 0018, `ŀ`, `ŀ`
replace_string = FFFFFF8C, `ƒ`, `ƒ`
replace_string = 001B, `μ`, `μ`
replace_string = 001E, `ª`, `ª`
replace_string = 0021, `º`, `º`
# Second row, left to right (11 keys):
replace_string = 0024, `à`, `à`
replace_string = 0036, `è`, `è`
replace_string = 0042, `ì`, `ì`
replace_string = 0045, `ò`, `ò`
replace_string = 0048, `ù`, `ù`
replace_string = 0027, `á`, `á`
replace_string = 0039, `é`, `é`
replace_string = 004B, `í`, `í`
replace_string = 004E, `ó`, `ó`
replace_string = 0051, `ú`, `ú`
replace_string = 0000, `ý`, `ý`
# Third row, left to right (11 keys):
replace_string = 002A, `â`, `â`
replace_string = 003C, `ê`, `ê`
replace_string = 0060, `î`, `î`
replace_string = 0054, `ô`, `ô`
replace_string = 0066, `û`, `û`
replace_string = 002D, `ä`, `ä`
replace_string = 003F, `ë`, `ë`
replace_string = 0063, `ï`, `ï`
replace_string = 0057, `ö`, `ö`
replace_string = 0069, `ü`, `ü`
replace_string = 0003, `ÿ`, `ÿ`
# Fourth row, left to right (10 keys):
replace_string = 0030, `ã`, `ã`
replace_string = 006C, `ñ`, `ñ`
replace_string = 005A, `õ`, `õ`
replace_string = 0033, `å`, `å`
replace_string = FFFFFF89, `ß`, `ß`
replace_string = 006F, `ç`, `ç`
replace_string = 0072, `đ`, `đ`
replace_string = 005D, `ø`, `ø`
replace_string = 0015, `ĳ`, `ĳ`
replace_string = 0075, `ł`, `ł`
</Patch>

Layout for AuraHD/GloHD/H2O (Top row cannot be changed.)

Code:

1 2 3 4 5 6 7 8 9 0
æ à è ì ò ù á é í ó ú ý
œ â ê î ô û ä ë ï ö ü ÿ
    ã ñ õ å ß ç đ ø ĳ ł

`Keyboard template - AuraHD/GloHD/H2O` (paste into libnickel.so.1.0.0.patch):

Spoiler:

Code:

<Patch>
patch_name = `Keyboard template - AuraHD/GloHD/H2O`
patch_enable = `no`
# patch_group = `Keyboard alternatives`
#
## Replaces keys on the Extended Latin keypad with alternatives.
##
## Note that after the device boots, the keypad might just show blank squares
## until after the first book has been opened.
##
## Also note that long-pressing keys on the base keypad will no longer show
## the appropriate list of Extended Latin keys.
#
# Enable uppercase for `ß` (sharp s) key
replace_bytes = 708434, 00 26, 01 26
# Replace layout sign
find_base_address = `ÉÀÇ`
replace_string = 0000, `ÉÀÇ`, `ÉÀÇ`
# Change keyboard layout
find_base_address = `ý\0ÿ\0š\0ž\0`
# (Top row cannot be changed.)
# Second row, left to right (12 keys):
replace_string = 000C, `æ`, `æ`
replace_string = 0024, `à`, `à`
replace_string = 0036, `è`, `è`
replace_string = 0042, `ì`, `ì`
replace_string = 0045, `ò`, `ò`
replace_string = 0048, `ù`, `ù`
replace_string = 0027, `á`, `á`
replace_string = 0039, `é`, `é`
replace_string = 004B, `í`, `í`
replace_string = 004E, `ó`, `ó`
replace_string = 0051, `ú`, `ú`
replace_string = 0000, `ý`, `ý`
# Third row, left to right (12 keys):
replace_string = 000F, `œ`, `œ`
replace_string = 002A, `â`, `â`
replace_string = 003C, `ê`, `ê`
replace_string = 0060, `î`, `î`
replace_string = 0054, `ô`, `ô`
replace_string = 0066, `û`, `û`
replace_string = 002D, `ä`, `ä`
replace_string = 003F, `ë`, `ë`
replace_string = 0063, `ï`, `ï`
replace_string = 0057, `ö`, `ö`
replace_string = 0069, `ü`, `ü`
replace_string = 0003, `ÿ`, `ÿ`
# Fourth row, left to right (10 keys):
replace_string = 0030, `ã`, `ã`
replace_string = 006C, `ñ`, `ñ`
replace_string = 005A, `õ`, `õ`
replace_string = 0033, `å`, `å`
replace_string = FFFFFF89, `ß`, `ß`
replace_string = 006F, `ç`, `ç`
replace_string = 0072, `đ`, `đ`
replace_string = 005D, `ø`, `ø`
replace_string = 0015, `ĳ`, `ĳ`
replace_string = 0075, `ł`, `ł`
</Patch>

Layout for AuraOne:

Code:

ý ÿ š ž æ œ þ ß ĳ ŀ
à á â ä ã å è é ê ë
ò ó ô ö õ ø ì í î ï
  ù ú û ü ñ ç đ ł

`Keyboard template - AuraOne` (paste into libnickel.so.1.0.0.patch):

Spoiler:

Code:

<Patch>
patch_name = `Keyboard template - AuraOne`
patch_enable = `no`
# patch_group = `Keyboard alternatives`
#
## Replaces keys on the Extended Latin keypad with alternatives.
##
## Note that after the device boots, the keypad might just show blank squares
## until after the first book has been opened.
##
## Also note that long-pressing keys on the base keypad will no longer show
## the appropriate list of Extended Latin keys.
#
# Enable uppercase for `ß` (sharp s) key
replace_bytes = 708434, 00 26, 01 26
# Replace layout sign
find_base_address = `ÉÀÇ`
replace_string = 0000, `ÉÀÇ`, `ÉÀÇ`
# Change keyboard layout
find_base_address = `ý\0ÿ\0š\0ž\0`
# Top row, left to right (10 keys):
replace_string = 0000, `ý`, `ý`
replace_string = 0003, `ÿ`, `ÿ`
replace_string = 0006, `š`, `š`
replace_string = 0009, `ž`, `ž`
replace_string = 000C, `æ`, `æ`
replace_string = 000F, `œ`, `œ`
replace_string = 0012, `þ`, `þ`
replace_string = FFFFFF89, `ß`, `ß`
replace_string = 0015, `ĳ`, `ĳ`
replace_string = 0018, `ŀ`, `ŀ`
# Second row, left to right (10 keys):
replace_string = 0024, `à`, `à`
replace_string = 0027, `á`, `á`
replace_string = 002A, `â`, `â`
replace_string = 002D, `ä`, `ä`
replace_string = 0030, `ã`, `ã`
replace_string = 0033, `å`, `å`
replace_string = 0036, `è`, `è`
replace_string = 0039, `é`, `é`
replace_string = 003C, `ê`, `ê`
replace_string = 003F, `ë`, `ë`
# Third row, left to right (10 keys):
replace_string = 0045, `ò`, `ò`
replace_string = 004E, `ó`, `ó`
replace_string = 0054, `ô`, `ô`
replace_string = 0057, `ö`, `ö`
replace_string = 005A, `õ`, `õ`
replace_string = 005D, `ø`, `ø`
replace_string = 0042, `ì`, `ì`
replace_string = 004B, `í`, `í`
replace_string = 0060, `î`, `î`
replace_string = 0063, `ï`, `ï`
# Fourth row, left to right (8 keys):
replace_string = 0048, `ù`, `ù`
replace_string = 0051, `ú`, `ú`
replace_string = 0066, `û`, `û`
replace_string = 0069, `ü`, `ü`
replace_string = 006C, `ñ`, `ñ`
replace_string = 006F, `ç`, `ç`
replace_string = 0072, `đ`, `đ`
replace_string = 0075, `ł`, `ł`
</Patch>

jackie_w · 05-15-2017, 07:46 AM

Quote:

Originally Posted by Martina Schein

Thank you very much. The patch works fine on my H2O.

Thanks for confirming, Martina

LucyOne · 05-15-2017, 11:40 AM

Quote:

Originally Posted by jackie_w

As promised here is a new patch which will allow you to customise the appearance of the text in the dictionary pop-up widget and full-screen dictionary page.

Great patch, Jackie! I always wanted to have a larger font in the dictionary.
I'd post a screenshot of my GloHD if I just knew how.

Semwize · 05-15-2017, 05:08 PM

Quote:

Originally Posted by GeoffR

Layout for AuraHD/GloHD/H2O

For Glo HD did not fit (Cyrillic)

from AuraOne fit, but without the numbers if.

JSWolf · 05-16-2017, 04:39 AM

Which patches are not in the zip file in post #1? Thanks.

jcn363 · 05-16-2017, 05:33 AM

Quote:

Originally Posted by jackie_w

As promised here is a new patch which will allow you to customise the appearance of the text in the dictionary pop-up widget and full-screen dictionary page.

Thanks a lot.
The patch works fine on my ka1.

jcn363 · 05-16-2017, 05:49 AM

Quote:

Originally Posted by LucyOne

I'd post a screenshot of my GloHD if I just knew how.

I do in this way:
in .kobo/Kobo/Kobo eReader.conf search for

Code:

[FeatureSettings]
Screenshots=false

change to true
disconnect
take the screenshot with ON key
Don't forget to change to false when you done.

Good luck!

aklenatlus · 05-16-2017, 06:55 AM

Hi, is it possible to remove the header (which report the book's title) and let the footer remain?
Thanks

05-14-2017, 05:54 PM	#48
jackie_w Grand Sorcerer Posts: 6,267 Karma: 16544702 Join Date: Sep 2009 Location: UK Device: ClaraHD, Forma, Libra2, Clara2E, LibraCol, PBTouchHD3	Patch: `Dictionary text font-family/font-size/line-height This is a patch which will allow you to customise the appearance of the text in the dictionary pop-up widget and full-screen dictionary page. It can be found in kobopatch's libnickel.so.1.0.0.yaml file. You can customise one or more of the following: font-family (choose any font on your device, built-in or sideloaded) font-size line-height As far as I can tell (trial and error) these are the current unpatched Kobo defaults: Code: font-family font-size line-height ----------- --------- ----------- Glo: Georgia 23px 1.4em H2O: Georgia 29px 1.4em GloHD: Georgia 32px 1.4em AuraONE: Georgia 42px 1.4em ... so work out your new custom font-size/line-height settings using these as a guideline. The first 3 screenshots date from firmware 4.4.9298 when the patch was new: unpatched KA1 [] patched KA1: font-family: "Gill Sans", font-size: 38px, line-height: 1.1em patched KA1: font-family: Bookerly, font-size: 45px, line-height: 1.4em [] Let me rephrase that. By 'unpatched' I mean before this particular patch was enabled. My other dictionary patch `Dictionary pop-up - increase available text area` (in nickel.yaml) is already enabled in all 3 of the screenshots. The 2 dictionary patches are not dependent on each other. Enable either, both or neither as you wish. Note: If you own several different Kobo models it is unlikely that you will be able to find one custom font-size which will look good on all your devices so you may need to run the patch process multiple times with a different settings. Update for firmware 4.17.13694 This update should benefit those who have also installed some of the many custom dictionaries posted elsewhere in the Kobo forum. Custom dictionaries often appear to have many blank lines. The aim of this update is to remove some of that excess whitespace in both pop-up and full-screen dictionary widgets. This update will not adversely affect patch users who only use Kobo's built-in dictionaries. Patch customisation looks pretty much the same as ever. The last 3 attached screenshots are taken from firmware 4.17.13694. Each shows both the pop-up and full-screen widgets for a custom dictionary [Oxford English] 4. unpatched KA1 5. patched Forma: WITHOUT customisation of font-family/font-size/line-height 6. patched Forma: WITH customisation. font-family: Arial, font-size: 32px, line-height: 1.30em Screenshots 4-6 do NOT have my 2nd dictionary patch enabled, Dictionary pop-up - increase available text area. Enabling this 2nd patch would also reduce the header and left/right margins inside the pop-up widget reclaiming a little more room for the dictionary definition Unfortunately, due to Kobo changes, the 2nd patch can no longer increase the box-size of the pop-up widget nor reduce the height of the 'Page x of y' footer. Attached Thumbnails Last edited by jackie_w; 09-20-2019 at 05:59 PM. Reason: Updated for firmware 4.17.13694

Similar Threads
Thread	Thread Starter	Forum	Replies	Last Post
Instructions for patching firmware 3.17.3	GeoffR	Kobo Developer's Corner	60	09-17-2015 05:35 PM
Instructions for patching firmware 3.17.0	GeoffR	Kobo Developer's Corner	49	08-16-2015 05:20 AM
Instructions for patching firmware 3.16.10	GeoffR	Kobo Developer's Corner	12	08-14-2015 03:40 AM
Instructions for patching firmware 3.8.0	GeoffR	Kobo Developer's Corner	92	10-22-2014 07:22 AM
Instructions for patching firmware 3.3.x, 3.4.x, 3.5.x	GeoffR	Kobo Developer's Corner	285	08-27-2014 10:06 AM

05-14-2017, 12:05 PM	#47
oren64 I need a chapter break Posts: 4,042 Karma: 56058267 Join Date: Mar 2015 Location: Israel Device: Kobo Glo	New version to patch `Chapers progress increasing size in Kepub`.

05-16-2017, 04:39 AM	#57
JSWolf Resident Curmudgeon Posts: 80,727 Karma: 150249619 Join Date: Nov 2006 Location: Roslindale, Massachusetts Device: Kobo Libra 2, Kobo Aura H2O, PRS-650, PRS-T1, nook STR, PW3	Which patches are not in the zip file in post #1? Thanks.

05-16-2017, 06:55 AM	#60
aklenatlus Enthusiast Posts: 30 Karma: 16190 Join Date: Jul 2016 Location: Rome, Italy Device: Kobo Aura One	Hi, is it possible to remove the header (which report the book's title) and let the footer remain? Thanks
