MGlitch · 01-10-2016, 01:39 AM

Using the dictionary patch 'works' on my H2O. However it cuts off at least a line, possibly more. I've tried tweaking the size of the pop up but the cut off still occurs. Most of the time you can see a bit of cut off text, though not enough to identify what letters are being cut off.

oren64 · 01-10-2016, 02:08 AM

I only test the patch on my glo.

Try this libnickel.so.1.0.0.patch.

Spoiler:

MGlitch · 01-10-2016, 09:03 PM

Seems to have done the trick, the odd cut off text is gone and it seems to now display all lines in a given definition. Still hunting for a word which will have part of a sentence the last bit of page 1 of the pop up. But from the words tested it's behaving as it should.

Thanks for the nifty patch

drjd · 01-13-2016, 02:00 AM

@ oren64,

I updated my Kobo Glow to firmware 3.19.5761 recently, and applied metazoa patches along with your 'Changing the info panel in full size screensaver' patch.

This time, the info panel box is appearing on the UPPER left corner of the screen instead of lower left corner during sleep and power-off. Its okay for me, however, just wanted to tell you.

Any possible reasons for this?

oren64 · 01-13-2016, 02:22 AM

The default option is the upper left corner.
to move the info panel to the lower left corner you need to change the number in the patch.

Code:

#QWidget-height from the top-Kobo glo+Kobo Aura
#To move the info pannel to the botten corner change 000px to 904px
replace_string = 007B, `min-height: 680px;`, `min-height: 000px;`
replace_string = 008F, `max-height: 680px;`, `max-height: 000px;`

1024px(Glo screen height px)=904px(height from the top)+120px(info panel height)

The patch for the lower left corner is.

Spoiler:

Code:

<Patch>
patch_name = `Changing the info panel in full size screensaver`
patch_enable = `yes`
# Multi-version patch: 3.13.1-3.19.5761+
#
#Warning if you charge in sleep mode the text "sleeping" is cut
#
#
find_base_address = `QWidget[qApp_deviceIsDragon="true"] {\n\tmin-height: 1000px;`
#QWidget-height from the top-Kobo Aura HD\H2O
#To move the info pannel to the botten corner change 0000px to 1290px
replace_string = 0027, `min-height: 1000px;`, `min-height: 1290px;`
replace_string = 003C, `max-height: 1000px;`, `max-height: 1290px;`
#
#QWidget-height from the top-Kobo glo+Kobo Aura
#To move the info pannel to the botten corner change 000px to 904px
replace_string = 007B, `min-height: 680px;`, `min-height: 904px;`
replace_string = 008F, `max-height: 680px;`, `max-height: 904px;`
#
#QWidget-height from the top-Kobo Mini
#To move the info pannel to the botten corner change 000px to 700px
replace_string = 00CD, `min-height: 510px;`, `min-height: 700px;`
replace_string = 00E1, `max-height: 510px;`, `max-height: 700px;`
#
#
find_base_address = `#infoWidget {\n\tbackground-color: rgba(255, 255, 255, 234);`
#background-color transparent
replace_string = 000F, `background-color: rgba(255, 255, 255, 234);`, `background-color: rgba(255, 255, 255, 120);`
replace_string = 0062, `background-color: rgba(0, 0, 0, 234);`, `background-color: rgba(0, 0, 0, 120);`
#
#
find_base_address = `#infoWidget[qApp_deviceIsDragon="true"] {\n\tmin-width: 470px;`
# infoWidget-box width height-Kobo Aura HD\H2O
replace_string = 002B, `min-width: 470px;`, `min-width: 350px;`
replace_string = 003E, `min-height: 260px;`, `min-height: 150px;`
replace_string = 0052, `max-height: 260px;`, `max-height: 150px;`
# infoWidget-box width height-Kobo glo+Kobo Aura
replace_string = 0094, `min-width: 380px;`, `min-width: 260px;`
replace_string = 00A7, `min-height: 230px;`, `min-height: 120px;`
replace_string = 00BB, `max-height: 230px;`, `max-height: 120px;`
# infoWidget-box width height-Kobo Mini
replace_string = 00FD, `min-width: 300px;`, `min-width: 200px;`
replace_string = 0110, `min-height: 160px;`, `min-height: 100px;`
replace_string = 0124, `max-height: 160px;`, `max-height: 100px;`
#
#
find_base_address = `#infoFrame {\n\tborder-top: 1px solid black;`
# infoFrame-Margin-Kobo Aura HD\H2O
replace_string = 0144, `qproperty-leftMargin: 60;`, `qproperty-leftMargin: 02;`
replace_string = 015F, `qproperty-topMargin: 25;`, `qproperty-topMargin: 02;`
replace_string = 0179, `qproperty-bottomMargin: 25;`, `qproperty-bottomMargin: 02;`
# infoFrame-Margin-Kobo glo+Kobo Aura
replace_string = 01C3, `qproperty-leftMargin: 40;`, `qproperty-leftMargin: 02;`
replace_string = 01DE, `qproperty-topMargin: 20;`, `qproperty-topMargin: 02;`
replace_string = 01F8, `qproperty-bottomMargin: 20;`, `qproperty-bottomMargin: 02;`
# infoFrame-Margin-Kobo Mini
replace_string = 0242, `qproperty-leftMargin: 30;`, `qproperty-leftMargin: 02;`
replace_string = 025D, `qproperty-topMargin: 10;`, `qproperty-topMargin: 02;`
replace_string = 0277, `qproperty-bottomMargin: 10;`, `qproperty-bottomMargin: 02;`
</Patch>

drjd · 01-13-2016, 02:30 AM

Quote:

Originally Posted by oren64

The default option is the upper left corner.
to move the info panel to the lower left corner you need to change the number in the patch.

Code:

#QWidget-height from the top-Kobo glo+Kobo Aura
#To move the info pannel to the botten corner change 000px to 904px
replace_string = 007B, `min-height: 680px;`, `min-height: 000px;`
replace_string = 008F, `max-height: 680px;`, `max-height: 000px;`

1024px(Glo screen height px)=904px(height from the top)+120px(info panel height)

The patch for the lower left corner is.

Spoiler:

Code:

<Patch>
patch_name = `Changing the info panel in full size screensaver`
patch_enable = `yes`
# Multi-version patch: 3.13.1-3.19.5761+
#
#Warning if you charge in sleep mode the text "sleeping" is cut
#
#
find_base_address = `QWidget[qApp_deviceIsDragon="true"] {\n\tmin-height: 1000px;`
#QWidget-height from the top-Kobo Aura HD\H2O
#To move the info pannel to the botten corner change 0000px to 1290px
replace_string = 0027, `min-height: 1000px;`, `min-height: 1290px;`
replace_string = 003C, `max-height: 1000px;`, `max-height: 1290px;`
#
#QWidget-height from the top-Kobo glo+Kobo Aura
#To move the info pannel to the botten corner change 000px to 904px
replace_string = 007B, `min-height: 680px;`, `min-height: 904px;`
replace_string = 008F, `max-height: 680px;`, `max-height: 904px;`
#
#QWidget-height from the top-Kobo Mini
#To move the info pannel to the botten corner change 000px to 700px
replace_string = 00CD, `min-height: 510px;`, `min-height: 700px;`
replace_string = 00E1, `max-height: 510px;`, `max-height: 700px;`
#
#
find_base_address = `#infoWidget {\n\tbackground-color: rgba(255, 255, 255, 234);`
#background-color transparent
replace_string = 000F, `background-color: rgba(255, 255, 255, 234);`, `background-color: rgba(255, 255, 255, 120);`
replace_string = 0062, `background-color: rgba(0, 0, 0, 234);`, `background-color: rgba(0, 0, 0, 120);`
#
#
find_base_address = `#infoWidget[qApp_deviceIsDragon="true"] {\n\tmin-width: 470px;`
# infoWidget-box width height-Kobo Aura HD\H2O
replace_string = 002B, `min-width: 470px;`, `min-width: 350px;`
replace_string = 003E, `min-height: 260px;`, `min-height: 150px;`
replace_string = 0052, `max-height: 260px;`, `max-height: 150px;`
# infoWidget-box width height-Kobo glo+Kobo Aura
replace_string = 0094, `min-width: 380px;`, `min-width: 260px;`
replace_string = 00A7, `min-height: 230px;`, `min-height: 120px;`
replace_string = 00BB, `max-height: 230px;`, `max-height: 120px;`
# infoWidget-box width height-Kobo Mini
replace_string = 00FD, `min-width: 300px;`, `min-width: 200px;`
replace_string = 0110, `min-height: 160px;`, `min-height: 100px;`
replace_string = 0124, `max-height: 160px;`, `max-height: 100px;`
#
#
find_base_address = `#infoFrame {\n\tborder-top: 1px solid black;`
# infoFrame-Margin-Kobo Aura HD\H2O
replace_string = 0144, `qproperty-leftMargin: 60;`, `qproperty-leftMargin: 02;`
replace_string = 015F, `qproperty-topMargin: 25;`, `qproperty-topMargin: 02;`
replace_string = 0179, `qproperty-bottomMargin: 25;`, `qproperty-bottomMargin: 02;`
# infoFrame-Margin-Kobo glo+Kobo Aura
replace_string = 01C3, `qproperty-leftMargin: 40;`, `qproperty-leftMargin: 02;`
replace_string = 01DE, `qproperty-topMargin: 20;`, `qproperty-topMargin: 02;`
replace_string = 01F8, `qproperty-bottomMargin: 20;`, `qproperty-bottomMargin: 02;`
# infoFrame-Margin-Kobo Mini
replace_string = 0242, `qproperty-leftMargin: 30;`, `qproperty-leftMargin: 02;`
replace_string = 025D, `qproperty-topMargin: 10;`, `qproperty-topMargin: 02;`
replace_string = 0277, `qproperty-bottomMargin: 10;`, `qproperty-bottomMargin: 02;`
</Patch>

Wow.. thanks for the quick reply.

I'll try this today and let you know.

EDIT : Works like a charm! Thanks again.

oren64 · 01-16-2016, 12:53 PM

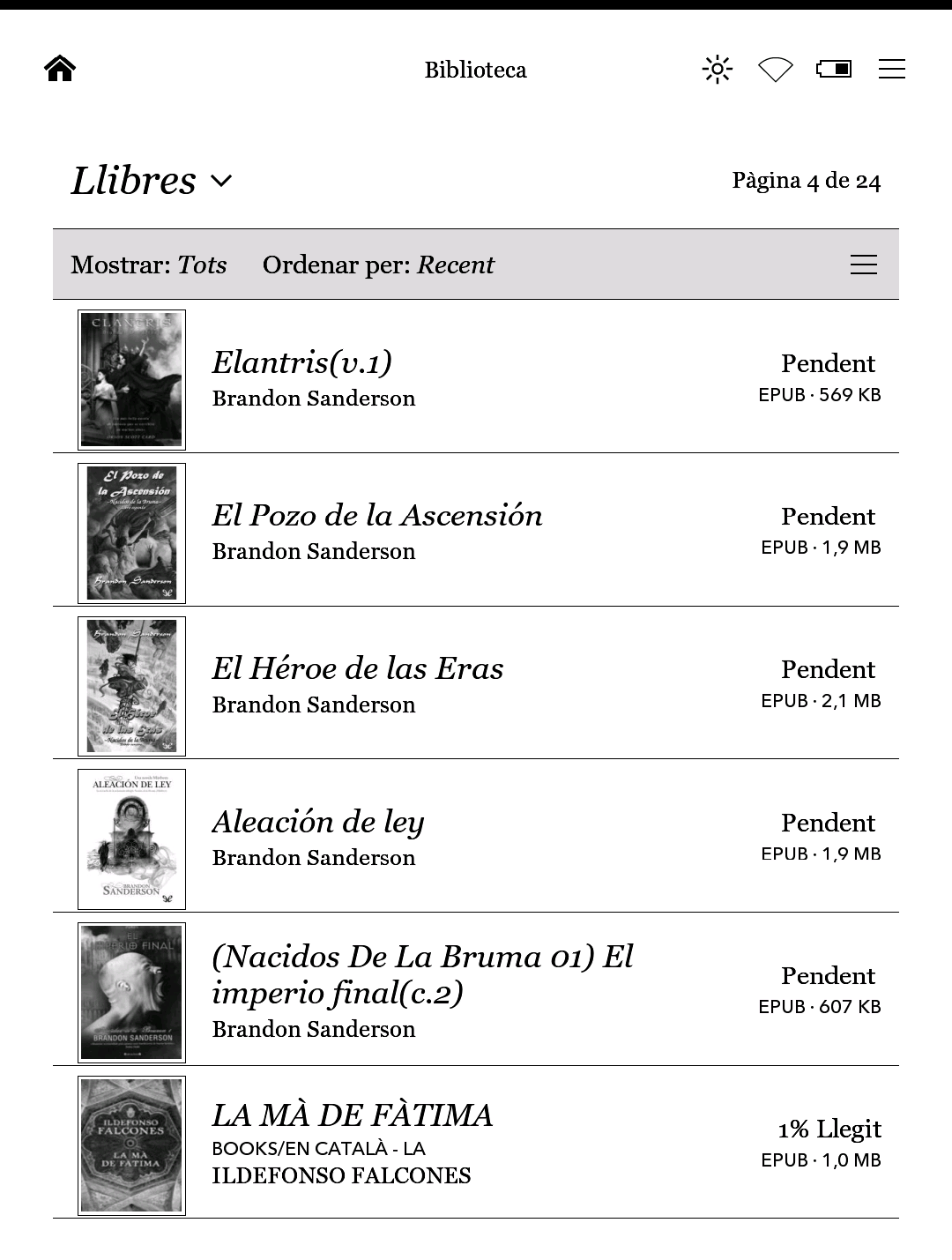

Patch `Increase The Books Cover Size In The Library`

Firmware 4.2.8810+, the patch is integrated in GeoffR patcher, nickel.patch.

Firmware 4.1.7729: nickel.patch, See CSS nickel patch.

Spoiler:

Code:

<Patch>
patch_name = `Increase The Cover Size In Library`
patch_enable = `yes`
#Firmware: 4.1.7729
#File:     nickel.patch
replace_bytes = 4C45C0, 00 12 3C 78 9C AD 58 5D, 00 12 3C 78 9C AD 57 D1
replace_bytes = 4C45C8, 6F 9B 30 14 7D EF AF 88, 6E 9B 30 14 7D EF 67 B4
replace_bytes = 4C45D0, 9A B7 69 91 02 09 90 A4, 6F D3 22 01 29 24 A5 EA
replace_bytes = 4C45D8, EA 43 BB BD 6C EA AA 4C, 43 BB BD 6C EA AA 4C 9B
replace_bytes = 4C45E0, 9B D6 87 69 AA 5C 70 C0, D6 87 69 AA 5C 70 C0 2B
replace_bytes = 4C45E8, 2B C1 D4 98 26 D9 B4 FF, 60 6A 9B 26 19 DA BF CF
replace_bytes = 4C45F0, 3E 83 F9 E6 1A 27 CB 92, 60 9A E0 8B 81 14 AD 7D
replace_bytes = 4C45F8, B7 6B 38 E7 F8 DE 73 CD, F2 0D 9C 73 EE BD C7 BE
replace_bytes = 4C4600, 85 37 A3 DF 17 A3 D1 13, E6 5D F9 88 82 A7 88 D1
replace_bytes = 4C4608, 72 9F 7D 46 D3 C8 5B 8D, 22 0B FD 4D 4C 04 BE FC
replace_bytes = 4C4610, 76 01 E1 F8 EA E2 CF C5, 7B F2 91 A1 88 66 B7 84
replace_bytes = 4C4618, 7B 86 7C 1A DD 91 84 3F, 8B 7B 12 46 58 FC 7C BE
replace_bytes = 4C4620, 10 CF C7 FC FB CB 4D 1C, CE F3 87 10 BF 90 00 7F
replace_bytes = 4C4628, 3F 7A F8 95 B8 F8 43 F2, E2 DF 19 49 68 B4 BB 3A
replace_bytes = 4C4630, 95 91 90 FA 87 EB 4B CE, 15 AC C0 A7 BF CA 94 64
replace_bytes = 4C4638, 52 7C F9 23 87 D9 92 68, B3 18 93 28 16 BE 6D BB
replace_bytes = 4C4640, 12 60 E2 07 7C 35 32 0C, F9 F6 32 45 5B 10 90 4F
replace_bytes = 4C4648, 2B DE 5F 65 41 B4 07 82, 6C 48 28 62 DF 9D 7B CD
replace_bytes = 4C4650, E2 CA 1D F1 78 B0 1A 59, 03 ED F5 73 CE 68 8E 99
replace_bytes = 4C4658, B3 79 7D 61 37 F6 12 33, D8 CD 78 8E 02 92 45 BE
replace_bytes = 4C4660, 1A 63 C6 0F 93 24 46 2E, ED B4 82 09 5E 8B 2F 88
replace_bytes = 4C4668, 89 7C 81 61 B6 17 42 BC, 45 24 F3 2D 6B 54 DE 2A
replace_bytes = 4C4670, E1 9F 10 F3 49 24 D7 74, A6 38 23 5B A3 BC F3 05
replace_bytes = 4C4678, C2 D7 01 C5 11 D9 AB 85, 90 A7 02 7B 79 DE C5 5C
replace_bytes = 4C4680, CF 1D 40 78 15 AC 85 DB, 93 A7 D6 06 79 EE 64 79
replace_bytes = 4C4688, CE A2 27 BC 8A 41 C2 AD, EA 57 A3 BA 05 2C DE 42
replace_bytes = 4C4690, 01 E1 96 5E B8 5C 55 EB, 2F DE C5 D2 D2 D4 A9 75
replace_bytes = 4C4698, 76 A0 84 3B FD 84 2F ED, 57 9D 63 4D 56 77 9D EC
replace_bytes = 4C46A0, 69 4F 77 15 03 74 9B 53, 38 2F 52 93 3C C7 02 F2
replace_bytes = 4C46A8, B5 EE 6C 4D A7 FB 26 3C, 54 60 34 5F B4 4B AA C7
replace_bytes = 4C46B0, 24 49 BA 55 0A 37 A7 80, 8D 90 0E E8 47 13 D8 67
replace_bytes = 4C46B8, F0 22 A8 CD 09 3A 84 D9, 6C 3B 8B 73 2D E5 26 60
replace_bytes = 4C46C0, 0D 6A 70 13 A8 66 1D AC, C8 D9 EB CF F9 0C 15 22
replace_bytes = 4C46C8, B3 62 98 F3 7E 39 EB 20, A6 AC 3C 3C 20 01 EF 8A
replace_bytes = 4C46D0, 94 17 7B 20 2F 76 A6 7D, F4 96 64 98 FB F6 FE 01
replace_bytes = 4C46D8, 8C 52 1E 50 96 8B AA AF, 25 3C A1 01 4A F0 1D 4A
replace_bytes = 4C46E0, 13 F8 F7 E9 F6 8E 44 38, F1 D5 E9 6F F4 F0 79 25
replace_bytes = 4C46E8, 11 0C 8D EB E4 D6 42 EA, 35 AF 69 26 66 9C FC C1
replace_bytes = 4C46F0, A2 10 DF A3 2D BE BE FC, 32 69 8D 7E 4D 59 80 6F
replace_bytes = 4C46F8, 89 1E 3F AE 8B 5D 6D 68, 31 0A 2B 0D AE 44 5A A3
replace_bytes = 4C4700, C4 27 09 F9 85 B3 E4 74, 17 5A 30 B9 8D C2 F1 4D
replace_bytes = 4C4708, 45 6D 28 73 F1 1D 46 5E, D3 A4 04 32 3C 6F 2A B0
replace_bytes = 4C4710, AE 2C 37 D3 78 83 5E 69, B7 28 B4 6C 55 F4 5E 1E
replace_bytes = 4C4718, CA 44 33 7B C7 75 6E B9, 93 FB 1B 60 7D E7 A9 65
replace_bytes = 4C4720, E7 7E 3B 56 A1 56 9B 40, 8B 07 9A CF 1D E4 31 D8
replace_bytes = 4C4728, 5D 22 6B A6 A4 56 F5 5E, 58 E1 3A B6 46 A3 96 6D
replace_bytes = 4C4730, C9 63 F7 A9 6D 80 1A 32, 17 41 13 0D D3 98 DC D3
replace_bytes = 4C4738, BA A5 A1 56 74 4F 41 63, 20 2F 74 A2 05 20 F2 00
replace_bytes = 4C4740, 1A 3D E6 2A D4 B2 2A E4, 91 57 13 71 CC 08 E6 03
replace_bytes = 4C4748, 54 1D B3 CA A3 25 91 D3, 56 08 E8 0B 66 2B B2 4D
replace_bytes = 4C4750, E7 76 00 6E 1B E0 B6 0B, 51 FE 83 E0 CD B1 5D 5C
replace_bytes = 4C4758, EE 04 33 82 13 BD D1 5C, BA 9A 9A A5 0B AA 6B 3B
replace_bytes = 4C4760, FA 8A D9 9A EC B7 28 FE, F0 60 74 6A 3D 83 74 03
replace_bytes = 4C4768, 46 F0 EE 24 63 00 C7 46, CD B4 80 6B AC 8E 6D 2C
replace_bytes = 4C4770, 15 6A E8 5C 02 39 5A 96, E8 1B 6B 9C B0 B7 AB F6
replace_bytes = 4C4778, 39 1A E4 D7 B8 C3 E9 F3, 5C 3F 7A 9A 75 8B CF 9B
replace_bytes = 4C4780, 3B 00 BF 61 00 02 8A A0, 03 BE 3A 30 C2 67 3A 6E
replace_bytes = 4C4788, 4E C1 B0 49 96 C0 B9 09, 5E B7 81 0B B6 85 0B 8D
replace_bytes = 4C4790, 09 98 43 02 E6 47 09 50, 64 3E 8E 46 12 EC F7 93
replace_bytes = 4C4798, 9D 95 65 37 4C FB 12 EA, ED 81 14 3D 90 A2 33 87
replace_bytes = 4C47A0, 58 53 83 0D 69 B0 8F 4B, DE 9D 9B 4B 4A F8 8A 06
replace_bytes = 4C47A8, 82 C6 AF 86 D1 37 6C 1D, 4F 78 4F 32 D8 D4 F7 86
replace_bytes = 4C47B0, 6B 8A 58 98 80 08 19 04, D7 BF 09 39 93 8F 7A BB
replace_bytes = 4C47B8, 44 90 64 4D DD 67 5C F1, ED 40 5D FE 12 36 C8 86
replace_bytes = 4C47C0, 0E 9A E3 2D 74 FF 17 2E, 86 B0 A7 A8 D7 1D F2 46
replace_bytes = 4C47C8, E6 98 A3 6E EF EE 69 D1, F1 FD F6 B2 40 ED 2D A8
replace_bytes = 4C47D0, CF EB E2 7C 6F 0D EF A8, FE 58 3B 0F AB 07 7E 7B
replace_bytes = 4C47D8, 6D B6 53 37 34 6C D5 E3, A3 FC 01 B7 DA C0 AD 36
replace_bytes = 4C47E0, 8D 72 9A 59 87 77 D4 71, DC FF 1E D4 EF 4D AA 3E
replace_bytes = 4C47E8, EF A9 5B D2 99 BF 79 EE, B0 EF 5B EB 3F E0 FE D1
replace_bytes = 4C47F0, F7 62 FF 6E 7E 4D 95 3A, 0D BE 84 27 D8 52 9D 60
replace_bytes = 4C47F8, DD 70 72 9D 74 DD 34 03, 21 DD 64 09 45 E1 07 39
replace_bytes = 4C4800, 2A 35 83 2A 35 DC 4D 1E, 23 91 3C 46 D9 B0 61 8D
replace_bytes = 4C4808, DD 45 21 45 DE 3B 31 26, 53 5A BB 4F B1 0A FE F0
replace_bytes = 4C4810, 20 71 E4 33 BD FF D5 A3, C3 28 03 70 95 91 40 BB
replace_bytes = 4C4818, 68 73 8D 65 4C ED 39 55, 12 B5 09 1C EB 08 02 58
replace_bytes = 4C4820, 47 06 78 53 3D 3E 2A B9, 36 33 85 D7 47 E1 49 0A
replace_bytes = 4C4828, E4 6C A9 E5 82 F2 AB 1E, 26 EF 08 B2 33 A2 E0 65
replace_bytes = 4C4830, CA D4 6C 72 62 63 62 86, 8E C2 FA BA A0 0C 90 33
replace_bytes = 4C4838, 12 D5 E4 A9 7C 98 C6 C8, C9 82 37 37 48 5E 9D 86
replace_bytes = 4C4840, 93 23 55 69 9E 98 09 5E, 87 4D F3 5E CD E9 D7 E3
replace_bytes = 4C4848, BC BB 45 62 16 D5 3F 3D, E3 35 C2 54 43 9C 11 40
replace_bytes = 4C4850, 8B DB 73 15 D9 34 29 0B, D8 0A 1D D0 ED 02 BA 23
replace_bytes = 4C4858, 58 46 59 51 43 53 8B 0D, 80 A0 F2 1A 5E 3D D8 75
replace_bytes = 4C4860, 55 AF 83 6D C1 D8 96 16, 3C 67 2C E3 4E A1 75 44
replace_bytes = 4C4868, 1B 28 56 1B BA 1C 7A 3A, AF 8B A8 86 FA 23 65 8C
replace_bytes = 4C4870, D0 A6 3E 25 60 6D 3A E0, 6E 54 79 FF 4B 0D FB 01
replace_bytes = 4C4878, 36 0C 5E 0E 36 4F 94 31, 27 D6 B0 1F 70 5A 0D 07
replace_bytes = 4C4880, BA 93 15 F9 DF F9 56 63, F0 A6 D5 F0 E4 EB 8A D1
replace_bytes = 4C4888, 9F 9F 6F 35 F6 D9 F9 1E, 88 61 CE 6F 10 2B 25 7C
replace_bytes = 4C4890, 80 3E 3B DF 9F D7 8C FA, 88 59 ED D0 C3 E7 E1 2C
replace_bytes = 4C4898, 0C 27 C9 2D 92 AF 2D 82, A0 09 65 FE D9 CD 75 F5
replace_bytes = 4C48A0, CC C3 AC F0 7F F3 43 C1, 2F 8F 82 CA DD 33 41 73
replace_bytes = 4C48A8, C4 A5 21 15 0B E3 DB 9B, 5F 8D FE 7A F9 48 85 A0
replace_bytes = 4C48B0, EC 2F 0F A6 AC 95 26 9C, 69 1D D1 31 47 2E 52 EA
replace_bytes = 4C48B8, C6 AB D1 AC 3C AB F2 D0, ED 43 5B 9A 40 BB 2B 03
replace_bytes = 4C48C0, 13 E5 9C 6E 8B 68 9B E5, 70 9D A9 D8 86 73 3B 70
replace_bytes = 4C48C8, 88 11 54 62 B4 6B 5A 04, EE 08 1C 9C 53 2D B4 E6
replace_bytes = 4C48D0, 3B 25 55 03 83 CF FF 16, FE DA 42 53 1D 19 42 EB
replace_bytes = 4C48D8, B0 05 02 5B 3A 60 E8 39, 9C BA 6D 3C AF 83 D7 ED
replace_bytes = 4C48E0, DC C4 AD 5F 19 9A B8 65, 87 EF 07 71 91 3D 95 DD
replace_bytes = 4C48E8, 31 07 70 C1 E7 46 0B D9, 5E 58 F5 5F 75 AF DD 65
replace_bytes = 4C48F0, 06 91 81 4A AE 56 6E 90, C1 3D 62 99 EC 6B 29 F0
replace_bytes = 4C48F8, 46 CF 9D 4F 3D 55 05 A7, 56 CC 04 43 19 97 9F 27
replace_bytes = 4C4900, F9 4F BE 47 1C 22 F7 01, A9 5F E4 F2 4C 0A 10 97
replace_bytes = 4C4908, B1 48 58 23 BF 9A E3 3D, 5F F6 FF 00 54 2C E3 A1
replace_bytes = 4C4910, 9F 70 86 A2 44 BC 61 8A, 00 00 00 00 00 00 00 00
replace_bytes = 4C4918, 02 A6 B1 38 3A 5D 94 E4, 00 00 00 00 00 00 00 00
replace_bytes = 4C4920, 1F 88 FE 02 00 AC 1C 59, 00 00 00 00 00 00 00 00
</Patch>

Firmware 4.0.7523: nickel.patch, See CSS nickel patch.

Spoiler:

Code:

<Patch>
patch_name = `Increase The Cover Size In Library`
patch_enable = `yes`
# Version 4.0.7523
# file: nickel.patch
replace_bytes = 4BD048, 3C 78 9C AD 58 5D 6F 9B, 3C 78 9C AD 57 D1 6E 9B
replace_bytes = 4BD050, 30 14 7D EF AF 88 9A B7, 30 14 7D EF 67 B4 6F D3
replace_bytes = 4BD058, 69 91 02 09 90 A4 EA 43, 22 01 29 24 A5 EA 43 BB
replace_bytes = 4BD060, BB BD 6C EA AA 4C 9B D6, BD 6C EA AA 4C 9B D6 87
replace_bytes = 4BD068, 87 69 AA 5C 70 C0 2B C1, 69 AA 5C 70 C0 2B 60 6A
replace_bytes = 4BD070, D4 98 26 D9 B4 FF 3E 83, 9B 26 19 DA BF CF 60 9A
replace_bytes = 4BD078, F9 E6 1A 27 CB 92 B7 6B, E0 8B 81 14 AD 7D F2 0D
replace_bytes = 4BD080, 38 E7 F8 DE 73 CD 85 37, 9C 73 EE BD C7 BE E6 5D
replace_bytes = 4BD088, A3 DF 17 A3 D1 13 72 9F, F9 88 82 A7 88 D1 22 0B
replace_bytes = 4BD090, 7D 46 D3 C8 5B 8D 76 01, FD 4D 4C 04 BE FC 7B F2
replace_bytes = 4BD098, E1 F8 EA E2 CF C5 7B 86, 91 A1 88 66 B7 84 8B 7B
replace_bytes = 4BD0A0, 7C 1A DD 91 84 3F 10 CF, 12 46 58 FC 7C BE CE F3
replace_bytes = 4BD0A8, C7 FC FB CB 4D 1C 3F 7A, 87 10 BF 90 00 7F E2 DF
replace_bytes = 4BD0B0, F8 95 B8 F8 43 F2 95 91, 19 49 68 B4 BB 3A 15 AC
replace_bytes = 4BD0B8, 90 FA 87 EB 4B CE 52 7C, C0 A7 BF CA 94 64 B3 18
replace_bytes = 4BD0C0, F9 23 87 D9 92 68 12 60, 93 28 16 BE 6D BB F9 F6
replace_bytes = 4BD0C8, E2 07 7C 35 32 0C 2B DE, 32 45 5B 10 90 4F 6C 48
replace_bytes = 4BD0D0, 5F 65 41 B4 07 82 E2 CA, 28 62 DF 9D 7B CD 03 ED
replace_bytes = 4BD0D8, 1D F1 78 B0 1A 59 B3 79, F5 73 CE 68 8E 99 D8 CD
replace_bytes = 4BD0E0, 7D 61 37 F6 12 33 1A 63, 78 8E 02 92 45 BE ED B4
replace_bytes = 4BD0E8, C6 0F 93 24 46 2E 89 7C, 82 09 5E 8B 2F 88 45 24
replace_bytes = 4BD0F0, 81 61 B6 17 42 BC E1 9F, F3 2D 6B 54 DE 2A A6 38
replace_bytes = 4BD0F8, 10 F3 49 24 D7 74 C2 D7, 23 5B A3 BC F3 05 90 A7
replace_bytes = 4BD100, 01 C5 11 D9 AB 85 CF 1D, 02 7B 79 DE C5 5C 93 A7
replace_bytes = 4BD108, 40 78 15 AC 85 DB CE A2, D6 06 79 EE 64 79 EA 57
replace_bytes = 4BD110, 27 BC 8A 41 C2 AD 01 E1, A3 BA 05 2C DE 42 2F DE
replace_bytes = 4BD118, 96 5E B8 5C 55 EB 76 A0, C5 D2 D2 D4 A9 75 57 9D
replace_bytes = 4BD120, 84 3B FD 84 2F ED 69 4F, 63 4D 56 77 9D EC 38 2F
replace_bytes = 4BD128, 77 15 03 74 9B 53 B5 EE, 52 93 3C C7 02 F2 54 60
replace_bytes = 4BD130, 6C 4D A7 FB 26 3C 24 49, 34 5F B4 4B AA C7 8D 90
replace_bytes = 4BD138, BA 55 0A 37 A7 80 F0 22, 0E E8 47 13 D8 67 6C 3B
replace_bytes = 4BD140, A8 CD 09 3A 84 D9 0D 6A, 8B 73 2D E5 26 60 C8 D9
replace_bytes = 4BD148, 70 13 A8 66 1D AC B3 62, EB CF F9 0C 15 22 A6 AC
replace_bytes = 4BD150, 98 F3 7E 39 EB 20 94 17, 3C 3C 20 01 EF 8A F4 96
replace_bytes = 4BD158, 7B 20 2F 76 A6 7D 8C 52, 64 98 FB F6 FE 01 25 3C
replace_bytes = 4BD160, 1E 50 96 8B AA AF 13 F8, A1 01 4A F0 1D 4A F1 D5
replace_bytes = 4BD168, F7 E9 F6 8E 44 38 11 0C, E9 6F F4 F0 79 25 35 AF
replace_bytes = 4BD170, 8D EB E4 D6 42 EA A2 10, 69 26 66 9C FC C1 32 69
replace_bytes = 4BD178, DF A3 2D BE BE FC 89 1E, 8D 7E 4D 59 80 6F 31 0A
replace_bytes = 4BD180, 3F AE 8B 5D 6D 68 C4 27, 2B 0D AE 44 5A A3 17 5A
replace_bytes = 4BD188, 09 F9 85 B3 E4 74 45 6D, 30 B9 8D C2 F1 4D D3 A4
replace_bytes = 4BD190, 28 73 F1 1D 46 5E AE 2C, 04 32 3C 6F 2A B0 B7 28
replace_bytes = 4BD198, 37 D3 78 83 5E 69 CA 44, B4 6C 55 F4 5E 1E 93 FB
replace_bytes = 4BD1A0, 33 7B C7 75 6E B9 E7 7E, 1B 60 7D E7 A9 65 8B 07
replace_bytes = 4BD1A8, 3B 56 A1 56 9B 40 5D 22, 9A CF 1D E4 31 D8 58 E1
replace_bytes = 4BD1B0, 6B A6 A4 56 F5 5E C9 63, 3A B6 46 A3 96 6D 17 41
replace_bytes = 4BD1B8, F7 A9 6D 80 1A 32 BA A5, 13 0D D3 98 DC D3 20 2F
replace_bytes = 4BD1C0, A1 56 74 4F 41 63 1A 3D, 74 A2 05 20 F2 00 91 57
replace_bytes = 4BD1C8, E6 2A D4 B2 2A E4 54 1D, 13 71 CC 08 E6 03 56 08
replace_bytes = 4BD1D0, B3 CA A3 25 91 D3 E7 76, E8 0B 66 2B B2 4D 51 FE
replace_bytes = 4BD1D8, 00 6E 1B E0 B6 0B EE 04, 83 E0 CD B1 5D 5C BA 9A
replace_bytes = 4BD1E0, 33 82 13 BD D1 5C FA 8A, 9A A5 0B AA 6B 3B F0 60
replace_bytes = 4BD1E8, D9 9A EC B7 28 FE 46 F0, 74 6A 3D 83 74 03 CD B4
replace_bytes = 4BD1F0, EE 24 63 00 C7 46 15 6A, 80 6B AC 8E 6D 2C E8 1B
replace_bytes = 4BD1F8, E8 5C 02 39 5A 96 39 1A, 6B 9C B0 B7 AB F6 5C 3F
replace_bytes = 4BD200, E4 D7 B8 C3 E9 F3 3B 00, 7A 9A 75 8B CF 9B 03 BE
replace_bytes = 4BD208, BF 61 00 02 8A A0 4E C1, 3A 30 C2 67 3A 6E 5E B7
replace_bytes = 4BD210, B0 49 96 C0 B9 09 09 98, 81 0B B6 85 0B 8D 64 3E
replace_bytes = 4BD218, 43 02 E6 47 09 50 9D 95, 8E 46 12 EC F7 93 ED 81
replace_bytes = 4BD220, 65 37 4C FB 12 EA 58 53, 14 3D 90 A2 33 87 DE 9D
replace_bytes = 4BD228, 83 0D 69 B0 8F 4B 82 C6, 9B 4B 4A F8 8A 06 4F 78
replace_bytes = 4BD230, AF 86 D1 37 6C 1D 6B 8A, 4F 32 D8 D4 F7 86 D7 BF
replace_bytes = 4BD238, 58 98 80 08 19 04 44 90, 09 39 93 8F 7A BB ED 40
replace_bytes = 4BD240, 64 4D DD 67 5C F1 0E 9A, 5D FE 12 36 C8 86 86 B0
replace_bytes = 4BD248, E3 2D 74 FF 17 2E E6 98, A7 A8 D7 1D F2 46 F1 FD
replace_bytes = 4BD250, A3 6E EF EE 69 D1 CF EB, F6 B2 40 ED 2D A8 FE 58
replace_bytes = 4BD258, E2 7C 6F 0D EF A8 6D B6, 3B 0F AB 07 7E 7B A3 FC
replace_bytes = 4BD260, 53 37 34 6C D5 E3 8D 72, 01 B7 DA C0 AD 36 DC FF
replace_bytes = 4BD268, 9A 59 87 77 D4 71 EF A9, 1E D4 EF 4D AA 3E B0 EF
replace_bytes = 4BD270, 5B D2 99 BF 79 EE F7 62, 5B EB 3F E0 FE D1 0D BE
replace_bytes = 4BD278, FF 6E 7E 4D 95 3A DD 70, 84 27 D8 52 9D 60 21 DD
replace_bytes = 4BD280, 72 9D 74 DD 34 03 2A 35, 64 09 45 E1 07 39 23 91
replace_bytes = 4BD288, 83 2A 35 DC 4D 1E DD 45, 3C 46 D9 B0 61 8D 53 5A
replace_bytes = 4BD290, 21 45 DE 3B 31 26 20 71, BB 4F B1 0A FE F0 C3 28
replace_bytes = 4BD298, E4 33 BD FF D5 A3 68 73, 03 70 95 91 40 BB 12 B5
replace_bytes = 4BD2A0, 8D 65 4C ED 39 55 47 06, 09 1C EB 08 02 58 36 33
replace_bytes = 4BD2A8, 78 53 3D 3E 2A B9 E4 6C, 85 D7 47 E1 49 0A 26 EF
replace_bytes = 4BD2B0, A9 E5 82 F2 AB 1E CA D4, 08 B2 33 A2 E0 65 8E C2
replace_bytes = 4BD2B8, 6C 72 62 63 62 86 12 D5, FA BA A0 0C 90 33 C9 82
replace_bytes = 4BD2C0, E4 A9 7C 98 C6 C8 93 23, 37 37 48 5E 9D 86 87 4D
replace_bytes = 4BD2C8, 55 69 9E 98 09 5E BC BB, F3 5E CD E9 D7 E3 E3 35
replace_bytes = 4BD2D0, 45 62 16 D5 3F 3D 8B DB, C2 54 43 9C 11 40 D8 0A
replace_bytes = 4BD2D8, 73 15 D9 34 29 0B 58 46, 1D D0 ED 02 BA 23 80 A0
replace_bytes = 4BD2E0, 59 51 43 53 8B 0D 55 AF, F2 1A 5E 3D D8 75 3C 67
replace_bytes = 4BD2E8, 83 6D C1 D8 96 16 1B 28, 2C E3 4E A1 75 44 AF 8B
replace_bytes = 4BD2F0, 56 1B BA 1C 7A 3A D0 A6, A8 86 FA 23 65 8C 6E 54
replace_bytes = 4BD2F8, 3E 25 60 6D 3A E0 36 0C, 79 FF 4B 0D FB 01 27 D6
replace_bytes = 4BD300, 5E 0E 36 4F 94 31 BA 93, B0 1F 70 5A 0D 07 F0 A6
replace_bytes = 4BD308, 15 F9 DF F9 56 63 9F 9F, D5 F0 E4 EB 8A D1 88 61
replace_bytes = 4BD310, 6F 35 F6 D9 F9 1E 80 3E, CE 6F 10 2B 25 7C 88 59
replace_bytes = 4BD318, 3B DF 9F D7 8C FA 0C 27, ED D0 C3 E7 E1 2C A0 09
replace_bytes = 4BD320, C9 2D 92 AF 2D 82 CC C3, 65 FE D9 CD 75 F5 2F 8F
replace_bytes = 4BD328, AC F0 7F F3 43 C1 C4 A5, 82 CA DD 33 41 73 5F 8D
replace_bytes = 4BD330, 21 15 0B E3 DB 9B EC 2F, FE 7A F9 48 85 A0 69 1D
replace_bytes = 4BD338, 0F A6 AC 95 26 9C C6 AB, D1 31 47 2E 52 EA ED 43
replace_bytes = 4BD340, D1 AC 3C AB F2 D0 13 E5, 5B 9A 40 BB 2B 03 70 9D
replace_bytes = 4BD348, 9C 6E 8B 68 9B E5 88 11, A9 D8 86 73 3B 70 EE 08
replace_bytes = 4BD350, 54 62 B4 6B 5A 04 3B 25, 1C 9C 53 2D B4 E6 FE DA
replace_bytes = 4BD358, 55 03 83 CF FF 16 B0 05, 42 53 1D 19 42 EB 9C BA
replace_bytes = 4BD360, 02 5B 3A 60 E8 39 DC C4, 6D 3C AF 83 D7 ED 87 EF
replace_bytes = 4BD368, AD 5F 19 9A B8 65 31 07, 07 71 91 3D 95 DD 5E 58
replace_bytes = 4BD370, 70 C1 E7 46 0B D9 06 91, F5 5F 75 AF DD 65 C1 3D
replace_bytes = 4BD378, 81 4A AE 56 6E 90 46 CF, 62 99 EC 6B 29 F0 56 CC
replace_bytes = 4BD380, 9D 4F 3D 55 05 A7 F9 4F, 04 43 19 97 9F 27 A9 5F
replace_bytes = 4BD388, BE 47 1C 22 F7 01 B1 48, E4 F2 4C 0A 10 97 5F F6
replace_bytes = 4BD390, 58 23 BF 9A E3 3D 9F 70, FF 00 54 2C E3 A1 00 00
replace_bytes = 4BD398, 86 A2 44 BC 61 8A 02 A6, 00 00 00 00 00 00 00 00
replace_bytes = 4BD3A0, B1 38 3A 5D 94 E4 1F 88, 00 00 00 00 00 00 00 00
replace_bytes = 4BD3A8, FE 02 00 AC 1C 59 00 00, 00 00 00 00 00 00 00 00
</Patch>

Multi-version patch: 3.15.0-3.19.5761+: libnickel.so.1.0.0.patch.

Spoiler:

Code:

<Patch>
patch_name = `Increase The Cover Size In Library`
patch_enable = `yes`
# Multi-version patch: 3.13.1-3.19.5761+
find_base_address = `DragonListWidget[qApp_deviceIsTrilogy="true"] {\n\tmin-height: 115px;`
#Mini
replace_string = 0059, `min-width: 534px;`, `min-width: 536px;`
replace_string = 006C, `max-width: 534px;`, `max-width: 536px;`
replace_string = 007F, `qproperty-leftMargin: 12;`, `qproperty-leftMargin: 00;`
#Glo\Aura
replace_string = 00E5, `min-width: 678px;`, `min-width: 693px;`
replace_string = 00F8, `max-width: 678px;`, `max-width: 693px;`
replace_string = 0133, `qproperty-leftMargin: 15;`, `qproperty-leftMargin: 00;`
#Aura HD\H2O
replace_string = 0198, `min-width: 960px;`, `min-width: 980px;`
replace_string = 01AB, `max-width: 960px;`, `max-width: 980px;`
replace_string = 01FE, `qproperty-leftMargin: 20;`, `qproperty-leftMargin: 00;`
#
#
find_base_address = `#coverPixmapView {\n\tmin-width: 60px;`
#Mini\Touch
replace_string = 0014, `min-width: 60px;`, `min-width: 85px;`
replace_string = 0026, `max-width: 60px;`, `max-width: 85px;`
replace_string = 0038, `min-height: 90px;`, `min-height:105px;`
replace_string = 004B, `max-height: 90px;`, `max-height:105px;`
#Aura HD\H20
replace_string = 0090, `min-width: 90px;`, `min-width:130px;`
replace_string = 00A2, `max-width: 90px;`, `max-width:130px;`
replace_string = 00B4, `min-height: 140px;`, `min-height: 163px;`
replace_string = 00C8, `max-height: 140px;`, `max-height: 163px;`
#Glo HD
replace_string = 010F, `min-width: 100px;`, `min-width: 145px;`
replace_string = 0122, `max-width: 100px;`, `max-width: 145px;`
replace_string = 0135, `min-height: 160px;`, `min-height: 205px;`
replace_string = 0149, `max-height: 160px;`, `max-height: 205px;`
#Glo\Aura
replace_string = 0190, `min-width: 70px;`, `min-width:104px;`
replace_string = 01A2, `max-width: 70px;`, `max-width:104px;`
replace_string = 01B4, `min-height: 110px;`, `min-height: 140px;`
replace_string = 01C8, `max-height: 110px;`, `max-height: 140px;`
</Patch>

version patch: 3.13.1: libnickel.so.1.0.0.patch.

Spoiler:

Click image for larger version

Name: screen_001.png
Views: 5967
Size: 105.6 KB
ID: 145592

Click image for larger version

Name: screen_003.png
Views: 5856
Size: 144.8 KB
ID: 145595

surquizu · 01-16-2016, 01:45 PM

Quote:

Originally Posted by oren64

Patch `Increase The Books Cover Size In Library`

Multi-version patch: 3.13.1-3.19.5761+

In Touch\Mini\Aura HD\H2O, the changes are smaller.

wow! I like a lot!

EDIT: Best fit for my aurah2o:

Spoiler:

ICDeadPpl · 01-17-2016, 02:40 AM

Quote:

Originally Posted by surquizu

wow! I like a lot!

EDIT: Best fit for my aurah2o:

Spoiler:

Which file is this patch supposed to be in?

oren64 · 01-17-2016, 03:25 AM

Quote:

Originally Posted by ICDeadPpl

Which file is this patch supposed to be in?

I forgot to mention file:libnickel.so.1.0.0.patch.
I also add a section to it, that increase the width.

surquizu · 01-17-2016, 05:05 AM

Quote:

Originally Posted by oren64

I forgot to mention file:libnickel.so.1.0.0.patch.
I also add a section to it, that increase the width.

I think there is an error in the code lines

Code:

#Mini\Touch
replace_string = 0059, `min-width: 512px;`, `min-width: 524px;`
replace_string = 006C, `max-width: 512px;`, `max-width: 524px;`

because it generates error. If I delete this lines the patch is correctly generated.

oren64 · 01-17-2016, 05:32 AM

Yes you're right, in 3.15.0 they change the code for mini, i update the patches.

surquizu · 01-17-2016, 07:05 AM

Quote:

Originally Posted by oren64

Yes you're right, in 3.15.0 they change the code for mini, i update the patches.

Error continues in Multi-version patch: 3.15.0-3.19.5761 + (I think)

The correct values are:

Code:

#Mini\Touch
replace_string = 0059, `min-width: 534px;`, `min-width: 536px;`
replace_string = 006C, `max-width: 534px;`, `max-width: 536px;`
replace_string = 007F, `qproperty-leftMargin: 12;`, `qproperty-leftMargin: 00;`

I also suggest you change the values for H2O for better configuration:

Code:

#Aura HD\H20
replace_string = 0090, `min-width: 90px;`, `min-width:130px;`
replace_string = 00A2, `max-width: 90px;`, `max-width:130px;`
replace_string = 00B4, `min-height: 140px;`, `min-height: 163px;`
replace_string = 00C8, `max-height: 140px;`, `max-height: 163px;`

oren64 · 01-17-2016, 09:57 AM

Quote:

Originally Posted by surquizu

Error continues in Multi-version patch: 3.15.0-3.19.5761 + (I think)

The correct values are:

Thanks i update the patch.

Quote:

I also suggest you change the values for H2O for better configuration:

Also I change the values for your recommendation.

drjd · 01-17-2016, 12:07 PM

Quote:

Originally Posted by oren64

Patch `Increase The Books Cover Size In The Library`
In Touch\Mini\Aura HD\H2O, the changes are smaller.

Edit: I changed values.

Multi-version patch: 3.15.0-3.19.5761+: libnickel.so.1.0.0.patch.

Spoiler:

version patch: 3.13.1: libnickel.so.1.0.0.patch.

Spoiler:

Attachment 145592 Attachment 145595

That's a nice improvement on the looks and feels! Thanks Oren64 and surquizu, for the great work!

Thread Tools	Search this Thread
Show Printable Version Email this Page	Search this Thread: Advanced Search

Similar Threads
Thread	Thread Starter	Forum	Replies	Last Post
Unofficial Sigil patches	varlog	Sigil	8	11-12-2014 06:14 PM
Index: Making a linked index in epub	virtual_ink	ePub	21	10-19-2011 11:23 PM
DR800 Long time to index files after upgrading firmware?	Albyr	iRex	29	06-18-2011 05:23 PM
How to apply the enhancements/patches ?	nubbol	Calibre	2	09-04-2010 11:42 PM
iLiad Applying DR GTK+ patches to iLiad	ericshliao	iRex Developer's Corner	16	03-14-2010 05:39 AM

01-10-2016, 01:39 AM	#76
MGlitch Wizard Posts: 2,857 Karma: 22003124 Join Date: Aug 2014 Device: Kobo Forma, Kobo Sage, Kobo Libra 2	Using the dictionary patch 'works' on my H2O. However it cuts off at least a line, possibly more. I've tried tweaking the size of the pop up but the cut off still occurs. Most of the time you can see a bit of cut off text, though not enough to identify what letters are being cut off.

01-10-2016, 09:03 PM	#78
MGlitch Wizard Posts: 2,857 Karma: 22003124 Join Date: Aug 2014 Device: Kobo Forma, Kobo Sage, Kobo Libra 2	Seems to have done the trick, the odd cut off text is gone and it seems to now display all lines in a given definition. Still hunting for a word which will have part of a sentence the last bit of page 1 of the pop up. But from the words tested it's behaving as it should. Thanks for the nifty patch

01-13-2016, 02:00 AM	#79
drjd The Couch Potato Posts: 34,509 Karma: 230999999 Join Date: Aug 2015 Device: Kobo Glo, Kobo Touch, Archos 9, Onyx Boox C67ML Carta	@ oren64, I updated my Kobo Glow to firmware 3.19.5761 recently, and applied metazoa patches along with your 'Changing the info panel in full size screensaver' patch. This time, the info panel box is appearing on the UPPER left corner of the screen instead of lower left corner during sleep and power-off. Its okay for me, however, just wanted to tell you. Any possible reasons for this?

01-17-2016, 05:32 AM	#87
oren64 I need a chapter break Posts: 4,042 Karma: 56058267 Join Date: Mar 2015 Location: Israel Device: Kobo Glo	Yes you're right, in 3.15.0 they change the code for mini, i update the patches.
