Old 04-23-2019, 05:15 AM   #46
xtine
Addict
xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.

xtine's Avatar

Posts: 355
Karma: 1432252
Join Date: Oct 2009
Device: Kobo Forma
Quote:
Originally Posted by ReaLx3m View Post
I was getting concerned that you knocked off some of the smd components on the board, now that would have been pita to repair.
Good that its only the plastic from the battery connector, as long as pins are there ...
All seems to be working properly now, except I sometimes get a "water on your screen?" message, maybe because I stuck double-sided tape around the bezel and it's interfering with the IR sensors? I can live with it though

It feels like a blast from the past to see Pocket articles I've saved back in 2014-2015
Attached Thumbnails
Click image for larger version

Name:	IMG_3520.jpg
Views:	215
Size:	332.2 KB
ID:	170874
xtine is offline   Reply With Quote
Old 04-23-2019, 05:22 AM   #47
ReaLx3m
Groupie
ReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beauty

Posts: 154
Karma: 32060
Join Date: Aug 2017
Device: Kobo Aura H2O, Kobo Aura One, Pocketbook Inkpad 3 Pro
Double post. delete

Last edited by ReaLx3m; 04-23-2019 at 05:27 AM.
ReaLx3m is offline   Reply With Quote
Advert
Old 04-23-2019, 05:24 AM   #48
ReaLx3m
Groupie
ReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beauty

Posts: 154
Karma: 32060
Join Date: Aug 2017
Device: Kobo Aura H2O, Kobo Aura One, Pocketbook Inkpad 3 Pro
Quote:
Originally Posted by xtine View Post
All seems to be working properly now, except I sometimes get a "water on your screen?" message, maybe because I stuck double-sided tape around the bezel and it's interfering with the IR sensors? I can live with it though

It feels like a blast from the past to see Pocket articles I've saved back in 2014-2015
Niiice.
You could be right about the tape, and it being white(more reflective) doesnt help with the situation.
Just to be sure, wipe the shiny part in the inner edge of the bezel with a cotton cloth as some dust/debree could be causing that warning. You can also disable the warning in settings, going from memory it was named something like "detect water droplets" or similar.

Edit:
Also wipe the ridges on the bezel that go inside and near the ir leds.

Last edited by ReaLx3m; 04-23-2019 at 05:29 AM.
ReaLx3m is offline   Reply With Quote
Old 04-23-2019, 05:51 AM   #49
xtine
Addict
xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.

xtine's Avatar

Posts: 355
Karma: 1432252
Join Date: Oct 2009
Device: Kobo Forma
Quote:
Originally Posted by ReaLx3m View Post
Niiice.
You could be right about the tape, and it being white(more reflective) doesnt help with the situation.
Just to be sure, wipe the shiny part in the inner edge of the bezel with a cotton cloth as some dust/debree could be causing that warning. You can also disable the warning in settings, going from memory it was named something like "detect water droplets" or similar.

Edit:
Also wipe the ridges on the bezel that go inside and near the ir leds.
Where are the IR LED's? I was actually wondering about that since I've already taken the whole thing apart yet haven't seen/recognized them at all. The touch part just seems to work like magic when I slap the front bezel back on

As for the white tape, that's actually just covering the other sticky side of the double-sided tape which I removed when I stuck the front bezel back on. Thanks for the reminder about disabling the "water droplets detection" though, I'd forgotten about that

The front bezel actually is still sticking up around the corners despite the double-sided tape. I'm wondering if super glue would be a better solution although I'm a bit wary of such a "permanent" solution in case I need to open it up again.

Last edited by xtine; 04-23-2019 at 06:01 AM.
xtine is offline   Reply With Quote
Old 04-23-2019, 06:10 AM   #50
ReaLx3m
Groupie
ReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beauty

Posts: 154
Karma: 32060
Join Date: Aug 2017
Device: Kobo Aura H2O, Kobo Aura One, Pocketbook Inkpad 3 Pro
Quote:
Originally Posted by xtine View Post
Where are the IR LED's? I was actually wondering about that since I've already taken the whole thing apart yet haven't seen/recognized them at all. The touch part just seems to work like magic when I slap the front bezel back on

As for the white tape, that's actually just covering the other sticky side of the double-sided tape which I removed when I stuck the front bezel back on. Thanks for the reminder about disabling the "water droplets detection" though, I'd forgotten about that

The front bezel actually is still sticking up around the corners despite the double-sided tape. I'm wondering if super glue would be a better solution although I'm a bit wary of such a "permanent" solution in case I need to open it up again.
Hahahah, if in doubt , SUPERGLUE.
Dont do that, you might need to open it again, or decide to waterproof it, you never know.
I wouldnt have even put new tape, had mine opened and closed probably for more than 20 times, and even scraped with a fingernail most of the glue residue so there are no bumps, and it still holds. Its in a case though, which probably also helps with holding the bezel in place as the case has tiny notches just above it.
The ir leds are those gray pimples on the sides.
ReaLx3m is offline   Reply With Quote
Advert
Old 04-23-2019, 07:49 AM   #51
xtine
Addict
xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.

xtine's Avatar

Posts: 355
Karma: 1432252
Join Date: Oct 2009
Device: Kobo Forma
Quote:
Originally Posted by ReaLx3m View Post
The ir leds are those gray pimples on the sides.
Which gray pimples? Are they on the front bezel side or on the main board? Based on my picture, the gray dots on the side near the main board seem to be the edge of the metal plate where the screen is attached. Unless there are IR led's there that I just don't recognize
xtine is offline   Reply With Quote
Old 04-23-2019, 07:54 AM   #52
ReaLx3m
Groupie
ReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beauty

Posts: 154
Karma: 32060
Join Date: Aug 2017
Device: Kobo Aura H2O, Kobo Aura One, Pocketbook Inkpad 3 Pro
Quote:
Originally Posted by xtine View Post
Which gray pimples? Are they on the front bezel side or on the main board? Based on my picture, the gray dots on the side near the main board seem to be the edge of the metal plate where the screen is attached. Unless there are IR led's there that I just don't recognize

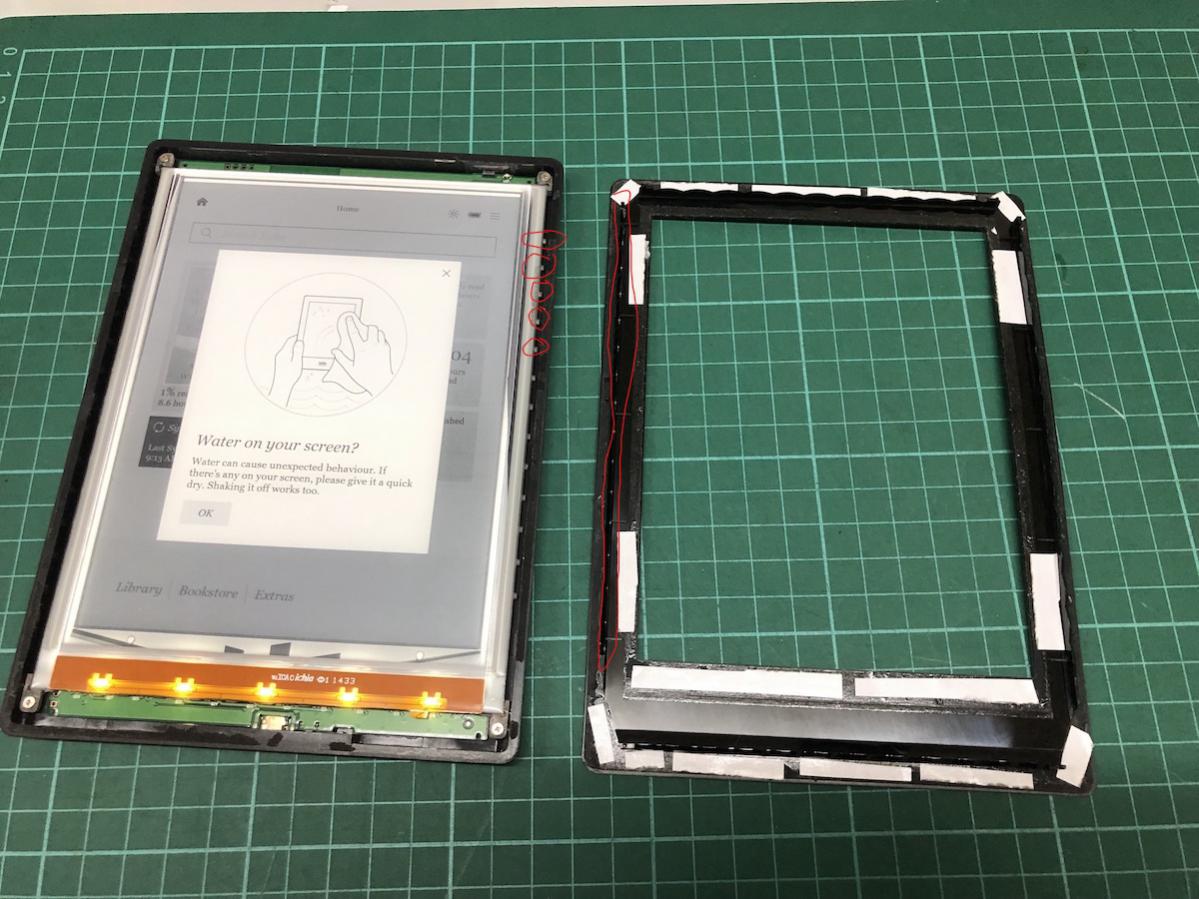

Theyre better visible from the other side, ie when board is unscrewed.Marked them on your pic with red.
The ridge on the bezel which i also marked is what reflects the beam.

Click image for larger version

Name:	InkedIMG_3520_LI.jpg
Views:	341
Size:	144.6 KB
ID:	170877
ReaLx3m is offline   Reply With Quote
Old 04-23-2019, 08:43 AM   #53
xtine
Addict
xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.

xtine's Avatar

Posts: 355
Karma: 1432252
Join Date: Oct 2009
Device: Kobo Forma
Quote:
Originally Posted by ReaLx3m View Post
Theyre better visible from the other side, ie when board is unscrewed.Marked them on your pic with red.
The ridge on the bezel which i also marked is what reflects the beam.

Attachment 170877
Thanks for the clarification, I actually thought those were just the side of the metal plate that the screen is attached to. I might unscrew everything and take another look while disassembling/reassembling is still fresh in my mind
xtine is offline   Reply With Quote
Old 04-23-2019, 09:05 AM   #54
xtine
Addict
xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.

xtine's Avatar

Posts: 355
Karma: 1432252
Join Date: Oct 2009
Device: Kobo Forma
In case it helps anyone, here are the steps I took to replace my Kobo Aura H2O Screen
  1. Pry off front bezel carefully.

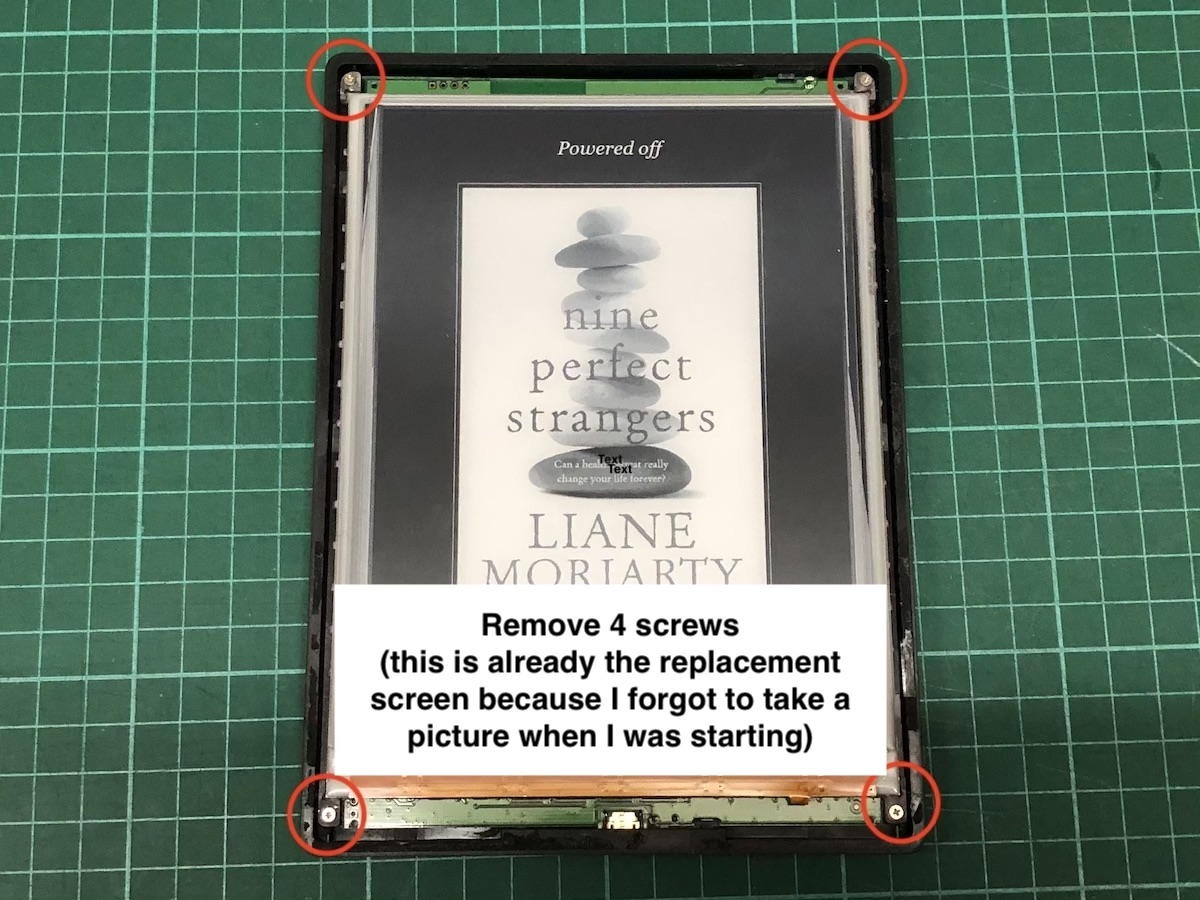

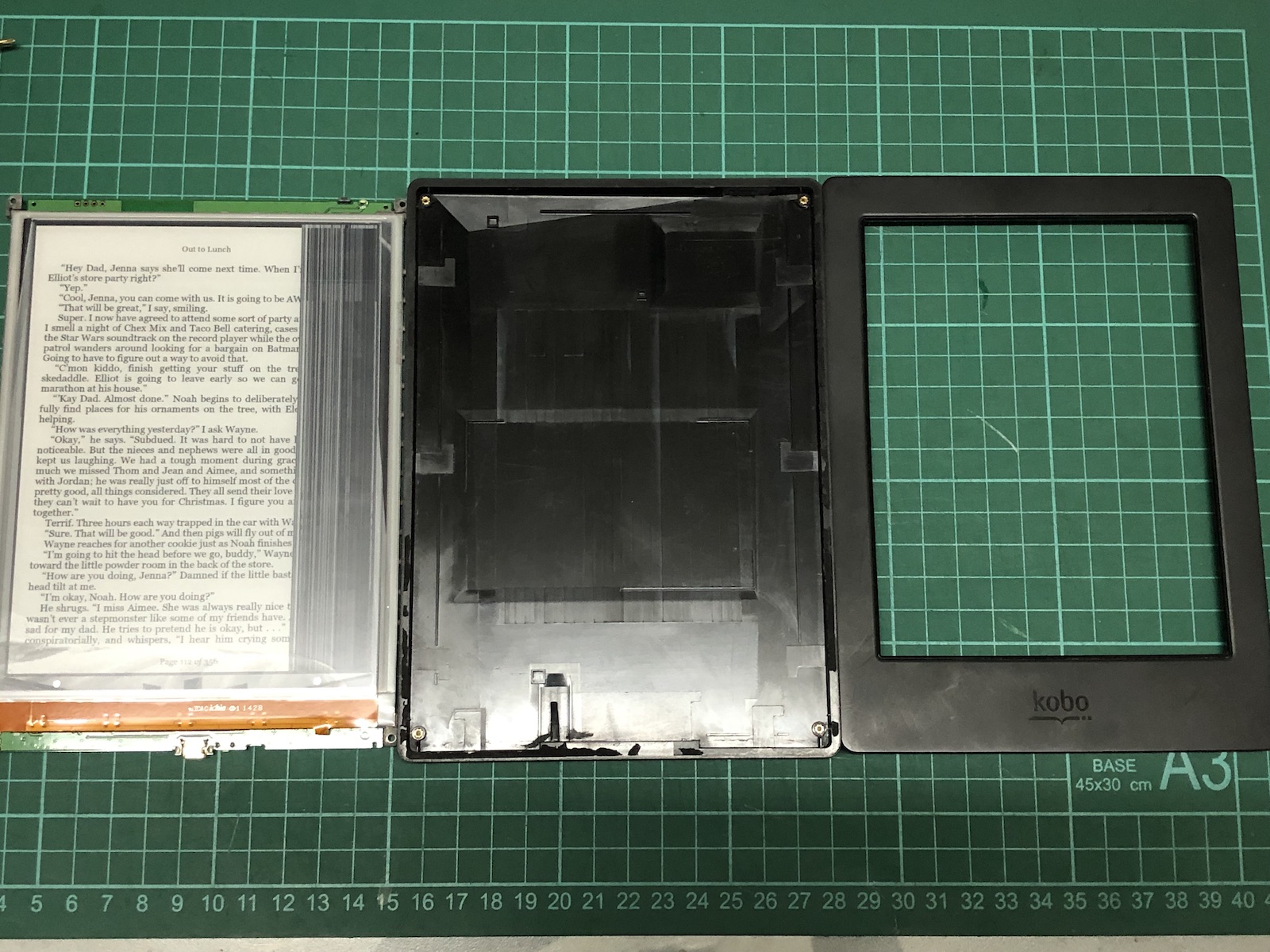

  2. Remove the four screws located in each corner to remove the screen (and main board) from the H2O case.

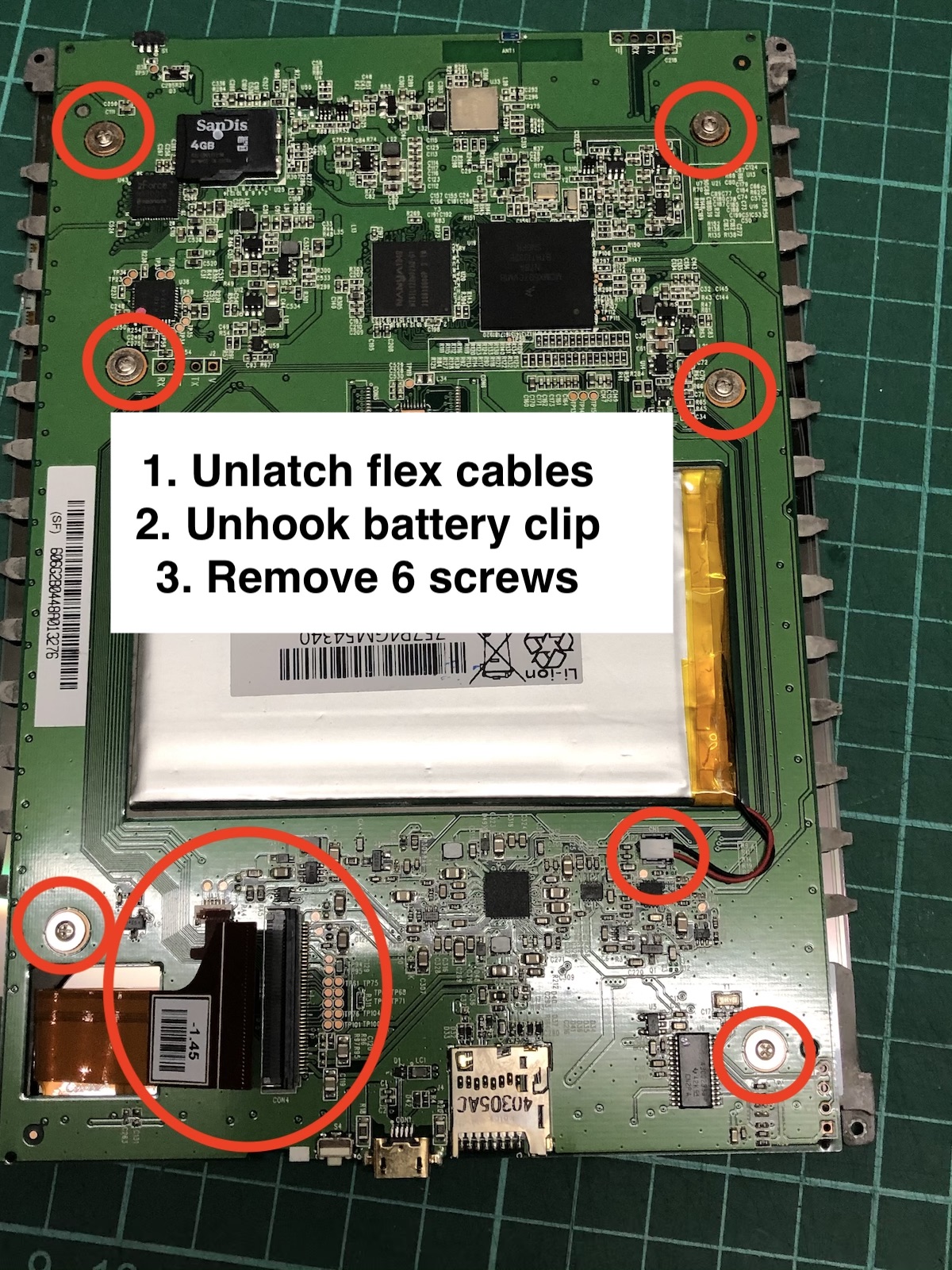

  3. Flip over the main board and unscrew 6 screws as well as unhook the flex cables (by lifting their respective latches and sliding the cables out) and pulling the battery cable off (I pulled straight up, not very sure if that's the right way to do it).
  4. Remove the main board and black plastic film and set aside.

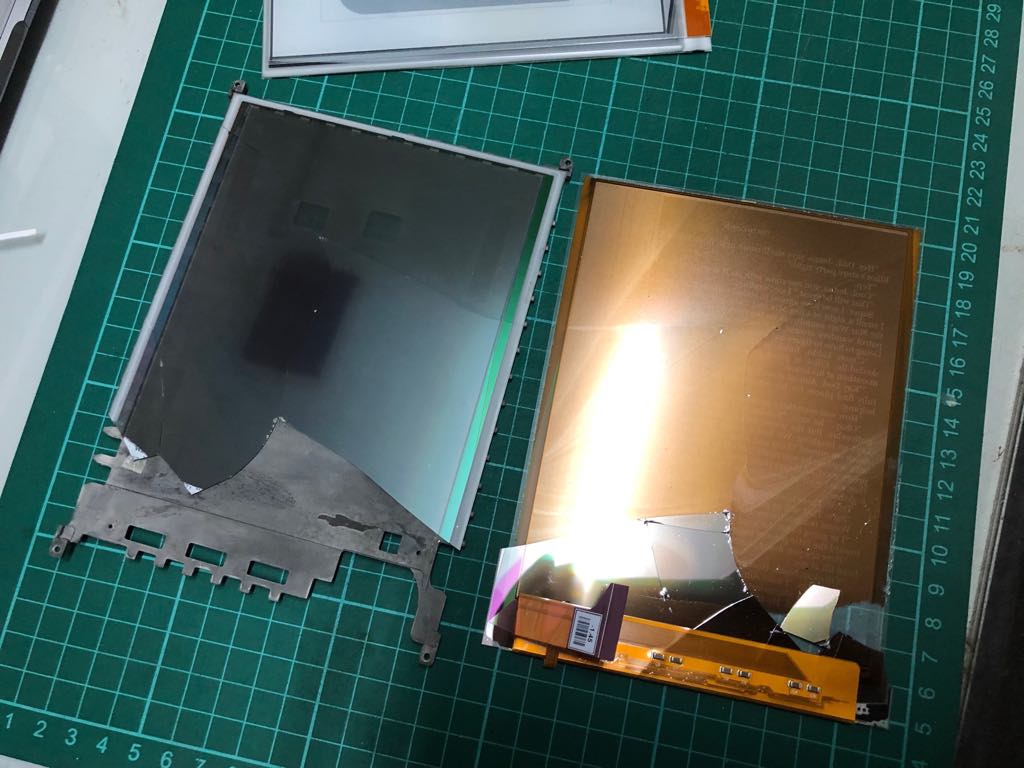

  5. Remove defective screen from metal plate. (In the picture, I tried prying the screen off without removing the board first. Do not do this. Remove the main board first.) I did it the hard way and pried the screen off with my bare hands, causing the screen to break into tiny pieces. I only got smart about 97% of the way through and thought of sliding a knife in between the screen and metal plate and cutting the adhesive
  6. Stick the replacement screen onto the metal plate, being very careful to line the corners up exactly to avoid breaking the screen when you replace the front bezel (I learned this from reading an Aliexpress review). Very important to make sure that the flex and battery cables are sticking out of the proper holes/cutouts before pressing the screen onto the existing adhesive on the metal plate.
  7. Follow steps 4 to 1 in reverse


The replacement screen looks a little washed out to me, even more so when compared to the original Kobo screen. I'm not sure if all replacement screens sold by the seller I got it from are like this or if I just got a dud. It appears especially washed out at the top, a little darker in the middle, and again lighter at the bottom (although not as light as the top). I also get the "water on your screen?" message a lot although ReaLx3m has very helpfully pointed out that this can be disabled in settings. Touch screen functionality is a little spotty in the H2O with the replacement screen, maybe because of the double-sided tape I've added onto the existing adhesive (which already wasn't very sticky due to 4 years of accumulating dust). A newly opened H2O may fare better.

Update: I just realized my bezel lifting up may also be part of the reason for the unreliability of the touch screen. Something about the bezel not lying flat may be interfering with the infrared beams. I find that the touch screen functionality behaves better when I try to press down gently on the the bezel to get it to lie flat. A bit of a hassle but I'll live with it until I figure out a way to get the bezel to stick properly.

One more problem I've noticed is that I can connect to wifi but none of my Pocket articles are updating. I'm still on software 3.11.0 (10/16/14). Maybe I need to update the firmware manually to get Pocket to sync again? Another problem for another day.

Anyway, I made this post because of how nice and helpful everyone has been in this forum, especially ReaLx3m and frostschutz and hope to pay it forward. Hope this might be useful to others hoping to revive their H2O's
Attached Thumbnails
Click image for larger version

Name:	001.jpg
Views:	243
Size:	302.1 KB
ID:	170878   Click image for larger version

Name:	002.jpg
Views:	227
Size:	520.7 KB
ID:	170879   Click image for larger version

Name:	003.jpg
Views:	223
Size:	688.1 KB
ID:	170880   Click image for larger version

Name:	004.jpg
Views:	219
Size:	383.0 KB
ID:	170881   Click image for larger version

Name:	005.jpg
Views:	218
Size:	308.9 KB
ID:	170882   Click image for larger version

Name:	006.jpg
Views:	204
Size:	470.5 KB
ID:	170883   Click image for larger version

Name:	007.jpg
Views:	206
Size:	483.5 KB
ID:	170884   Click image for larger version

Name:	008.jpg
Views:	213
Size:	450.6 KB
ID:	170885   Click image for larger version

Name:	009.JPG
Views:	218
Size:	399.1 KB
ID:	170886   Click image for larger version

Name:	010.jpg
Views:	207
Size:	525.2 KB
ID:	170887   Click image for larger version

Name:	011.JPG
Views:	228
Size:	574.3 KB
ID:	170894

Last edited by xtine; 04-24-2019 at 10:58 PM.
xtine is offline   Reply With Quote
Old 04-23-2019, 06:58 PM   #55
ReaLx3m
Groupie
ReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beauty

Posts: 154
Karma: 32060
Join Date: Aug 2017
Device: Kobo Aura H2O, Kobo Aura One, Pocketbook Inkpad 3 Pro
Quote:
Originally Posted by xtine View Post
Thanks for the clarification, I actually thought those were just the side of the metal plate that the screen is attached to. I might unscrew everything and take another look while disassembling/reassembling is still fresh in my mind
I think you misunderstood me, i wasnt talking about the teeth like ridges, here on this picture of yours ir leds are are perfectly visible.Marked in red.
Click image for larger version

Name:	Inked005_LI.jpg
Views:	342
Size:	147.8 KB
ID:	170903

Glad you made it work, finally some good news on the thread . Nice guide too, will be helpfull for people in need.

Btw what are you planning to do with the old screen, specifically the led strip?
ReaLx3m is offline   Reply With Quote
Old 04-23-2019, 10:43 PM   #56
xtine
Addict
xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.xtine ought to be getting tired of karma fortunes by now.

xtine's Avatar

Posts: 355
Karma: 1432252
Join Date: Oct 2009
Device: Kobo Forma
Quote:
Originally Posted by ReaLx3m View Post
I think you misunderstood me, i wasnt talking about the teeth like ridges, here on this picture of yours ir leds are are perfectly visible.Marked in red.
Attachment 170903
Oh there they are! I never noticed them at all!

Quote:
Btw what are you planning to do with the old screen, specifically the led strip?
So sorry but I already threw out the old screen with the LED strip still attached I'd broken the screen badly in my effort to remove it from the metal plate that I didn't stop to think that there might be salvageable parts
Attached Thumbnails
Click image for larger version

Name:	58374277_2370264223205775_3975335318730571776_n.jpg
Views:	194
Size:	97.7 KB
ID:	170904
xtine is offline   Reply With Quote
Old 04-24-2019, 06:40 AM   #57
ReaLx3m
Groupie
ReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beautyReaLx3m does all things with Zen-like beauty

Posts: 154
Karma: 32060
Join Date: Aug 2017
Device: Kobo Aura H2O, Kobo Aura One, Pocketbook Inkpad 3 Pro
Quote:
Originally Posted by xtine View Post
Oh there they are! I never noticed them at all!


So sorry but I already threw out the old screen with the LED strip still attached I'd broken the screen badly in my effort to remove it from the metal plate that I didn't stop to think that there might be salvageable parts
Oh well, i should have remembered sooner to mention it.
Either way , i think we will still manage to live through this dire situation
ReaLx3m is offline   Reply With Quote
Old 03-16-2020, 09:39 AM   #58
Nieou
Junior Member
Nieou began at the beginning.

Posts: 1
Karma: 10
Join Date: Mar 2020
Device: Kobo Aura H2O 1st Gen.
Quote:
Originally Posted by xtine View Post
In case it helps anyone, here are the steps I took to replace my Kobo Aura H2O Screen [...]
Years ago I broke my Kobo Aura H2o and was thinking about buying another one (managed to live without an ereader after it broke down). Since all the new readers didn't seem like a huge update, I decided to give repairing it a try. My reader works flawlessly again and your post was really helpful.
Continue reading - Chris
Nieou is offline   Reply With Quote
Old 03-17-2020, 03:17 PM   #59
Scaledish
A friend
Scaledish ought to be getting tired of karma fortunes by now.Scaledish ought to be getting tired of karma fortunes by now.Scaledish ought to be getting tired of karma fortunes by now.Scaledish ought to be getting tired of karma fortunes by now.Scaledish ought to be getting tired of karma fortunes by now.Scaledish ought to be getting tired of karma fortunes by now.Scaledish ought to be getting tired of karma fortunes by now.Scaledish ought to be getting tired of karma fortunes by now.Scaledish ought to be getting tired of karma fortunes by now.Scaledish ought to be getting tired of karma fortunes by now.Scaledish ought to be getting tired of karma fortunes by now.

Scaledish's Avatar

Posts: 134
Karma: 1152040
Join Date: Mar 2020
Location: Somewhere in boston
Device: Kobo Forma
out of curiosity, and this differently is not the case, but worth trying nonetheless. have you tried a hard reset?
Scaledish is offline   Reply With Quote
