Need your help: screenshots from your e-reader

[bookp]

I don't use pro tools, so forgive me if I'm using Paint and such, but I found this:

I think maybe you use SumatraPDF, too (in some screenshot somewhere I saw its symbol).
I opened my test file in SumatraPDF, right-click Copy Image, paste into Paint, and then I saw the correct size 738x964.
But when I open a k2pdfopt file and do the same procedure, it shows 741x968.
The -mc pixels in that picture: Top left (0,0), top right (737,0), bottom left (0,963), bottom right (737,963).
So basically there are borders where they shouldn't be: at the right side (3 pixels) and at the bottom (4 pixels).

Is it k2pdfopt or is it SumatraPDF that adds borders (but why didn't SumatraPDF add borders to my test grid)?

My command line options (I used the GUI):
-odpi 215 -h 964 -w 738
Additional Options: -om 0 -mc
Max columns: 2, Document Resolution Factor 1.0, Crop Margins (in) 0.00 (all), Smart line breaks checked (0.200), Re-flow text

When I use -h 960 and -w 735, the dimensions in SumatraPDF are OK (738x964). But the -mc pixels are still off in the same way.

I don't know of any other method to extract the picture, so that's why I did all that SumatraPDF and paint stuff.

The black bars you are seeing almost look like a display imperfection/anomaly. E.g.. the one on the top clearly looks like it is only visible on the far right and then gradually disappears into the edge of the display.

Parts of the display are covered by the bezels. That seems to be typical for Sonys, I think I uploaded test pictures elsewhere for the PRS-T1 when it came out, and other users confirmed it. Some devices are better aligned, some less.

[r0bis]

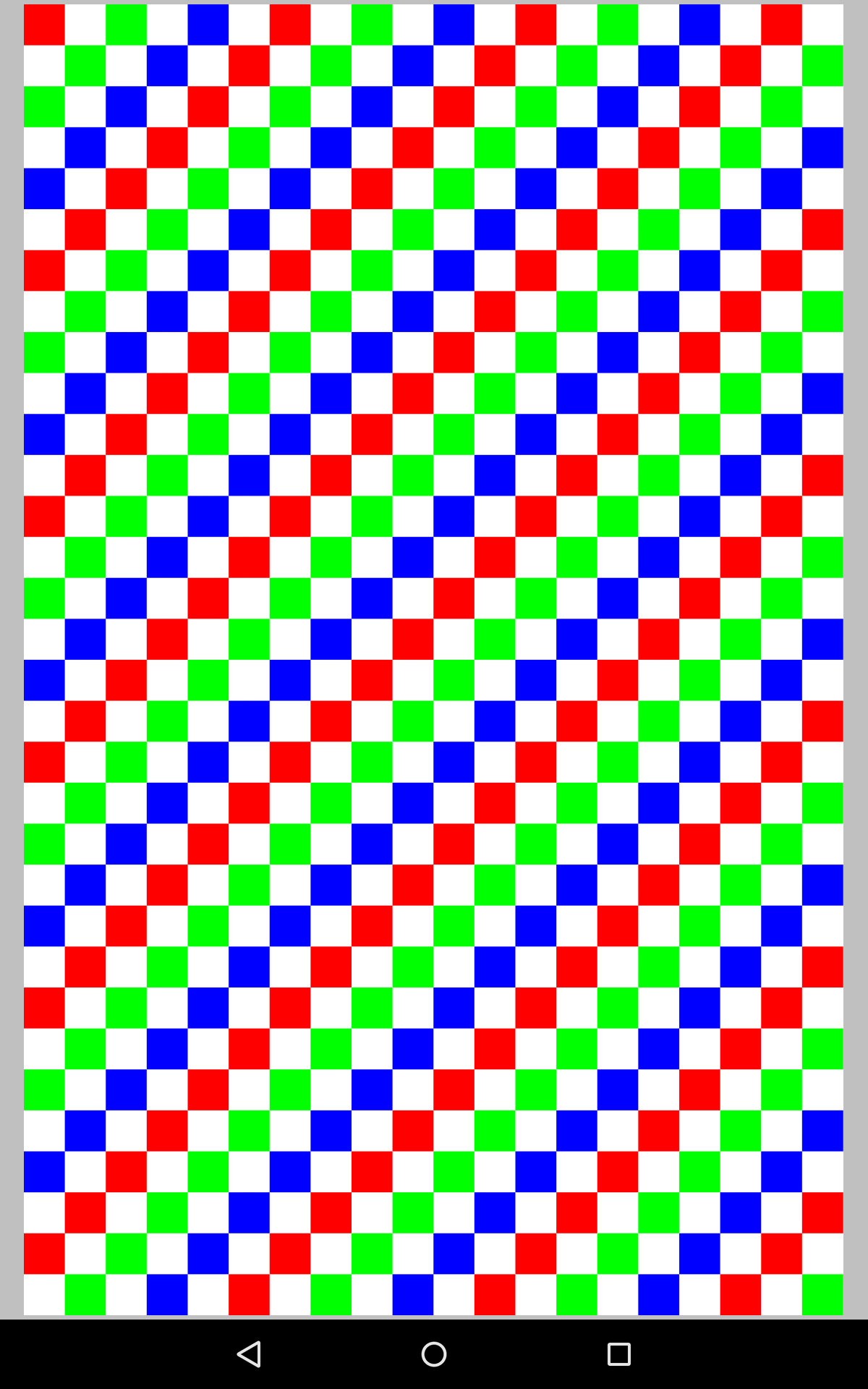

Hi here are screenshots from Adobe Acrobat reader on Nexus 7 2013. I am running into some problems with getting good conversions that would load quickly - probably because I am setting the devices physical resolution, which should be 1200x1920 and 323 ppi. Hopefully you could suggest some settings that should be more useful than my attempts.

And thanks a lot for your much needed work!

[willus]

Originally Posted by r0bis

Hi here are screenshots from Adobe Acrobat reader on Nexus 7 2013. I am running into some problems with getting good conversions that would load quickly - probably because I am setting the devices physical resolution, which should be 1200x1920 and 323 ppi. Hopefully you could suggest some settings that should be more useful than my attempts.

And thanks a lot for your much needed work!

These screenshots show the viewable area at 1187 x 1811. Sort of a strange resolution.

[willus]

Anybody have a Kobo Aura One they can post screenshots from? Also, I'd like to start collecting screenshots from when the device is in landscape mode (set to read pages on its side).

[gerhaher]

Originally Posted by willus

Anybody have a Kobo Aura One they can post screenshots from? Also, I'd like to start collecting screenshots from when the device is in landscape mode (set to read pages on its side).

Hi!

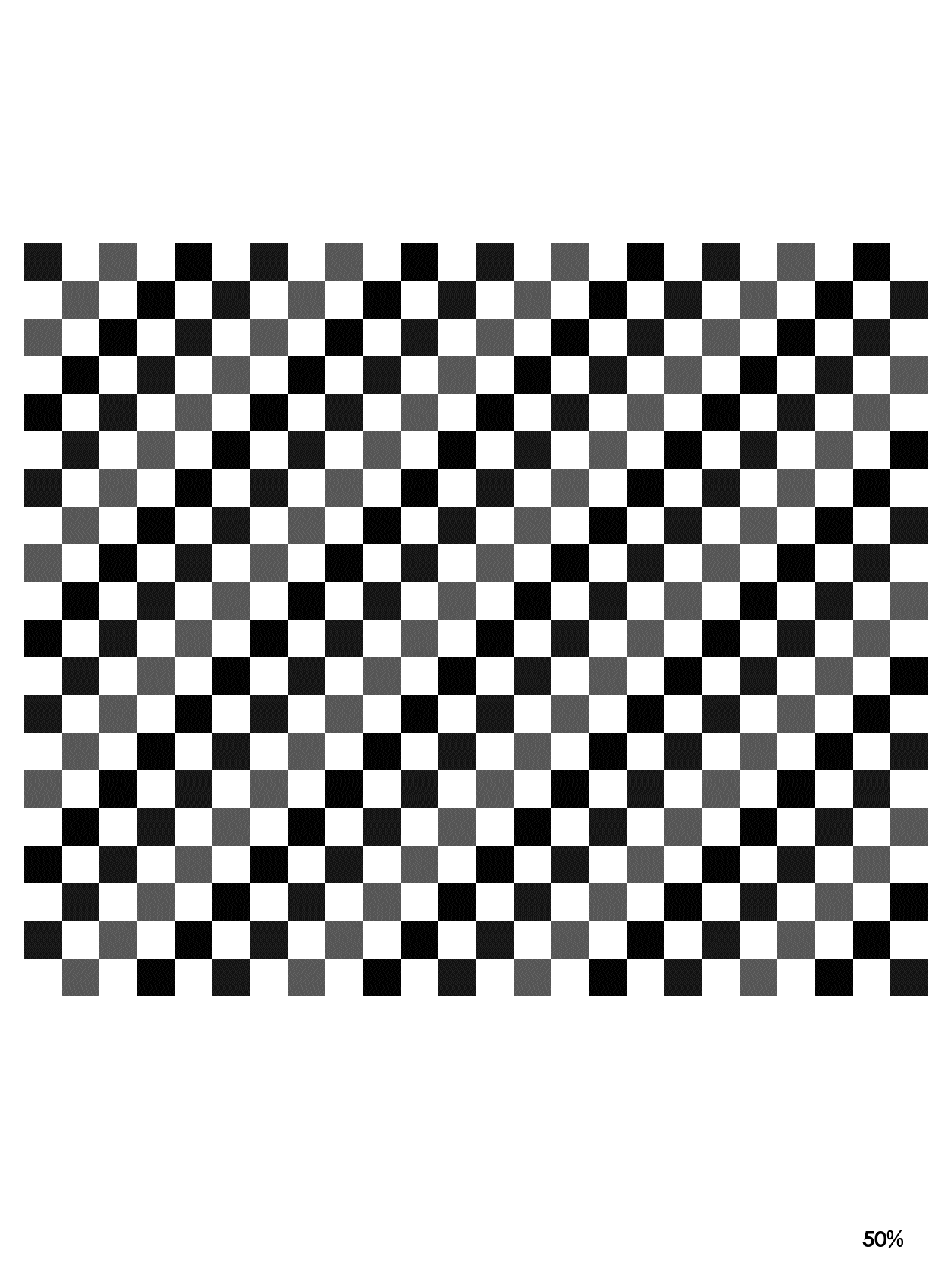

Well, I hope this is what you're looking for. I don't know how to make screenshots in Nickel, so I made them in KOReader. I hope that's OK. The last two are landscape mode.

[xpirad]

gerhaher,you can add these two lines in the Kobo eReader.conf to activate screenshots ability

[FeatureSettings]
Screenshots=true

Then use the power button to make a screenshot.

Be sure to remove those lines afterwards.

[billwsy]

Here are screenshots from Kindle Oasis 2 (2017), 7 inch screen, 300 DPI.

I am using the following options for k2pdfopt.

-w 1200 -h 1584 -dpi 300

[willus]

Can anybody post to this thread with PDF screenshots from a Kobo Clara HD, Kobo Forma, or Kobo Libra H2O? See first post in thread, please. Both regular and full-screen viewing modes would be appreciated.

[alcam]

Hello, here are screenshots for PocketBook Inkpad 3 (1404 × 1872, 300dpi). Thanks

[MarjaE]

824x1200. Hope these attach properly...

[JSWolf]

After seeing the screenshot of the Kindle Oasis, Amazon still hasn't gotten the dithering quite right.

[j.p.s]

Originally Posted by JSWolf

After seeing the screenshot of the Kindle Oasis, Amazon still hasn't gotten the dithering quite right.

Maybe so, but there's no way to tell from a screenshot more than 2 years old.

[JSWolf]

Originally Posted by j.p.s

Maybe so, but there's no way to tell from a screenshot more than 2 years old.

I'll take screenshots with my H2O running the current firmware and the PW3 running the current firmware. Then we'll see if the Kindle is still not dithering as well as Kobo,

[j.p.s]

Originally Posted by JSWolf

I'll take screenshots with my H2O running the current firmware and the PW3 running the current firmware. Then we'll see if the Kindle is still not dithering as well as Kobo,

That would be interesting and worthwhile, but belongs in some other thread.

[JSWolf]

Originally Posted by j.p.s

That would be interesting and worthwhile, but belongs in some other thread.

It belongs here because it's going to be screenshots of the PDF posted in the first post of this thread.
