PRS+: Enhanced firmware for Sony Reader, Folders, Games & more

[Mark Nord]

Hey, great work so far!

Don't be shy! How do you think other developers (beside of kartu, who is a naturally born Sony hacker ) started?
For instance: see my post about the FSK-Test-Environment (or short SIM) here

And not to anticipate kartu, but IMHO your save/load settings code as well as this CSS manipulation will have the best chances to be integrated into "official" PRS+

But this is the fine thing on GPL code, each and everyon has the chance and the rigth to use and change the code to his liking, but will have to share his results to the public.

So again, don't be shy and push what you have to your repository.
So maybe someone can lend a helping hand.

Reagards
Mark

PS: if your button is a descendant of "radio-button" it should be using your mentioned "state-var". See if it can be defined in the xlm's "<model>" section.
For the Calculator I've done it like this:

 <model>
 		<variable id="BASIS" value="dec"/>
 		<variable id="TRIG" value="deg"/>
 </model>
....
<radio id="RBUTTON_HEX" variable="BASIS" on="hex" active="true" text="HEX" left="040" width="55" top="0" height="30" do="setNumberBase"/>

[Analogus]

Hi Mark

Thank you for flowers. Pushig will come - after the code has been cleaned from my stupid comments inside ;-)

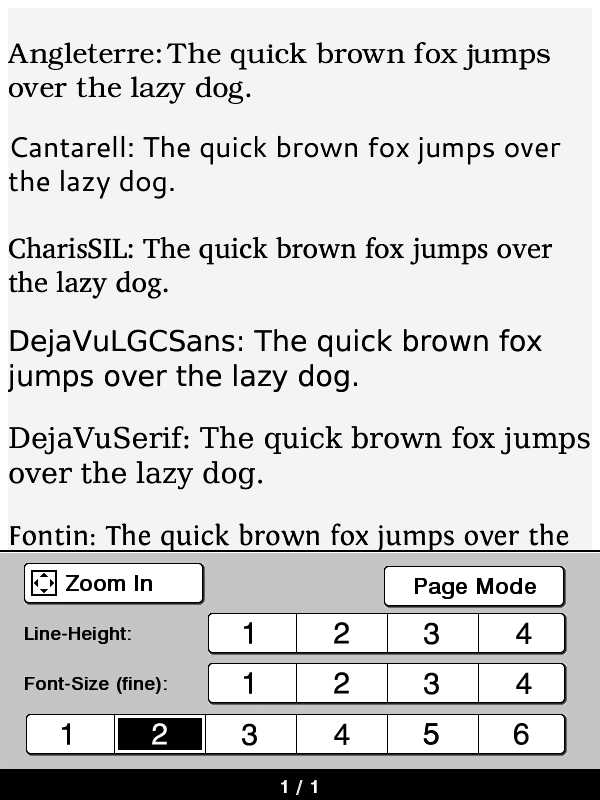

Concerning buttons:
I allready have made this variable(s). Problem is:

Buttons become black when pushed. So far so good.
But I would prefer when one of the 4 buttons is pressed it should be stay black until another button is pressed. Same as SONY's font-size-buttons. So you could remember which font-size/line-height has been chosen.

Intermediate state of the interface to give an expression. There are now 2 groups with 4 buttons:


Another wish:
I try to deactivate this buttons when an non-Epub-file is open. Therefor I would need to make a function in the XML-file which ask wether it's a Epub or not.

There are functions like this:

<function id="canStyleMode"><![CDATA[return this.getVariable("VAR_ENABLE_STYLE");

So I would need a function which gives 0 or 1 wether it's an epub or not. Some ideas?

A.

Edit: Code online

[BenChen]

Originally Posted by Analogus

So I would need a function which gives 0 or 1 wether it's an epub or not. Some ideas?

Hi there,

If you know the path of the current book, you can get the mime type using

mime = FileSystem.getMIMEType(path);

If the book is an EPUB, mime will be 'application/epub+zip'.

You can get the path of the current book using

path = kbook.model.currentBook.media.path;

Hope this helps.

Sincerely,
Ben.

[Mark Nord]

Originally Posted by Analogus

Concerning buttons:
I allready have made this variable(s). Problem is:

Buttons become black when pushed. So far so good.
But I would prefer when one of the 4 buttons is pressed it should be stay black until another button is pressed. Same as SONY's font-size-buttons. So you could remember which font-size/line-height has been chosen.

Intermediate state of the interface to give an expression. There are now 2 groups with 4 buttons:

Without your current code, it is hard to say,
but have you grouped your new buttons into <group> </group> tags?
I think, this will do the trick with my Calculator.

[Analogus]

BenChen:

Thanks. Yes, this helps.

Mark:

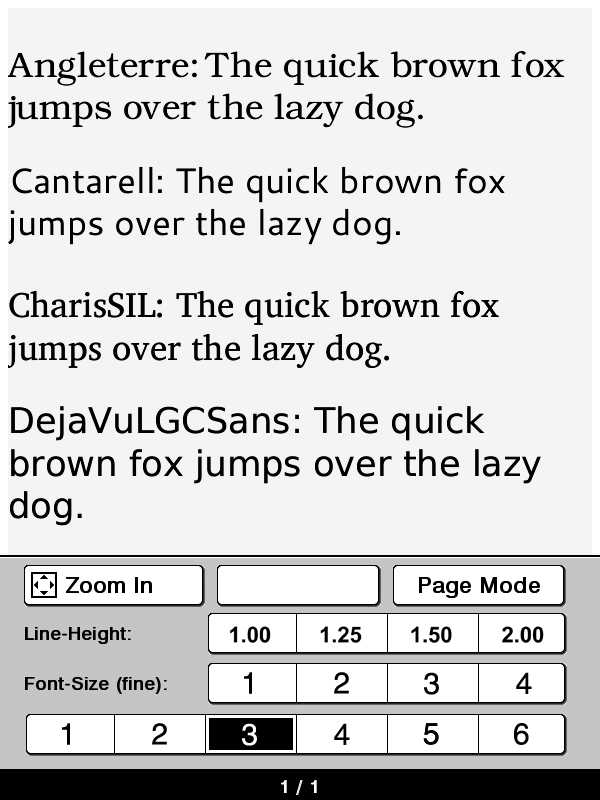

Added GROUP-Tags but this does not work. Buttons are black until function is finished and the Epub reloaded.

Code in Attachement:
sizeOverlay.xml

[Mark Nord]

Analogus,

obvious difference between your definition and the Sony/kinoma one is their use of
variableUpdate="VAR_UPDATE_FONTSIZE"

I would digg into de-fsked kbook.xs to learn more.

For your info please find the de-fsked sourcecode of this.pageSizeOverlayModel in the spoiler.
(No guaranty that there is something useful)

Spoiler:

	this.pageSizeOverlayModel = new this.pageOverlayModel
	this.pageSizeOverlayModel.VAR_MAX_FONTSCALE = this.__xs__number.parse('0');
	this.pageSizeOverlayModel.VAR_MIN_FONTSCALE = this.__xs__number.parse('0');
	this.pageSizeOverlayModel.VAR_RADIO_FONTSIZE = this.__xs__number.parse('0');
	this.pageSizeOverlayModel.VAR_ENABLE_ZOOM = this.__xs__boolean.parse('true');
	this.pageSizeOverlayModel.VAR_ENABLE_STYLE = this.__xs__boolean.parse('true');
	this.pageSizeOverlayModel.VAR_UPDATE_FONTSIZE = this.__xs__boolean.parse('false');
	this.pageSizeOverlayModel.zoomModel = this.pageZoomOverlayModel;
	this.pageSizeOverlayModel.selectStyle = this.pageSelectStyleOverlayModel;
	this.pageSizeOverlayModel.commonMinScale = this.__xs__number.parse('0');
	this.pageSizeOverlayModel.commonMaxScale = this.__xs__number.parse('3');
	this.pageSizeOverlayModel.SHOW = this.__xs__boolean.parse('false');
	this.pageSizeOverlayModel.initialized = function () {
		<global>.pageOverlayModel.initialized.call(this);
		this.SetSub('SIZE', this);
		this.commonMinScale = <global>.parseInt(<global>.System.applyEnvironment('[kFskDocumentViewerMinTextScale]'));
		this.commonMaxScale = <global>.parseInt(<global>.System.applyEnvironment('[kFskDocumentViewerMaxTextScale]'));
	};
	this.pageSizeOverlayModel.closeCurrentOverlay = function () {
		this.zoomModel.closeCurrentOverlay();
		if (this.SHOW == true) {
			this.setVariable('SHOW', false);
			this.targetModel.setVariable('OVERLAY', false);
		}
	};
	this.pageSizeOverlayModel.openCurrentOverlay = function () {
		this.closeCurrentOverlay();
		this.initSizeMenu();
		<global>.Fskin.overlayTool.setShowHide(this);
		this.targetModel.setVariable('OVERLAY', true);
		this.setVariable('SHOW', true);
	};
	this.pageSizeOverlayModel.UpdateModel = function () {
		this.initModel();
	};
	this.pageSizeOverlayModel.onSize = function () {
		<global>.kbook.model.dictionaryMode.clearPopup();
		if (this.zoomModel.SHOW) {
			this.zoomModel.closeCurrentOverlay();
		}
		else {
			if (this.selectStyle.SHOW) {
				this.selectStyle.doCloseSelectStyle();
				this.openCurrentOverlay();
			}
			else {
				if (this.SHOW) {
					this.closeCurrentOverlay();
				}
				else {
					this.openCurrentOverlay();
				}
			}
		}
	};
	this.pageSizeOverlayModel.onInstantZoom = function (zoomPlus) {
		if (this.zoomModel.SHOW) {
			if (zoomPlus) {
				if (!this.zoomModel.checkZoomLock()) {
					this.zoomModel.zoomRateChanged(10);
				}
				else {
					this.targetModel.doSomething('doBlink');
				}
			}
			else {
				if (!this.zoomModel.checkZoomLock()) {
					this.zoomModel.zoomRateChanged(-10);
				}
				else {
					this.targetModel.doSomething('doBlink');
				}
			}
		}
		else {
			if (zoomPlus) {
				this.targetModel.overlayModel.onZoomUp(10);
			}
			else {
				this.targetModel.overlayModel.onZoomUp(-10);
			}
		}
	};
	this.pageSizeOverlayModel.changeFontSize = function () {
		var scale;
		if (this.SHOW == true) {
			scale = <global>.parseInt(this.VAR_RADIO_FONTSIZE);
			scale = scale + this.commonMinScale;
			if (this.isDictionaryShown()) {
				this.setDictionaryScale(scale);
			}
			else {
				this.targetModel.doSomething('sizeTo', scale);
			}
		}
	};
	this.pageSizeOverlayModel.goZoomMode = function () {
		if (this.SHOW == true) {
			this.closeCurrentOverlay();
			this.zoomModel.onZoom();
		}
	};
	this.pageSizeOverlayModel.doSelectStyle = function () {
		if (this.SHOW == true) {
			this.selectStyle.openSelectStyle();
			this.closeCurrentOverlay();
		}
	};
	this.pageSizeOverlayModel.initSizeMenu = function () {
		var model, scale, minScale, maxScale, target;
		model = <global>.kbook.model;
		if (model) {
			switch (model.STATE) {
			case 'PAGE':
			case 'DICTIONARY':
				target = this.container;
				if (this.isDictionaryShown()) {
					scale = <global>.kbook.model.dictionaryCurrentScale;
					maxScale = this.commonMaxScale;
					minScale = this.commonMinScale;
					target.sandbox.initBtnShowHide(true);
					this.setVariable('VAR_ENABLE_ZOOM', false);
					this.setVariable('VAR_ENABLE_STYLE', false);
				}
				else {
					scale = <global>.parseInt(this.targetModel.doSomething('getAbsoluteScale'));
					maxScale = <global>.parseInt(this.targetModel.doSomething('getMaxScale'));
					minScale = <global>.parseInt(this.targetModel.doSomething('getMinScale'));
					target.sandbox.initBtnShowHide(false);
					this.setVariable('VAR_ENABLE_ZOOM', true);
					this.setVariable('VAR_ENABLE_STYLE', true);
				}
				scale = scale - this.commonMinScale;
				minScale = minScale - this.commonMinScale;
				maxScale = maxScale - this.commonMinScale;
				this.setVariable('VAR_RADIO_FONTSIZE', scale);
				this.setVariable('VAR_MAX_FONTSCALE', maxScale);
				this.setVariable('VAR_MIN_FONTSCALE', minScale);
				this.setVariable('VAR_UPDATE_FONTSIZE', false);
				this.setVariable('VAR_UPDATE_FONTSIZE', true);
			}
		}
	};
	this.pageSizeOverlayModel.initModel = function () {
		var model;
		model = <global>.kbook.model;
		if (model) {
			switch (model.STATE) {
			case 'PAGE':
			case 'DICTIONARY':
				if (model.STATE == 'PAGE') {
					this.setVariable('VAR_ENABLE_ZOOM', true);
					this.setVariable('VAR_ENABLE_STYLE', true);
				}
				else {
					this.setVariable('VAR_ENABLE_ZOOM', false);
					this.setVariable('VAR_ENABLE_STYLE', false);
				}
			case 'PICTURE':
				this.setVariable('VAR_RADIO_FONTSIZE', -1);
				this.setVariable('VAR_MAX_FONTSCALE', -1);
				this.setVariable('VAR_MIN_FONTSCALE', -1);
				this.setVariable('VAR_ENABLE_ZOOM', true);
				this.setVariable('VAR_ENABLE_STYLE', false);
			case 'MENU':
			case 'MENU_HOME':
			default:
				this.setVariable('VAR_RADIO_FONTSIZE', -1);
				this.setVariable('VAR_MAX_FONTSCALE', -1);
				this.setVariable('VAR_MIN_FONTSCALE', -1);
				this.setVariable('VAR_ENABLE_ZOOM', false);
				this.setVariable('VAR_ENABLE_STYLE', false);
			}
		}
		return true;
	};
	this.pageSizeOverlayModel.zoomChange = function () {
		this.zoomModel.onZoom();
	};
	this.pageSizeOverlayModel.doNext = function () {
		if (this.targetModel.overlayModel.onNextInstantZoom()) {
			return;
		}
		this.targetModel.doSomething('doBlink');
	};
	this.pageSizeOverlayModel.doPrevious = function () {
		if (this.targetModel.overlayModel.onPreviousInstantZoom()) {
			return;
		}
		this.targetModel.doSomething('doBlink');
	};
	this.pageSizeOverlayModel.doRoot = function () {
		this.closeCurrentOverlay();
		this.targetModel.doSomething('doRoot');
	};
	this.pageSizeOverlayModel;

6.4.2012 after some thinking:

SizeOverlay is loaded and initialized each time you press the size-button.
So your xml-variables will get initialized too.
If you look in the function initSizeMenu, in the spoiler above, you will notice this.setVariable('VAR_RADIO_FONTSIZE', scale); where scale is a variable outside the xml, preserving the state.

So you will have to add simillar to your JS code.
Define a var to hold your custom value lets name it myFontSize,
write a function myInitSizeMenu with a line

this.setVariable('VAR_RADIO_CSS_FONTSIZE', myFontSize);

and hook that new function to initSizeMenu, so that it will be executed right after.

Core.hook.hookAfter(..context to be found.. pageSizeOverlayModel, "initSizeMenu", myInitSizeMenu  );

Another notice:
the sending object is passed to every button-action.
So there is no need for different functions doFontSize5/7/6/8

You can go for: doFineFontSize = function (sender)
and within check for sender.id. It's the id defined in the xml.

[Analogus]

Thank you for your further thinking. I was just writing an answer that contents the observation that VAR_RADIO_FONTSIZE is responsible for the button-behaviour. How can I get the decompiled files? They could be usefull.

I myself would have to give up at this point. Will work on it this evening and hopefully can finish the job over the weekend.

Sorry for another question - should be very easy to answer:

I have to write an OPTION-VALUE directly from within a function without using the option-menu. Option value is therefor not written automatically. I struggle to manage it.
What would be the command for say storing tha value 'size1' in the option named 'Option_Fontsize' from file ANALOGUS_OPTIONS.js?

A.

[Mark Nord]

To answer the questiong
// Saves addon's non-default options as JSON object.
// WARNING: no escaping is done!
// Arguments:
// addon - addon who's settings must be saved
//
Core.settings.saveOptions = function(addon)

should do the trick.

To de-fsk (decompile) the fw.files you need:
fimware dump (e.g. form the-ebook.org)
cramfsck to extracted the cramfs-image
phyton 2.6x - not the current 2.7
dfsk (boroda-version)

[Analogus]

I allready tried that with several variations. For example:
Core.settings.saveOptions = Option_Fontsize(ANALOGUS_OPTIONS)
But where to put the value ('Size1') to be stored?

This did not work in my case. I have problems to understand where I should put the name of the File ('ANALOGUS_OPTIONS.JS'), the Value ('Size1') and the Optionname ('Option_Fontsize').

What should I write on the position of 'function':
Core.settings.saveOptions = function(addon)

What on the position of addon? I guess the name of the addon-file ('ANALOGUS_OPTIONS').

A.

[Mark Nord]

it' the name of your addon,
the one you specify in the last lines of your code
Core.addAddon(yourNameHere);

and you have to call it like this

Core.settings.saveOptions(yourNameHere);

[Analogus]

I don't understand how value XY can be stored in the optionfile. How does Core.settings.saveOptions(yourNameHere) know, what value for what option to be stored?

Other way round:

The reason I want to do that is this:

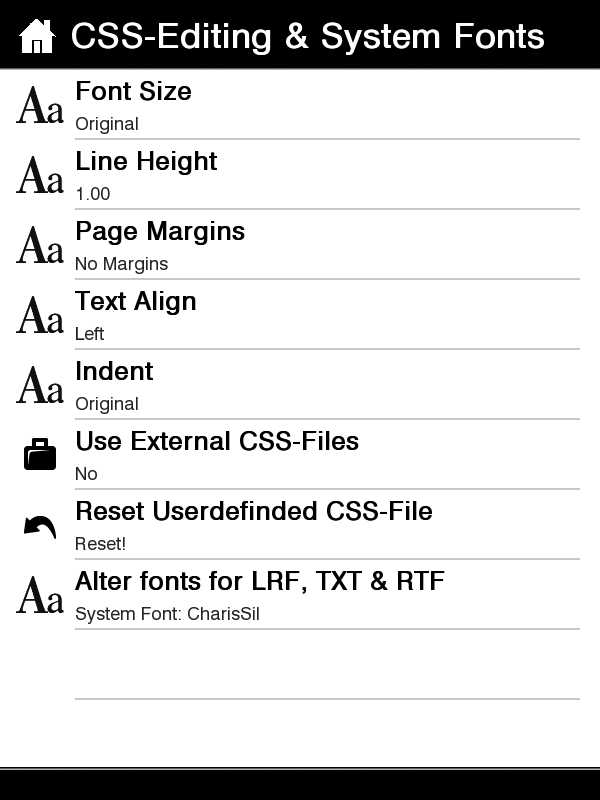

1) I can change CSS-settings with several option-points from within PRS+ - options. No problem. Option value is stored automatically.

2) I can change CSS-settings from the Font-Size overlay too. This is done by calling another function which will manage it. But the chosen value should be stored in the optionfile responsible for the function in (1). So same value is displayed when going into PRS+ - options again later on. Otherwise the old value is displayed.

Edit: the stored option-value has just the to be there to display the chosen value in PRS+-options. No calling up on starting the reader or whatever...

A.

[Mark Nord]

A,

Core.settings.saveOptions(yourNameHere);

simply saves all option-values not equal to default.

Code in spoiler taken from BookManagement.js

Spoiler:

optionDefs: [
			{
				name: 'subCollections',
				title: L('SUB_COLLECTIONS'),
				icon: 'BOOKS',
				defaultValue: 'false',
				values: ['true','false'],
				valueTitles: {
					'true': L('VALUE_TRUE'),
					'false': L('VALUE_FALSE')
				}
			},
			{
				name: 'subCollSeparator',
				title: L('SUB_COLLECTIONS_SEPARATOR'),
				icon: 'BOOKS',
				defaultValue: '|',
				values: ['|', '.', ',', ':', ';', '/', '~'],
			},
			{
				name: 'clearHistsOnShutdown',
				title: L('CLEAR_PAGE_HISTORY_ON_SHUTDOWN'),
				icon: 'CLOCK',
				helpText: L('CLEAR_PAGE_HIST_HELPTEXT'),
				defaultValue: 'false',
				values: ['true', 'false'],
				valueTitles: {
					'true': L('VALUE_TRUE'),
					'false': L('VALUE_FALSE')
				}
			}
		],

Again, without knowing your code it is hard to be more specific.

[Analogus]

Hi all!

A first compiled rough version for the PRS350 is online. Feel free to give it a try:
http://erhartc.bplaced.net/ereader/index.php


New features:

- Changing line-height and font-size on the fly in most EPUBs
- Changing allignment (left, center, justified) & text-indent over options for most EPUBs
- New font-size-overlay

Source-Code (forgive the big mess inside the code...) online.

A.

Edit 14.04:
New features:
Changing reader-interface-font
Flexible way tuning CSS-tags

[VICTORSJG]

Originally Posted by Analogus

Hi all!

A first compiled rough version for the PRS350 is online. Feel free to give it a try:
http://erhartc.bplaced.net/ereader/index.php
Attachment 85077Attachment 85078

New features:

- Changing line-height and font-size on the fly in most EPUBs
- Changing allignment (left, center, justified) & text-indent over options for most EPUBs
- New font-size-overlay

Source-Code (forgive the big mess inside the code...) online.

A.

Good work,

These options made for you are an improve to add to the default repository not only for x50 if not for the 300, 505 and 600 doing the modifications necessary to work out on them. I hope the developers take a count to add them (including the modification made for Terisa to take the sort of the collections)

Resetting/Storing/Restoring settings of PRS+:
Search for this function in PRS-options.
Easy changing system-fonts for TXT, LRF, RTF:
You will find this options in PRS-options.
There are 2 allready pre-installed fonts:
CharisSIL; LexiaDaMa and of course the original SONY-settings. 2 places are prepared to use your own fonts. Reader will restart automatically after changing!
Saving of System Cache.
Ever have had problems with vansihed notes, markups or reading progress? Make a backup to have a second chance!
Toggle battery-symbol. Whatfor? I don't want to be remembered that there is a battery while reading. It's an eReader and not the cockpit of a Learjet.
Changing Line-Height & fine graind Font-Size in EPUB-books on the fly in the redesigned Font-Size-Overlay
Changing Alignment & Indent for EBUP-books over options.
This new formattings don't work in every eBook. Regard this as a pre-release-version. Future will bring improvements.
New button in Font-Size-Overlay which function is user-assignable (close book, open TOC, open notes, open 'Swiss Knife'). Search in 'Additional Options' in PRS-options.

[Analogus]

Question to developers:

I want to edit a specific TXT-file with the MEMO-App on/with my reader. How to manage it?

More info:

I have a specific TXT-file on a specific place on the reader. I want to be able to edit this file with the memo-application. Why?
Idea is to edit CSS-files without plug the reader to the PC. I tried to solve it with the functionality allready exists (copy notes to txt and vice versa).

My code goes like that:

...
case 'CopyTo':
	Core.shell.exec ('cp -f /Data/Notepads/1334415424314.963.note.txt /Data/database/system/PRSPlus/epub/CSS/extern.css');
break;

case 'CopyFrom':
	Core.shell.exec ('cp -f /Data/database/system/PRSPlus/epub/CSS/extern.css /Data/Notepads/1334415424314.963.note.txt');
break;
...

Problem is a NEW TXT-file in /Notepads will not be recognized as Memo. And every new memo gets a new filename. If I would delete this note, code is not working any longer.

Any ideas?

A.
