iLiad CellWriter as an alternative to VisionObjects recognition?

[hansel]

@Ericshliao,
Do yo mean that your gcc is an arm executable (not a cross compiler)? I tried that once, but could not find a complete set of sources for the 'soft float' version...

I switched back to compiling everything with the Irex sdk. Most things go fine, but even if I tell configure to use arm-linux-gcc (with --host=arm-linux --build=i686, and setting paths), it still gets mixed up sometimes (it starts looking in /usr/lib instead of /usr/local/arm-linux/oe...)

@all:
It would be great to have a stable and well defined reference platform for building... a platform capable of building the existing Irex apps and the newer stuff...

Something for a new thread?

[ericshliao]

Originally Posted by hansel

Do yo mean that your gcc is an arm executable (not a cross compiler)?

IIRC, according to some info I got from Antartica, the GCC built by crosstool should not be an arm-executable.
I meant that I built a GCC to be used in ScratchBox by using crosstool as Antartica instructed. I just downloaded the GCC source code and used crosstool to create the binary. It took quite some time, but not tough. I remember that I have updated the process of compiling toolchain in Wiki.
Compiling in ScratchBox is quite convenient. I only use official SDK when building ipdf.
I am not sure if toolchain with libs not supported by original iLiad is proper. It is very easy to port apps, but it also requires additional storage space on iLiad. I estimate that the newer libs will takeup 100 MB. I am still comtemplating about whether to replace the original libs with my newly built libs on iLiad.

[ericshliao]

Antartica, your help is needed. Please check it. It seems that cellwriter won't work with xepdmgr. I always got "./xepdmgr: couldn't open display cellwriter" whether with or without "--show-window".

[ericshliao]

This is all available options for CellWriter:

Usage:
  cellwriter [OPTION...] grid-entry handwriting input panel

Help Options:
  -?, --help                    Show help options
  --help-all                    Show all help options
  --help-gtk                    Show GTK+ Options

GTK+ Options
  --class=CLASS                 Program class as used by the window manager
  --name=NAME                   Program name as used by the window manager
  --screen=SCREEN               X screen to use
  --sync                        Make X calls synchronous
  --gtk-module=MODULES          Load additional GTK+ modules
  --g-fatal-warnings            Make all warnings fatal

Application Options:
  --log-level=4                 Log threshold (0=silent, 7=debug)
  --log-file=cellwriter.log     Log file to use instead of stdout
  --xid                         Embed the main window (XEMBED)
  --show-window                 Show the main window
  --hide-window                 Don't show the main window
  --window-x=512                Horizontal window position
  --window-y=768                Vertical window position
  --dock-window=0               Docking (0=off, 1=top, 2=bottom)
  --window-struts               Reserve space when docking, see manpage
  --keyboard-only               Show on-screen keyboard only
  --profile=profile             Full path to profile file to load
  --read-only                   Do not save changes to the profile
  --disable-overwrite           Do not modify the keymap
  --display=DISPLAY             X display to use

You can get further explaination by "man cellwriter".

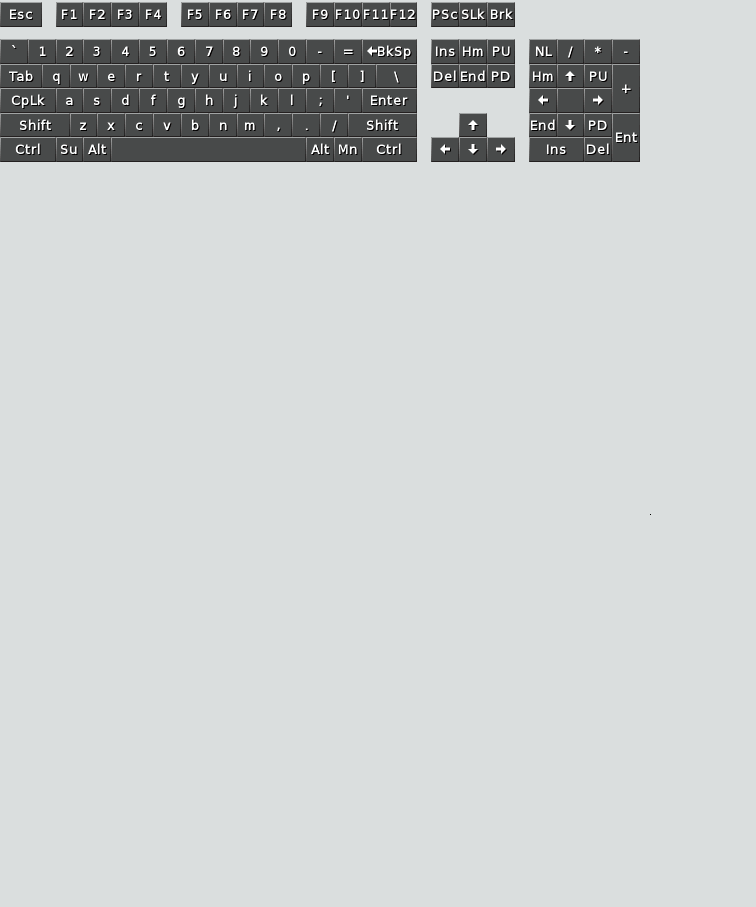

When I appended "--keyboard-only", I got a screen as attached. Now, the problem is: how to get this screen in text editor (such as LeafPad)?

[Antartica]

Originally Posted by ericshliao

Antartica, your help is needed. Please check it. It seems that cellwriter won't work with xepdmgr. I always got "./xepdmgr: couldn't open display cellwriter" whether with or without "--show-window".

The first parameter is the display in the version you are using, as in:

./xepdmgr :0 ./cellwriter

You are ommiting the :0, thus that error...

[ericshliao]

Ah! I forgot the parameter. Thanx.

To people who want to use cellwriter with xepdmgr, please insert the line in "run.sh":

./xepdmgr :0 ./bin/cellwriter --show-window

I should not forget the ":0 " parameter. What a shame of my memory.
