FBInk: A small tool/library to print crap on your screen!

[frostschutz]

Originally Posted by NiLuJe

Without knowing more context about your use-cases

It was a loop of "render, screenshot, clear". I'm going to be traveling for a week so I loaded my reader with 10'000 flashcards yesterday. And for some reason it was easier to do it that way than add proper text mode support to my FlashCard addon, which still only does images, for now. I'm working on it... re-implementing it as not-a-shellscript ... and it's going well, just not ready-by-tomorrow well.

[NiLuJe]

Released v1.18.1!

Minor maintenance release, mostly minor documentation tweaks. Plus a new helper function to more easily deal with memory management of dumps, especially for bindings in languages where getting access to the libc's malloc/free requires a bit of hoop-jumping (looking at you, cFFI ;p).

[NiLuJe]

Released v1.19.0!

Mostly documentation cleanups, and a few tweaks to the dump/restore API to support cropping.

Also a crapload of behind-the-scenes toolchain-related experiments that ultimately amounted to me not changing a thing (Linaro 7.4 for'evah!) .

[NiLuJe]

Released v1.20.0!

Besides a few bugfixes here and there (and initial Libra support), this version introduces a significant behavior change: blocking after a flashing update is no longer the default behavior, instead, that decision is left entirely up to you.

Please check the full release notes for more details .

----

I, err, may also have spent a few days playing with the fire effect from the PSX Doom port as a mildly fun way to stress-test the EPDC.

See this video to see it in action.

(First comes a PW2 w/ AUTO, probably making excellent use of its fancy *_FAST waveform modes [./doom -t -S2 -l 24], and then another run in A2 mode [./doom -t -S2 -l 24 -W A2]. Then comes the Forma, running in DU mode w/ HW dithering [./doom -t -S3 -l 24 -W DU -d]).

Not pictured is the H2O, because of its, err, less than stellar performance.

EDIT: Use fbdepth to go back to a bitdepth that suits whatever you were running before if that isn't KOReader .

[Michal Jancik]

Tested with Kobo Libra H2O, and Kobo Clara HD.

Package instaled:
- KOReader AND Plato | Plato-0.7.5_KOReader-v2019.09.3.zip |
- FBInk-doom-Kobo.tar.gz

[Libra Libra H2O]

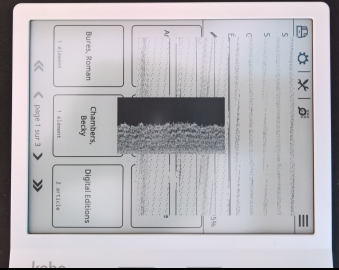

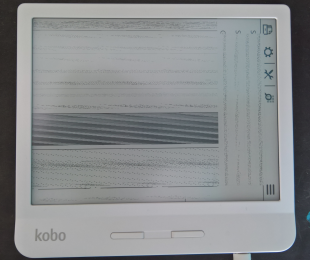

- The command starts, the animation starts, but after 5s the picture breaks down:
- Start commande : ./doom -t S2 -l 24


- The animation is running for about 5s and I get the following:




Koreader crash.log :

     launching...
  _  _____  ____                _
 | |/ / _ \|  _ \ ___  __ _  __| | ___ _ __
 | ' / | | | |_) / _ \/ _` |/ _` |/ _ \ '__|
 | . \ |_| |  _ <  __/ (_| | (_| |  __/ |
 |_|\_\___/|_| \_\___|\__,_|\__,_|\___|_|

 It's a scroll... It's a codex... It's KOReader!
[*] Current time: 09/22/19-12:41:11[*] Version: v2019.09.3-27-ge2c771d_2019-09-20

ffi.load: SDL2
ffi.load (warning): libSDL2.so: cannot open shared object file: No such file or directory
ffi.load: libSDL2-2.0.so
ffi.load (warning): libSDL2-2.0.so: cannot open shared object file: No such file or directory
ffi.load: libSDL2-2.0.so.0
ffi.load (warning): libSDL2-2.0.so.0: cannot open shared object file: No such file or directory
SDL2 not loaded:	./setupkoenv.lua:27: Not able to load dynamic library: libSDL2-2.0.so.0
ffi.load: blitbuffer
FB: computed size: 4587520
FB: id           : mxc_epdc_fb
FB: smem_len     : 9175040
FB: line_length  : 1280
FB: xres         : 1264
FB: xres_virtual : 1280
FB: yres         : 1680
FB: yres_virtual : 3584
FB: bpp          : 8

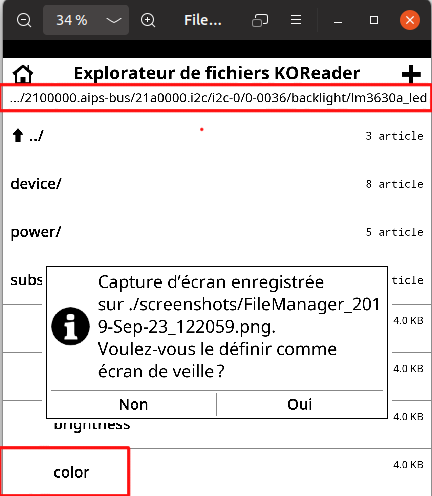

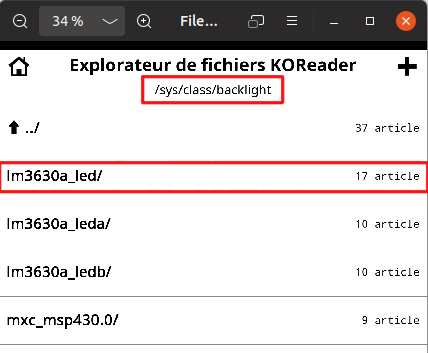

09/22/19-12:41:11 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:41:11 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:41:11 INFO  initializing for device Kobo_storm
09/22/19-12:41:11 INFO  framebuffer resolution: {
    ["h"] = 1680,
    ["w"] = 1264
}
[ko-input] Forked off fake event generator(pid:1527).
ffi.load: libs/libmupdf.so
ffi.load: libs/libwrap-mupdf.so
ffi.load: libs/libfreetype.so.6
PING 192.168.0.1 (192.168.0.1): 56 data bytes
64 bytes from 192.168.0.1: seq=0 ttl=64 time=4.158 ms

--- 192.168.0.1 ping statistics ---
1 packets transmitted, 1 packets received, 0% packet loss
round-trip min/avg/max = 4.158/4.158/4.158 ms
09/22/19-12:41:12 INFO  Loading plugins from directory: plugins
ffi.load: sqlite3
ffi.load: z
ffi.load: sqlite3
09/22/19-12:41:12 INFO  Plugin  plugins/hello.koplugin/main.lua  has been disabled.
09/22/19-12:41:12 INFO  Plugin  plugins/autofrontlight.koplugin/main.lua  has been disabled.
09/22/19-12:41:12 INFO  FM loaded plugin SSH at plugins/SSH.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin autosuspend at plugins/autosuspend.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin backgroundrunner at plugins/backgroundrunner.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin batterystat at plugins/batterystat.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin calibrecompanion at plugins/calibrecompanion.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin coverbrowser at plugins/coverbrowser.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin evernote at plugins/evernote.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin goodreads at plugins/goodreads.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin keepalive at plugins/keepalive.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin newsdownloader at plugins/newsdownloader.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin perceptionexpander at plugins/perceptionexpander.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin readtimer at plugins/readtimer.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin send2ebook at plugins/send2ebook.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin statistics at plugins/statistics.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin systemstat at plugins/systemstat.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin terminal at plugins/terminal.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin texteditor at plugins/texteditor.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin timesync at plugins/timesync.koplugin
09/22/19-12:41:12 INFO  FM loaded plugin wallabag at plugins/wallabag.koplugin
sh: *_Fast: not found
09/22/19-12:44:14 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
[FBInk] Detected a Kobo Libra H2O (384 => Storm @ Mark 7)
[FBInk] Detected a Kobo Libra H2O (384 => Storm @ Mark 7)
[FBInk] Enabled Kobo Mark 7 quirks
[FBInk] Clock tick frequency appears to be 100 Hz
[FBInk] Screen density set to 300 dpi
[FBInk] Variable fb info: 1680x1264, 8bpp @ rotation: 3 (Counter Clockwise, 270°)
[FBInk] Fontsize set to 32x32 (IBM base glyph size: 8x8)
[FBInk] Line length: 52 cols, Page size: 39 rows
[FBInk] Vertical fit isn't perfect, shifting rows down by 8 pixels
[FBInk] Fixed fb info: ID is "mxc_epdc_fb", length of fb mem: 9175040 bytes & line length: 1696 bytes
[FBInk] Pen colors set to #000000 for the foreground and #FFFFFF for the background
09/22/19-12:45:34 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:45 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:45 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:45 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:45 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:45 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:46 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:46 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:46 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:46 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:46 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:47 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:47 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:47 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:47 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:47 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:57 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:57 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:57 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:57 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:45:57 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:46:31 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:46:31 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:46:31 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:46:31 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:46:31 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:46:47 INFO  opening file /mnt/onboard/Chambers, Becky/espace d_un an, L_ - Becky Chambers.kepub.epub
09/22/19-12:46:47 INFO  RD loaded plugin SSH at plugins/SSH.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin autosuspend at plugins/autosuspend.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin autoturn at plugins/autoturn.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin backgroundrunner at plugins/backgroundrunner.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin batterystat at plugins/batterystat.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin calibrecompanion at plugins/calibrecompanion.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin coverbrowser at plugins/coverbrowser.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin evernote at plugins/evernote.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin goodreads at plugins/goodreads.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin keepalive at plugins/keepalive.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin kosync at plugins/kosync.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin newsdownloader at plugins/newsdownloader.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin perceptionexpander at plugins/perceptionexpander.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin readtimer at plugins/readtimer.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin send2ebook at plugins/send2ebook.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin statistics at plugins/statistics.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin systemstat at plugins/systemstat.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin terminal at plugins/terminal.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin texteditor at plugins/texteditor.koplugin
09/22/19-12:46:47 INFO  RD loaded plugin timesync at plugins/timesync.koplugin
09/22/19-12:46:48 INFO  RD loaded plugin wallabag at plugins/wallabag.koplugin
09/22/19-12:46:48 INFO  RD loaded plugin zsync at plugins/zsync.koplugin
CRE: document loaded, but styles re-init needed (cause: embedded fonts)
CRE: styles re-init needed after load, re-rendering
09/22/19-12:46:53 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:46:57 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:46:57 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:46:57 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:46:57 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:46:57 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:47:14 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:47:36 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:47:55 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:47:55 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:47:55 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:47:55 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color
09/22/19-12:47:55 ERROR Could not open file:  /sys/class/backlight/tlc5947_bl/color

[Kobo Clara HD]

- Commande : ./doom -t S2 -l 24



- On "Kobo Clara HD" function without problems. Animation is fluid. Here is the Result:



- Full result detail is here :

Spoiler:

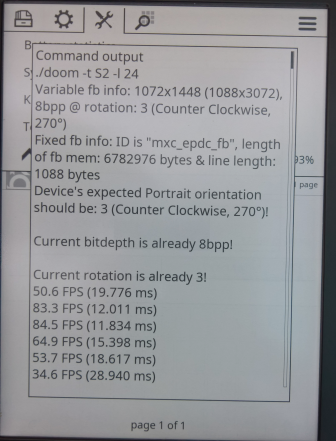

./doom -t S2 -l 24
Variable fb info: 1072x1448 (1088x3072), 8bpp @ rotation: 3 (Counter Clockwise, 270°)
Fixed fb info: ID is "mxc_epdc_fb", length of fb mem: 6782976 bytes & line length: 1088 bytes
Device's expected Portrait orientation should be: 3 (Counter Clockwise, 270°)!

Current bitdepth is already 8bpp!

Current rotation is already 3!
50.6 FPS (19.776 ms)
83.3 FPS (12.011 ms)
84.5 FPS (11.834 ms)
64.9 FPS (15.398 ms)
53.7 FPS (18.617 ms)
34.6 FPS (28.940 ms)
80.5 FPS (12.428 ms)
81.1 FPS (12.337 ms)
61.0 FPS (16.392 ms)
47.3 FPS (21.135 ms)
51.4 FPS (19.449 ms)
50.0 FPS (19.995 ms)
47.8 FPS (20.932 ms)
49.3 FPS (20.286 ms)
47.2 FPS (21.178 ms)
46.8 FPS (21.377 ms)
47.8 FPS (20.909 ms)
43.8 FPS (22.815 ms)
73.8 FPS (13.544 ms)
73.0 FPS (13.703 ms)
50.4 FPS (19.824 ms)
41.8 FPS (23.913 ms)
71.2 FPS (14.054 ms)
71.0 FPS (14.093 ms)
42.6 FPS (23.491 ms)
42.5 FPS (23.512 ms)
41.7 FPS (23.963 ms)
40.3 FPS (24.818 ms)
66.9 FPS (14.943 ms)
66.5 FPS (15.032 ms)
46.9 FPS (21.330 ms)
39.0 FPS (25.608 ms)
66.8 FPS (14.963 ms)
60.8 FPS (16.444 ms)
60.6 FPS (16.497 ms)
58.3 FPS (17.165 ms)
42.8 FPS (23.363 ms)
37.4 FPS (26.751 ms)
64.6 FPS (15.468 ms)
62.7 FPS (15.936 ms)
56.9 FPS (17.581 ms)
56.9 FPS (17.573 ms)
41.4 FPS (24.137 ms)
56.9 FPS (17.577 ms)
55.2 FPS (18.107 ms)
37.6 FPS (26.582 ms)
60.6 FPS (16.512 ms)
60.2 FPS (16.598 ms)
54.0 FPS (18.502 ms)
55.4 FPS (18.064 ms)
etc
etc

- I don't know if you need to attach Koreader crash.log :

Spoiler:

 launching...
  _  _____  ____                _
 | |/ / _ \|  _ \ ___  __ _  __| | ___ _ __
 | ' / | | | |_) / _ \/ _` |/ _` |/ _ \ '__|
 | . \ |_| |  _ <  __/ (_| | (_| |  __/ |
 |_|\_\___/|_| \_\___|\__,_|\__,_|\___|_|

 It's a scroll... It's a codex... It's KOReader!
[*] Current time: 09/22/19-13:06:48[*] Version: v2019.09.3

ffi.load: SDL2
ffi.load (warning): libSDL2.so: cannot open shared object file: No such file or directory
ffi.load: libSDL2-2.0.so
ffi.load (warning): libSDL2-2.0.so: cannot open shared object file: No such file or directory
ffi.load: libSDL2-2.0.so.0
ffi.load (warning): libSDL2-2.0.so.0: cannot open shared object file: No such file or directory
SDL2 not loaded:	./setupkoenv.lua:27: Not able to load dynamic library: libSDL2-2.0.so.0
ffi.load: blitbuffer
FB: computed size: 3342336
FB: id           : mxc_epdc_fb
FB: smem_len     : 6782976
FB: line_length  : 1088
FB: xres         : 1072
FB: xres_virtual : 1088
FB: yres         : 1448
FB: yres_virtual : 3072
FB: bpp          : 8
09/22/19-13:06:48 INFO  initializing for device Kobo_nova
09/22/19-13:06:48 INFO  framebuffer resolution: {
    ["h"] = 1448,
    ["w"] = 1072
}
[ko-input] Forked off fake event generator(pid:2626).
ffi.load: libs/libmupdf.so
ffi.load: libs/libwrap-mupdf.so
ffi.load: libs/libfreetype.so.6
09/22/19-13:06:49 INFO  Kobo WiFi: Left in an inconsistent state by launcher!
09/22/19-13:06:49 INFO  Kobo WiFi: disabling WiFi
09/22/19-13:06:50 INFO  Loading plugins from directory: plugins
09/22/19-13:06:50 INFO  Plugin  plugins/autofrontlight.koplugin/main.lua  has been disabled.
ffi.load: sqlite3
ffi.load: z
ffi.load: sqlite3
09/22/19-13:06:50 INFO  Plugin  plugins/hello.koplugin/main.lua  has been disabled.
09/22/19-13:06:50 INFO  FM loaded plugin SSH at plugins/SSH.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin autosuspend at plugins/autosuspend.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin backgroundrunner at plugins/backgroundrunner.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin batterystat at plugins/batterystat.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin calibrecompanion at plugins/calibrecompanion.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin coverbrowser at plugins/coverbrowser.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin evernote at plugins/evernote.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin goodreads at plugins/goodreads.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin keepalive at plugins/keepalive.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin newsdownloader at plugins/newsdownloader.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin perceptionexpander at plugins/perceptionexpander.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin readtimer at plugins/readtimer.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin send2ebook at plugins/send2ebook.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin statistics at plugins/statistics.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin systemstat at plugins/systemstat.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin terminal at plugins/terminal.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin texteditor at plugins/texteditor.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin timesync at plugins/timesync.koplugin
09/22/19-13:06:50 INFO  FM loaded plugin wallabag at plugins/wallabag.koplugin
ffi.load: libs/liblodepng.so
ffi.load: libs/libturbojpeg.so
ffi.load: libs/libgif.so.7
[FBInk] Detected a Kobo Clara HD (376 => Nova @ Mark 7)
[FBInk] Detected a Kobo Clara HD (376 => Nova @ Mark 7)
[FBInk] Enabled Kobo Mark 7 quirks
[FBInk] Clock tick frequency appears to be 100 Hz
[FBInk] Screen density set to 300 dpi
[FBInk] Variable fb info: 1072x1448, 8bpp @ rotation: 3 (Counter Clockwise, 270°)
[FBInk] Fontsize set to 24x24 (IBM base glyph size: 8x8)
[FBInk] Line length: 44 cols, Page size: 60 rows
[FBInk] Vertical fit isn't perfect, shifting rows down by 4 pixels
[FBInk] Fixed fb info: ID is "mxc_epdc_fb", length of fb mem: 6782976 bytes & line length: 1088 bytes
[FBInk] Pen colors set to #000000 for the foreground and #FFFFFF for the background
09/22/19-13:09:57 INFO  no dialog left to show
09/22/19-13:09:57 INFO  quitting uimanager
Restoring original fb bitdepth @ 32bpp & rotation @ 3
[FBInk] Detected a Kobo Clara HD (376 => Nova @ Mark 7)
Variable fb info: 1072x1448 (1088x3072), 8bpp @ rotation: 3 (Counter Clockwise, 270°)
Fixed fb info: ID is "mxc_epdc_fb", length of fb mem: 6782976 bytes & line length: 1088 bytes

Current rotation is already 3!

Switching fb to 32bpp @ rotation 3 . . .
Setting bitdepth to 32bpp
Setting grayscale to 0
Setting rotate to 3 (Counter Clockwise, 270°)
Bitdepth is now 32bpp (grayscale: 0) @ rotate: 3 (Counter Clockwise, 270°)

Variable fb info: 1072x1448 (1088x1536), 32bpp @ rotation: 3 (Counter Clockwise, 270°)
Fixed fb info: ID is "mxc_epdc_fb", length of fb mem: 6782976 bytes & line length: 4352 bytes

kfmon :

Spoiler:

[FBInk] Detected a change in framebuffer bitdepth, reinitializing...
[FBInk] Variable fb info: 1072x1448, 32bpp @ rotation: 3 (Counter Clockwise, 270°)
[FBInk] Fontsize set to 24x24 (IBM base glyph size: 8x8)
[FBInk] Line length: 44 cols, Page size: 60 rows
[FBInk] Vertical fit isn't perfect, shifting rows down by 4 pixels
[FBInk] Fixed fb info: ID is "mxc_epdc_fb", length of fb mem: 6782976 bytes & line length: 4352 bytes
[FBInk] Pen colors set to #000000 for the foreground and #FFFFFF for the background
[KFMon] [2019-09-22 @ 13:10:13] [NOTE] Tripped IN_UNMOUNT for /mnt/onboard/icons/plato.png
[KFMon] [2019-09-22 @ 13:10:13] [INFO] Unmount detected, nothing to do, all watches will naturally get destroyed.
[KFMon] [2019-09-22 @ 13:10:13] [NOTE] Tripped IN_IGNORED for /mnt/onboard/icons/plato.png
[KFMon] [2019-09-22 @ 13:10:13] [INFO] Trying to remove inotify watch for '/mnt/onboard/koreader.png' @ index 0.
[KFMon] [2019-09-22 @ 13:10:13] [INFO] Trying to remove inotify watch for '/mnt/onboard/kfmon.png' @ index 1.
[KFMon] [2019-09-22 @ 13:10:13] [INFO] Stopped listening for events.
[KFMon] [2019-09-22 @ 13:10:13] [INFO] Beginning the main loop.
[KFMon] [2019-09-22 @ 13:10:13] [INFO] /mnt/onboard isn't mounted, waiting for it to be . . .
[KFMon] [2019-09-22 @ 13:17:06] [INFO] Mountpoints changed (iteration nr. 1 of 6)
[KFMon] [2019-09-22 @ 13:17:06] [NOTE] Yay! Target mountpoint is available!
[KFMon] [2019-09-22 @ 13:17:06] [INFO] Checking watch config file '/mnt/onboard/.adds/kfmon/config/koreader.ini' for changes . . .
[KFMon] [2019-09-22 @ 13:17:06] [INFO] Checking watch config file '/mnt/onboard/.adds/kfmon/config/kfmon-log.ini' for changes . . .
[KFMon] [2019-09-22 @ 13:17:06] [INFO] Checking watch config file '/mnt/onboard/.adds/kfmon/config/plato.ini' for changes . . .
[KFMon] [2019-09-22 @ 13:17:06] [INFO] Initializing inotify.
[KFMon] [2019-09-22 @ 13:17:06] [NOTE] Setup an inotify watch for '/mnt/onboard/koreader.png' @ index 0.
[KFMon] [2019-09-22 @ 13:17:06] [NOTE] Setup an inotify watch for '/mnt/onboard/kfmon.png' @ index 1.
[KFMon] [2019-09-22 @ 13:17:06] [NOTE] Setup an inotify watch for '/mnt/onboard/icons/plato.png' @ index 2.
[KFMon] [2019-09-22 @ 13:17:06] [INFO] Listening for events.
[KFMon] [2019-09-22 @ 13:17:51] [NOTE] Tripped IN_OPEN for /mnt/onboard/kfmon.png
[KFMon] [2019-09-22 @ 13:17:51] [NOTE] Tripped IN_CLOSE for /mnt/onboard/kfmon.png
[KFMon] [2019-09-22 @ 13:17:51] [NOTE] Target icon '/mnt/onboard/kfmon.png' should be properly processed by now :)
[KFMon] [2019-09-22 @ 13:17:51] [INFO] Preparing to spawn /mnt/onboard/.adds/kfmon/bin/kfmon-printlog.sh for watch idx 1 . . .
[KFMon] [2019-09-22 @ 13:17:51] [NOTE] Spawned process 3931 (/mnt/onboard/kfmon.png -> /mnt/onboard/.adds/kfmon/bin/kfmon-printlog.sh @ watch idx 1) . . .
[KFMon] [2019-09-22 @ 13:17:51] [INFO] [TID: 3932] Waiting to reap process 3931 (from watch idx 1) . . .
**** Log dumped on 2019-09-22 @ 13:17:53 ****
**** FW 4.17.13651 on Linux 4.1.15-00084-gcd0d3a4 (#29 SMP PREEMPT Wed Nov 21 11:31:06 CST 2018) ****

[NiLuJe]

@Michal Jancik: Ah, yeah, I'd forgotten to update those binaries for the Libra fixes .

Sidebar: those KOReader logs seem to indicate that adjusting the frontlight temperature currently doesn't work on your Libra...

Does this patch help?

diff --git a/frontend/device/kobo/device.lua b/frontend/device/kobo/device.lua
index 1bbd0b57..4896e01a 100644
--- a/frontend/device/kobo/device.lua
+++ b/frontend/device/kobo/device.lua
@@ -250,7 +250,7 @@ local KoboStorm = Kobo:new{
     hasNaturalLight = yes,
     frontlight_settings = {
         frontlight_white = "/sys/class/backlight/mxc_msp430.0/brightness",
-        frontlight_mixer = "/sys/class/backlight/tlc5947_bl/color",
+        frontlight_mixer = "/sys/class/backlight/lm3630a_led/color",
         -- Warmth goes from 0 to 10 on the device's side (our own internal scale is still normalized to [0...100])
         -- NOTE: Those three extra keys are *MANDATORY* if frontlight_mixer is set!
         nl_min = 0,

(If it doesn't, take a peek inside /sys/class/backlight until you do find something related both to an LM3630 and a sysfs knob named "color" ).

[Michal Jancik]

Well seen ! You are right, colored (orange) light really does not work, you have good reflex
I will test the code thanks. It's not urgent !

--------------------------------------------------------------

PS
- "I just have a question". Is it possible to adjust the sharpness of a font somewhere in the code? I don't mean fat, but sharpness / adjusts the "liasing" of the font (something like antiliasing)

[pazos]

@Michal Jancik, @NiLuJe.

Yes, those leds seems exactly the same used by Kobo Clara HD and BQ Cervantes 4. See https://github.com/koreader/koreader...ment-439700537. So NiLuJe suggestion should work as is.

i.e: for a given white level typing

echo 0 > /sys/class/backlight/lm3630a_led/color

will set the warmth to max level.

[Michal Jancik]

@pazos

echo 0 > /sys/class/backlight/lm3630a_led/color

Not work for my. It didn't change anything.
It is not serious. I am not in a hurry. I wait until the modified version comes out and install it then
*Mainly everything else works

[NiLuJe]

Stupid question, but who knows: the frontlight has to be on for this do to anything .

Stupid question n°2: Does the file actually exist?

[Michal Jancik]

Originally Posted by NiLuJe

Stupid question, but who knows: the frontlight has to be on for this do to anything .

Stupid question n°2: Does the file actually exist?

- Yes. Full frontlight (100%).
(I set "ftrontlight" before starting the Koreader to 100% before starting the command line).

- Yes. "Color" file is in folder "lm3630a_led"
(When I look through the file manager "koreader", so I see "Color in folder lm3630a_led", but through the file manager through Linux I see the frontlight as an empty folder.)

I just noticed that when I click on the "backlight" folder so it redirection me to another folder, is it normal?

-Here I am at the "backlight" folder level:

Spoiler:

- After clicking on "backlight" the path changes, but the file "color" is present.

Spoiler:

----------------------------------------------------------------

But how I write, it is not urgent and that for now I can not set / use the warm light - It is not serious for my .
For me it was especially important to correct the correct screen settings, what you helped me (NiLuJe) to solve in another article on this web_site. The rest is secondary for now

[NiLuJe]

Yep, that's a symlink, the redirection is perfectly normal.

Guess we'll have to wait until someone with shell access and a device looks into it.

I'll push the change with a note anyway, since it's at least an order of magnitude less broken than trying to use the Forma's driver .

[Michal Jancik]

RESOLVED
I change code in /.adds/koreader/frontend/device/kobo/device.lua' (line 253)
I used "lm3630a_led/" instead of "tlc5947_bl"
[From]:

PHP Code:

frontlight_mixer = "/sys/class/backlight/lc5947_bl/color",


[To]:

PHP Code:

frontlight_mixer = "/sys/class/backlight/lm3630a_led/color",


Spoiler:

PHP Code:

-- Kobo Libra:
-- NOTE: Assume the same quirks as the Forma apply.
local KoboStorm = Kobo:new{
    model = "Kobo_storm",
    hasFrontlight = yes,
    hasKeys = yes,
    canToggleGSensor = yes,
    touch_snow_protocol = true,
    misc_ntx_gsensor_protocol = true,
    display_dpi = 300,
    hasNaturalLight = yes,
    frontlight_settings = {
        frontlight_white = "/sys/class/backlight/mxc_msp430.0/brightness",
        frontlight_mixer = "/sys/class/backlight/lm3630a_led/color",
        -- Warmth goes from 0 to 10 on the device's side (our own internal scale is still normalized to [0...100])
        -- NOTE: Those three extra keys are *MANDATORY* if frontlight_mixer is set!
        nl_min = 0,
        nl_max = 10,
        nl_inverted = true,
    },


Now my headlight (warm, orange) works as it should.

@NiLuje
"Which is exactly what I posted earlier "
Yes, exactly. Thanks. Thank you for your patience NiLuJe .

It just took me a while to understand the meaning of + and - in that correction code, "mea culpa"

PS : "doom" also works well, pretty works.
- Results with Kobo Libra H2O:

PHP Code:

./doom  -t -S2 –l 24
Variable fb info: 1264x1680 (1280x3584), 8bpp @ rotation: 0 (Upright, 0°)
Fixed fb info: ID is "mxc_epdc_fb", length of fb mem: 9175040 bytes & line length: 1280 bytes
Device's expected Portrait orientation should be: -1 (Unknown?!)!

Current bitdepth is already 8bpp!
112.0 FPS (8.929 ms)
117.4 FPS (8.516 ms)
116.1 FPS (8.611 ms)
116.3 FPS (8.596 ms)
113.4 FPS (8.820 ms)
112.5 FPS (8.890 ms)
111.4 FPS (8.978 ms)
110.5 FPS (9.053 ms)
109.3 FPS (9.152 ms)
100.2 FPS (9.978 ms)
100.5 FPS (9.952 ms)
93.3 FPS (10.719 ms)
98.7 FPS (10.131 ms)
96.0 FPS (10.421 ms)
95.3 FPS (10.497 ms)
..etc


[NiLuJe]

Which is exactly what I posted earlier

[baskerville]

@NiLuJe: Can you tell, from the logs, if the framebuffer coordinates rotate clockwise or counter-clockwise when the rotation value increases?
