How to take screenshot from myts ?

Ondra · 01-05-2013, 04:08 AM

Can anyone help me how can i take screenshot when i'm in myts ??

PoP · 01-05-2013, 09:02 AM

Solution discussed in this thread

twobob · 01-05-2013, 10:22 PM

and you can grab bits here

https://github.com/dpavlin/k3libre/

Ondra · 01-06-2013, 02:55 AM

yes, it working.. but i wold like to screen when compiled application is running in myts... How can i do this ??

thanks for help..

twobob · 01-06-2013, 08:16 AM

The link above k3libre. does exactly that. but remotely from a PC.

Are you asking if there is like a keyboard shortcut to take screenies??

Please make the question clearer, that is two decent answers to what we thought was the question... IF they aren't? I really don't understand that question.

Do you mean for example you DO NOT want to us a PC in the process.

or you CAN ONLY touch the kindles keys during the process..

OR something??? Need more info

Ondra · 01-06-2013, 08:42 AM

twobob thank you very much, remotely from pc is ok...

twobob · 01-06-2013, 09:05 AM

ah right..

as I have more than one kindle...

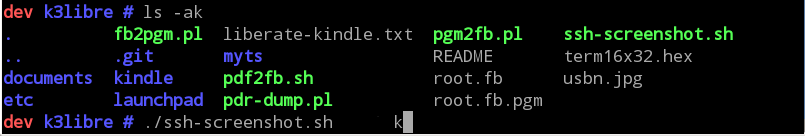

I grabbed the project and amended the ssh-screenshot.sh to allow for multiple devices

PHP Code:



#!/bin/sh -xe



name=root

device=$1

#device=192.168.1.whatever



test -z "$name" && name=/tmp/kindle



landscape=`ssh root@$device cat /sys/module/eink_fb_hal_broads/parameters/bs_orientation`

ssh root@$device dd if=/dev/fb0 > $name.fb



ls -al $name.fb



./fb2pgm.pl $name.fb $landscape && display $name.fb.pgm

and I call it like

ssh-screenshot.sh kindle5
or
ssh-screenshot.sh 192.168.1.100
etc...

Hope that helps...
