01-07-2021, 02:33 PM
|
#1 |
|
Junior Member
 Posts: 7
Karma: 10
Join Date: Jul 2020
Device: Kobo Aura 2
|
Kobo Hd dead CPU?
Hello,
I've bought a Kobo HD who was not charging. After some quick test I've found three shorted caps arround the charging chip and the charging chip warm a lot when Usb is plugged. After removing the charging chip, the 3 caps were still shorted. I have no other Kobo glo HD but another Aura 2 (who has the same Cpu, same routing, etc). After checking on the Aura2, the caps go to the CPU... So I remove the Glo HD Cpu, shorts are gone. Tomorrow, I will reballing the CPU but I think it is dead. Maybe, I will try to swap with the Aura 2 Cpu. Has anyone ever replaced a Cpu on a Kobo? |
|
|
|
01-09-2021, 02:56 PM
|
#2 |
|
Junior Member
Posts: 7
Karma: 10
Join Date: Jul 2020
Device: Kobo Aura 2
|

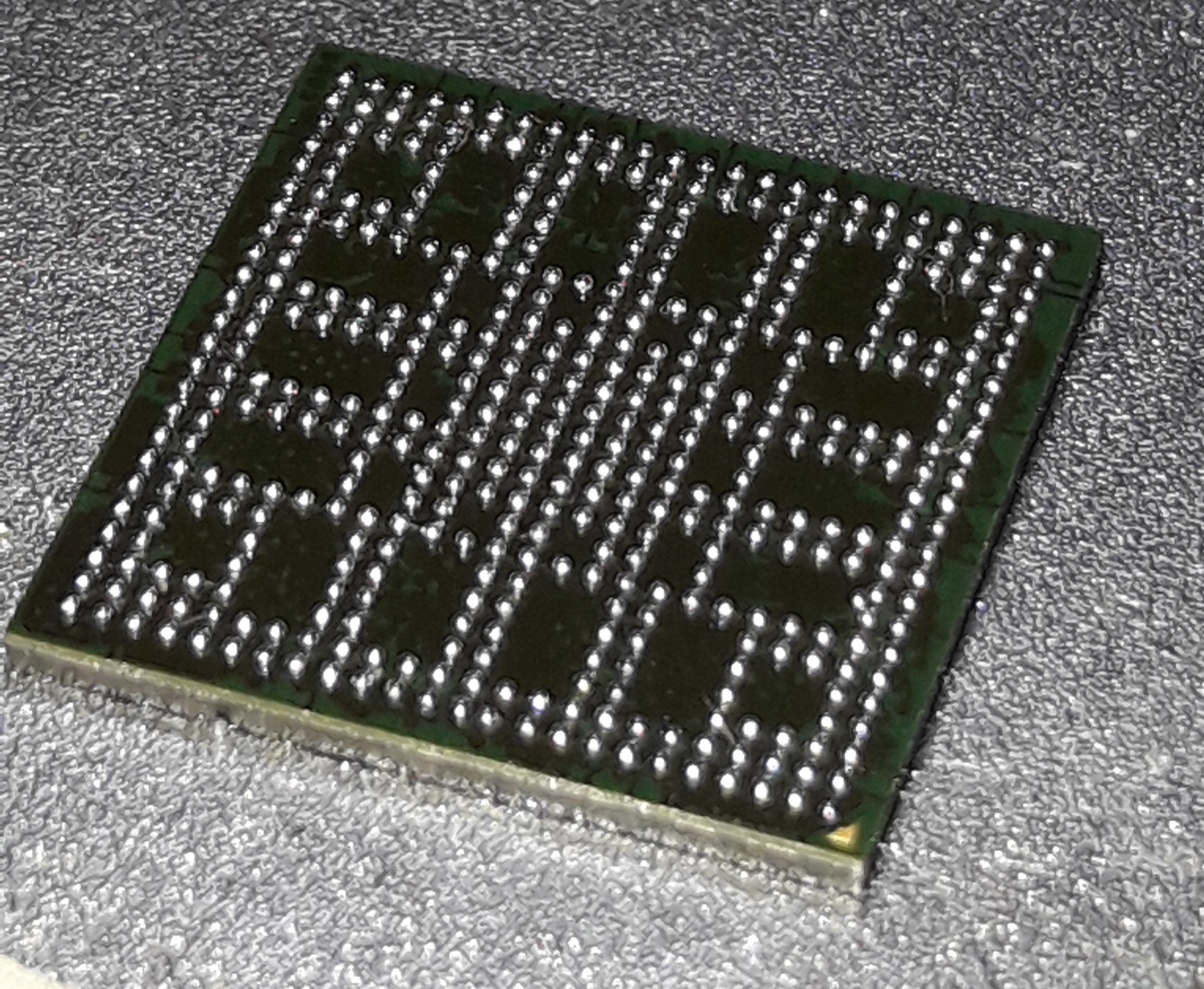

Cpu reballed.
0.25mm ball size is hard ... No luck, the kobo don't boot. I will try again later. |
|
|
|
| Advert | |
|
|
|
01-09-2021, 08:57 PM
|
#3 |
|
Groupie
 Posts: 154
Karma: 32060
Join Date: Aug 2017
Device: Kobo Aura H2O, Kobo Aura One, Pocketbook Inkpad 3 Pro
|
Why settle for an underpowered cpu, solder some old i3 while youre at it :P
 .Good luck with the replacement chip from Aura 2, curious to know the results. |
|
|
|
 |
«
