Word Lookup tool modification/improvement.

[ChairmanSaab]

Hi,

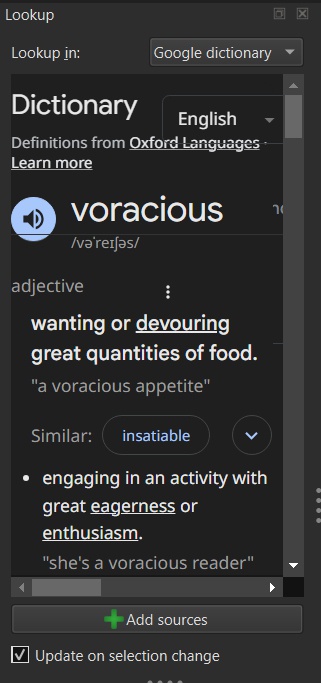

I need help with the word lookup tool, especially when using Google dictionary, as alignment is off, reducing the column-gap to 0px greatly elevates the experience, you can enhance it a bit further by setting grid-template-columns: minmax (0px,0px). The improvement is illustrated in the screenshot. You can try this by clicking "inspect" on the Google dictionary page and going to the "computed styles" tab.

Can this be achieved via a plugin to inject javascript? Can anyone help me create one?

[ChairmanSaab]

I'm not able to edit my original post so I'll be posting it here. Credits: ChatGPT

There are two ways, both includes editing lookup.js (located at calibre/app/resource/lookup.js or usr/share/calibre/lookup.js in linux)

Option 1. This is the one I use but might break in the future, please replace the entire code of lookup.js with this one.

/* vim:fileencoding=utf-8
 *
 * Copyright (C) 2019 Kovid Goyal <kovid at kovidgoyal.net>
 *
 * Distributed under terms of the GPLv3 license
 */

(function() {
    "use strict";

    var num_tries = 0;

    // apply the 3px indent to any level-1 define heading
    function indentHeadings() {
        document.querySelectorAll('span[role="heading"][aria-level="1"]')
                .forEach(function(el) {
            el.style.position = 'relative';
            el.style.left     = '3px';
        });
    }

    function fix_google_markup() {
        var cc = document.getElementById('center_col');
        if (!cc) {
            if (++num_tries > 10) return;
            setTimeout(fix_google_markup, 100);
            return;
        }

        // zero-out column gaps everywhere
        var style = document.createElement('style');
        style.textContent = `
           * {
             column-gap: 0px !important;
             -webkit-column-gap: 0px !important;
           }
        `;
        document.head.appendChild(style);

        var max_width = 'calc(100vw - 25px)';
        cc.style.maxWidth   = max_width;
        cc.style.marginLeft = '0';

        var rcnt = document.getElementById('rcnt');
        if (rcnt) rcnt.style.marginLeft = '0';

        var cnt = document.getElementById('cnt');
        if (cnt) cnt.style.paddingTop = '0';

        var s = document.getElementById('search');
        if (s) s.style.maxWidth = max_width;

        var params = new URLSearchParams(location.search.slice(1));
        var q      = params.get('q');

        if (q && q.startsWith('define:')) {
            // inline layout tweaks for define: results
            cc.style.position     = 'absolute';
            cc.style.top          = '0';
            cc.style.left         = '0';
            cc.style.paddingLeft  = '0';
            cc.style.paddingRight = '6px';

            ['sfcnt','top_nav','before-appbar','appbar',
             'searchform','easter-egg','topstuff']
            .forEach(function(id) {
                var e = document.getElementById(id);
                if (e) e.style.display = 'none';
            });

            // wrap definition text
            document.querySelectorAll('[data-topic]')
                    .forEach(e => e.style.maxWidth = max_width);

            // now that the define: block is up, indent headings
            indentHeadings();

            // observe any future DOM changes in center_col and re-indent
            new MutationObserver(indentHeadings)
                .observe(cc, { childList: true, subtree: true });
        }

        // remove the promo sidebar if present
        var promo = document.getElementById('promos');
        if (promo) promo.remove();

        // wrap search results
        document.querySelectorAll('[data-ved]')
                .forEach(e => e.style.maxWidth = max_width);

        // prevent overlap of search results + citations
        document.querySelectorAll('cite').forEach(function(elem) {
            var wrapper = elem.closest('div');
            if (wrapper) wrapper.style.position = 'static';
        });
    }

    if (location.hostname === 'www.google.com') {
        window.addEventListener('DOMContentLoaded', fix_google_markup);
    }
})();

Option 2: Has a minor bug where it hides first letter of the heading, not an issue as the same word is visible below. This won't break with updates, just replace again.

        var cc = document.getElementById('center_col');
         // --- paste this code below the above line, ctrl+f in your fav text editor to find the line ---
         var style = document.createElement('style');
         style.textContent = `
           * {
             column-gap: 0px !important;
             -webkit-column-gap: 3px !important;
           }
         `;
         document.head.appendChild(style);
         // --- and the between the below line, you can leave this comment if you'd like ---
        var max_width = 'calc(100vw - 25px)';

[BetterRed]

Moderator Notice
I moved this to the Development Forum.

I don't think the Viewer has plugin support… yet.

And I uploaded the images to here; use the paper clip icon to upload attachments

BR

[ChairmanSaab]

Update: Fixes rendering issues with non-dictionary results. Tested on 8.7.0. {Mods: is it possible to delete the above post with code? I'll be including all the screenshots in this post.}

/* vim:fileencoding=utf-8
 *
 * Copyright (C) 2019 Kovid Goyal <kovid at kovidgoyal.net>
 *
 * Distributed under terms of the GPLv3 license
 */

(function() {
    "use strict";

    var num_tries = 0;
    var styleAdded = false; // Track if we've added our CSS styles


    function fix_google_markup() {
        var cc = document.getElementById('center_col');
        if (!cc) {
            if (++num_tries <= 10) {
                return setTimeout(fix_google_markup, 100);
            }
            return;
        }

        // figure out if they actually got a dictionary card
        var isDict = !!document.querySelector('.lr_container, .lr_dct_ent');

        // grab the raw query
        var params = new URLSearchParams(location.search.slice(1));
        var q      = params.get('q') || '';

        // 1) DICTIONARY MODE
        if (isDict) {
            // Only add styles once to prevent duplication
            if (!styleAdded) {
                var style = document.createElement('style');
                style.textContent = `
                   * {
                     column-gap: 0!important;
                     -webkit-column-gap: 0!important;
                   }
                   #center_col {
                     position: absolute !important;
                     top: 1px !important; /* Using your preferred 1px value */
                     left: 0 !important;
                     z-index: 100;
                   }
                   #cnt {
                     position: relative;
                     min-height: 100vh;
                   }
                   /* Clear the space where search form was */
                   #searchform, #appbar, #before-appbar {
                     display: none !important;
                   }
                `;
                document.head.appendChild(style);
                styleAdded = true;
            }

            var maxW = 'calc(100vw - 25px)';
            cc.style.maxWidth   = maxW;
            cc.style.marginLeft = '0';

            ['rcnt','cnt','search']
              .forEach(function(id) {
                  var e = document.getElementById(id);
                  if (e) {
                      if (id==='search') e.style.maxWidth = maxW;
                      else if (id==='cnt')  e.style.paddingTop = '0';
                      else                  e.style.marginLeft = '0';
                  }
              });

            cc.style.paddingLeft  = '0';
            cc.style.paddingRight = '6px';

            // hide everything but the dictionary
            ['sfcnt','top_nav','easter-egg','topstuff']
            .forEach(function(id){
                var e = document.getElementById(id);
                if (e) e.style.display = 'none';
            });

            // Special handling for searchform area
            ['searchform', 'appbar', 'before-appbar'].forEach(function(id) {
                var e = document.getElementById(id);
                if (e) e.style.display = 'none';
            });

            // constrain define text
            document
              .querySelectorAll('[data-topic]')
              .forEach(e => e.style.maxWidth = maxW);

            // indent headings and watch for re-renders
            indentHeadings();
            new MutationObserver(indentHeadings)
              .observe(cc, { childList:true, subtree:true });

            // Ensure footer stays at bottom - with null check
            var cnt = document.getElementById('cnt');
            if (cnt) cnt.style.minHeight = '100vh';
        }

        // 2) Normal MODE (define: but no dict card)
        else if (q.startsWith('define:')) {
            // SAFER: Use try-catch for Normal mode operations
            try {
                ['sfcnt','top_nav','before-appbar','appbar',
                 'searchform','easter-egg','topstuff']
                .forEach(function(id){
                    var e = document.getElementById(id);
                    if (e) e.style.display = 'none';
                });
            } catch(e) {
                console.error("Error in Normal mode cleanup:", e);
            }
        }

        // 3) UNIVERSAL CLEAN-UP (with null checks)
        try {
            // remove that promo sidebar, wrap rest nicely
            var promo = document.getElementById('promos');
            if (promo) promo.remove();

            document
              .querySelectorAll('[data-ved]')
              .forEach(e => e.style.maxWidth = '100%');

            document
              .querySelectorAll('cite')
              .forEach(c => {
                  var wrap = c.closest('div');
                  if (wrap) wrap.style.position = 'static';
              });
        } catch(e) {
            console.error("Error in universal cleanup:", e);
        }
    }

    if (location.hostname === 'www.google.com') {
        window.addEventListener('DOMContentLoaded', fix_google_markup);

        // Re-run on resize to handle Google's dynamic layout changes
        window.addEventListener('resize', function() {
            // Reset try counter to handle DOM changes
            num_tries = 0;
            styleAdded = false;
            fix_google_markup();
        });
    }
})();

[kovidgoyal]

https://github.com/kovidgoyal/calibr...9997fb939fa02b

[DNSB]

For those who are not aware, Kovid's post means the code is now in calibre's master for those running from source and will be in the next release for those who are not.
