iLiad Abiword

Adam B. · 04-12-2007, 09:23 AM

I've got AbiWord working on my iLiad! I can write, type, save, and open.

Quote:

AbiWord is able to read and write all industry standard document types, such as OpenOffice.org documents, Microsoft Word documents, WordPerfect documents, Rich Text Format documents, HTML web pages and many more.

However, opening word documents is a bit of a problem (see second screenshot). Also, before it will run, changes will need to be made to the root file system. (see this post: https://www.mobileread.com/forums/sho...9&postcount=11)

However, with a bit more work and bug squashing, we should have a full featured document creator/viewer.

Moonraker · 04-12-2007, 09:43 AM

Quote:

However, opening word documents is a bit of a problem (see second screenshot).

Do you mean MS .doc format or all MS Word formats in general?

I use MS Word for .rtf and just wonder if this causes problems as well.

Adam B. · 04-12-2007, 10:06 AM

It should work with RTF, although I am having some problems opening them at the moment...

pdam · 04-12-2007, 10:37 AM

Wow - an amazing port - do the Abiword features work, such as the tool ribbon for Bold, Bullets etc?

This port make the device so much more appealing! Great work ...

Adam B. · 04-12-2007, 11:27 AM

All of the formatting features work without problem.

Right now, the issue I'm having is with reading and opeing RTF and DOC files. I thought this was a font issue, but if I save it in AbiWord's native format, it works fine.

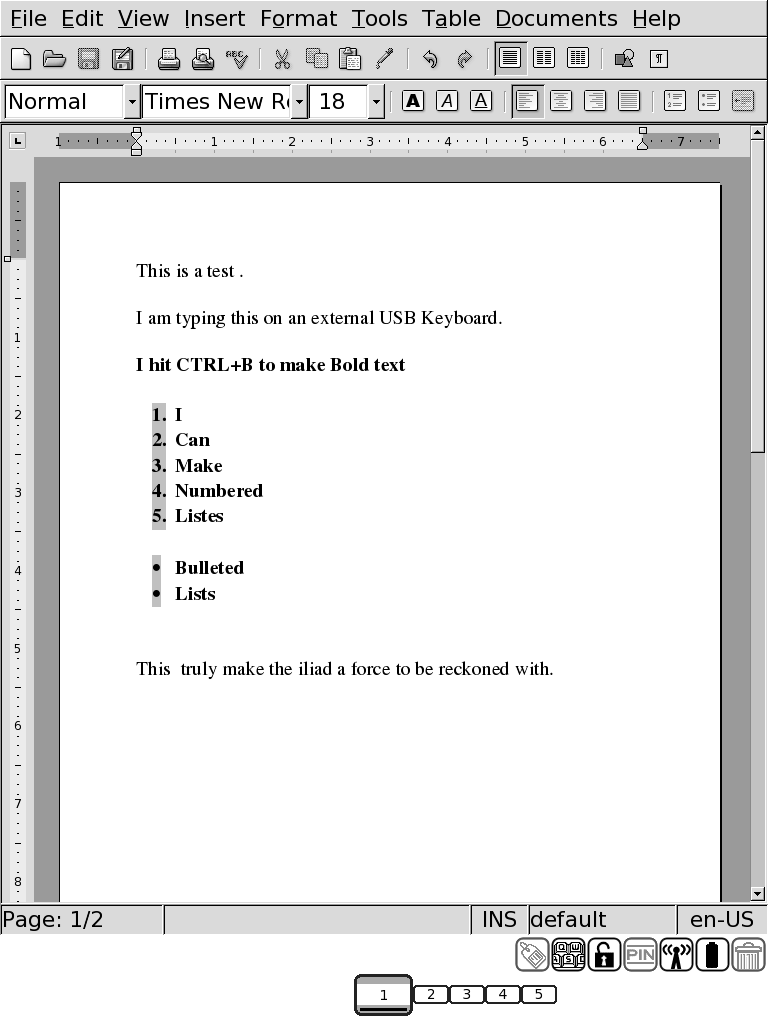

Edit: I just tested it with Hudson's USB Keyboard module: https://www.mobileread.com/forums/showthread.php?t=10214 and it works great!

henkvdg · 04-12-2007, 11:49 AM

Quote:

Originally Posted by Adam B.

All of the formatting features work without problem.

Right now, the issue I'm having is with reading and opeing RTF and DOC files. I thought this was a font issue, but if I save it in AbiWord's native format, it works fine.

Edit: I just tested it with Hudson's USB Keyboard module: https://www.mobileread.com/forums/showthread.php?t=10214 and it works great!

1) Couldn't it still be a font issue, so that only if the exact font is available it can be shown? Does it help to select a part of the document and change the font. Does it then become visible?

2) The iLiad community is an international community.
The Hudson USB Keyboard module does not fully support my Dutch USB keyboard. How can it be adapted? An extra key-code lookup table file per language? How does it cooperate with the iLiad on-screen keyboard?

I have another (seemingly US/Int USB keyboard here, will test that as well)

Adam B. · 04-12-2007, 12:41 PM

I've only done a bit of research on AbiWord, but it seems that if it can't parse an RTF or Doc correctly, it will just show an empty document. This is exactly what happens, the font isn't simply not there, but the text is gone completely (Verified by showing formatting marks).

As far as the keyboard module, I can't help you out. I haven't used or looked at it anymore than downloading the package, and running it from the contentlister. Perhaps Hudson would be able to help you out further.

henkvdg · 04-12-2007, 01:03 PM

Quote:

Originally Posted by Adam B.

I've only done a bit of research on AbiWord, but it seems that if it can't parse an RTF or Doc correctly, it will just show an empty document. This is exactly what happens, the font isn't simply not there, but the text is gone completely (Verified by showing formatting marks).

As far as the keyboard module, I can't help you out. I haven't used or looked at it anymore than downloading the package, and running it from the contentlister. Perhaps Hudson would be able to help you out further.

I installed AbiWord on my Windows PC. DOCs and RTFs are doing OK

Look also here: http://www.abiword.com/release-notes/2.5.1.phtml

Adam B. · 04-12-2007, 01:26 PM

I'vetalkto an Abi dev, and I think we've narrowed down the problem. More updates to follow.

yokos · 04-18-2007, 05:53 AM

Adam B., this looks promising.

Any text editing program for our toy would be cool.
Maybe it's time to find the right foldable usb keyboard.

Adam B. · 04-20-2007, 12:47 PM

I've got abiWord working on the iLiad with RTF and DOC!!

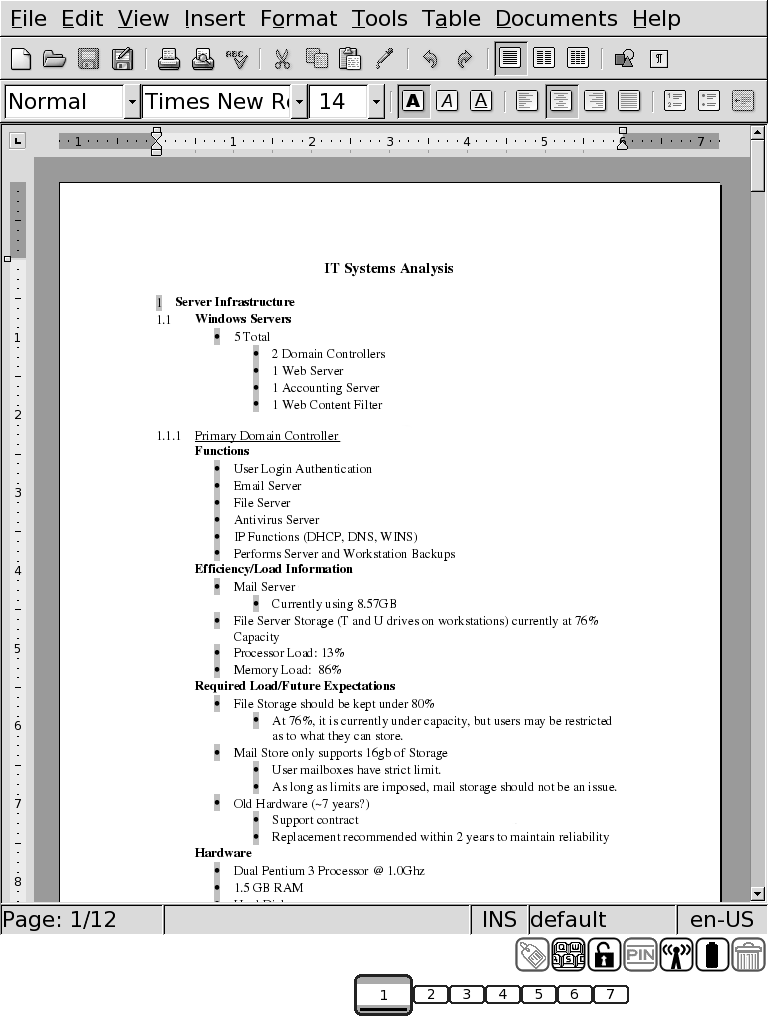

The attached screenshot is a document I made in Microsoft Word 2003. It looks exactly the same in abiWord unmodified.

I'm attaching the package, but the program will not run in it's current form. You will need to do some modification to the root filesystem. As I don't want to touch it with a script, I'll leave this step up to you.

Code:

cp /mnt/cf/abiword/loaders/* /usr/lib/gtk-2.0/2.4.0/loaders/
/usr/bin/gdk-pixbuf-query-loaders > /etc/gtk-2.0/gdk-pixbuf.loaders

Once unbricking becomes available, I won't be so hesitant to touch the root filesystem and will most likely repackage all of my apps.

Compact Flash Version: http://projects.mobileread.com/iliad.../abiwordcf.zip

templario · 04-20-2007, 12:56 PM

That´s good news, well done as usual. I´ll wait till someone makes a easy script since i have no idea of what you wrote in the code.

Thanks

Adam B. · 04-20-2007, 12:59 PM

Quote:

Originally Posted by templario

That´s good news

With Word/RTF formats now available on the iLiad, my next goal is excel: http://www.gnome.org/projects/gnumeric/

Hopefully soon, there won't be a single format that won't need to be converted for the iLiad.

Mambo · 04-20-2007, 01:39 PM

Adam B.,

How did you sort out the screen refresh with Abiword?
Under which circumstances will the screen refresh in full or only partial? How can the user control this?

Adam B. · 04-20-2007, 01:42 PM

Right now, it's just using the standard typing refresh in Antartica's libX11. Inside iliad_refresh.conf you can change typing to Full and/or modify the time afterward.
