OK, I'll bite. To test that out, I made 2 images that it should effectively be unable to display. I'm including the originals this time so other people with similar devices can do the same tests.

The first is a 1 pixel spaced stipple pattern.

Click image for larger version

Name:	Dither1x.jpg
Views:	874
Size:	29.6 KB
ID:	34218

With this, you technically shouldn't be able to see 8 bands in the middle of the image. Here's the best detail photo I could get of it, looking at it from the left side.

Click image for larger version

Name:	Dither01.jpg
Views:	842
Size:	128.7 KB
ID:	34222

Next, I created 16 shade dither pattern from the palette.

Click image for larger version

Name:	DitherX-1x.jpg
Views:	835
Size:	13.2 KB
ID:	34219

If it's really an 8, it should be able to display this perfectly.

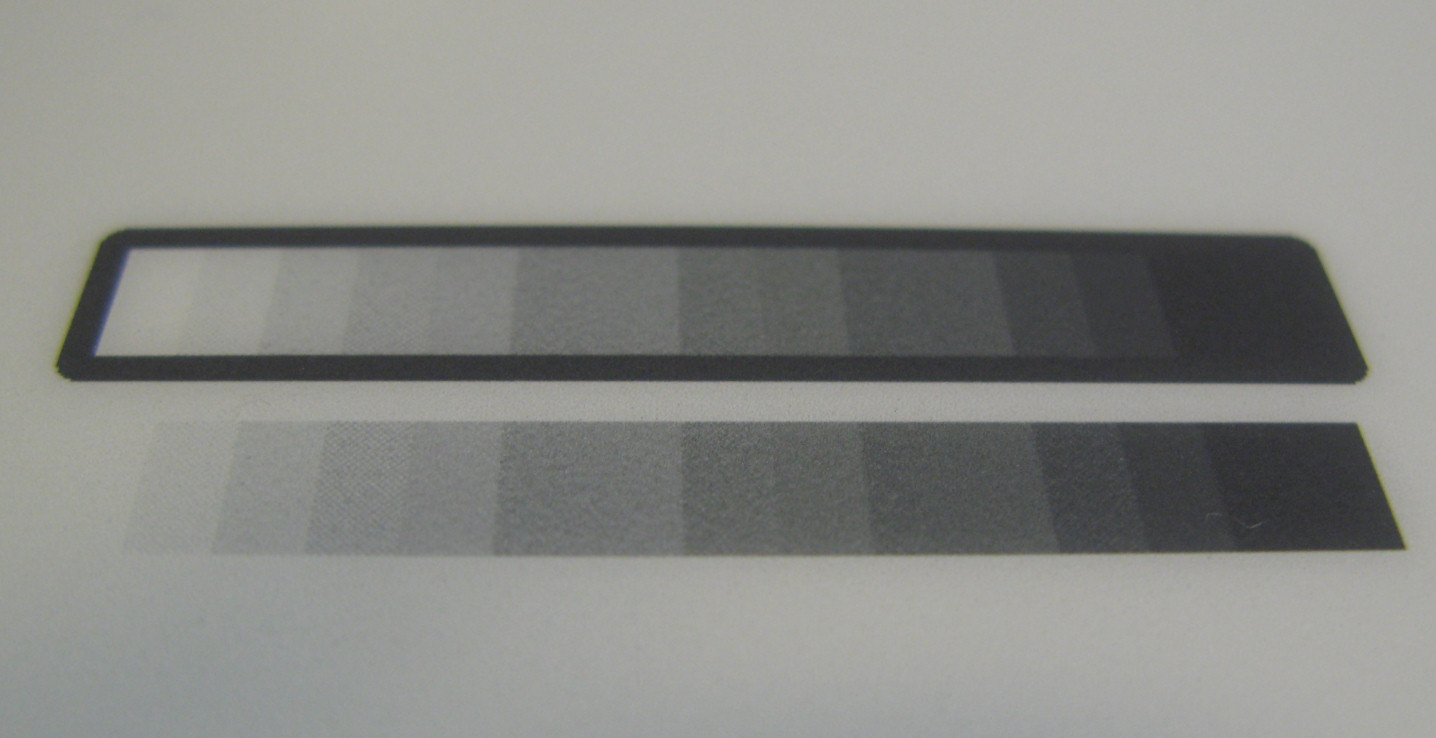

Click image for larger version

Name:	Dither02.jpg
Views:	865
Size:	186.8 KB
ID:	34223

Ooh! Almost! The 3 colors near the middle seem to blend together. That's not good.

Oh well, I guess it's a 4 after all, since it'd be pretty absurd to think it's a 6.
