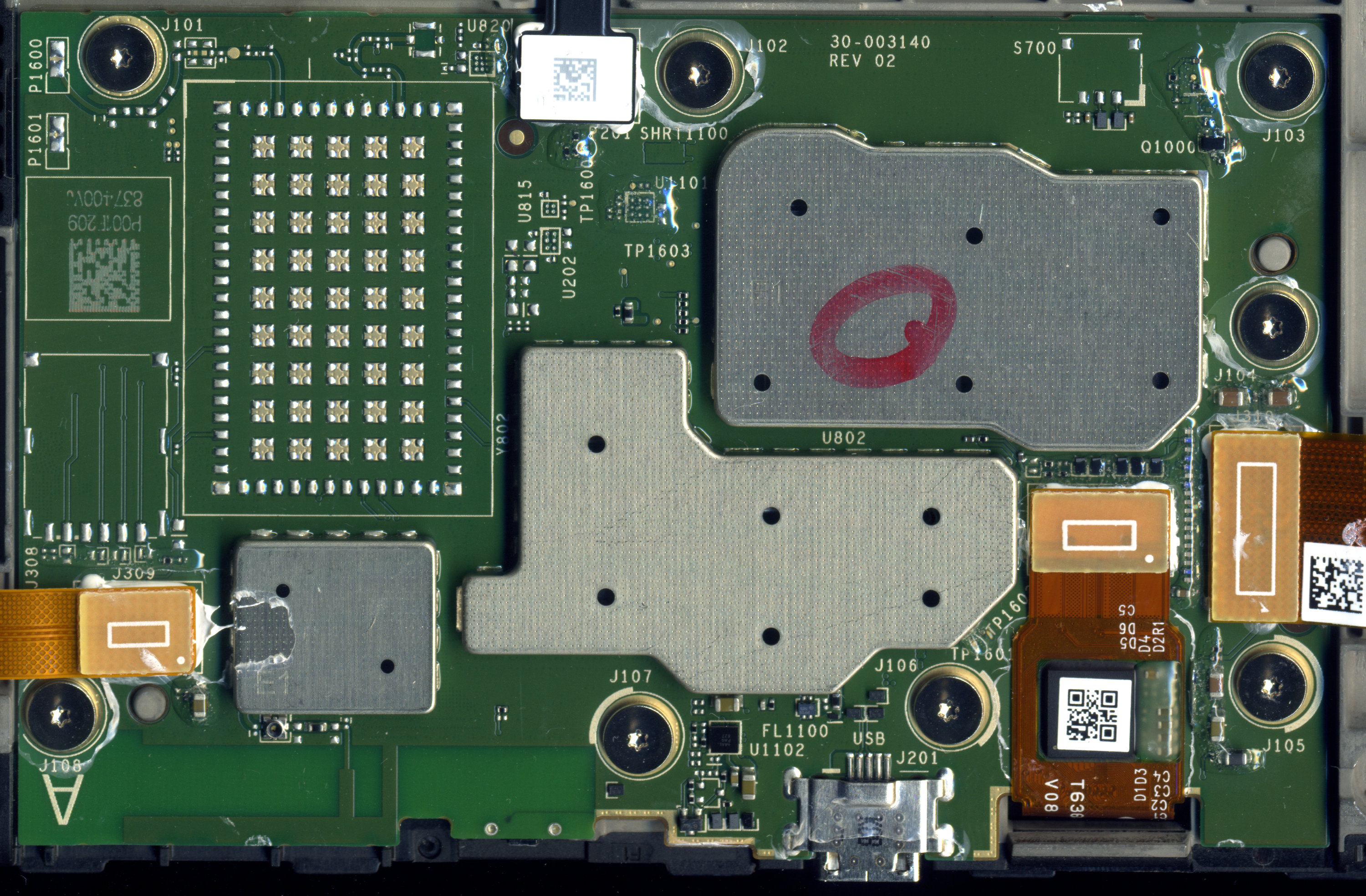

another picture for the gallery

edit: regarding serial access, I've been unable to locate a 1.8V source, plus everything's glued over anyways. Seems like I'll have to go with an external power source.
Attached Thumbnails
Click image for larger version Name: kindle-pw-2018-mainboard.jpg Views: 1556 Size: 1.34 MB ID: 168174
