The attached screen scans (100 ppi, so a lower resolution than the actual screen) show some of the features of the OpenInkPot interface on the Hanlin V3. This is not comprehensive (i.e. there are options I am not showing). Also, OpenInkPot is at release pre-0.2 which indicates beta code well short of a final release.
The last post was the same shots from the standard Hanlin V3 firmware.
The 1st scan shows my top level directories on the SD card. Note that there is not a "Recent Files" entry and some directories that were "hidden" under the standard firmware show up here. There are once again 8 entries so that they can selected using keys 1-8 (keys 9-0 are page back and forward).
The 2nd scan is empty, to line up with the original firmware's "Recent Files" virtual directory. It is actually the "internal" directory listing, illustrating that this is different from the Hanlin's standard internal filesystem (which also contains some ebooks).
The 3rd scan is the contents of the "New" directory. This actually contains one ebook for each of many file types. Only the ebook types that are actually supported should be shown. However, OpenInkPot keys only on filename extensions, so file selection isn't perfect. FBReader does support Plucker and PalmDoc and zTXT, the three .pdb formats shown here. All ebook types have the same book icon, and the font used is smaller than the standard firmware (and is too small in my opinion). Only the FB2 ebook is showing the actual title (I, Robot), all the rest are using the filename. This includes the MOBI ebook where the title is easily found (less easy, but also possible, for ePub and some others).
The 4th scan is the next (last) page of New. Showing four more ebooks types (TXT, eReader, PDF and CHM). However, eReader is not supported by FBReader or Cool Reader. It is listed because it has the .pdb filename extension, and OpenInkPot isn't looking at the file header to detect the actual ebook type. PDF is displayed using a different reader, and hence the different icon.

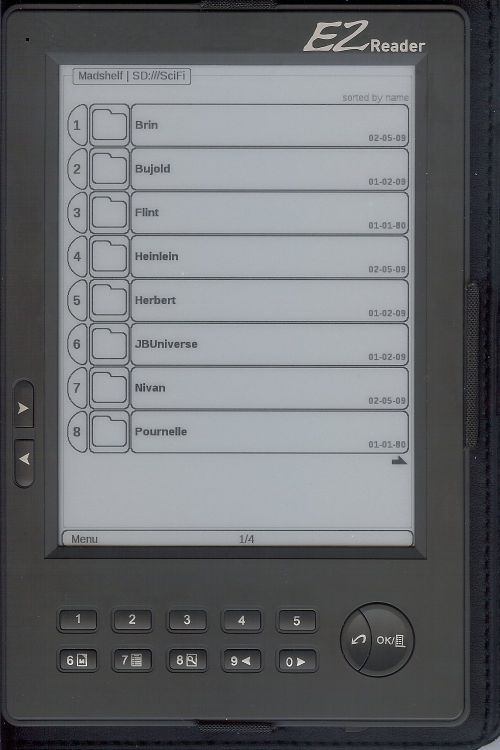

The 5th scan is the SciFi directory, showing another set of directories, based on author name. Using folder hierarchies (genre/author/series/book) is why folders are so important for large libraries.
The 6th scan is the Pournelle directory, showing the 1st eight ebooks. These are in filename order, and (as MOBI files) are showing the filename rather than its title.
Overall, I prefer the icons and the text size used by the standard Hanlin firmware (in fact, an even larger font would be better). However, either implementation is "good enough" to be usable.
|
