Quote:
Originally Posted by leedjc View Post
Teardown seems to be the same as PW1. Remove bezel and remove 11 screws to remove frame from back (noting the one behind the adhesive tape at the top!)
OK.
We will just assume its "PW1 style" until we learn differently.

Quote:
Originally Posted by leedjc View Post
OK, bring on the fame and fortune!!

Clicky 1
Clicky 2

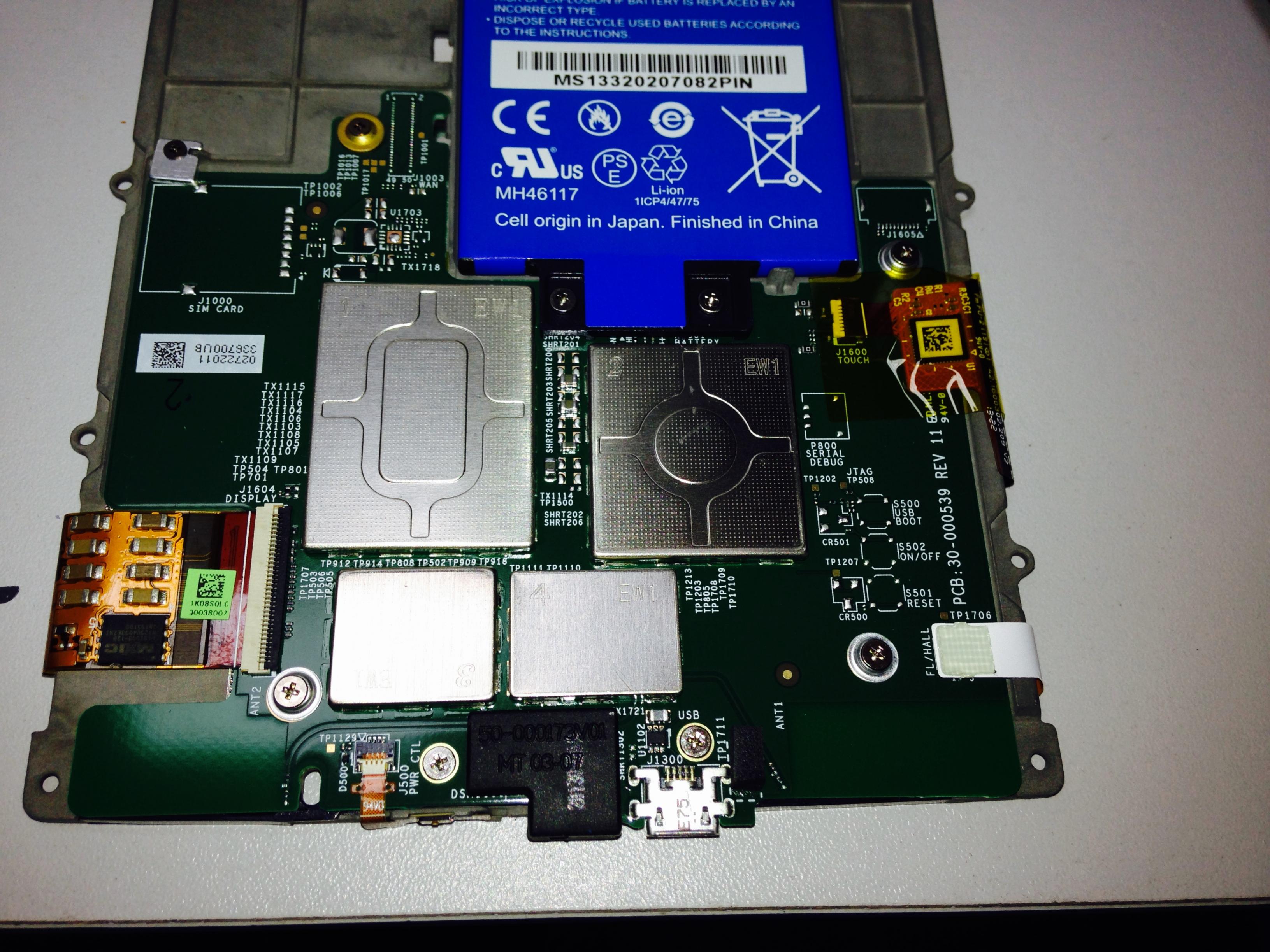

Nice photo.

You struck gold on #1 - P800 - labeled "serial debug port".

The pad highest above the legend (rotate photo 180 degrees) is ground.
Which, if same as other Amazon products -
GND <--> GND of serial adaptor
Rx <--> Tx of 1.8v serial adaptor
Tx <--> Rx of 1.8v serial adaptor
P800 legend
