Old 08-23-2006, 09:25 AM   #1
El Chupacabra
Enthusiast
El Chupacabra began at the beginning.

El Chupacabra's Avatar

Posts: 33
Karma: 10
Join Date: Aug 2006
Device: iLiad / Nokia 6630
USB flashlights wiki section

Hi all! Please update the wiki section about USB flashlights anyone who had tested any working or not working. Thanks!
El Chupacabra is offline   Reply With Quote
Old 08-23-2006, 10:19 AM   #2
yvanleterrible
When books can fly!
yvanleterrible ought to be getting tired of karma fortunes by now.yvanleterrible ought to be getting tired of karma fortunes by now.yvanleterrible ought to be getting tired of karma fortunes by now.yvanleterrible ought to be getting tired of karma fortunes by now.yvanleterrible ought to be getting tired of karma fortunes by now.yvanleterrible ought to be getting tired of karma fortunes by now.yvanleterrible ought to be getting tired of karma fortunes by now.yvanleterrible ought to be getting tired of karma fortunes by now.yvanleterrible ought to be getting tired of karma fortunes by now.yvanleterrible ought to be getting tired of karma fortunes by now.yvanleterrible ought to be getting tired of karma fortunes by now.

yvanleterrible's Avatar

Posts: 8,522
Karma: 3634956
Join Date: May 2006
Location: Que Nada
Device: Kobo Mini in my lunchbox.
I don't know if anyone feels like me about USB flashlights but is'nt it a little taxing on a "un-user" replaceable battery
yvanleterrible is offline   Reply With Quote

Advertisement
Old 08-23-2006, 10:21 AM   #3
ElaHuguet
iLiad freak
ElaHuguet doesn't litterElaHuguet doesn't litterElaHuguet doesn't litter

ElaHuguet's Avatar

Posts: 339
Karma: 243
Join Date: Apr 2006
Location: Mallorca, Spain
Device: iRex iLiad
I agre, Yvan, specially considering it is already using more battery than it should...
ElaHuguet is offline   Reply With Quote
Old 08-23-2006, 10:50 AM   #4
yokos
Pac-Man catched my iLiad.
yokos plays well with othersyokos plays well with othersyokos plays well with othersyokos plays well with othersyokos plays well with othersyokos plays well with othersyokos plays well with othersyokos plays well with othersyokos plays well with othersyokos plays well with othersyokos plays well with others

yokos's Avatar

Posts: 720
Karma: 2571
Join Date: Apr 2006
Location: Germany; next to Baltic Sea
Device: 1st gen iRex iLiad with 2nd ed. battery/case
Quote:
Originally Posted by El Chupacabra
Hi all! Please update the wiki section about USB flashlights anyone who had tested any working or not working. Thanks!
Great idea.
mho:
  • @ home I will prefer light from my reading lamp consuming 12 W.
  • Reading outsides in dark night? Perhaps with USB light. A: »What the hack are you doing?« B: »Reading on my iLiad.« A: »What a geek!«

Last edited by yokos; 08-23-2006 at 10:54 AM.
yokos is offline   Reply With Quote
Old 08-23-2006, 06:28 PM   #5
astfgl
Member
astfgl began at the beginning.

Posts: 24
Karma: 10
Join Date: Jun 2006
Location: Townsville, AU
Device: Iliad & REB1100
Clip-on lights for various devices are already available, most handheld gaming devices need them. From memory they work on anything from button cells to one or two AAA cells, and would be easily modified for Iliad use.

BTW, I'm lighting a glass-fronted bookcase, and settled on "medium" brightness LEDs in the 500mCd range. They have a spread of almost 180 degrees, rather than the 25 degree 10000mCd LEDs I'll be using for my camera ringlight. ;-)

Each shelf has four LEDs wired in parallel and set into a wood strip attached to the bottom of the shelf above. Each strip only draws 15mA, and it lights up the room at night.

The most difficult problem with these devices is not making them low power, it's getting the light spread and positioning right so it's useable. Most solutions tend to have a bright spot which falls off rapidly toward the edges. I've even seen a Nintendo DS light which uses a CCFL, to make the lens design easier.
Attached Thumbnails
Click image for larger version

Name:	bookcase.jpg
Views:	559
Size:	18.2 KB
ID:	1453
astfgl is offline   Reply With Quote
Old 08-23-2006, 06:49 PM   #6
NatCh
Gizmologist
NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.

NatCh's Avatar

Posts: 11,605
Karma: 926222
Join Date: Jan 2006
Location: Republic of Texas Embassy at Jackson, TN
Device: Nook STGR
Quote:
Originally Posted by astfgl
...I'm lighting a glass-fronted bookcase....
That bookcase looks sweet, astfgl!

Thanks for the details, by the way, I'd been wondering just what brightness I ought to look at since mCd numbers don't inherently mean much to me, and I haven't had time to play around with them yet. Amps and volts and ohms (oh, my!), I grok -- candellas ... not so much.

How did you get your current draw so low? I've been staring at 10~30 mA ratings on every LED (individual) I look at! 15 mA for four is surprising to me. Have you current limited them down to a level that you found to be "enough" light? Or do you have something less obvious going on?
NatCh is offline   Reply With Quote
Old 08-24-2006, 08:35 AM   #7
astfgl
Member
astfgl began at the beginning.

Posts: 24
Karma: 10
Join Date: Jun 2006
Location: Townsville, AU
Device: Iliad & REB1100
A local pine furniture place makes things like this to order, and does a really good job. It's actually two double-door units bolted together, I havn't finished wiring the left hand side yet.

EDIT: Forgot to say, when LEDs are in series, the current draw is just as if there were one LED in the circuit, but the voltage supply must be the sum of each LED's voltage drop, plus a little bit. When in parallel, the current is the sum of each LED's current and the voltage supply must be larger than the LED with the highest voltage drop. That should make the rest of the post easier to understand. Remember, LEDs are semiconductors and do not behave in a strictly linear fashion like resistors, capacitors, and inductors.

On topic, I've scavenged power from my answering maching plugpack, which delivers 15V. Each LED drops about 3V, so with 4 LEDs in series I have 15V-4x3V=3V overhead. The appropriate resistor is 3V/15mA=200ohms. I used a 500 variable resistor(potentiometer) and tweaked the final value whilst looking at a current meter, as there are manufacturing variations in both LED current draw and resistor resistance.

If I had a 12V or 9V supply, I would have used two sets of two leds in parallel, which would have doubled the current draw. When selecting LEDs, look for the "forward voltage drop", of Vf. This is the minimum voltage for the LED to illuminate. Below this, the LED is dark or glowing so dimly it's useless as a light source. Once you have this minimum, you must add a resistor in series with the LED(or LEDs) to limit the current to(or below) it's rated current.

The rated current on a LED is usually a MAXIMUM and much above that the color will (briefly) change as the semiconductor junction overheats, increasing resistance in a runaway condition, to the point where the epoxy/acrylic/plastic housing in contact with the chip vaporises and there is a *crack*, or if you're really lucky, a *pop* and shrapnel.

As to brightness, 500mCd is bright to look at, and will leave a "spot" in your vision after a few seconds which lasts less than a minute. 10,000mCd is very unpleasant to look at and will leave several spots and streaks in your vision which persist after several minutes. I plan to avoid repeating that experience in the future. ;-) Also, the lens shape is critical. 10,000mCd would be great for lighting, but mine have a beam spread of 25 degrees. Great for spot illumination, bad for area. The 180 degree LEDS look longer to find and cost 50c each, but are well worth it and more than bright enough. I'll be adding a dimmer potentiometer to the common supply when it's done, as it lights up the room at night.

Last edited by astfgl; 08-24-2006 at 08:44 AM.
astfgl is offline   Reply With Quote
Old 08-24-2006, 12:13 PM   #8
NatCh
Gizmologist
NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.

NatCh's Avatar

Posts: 11,605
Karma: 926222
Join Date: Jan 2006
Location: Republic of Texas Embassy at Jackson, TN
Device: Nook STGR
Series, yes, that does make it clearer.

I've never slagged an LED, but I have a very clear memory of all the insulation simultaneously melting off the wires (and onto my breadboard) the time we connected the power to an op-amp ... wrong.

I got a lovely square burn on the end of my finger from that little adventure -- we realized just how wrong we'd connected things when I pressed on the top of the op-amp to make sure it was seated completely (about .5 seconds before the insulation gave it up, but well after it was too late for the poor chip).

It's all about the magic smoke -- you can't let the magic smoke out of the chips!
NatCh is offline   Reply With Quote
Old 08-02-2007, 07:37 AM   #9
Adam B.
Addicted to Porting
Adam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the rough

Adam B.'s Avatar

Posts: 1,695
Karma: 7194
Join Date: Oct 2006
Location: Indianapolis, IN
Device: iRex iLiad, Nokia 770, Samsung i760
I've added another one to the wiki. It's a generic "10 LED USB light" I got off ebay for ~$5. It works suprisingly well. It's bright enough that it shines a uniform light over the whole screen. I tried the 3 LED light listed in the wiki, and the 10 is much nicer.
Adam B. is offline   Reply With Quote
Old 08-02-2007, 11:34 AM   #10
JSWolf
Resident Curmudgeon
JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.

JSWolf's Avatar

Posts: 38,467
Karma: 19300555
Join Date: Nov 2006
Location: Roslindale, Massachusetts
Device: Kobo Aura H2), Sony PRS-650, Sony PRS-T1, nook STR, iPad 1, iPhone 5
Quote:
Originally Posted by Adam B. View Post
I've added another one to the wiki. It's a generic "10 LED USB light" I got off ebay for ~$5. It works suprisingly well. It's bright enough that it shines a uniform light over the whole screen. I tried the 3 LED light listed in the wiki, and the 10 is much nicer.
Would you mind taking some photos so we can see this light in action?
JSWolf is online now   Reply With Quote
Old 08-02-2007, 10:08 PM   #11
Adam B.
Addicted to Porting
Adam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the rough

Adam B.'s Avatar

Posts: 1,695
Karma: 7194
Join Date: Oct 2006
Location: Indianapolis, IN
Device: iRex iLiad, Nokia 770, Samsung i760

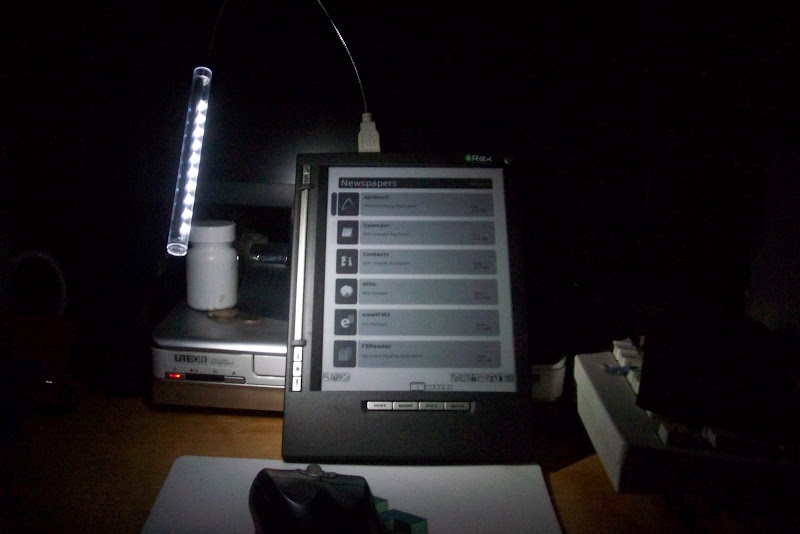

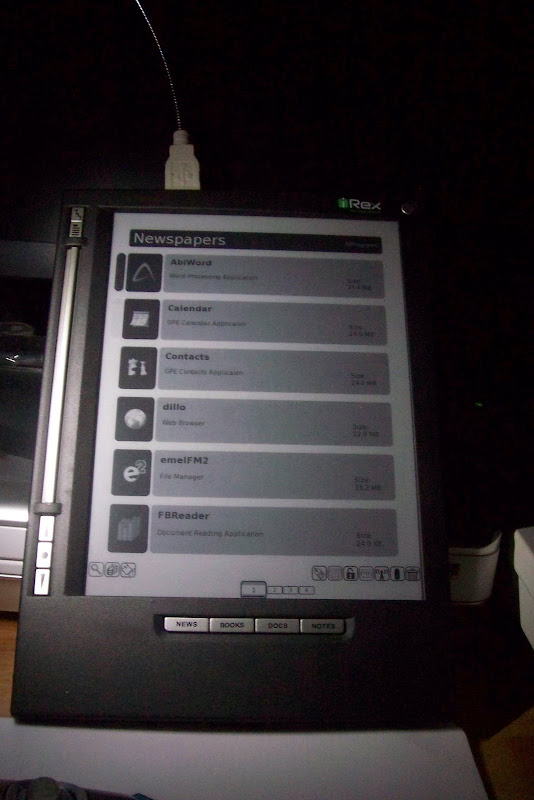

Here you go... The only light is from the reading light.



Adam B. is offline   Reply With Quote
Old 08-03-2007, 02:05 AM   #12
Robert Marquard
Delphi-Guy
Robert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheese

Robert Marquard's Avatar

Posts: 285
Karma: 1151
Join Date: May 2006
Location: Berlin, Germany
Device: iLiad, Palm T3
10 LEDs? It will suck the battery dry in no time. Each LED draws at least 20 mA.
BTW USB powered LED lights are no valid USB devices so you can run into severe problems. In this case the USB port may not deliver more than 100 mA and you may harm the electronics that way.
Robert Marquard is offline   Reply With Quote
Old 08-03-2007, 09:41 AM   #13
Adam B.
Addicted to Porting
Adam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the roughAdam B. is a jewel in the rough

Adam B.'s Avatar

Posts: 1,695
Karma: 7194
Join Date: Oct 2006
Location: Indianapolis, IN
Device: iRex iLiad, Nokia 770, Samsung i760
Harm the electronics on the iLiad? In what way?

I'm pretty much in the dark when it comes to electricity and currents...
Adam B. is offline   Reply With Quote
Old 08-03-2007, 03:25 PM   #14
Robert Marquard
Delphi-Guy
Robert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheeseRobert Marquard can extract oil from cheese

Robert Marquard's Avatar

Posts: 285
Karma: 1151
Join Date: May 2006
Location: Berlin, Germany
Device: iLiad, Palm T3
USB ports can deliver either 100 mA or 500 mA. The device connects drawing only 100 mA and then negotiates for 500 mA if it needs more than 100 mA. That can be denied. Since the USB light is no proper USB device it cannot negotiate at all and simply draws more than 100 mA. As a battery device it is unlikely that the iLiad is built to deliver more than 100 mA. It obviously has no over current protection so it is entirely possible that these lights can harm the iLiad. It is entirely dependent of the electrical design of the iLiad so only the iRex techs know. They have probably designed it to withstand some abuse, but you never know.

In the end promoting such shitty abuses of the USB spec like USB lights or fans or coffee warmers can only lead to dead computers. They sell you a $5 item which can kill a $2000 computer. And what for? I can get a real big fan for $30 which is not even crap from China. A proper coffee machine costs $20. A clip-on light for my bed is not really costly either.
Robert Marquard is offline   Reply With Quote
Old 08-11-2007, 05:32 PM   #15
JSWolf
Resident Curmudgeon
JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.

JSWolf's Avatar

Posts: 38,467
Karma: 19300555
Join Date: Nov 2006
Location: Roslindale, Massachusetts
Device: Kobo Aura H2), Sony PRS-650, Sony PRS-T1, nook STR, iPad 1, iPhone 5
So basically, a $20 -$30 light might end up damaging a $600 Device. Correct?
