Old 06-19-2006, 05:00 PM   #1
Alexander Turcic
Fully Converged
Alexander Turcic ought to be getting tired of karma fortunes by now.Alexander Turcic ought to be getting tired of karma fortunes by now.Alexander Turcic ought to be getting tired of karma fortunes by now.Alexander Turcic ought to be getting tired of karma fortunes by now.Alexander Turcic ought to be getting tired of karma fortunes by now.Alexander Turcic ought to be getting tired of karma fortunes by now.Alexander Turcic ought to be getting tired of karma fortunes by now.Alexander Turcic ought to be getting tired of karma fortunes by now.Alexander Turcic ought to be getting tired of karma fortunes by now.Alexander Turcic ought to be getting tired of karma fortunes by now.Alexander Turcic ought to be getting tired of karma fortunes by now.

Alexander Turcic's Avatar

Posts: 17,107
Karma: 10995944
Join Date: Oct 2002
Location: Switzerland
Device: Sony PRS-650 / Nexus 7 / Kindle PW
Close-ups of HanLin V8 e-book reader posted

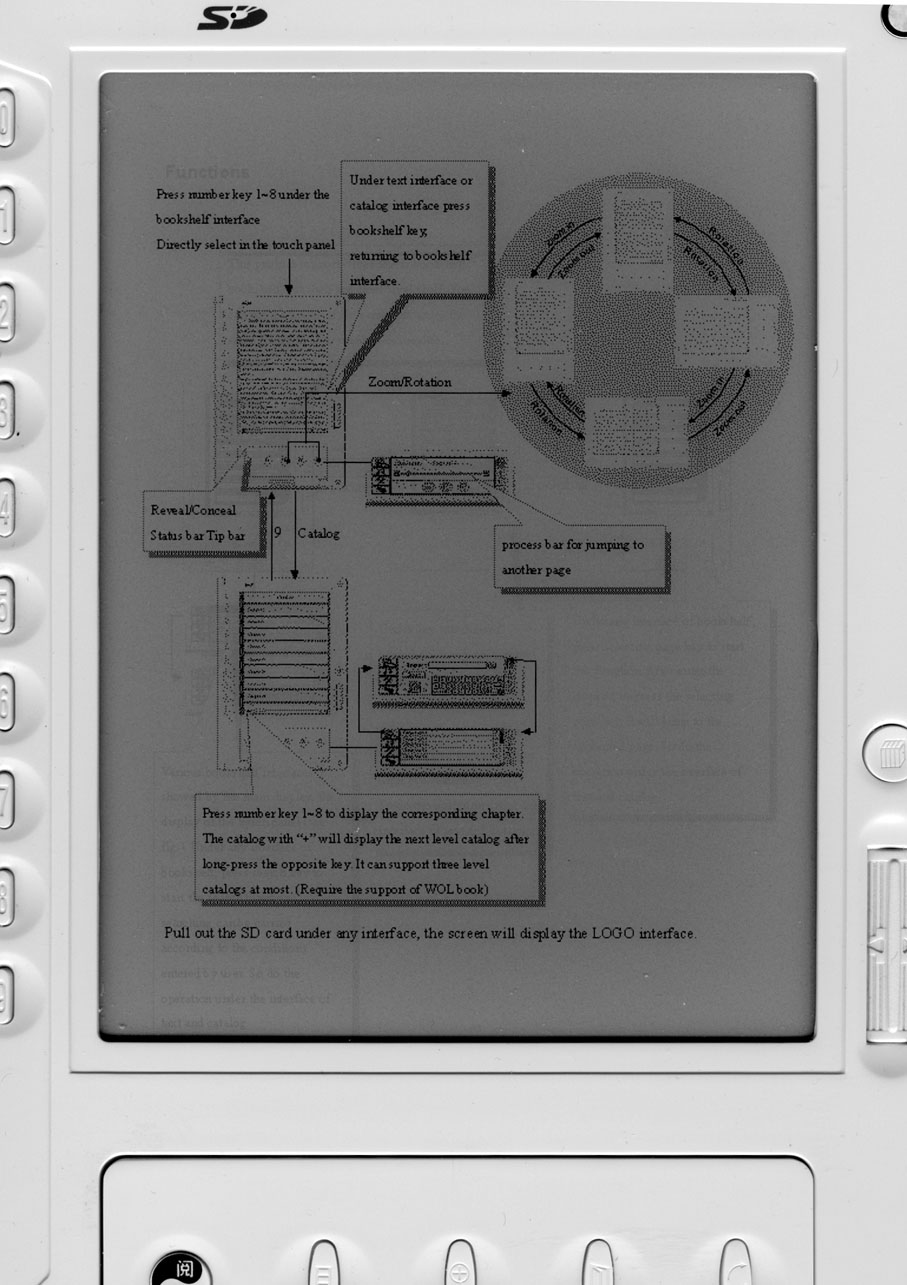

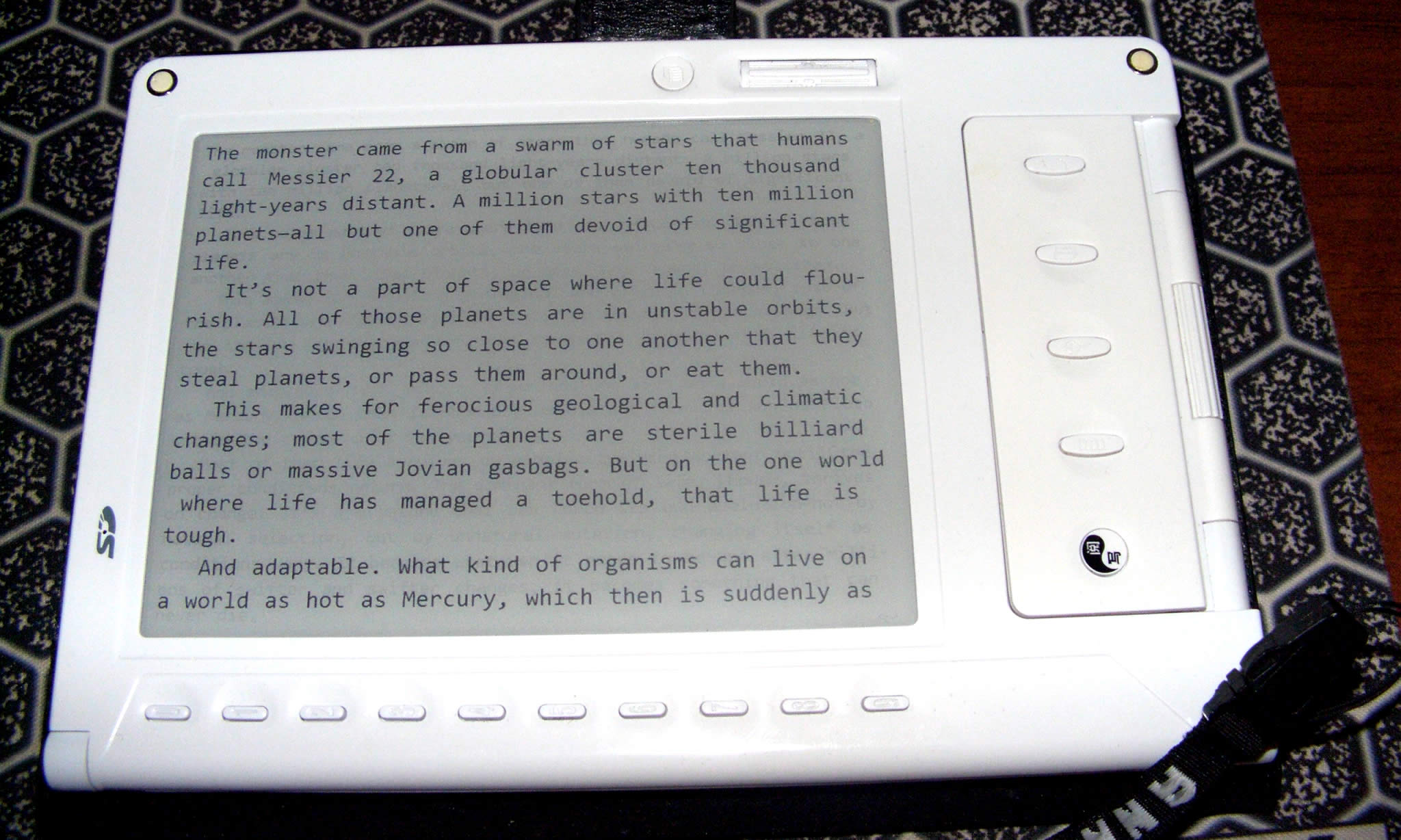

Roland "CommanderROR" Rohde and TaKir managed to take a few close-up shots of the HanLin V8 e-book reader, which is, as some of you may not know, the Chinese equivalent to Sony's forthcoming Sony Portable Reader. The HanLin is also based on E Ink with similar specs such as a 6-inch 800x600 display with four grey scales. It has a Li-ion 760mAh battery that's supposed to be sufficient for 10'000 page turns.

As you can see from the screenshots, presentation of HTML content is still somewhat problematic - I noticed that line feeds are not always properly translated. Roland is also pointing out ghosting effects (which was already an issue with first-gen E Ink devices such as the Sony Librie). I personally cannot detect those here, but why don't you decide for yourself. Edit: Follow the thread for more screenshots added by Roland and TaKir, which (unfortunately) clearly depict that there is a slight after-image on the screen, even in the case of the more advanced E Ink display of the iRex iLiad.

Finally, I am not a great fan of the console font, which shouldn't be a problem though if the HanLin software supports other fonts as well (confirm?).
Alexander Turcic is offline   Reply With Quote
Old 06-19-2006, 05:09 PM   #2
CommanderROR
eink fanatic
CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.

CommanderROR's Avatar

Posts: 2,022
Karma: 4924
Join Date: Mar 2006
Location: Germany
Device: STAReBOOK, iRex Iliad, Sony 505, Kindle 2
The screenshots you pointed to are mild examples, in some of them I can#t detect more than a hint of ghosting.

for a rather extreme example look at this:

http://www.mobileread.com/forums/att...achmentid=1133

or this:

http://www.mobileread.com/forums/att...achmentid=1145

in the secon creenshot, when you enlarge the file to full size, you can actually read the text in some places. the fact that the picture was taken using better "sharpness" than the ones in my thread help identify the ghosts!

Last edited by CommanderROR; 06-19-2006 at 05:27 PM.
CommanderROR is offline   Reply With Quote
Old 06-19-2006, 05:43 PM   #3
TaKir
Keine Ursache! ))
TaKir is on a distinguished road

Posts: 146
Karma: 63
Join Date: Mar 2006
Location: Almost everywhere
Device: Lbook V8 & V3_Vizplex
Here you can see some gosts at Iliad )) Look below the last line (link to page3) - white squares...
http://ilimas.com.sapo.pt/IMG_1435.JPG
and here too... (to the leftand below from "Dear Customers") - white squares too...
http://ilimas.com.sapo.pt/IMG_1428.JPG

So, it is not a problem of Jinke or Librie - I guess new Sony Reader will have this "gosts".

But it doesn't look so "strong" in reality. And doesn't disturb reading at all ))
TaKir is offline   Reply With Quote
Old 06-19-2006, 05:53 PM   #4
CommanderROR
eink fanatic
CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.

CommanderROR's Avatar

Posts: 2,022
Karma: 4924
Join Date: Mar 2006
Location: Germany
Device: STAReBOOK, iRex Iliad, Sony 505, Kindle 2
Thank you for pointing that out TaKir.
I can see the white squares in the first screenshot, but I couldn't fine anything in the second...I'll have to take a closer look.
CommanderROR is offline   Reply With Quote
Old 06-19-2006, 06:05 PM   #5
NatCh
Gizmologist
NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.NatCh ought to be getting tired of karma fortunes by now.

NatCh's Avatar

Posts: 11,605
Karma: 926222
Join Date: Jan 2006
Location: Republic of Texas Embassy at Jackson, TN
Device: Nook STGR
@TaKir

A fellow Weber reader! I carry that whole series around with me on my Pilot.
NatCh is offline   Reply With Quote
Old 06-19-2006, 06:21 PM   #6
TadW
Uebermensch
TadW ought to be getting tired of karma fortunes by now.TadW ought to be getting tired of karma fortunes by now.TadW ought to be getting tired of karma fortunes by now.TadW ought to be getting tired of karma fortunes by now.TadW ought to be getting tired of karma fortunes by now.TadW ought to be getting tired of karma fortunes by now.TadW ought to be getting tired of karma fortunes by now.TadW ought to be getting tired of karma fortunes by now.TadW ought to be getting tired of karma fortunes by now.TadW ought to be getting tired of karma fortunes by now.TadW ought to be getting tired of karma fortunes by now.

TadW's Avatar

Posts: 2,582
Karma: 1094606
Join Date: Jul 2003
Location: Italy
Device: Kindle
Here is some more info from E Ink mentioning the ghosting effect:

Display Update Modes
The controller (Hecuba, based on an Apollo ASIC, which is used for the 6" E Ink prototype kit) can use one of four waveforms to update the display:
  • The initialization (INIT) waveform is used to completely erase the display when the controller has been shut down between updates (for example, if the device is powered off). This waveform flashes several times to ensure that any previously displayed image is completely removed.
  • The grayscale clearing (GC) waveform is used to update the full display with the optimal image quality. This waveform takes approximately 1000 ms (1 second) to rewrite the display. When GC is used, the entire display will flash as the new image is written.
  • The grayscale update (GU) waveform provides a faster update than GC, with less flashing. However, in some circumstances, use of GU may leave a slight remnant of the previous image on the display.
  • The monochrome update (MU) waveform provides for a very fast, nonflashing update when only black and white pixels are being updated (e.g. no pixel is transitioning to or from gray). This waveform takes approximately 500 ms to complete.
TadW is offline   Reply With Quote
Old 06-20-2006, 03:52 AM   #7
CommanderROR
eink fanatic
CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.

CommanderROR's Avatar

Posts: 2,022
Karma: 4924
Join Date: Mar 2006
Location: Germany
Device: STAReBOOK, iRex Iliad, Sony 505, Kindle 2
Reply from Jinke:

Yes, the current display shows the Ghosting. Now eInk and PVI is improving the displaying effects through technology. The current effective method is “double clear display”, but this will reduce the refreshing speed and the display will flash, the reader won’t feel good about that. After we compare the effects of “double clear display” with “one clear display ”, we still adopt “one clear display”, the strong ghosting you mentioned only happened when you first turn the page after you don’t read the book a long time. When you read the book in normal speed and turn the page, the ghosting will gradually be lightened.
CommanderROR is offline   Reply With Quote
Old 06-20-2006, 04:04 AM   #8
Snappy!
Addict
Snappy! has a spectacular aura aboutSnappy! has a spectacular aura aboutSnappy! has a spectacular aura aboutSnappy! has a spectacular aura aboutSnappy! has a spectacular aura aboutSnappy! has a spectacular aura aboutSnappy! has a spectacular aura aboutSnappy! has a spectacular aura aboutSnappy! has a spectacular aura aboutSnappy! has a spectacular aura aboutSnappy! has a spectacular aura about

Snappy!'s Avatar

Posts: 260
Karma: 4256
Join Date: Feb 2006
Device: SHARP Zaurus C1000
If I do get Hanlin, I would not really bother about the ghosting. It's battery life and clarity (in and outdoors) is its main selling points to me. If ghosting matters more than battery life and clarity, then I'll get a pda or a device with a ~5" TFT display.

Of cos if we can get zero ghosting, long batt life and clarity, its the best. But hey, nothing's perfect ... ...
Snappy! is offline   Reply With Quote
Old 06-20-2006, 05:39 PM   #9
bshort
Enthusiast
bshort began at the beginning.

Posts: 25
Karma: 10
Join Date: Jun 2006
Device: Palm Treo 700p
CommanderROR, TaKir, LVD,

Thank you for posting these screenshots!

It looks like the HTML file you tested has hard line breaks, right? Have you tried displaying a text file with only line breaks between paragraphs?

Thanks,
-Brian
bshort is offline   Reply With Quote
Old 06-20-2006, 06:25 PM   #10
CommanderROR
eink fanatic
CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.

CommanderROR's Avatar

Posts: 2,022
Karma: 4924
Join Date: Mar 2006
Location: Germany
Device: STAReBOOK, iRex Iliad, Sony 505, Kindle 2
Not so far bshort...

The interesting fact is, that my PocketPC breaks the lines differently. I breaks some lines strangle yas well, but it does it in different places than the Hanlin...at least hat was my observation.
simple text is a bit of a problem...as you can see from my PDA screenshot, it creates a very...muddled text. The Hanlin .txt viewer isn't working too well yet (there are pictures around that show this) so the results wouldn't be optimal.
I belive that these problem can be solved, but it'll take a lot of work and I don't know who is working on this and how well they will be able to do this.

Also, with dotreader on the horizon (see the IDPF news release int he news section and on the fromtpage), maybe waiting for one of the LINUX devices like the V2 and the Iliad would be a very good idea, because for them it would be a lot easier to create an adaption of dotreader.
CommanderROR is offline   Reply With Quote
Old 06-24-2006, 04:56 PM   #11
CommanderROR
eink fanatic
CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.CommanderROR is fluent in JavaScript as well as Klingon.

CommanderROR's Avatar

Posts: 2,022
Karma: 4924
Join Date: Mar 2006
Location: Germany
Device: STAReBOOK, iRex Iliad, Sony 505, Kindle 2

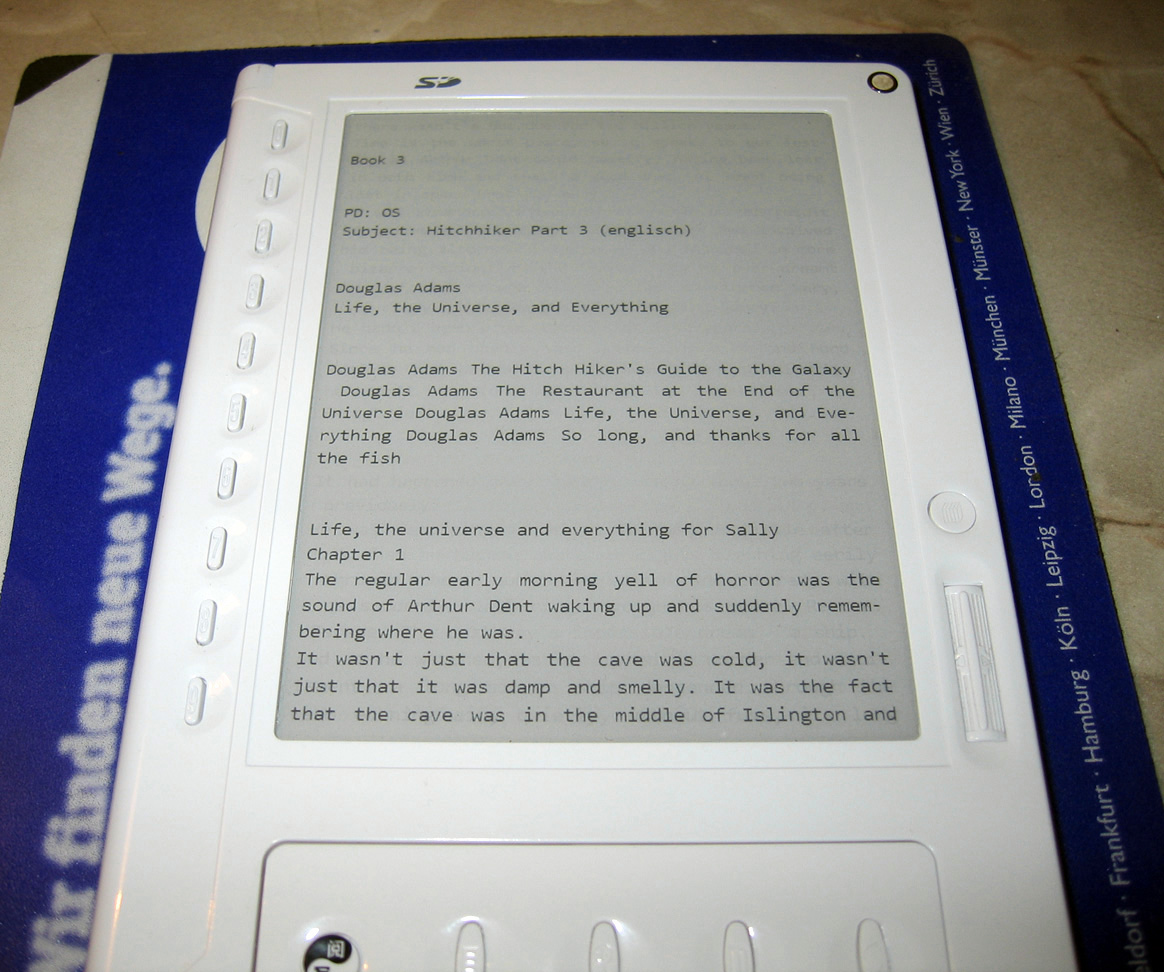

Ok...thanks to TaKir we now have more creenshots of the V8 in action (using the new beta software, still far from final but getting better).

The Screenies show a .txt file that I ripped from a PDF. Looks quite good actually...^^
Attached Thumbnails
Click image for larger version

Name:	V8_txt-HitchHiker-ok.jpg
Views:	649
Size:	344.8 KB
ID:	1155   Click image for larger version

Name:	V8_txt-HitchHiker-ok2.jpg
Views:	627
Size:	364.9 KB
ID:	1156
CommanderROR is offline   Reply With Quote
