Old 09-17-2009, 04:43 AM   #1
skyweb
Junior Member
skyweb began at the beginning.

Posts: 2
Karma: 10
Join Date: Sep 2009
Device: cybook
Cybook JTAG connector

Hello,
First, sorry for my poor english .

I would like to know the JTAG pins connectors on a cybook.
This picture :
http://openinkpot.org/attachment/wik...100/pinout.jpg
describe the serial connector (is good ) but not the JTAG .

If somebody know this, I will be happy .

Thanks
skyweb is offline   Reply With Quote
Old 09-22-2009, 06:02 AM   #2
lordofazeroth
Connoisseur
lordofazeroth began at the beginning.

lordofazeroth's Avatar

Posts: 51
Karma: 10
Join Date: Dec 2008
Device: Cybook
sorry - crap
lordofazeroth is offline   Reply With Quote
Old 10-07-2009, 03:37 PM   #3
skyweb
Junior Member
skyweb began at the beginning.

Posts: 2
Karma: 10
Join Date: Sep 2009
Device: cybook

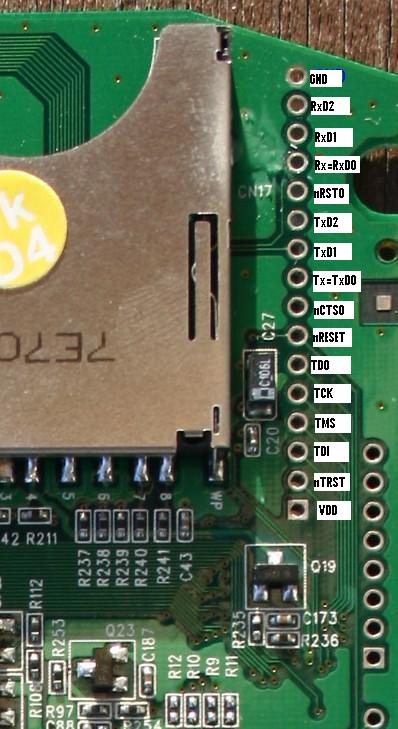

jtag cybook

Nobody answer to my question:

So I answer myself to my question

see attachment
Attached Thumbnails
Click image for larger version

Name:	pinout_full.JPG
Views:	681
Size:	56.6 KB
ID:	37046
skyweb is offline   Reply With Quote
Old 10-09-2009, 01:30 PM   #4
rireed3
Connoisseur
rireed3 has a complete set of Star Wars action figures.rireed3 has a complete set of Star Wars action figures.rireed3 has a complete set of Star Wars action figures.rireed3 has a complete set of Star Wars action figures.

Posts: 85
Karma: 358
Join Date: Jul 2009
Device: BeBook 1, Cybook Gen3
Excellent work, if it's correct!

Richard
rireed3 is offline   Reply With Quote
Old 11-02-2009, 10:06 AM   #5
sartakov
Junior Member
sartakov began at the beginning.

Posts: 6
Karma: 10
Join Date: Nov 2009
Device: ipaq 5550+opie
yet enother version cybook
sartakov is offline   Reply With Quote
Old 06-02-2011, 04:56 PM   #6
jtag-connector
Junior Member
jtag-connector began at the beginning.

Posts: 1
Karma: 10
Join Date: Jun 2011
Device: none
Thx for shear

jtag programmer team
jtag-connector is offline   Reply With Quote
