Kindle Automatically Doubles Image Sizes

The discovery of "zoom" mode for TOPAZ ebooks (Kindle's Sort Of "Zoom" Feature) turned my attention to images in MOBI/AZW ebooks on the Kindle. These do not have the zoom mode, even though an "image" mode is standard with MobiPocket Reader on most device types. However, small images are always doubled in size. This does not happen on other devices so far as I know, but it seems to be a good idea given the Kindle's screen size and the fact that very small images are common in older MOBI ebooks. On the other hand, complaints about the quality of images in AZW ebooks may in part be due to the small size of the underlying image. It would be much better to start with a larger image.

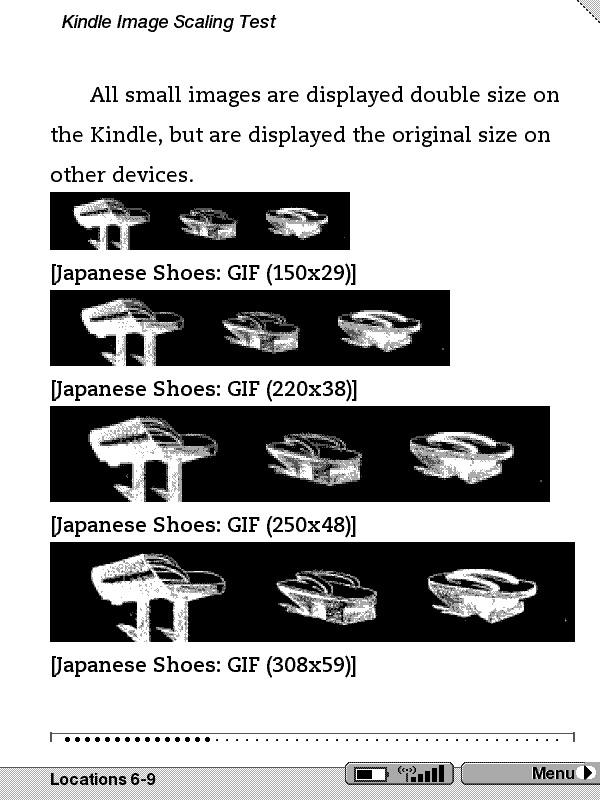

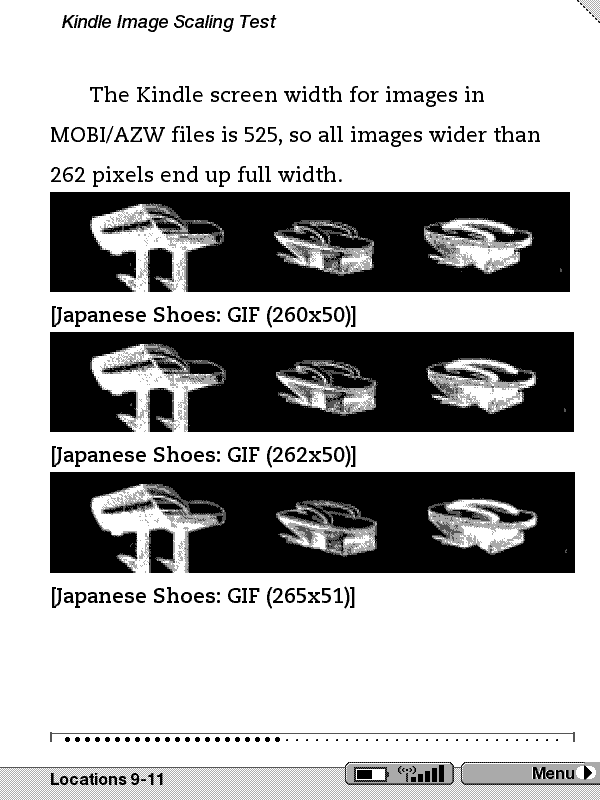

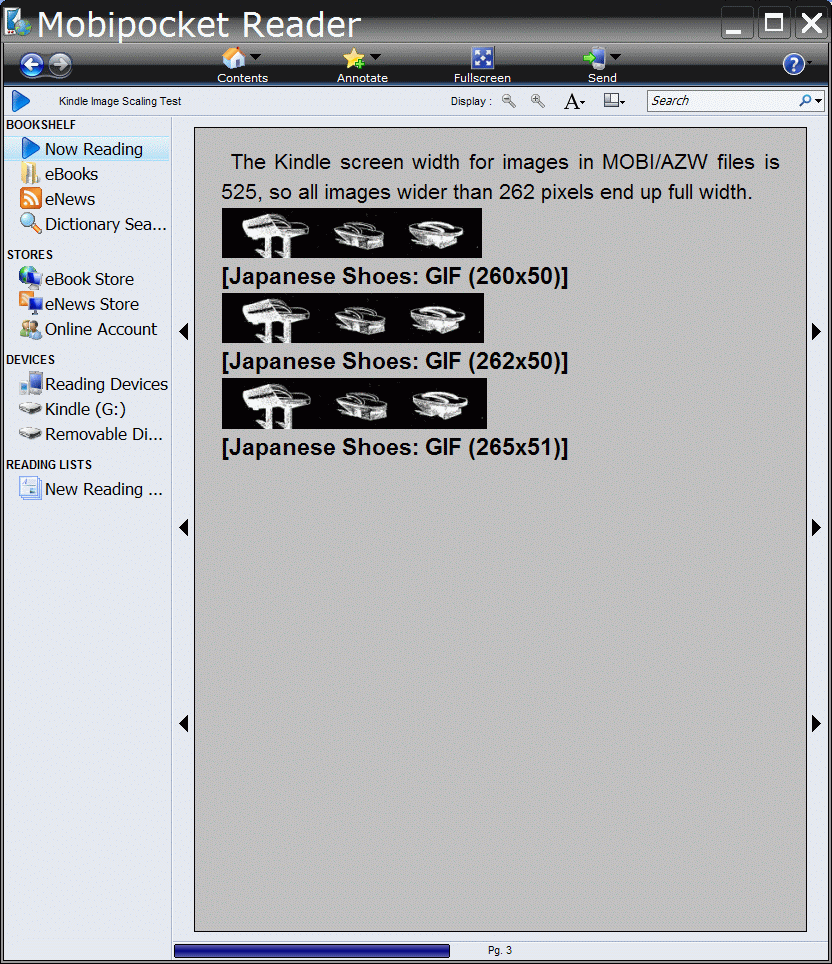

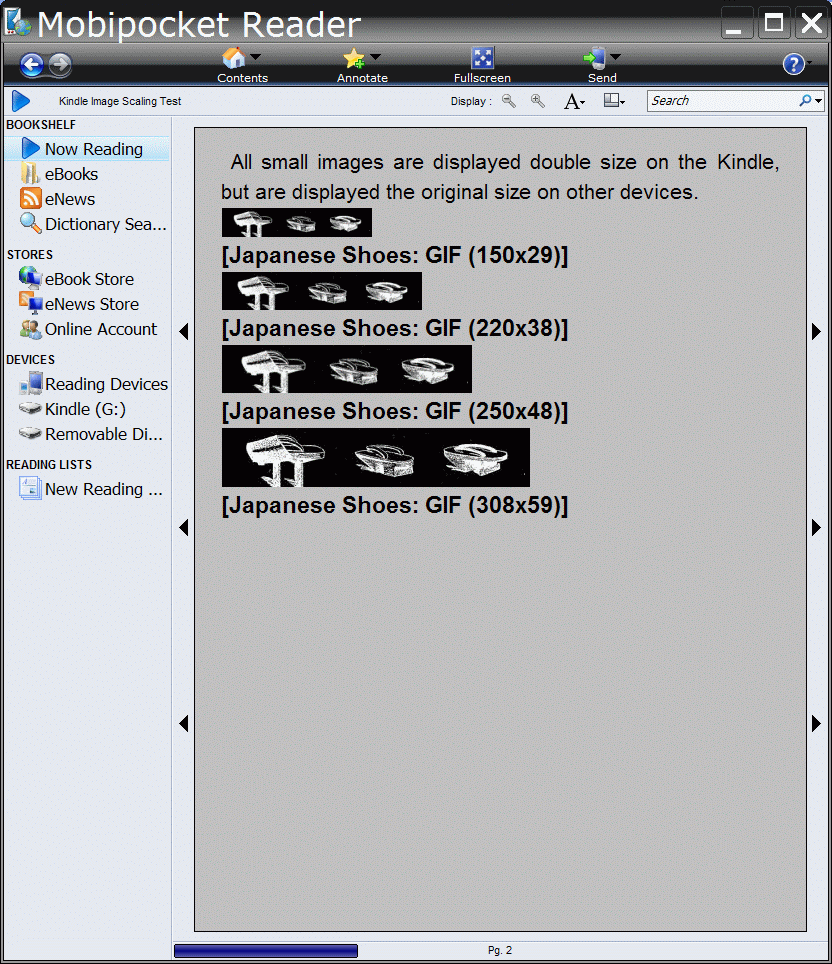

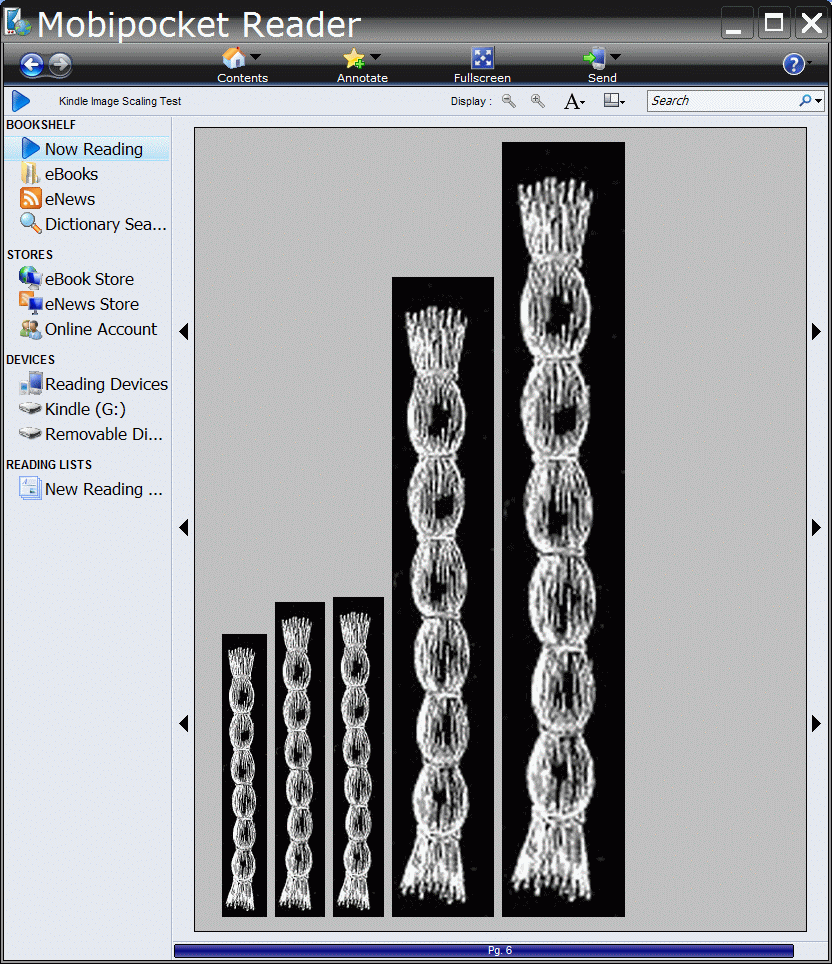

I attach a test MOBI file, and screenshots from a Kindle and from Windows MobiPocket Reader with a 600x800 reading window. The treatment of images is dramatically different on the two devices. Under Windows, all images are displayed full size if possible and if not an "image mode" is available by clicking on the image. The image mode allows magnification, but the standard view is always unmagnified. On the Kindle, all images are doubled in size up to a maximum of 525x640 and images that are then too large are resized while maintaining their aspect ratio to fit. Unlike with TOPAZ ebooks, there is no image/zoom mode. In previous threads (e.g. All on the Mac: PDFs with Formatting) I had concluded that the Kindle's MOBI/AZW maximum image size is 520x640. Direct inspection of the attached screenshots indicate that it is actually 525x640.

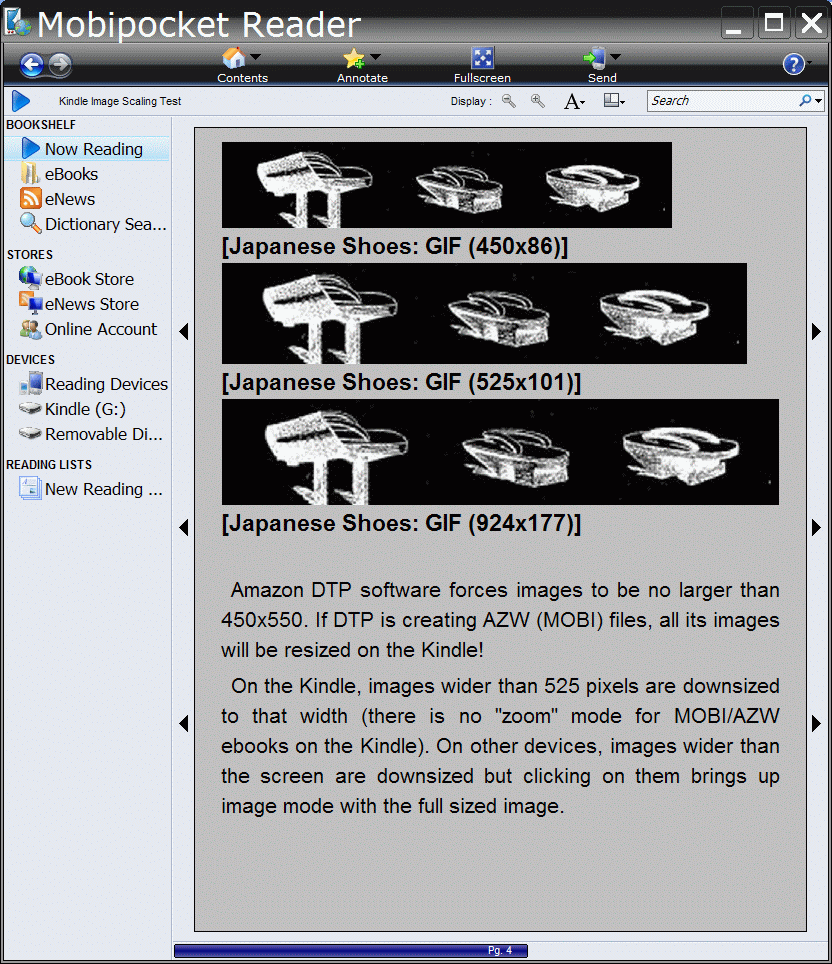

Amazon DTP software forces images to be no larger than 450x550, see Full-screen Images. So all its images will be resized on the Kindle! However, its recommended aspect ratio of 9 to 11 is very close to the actual aspect ratio of 525 to 640.

The MOBI ebook contains a few more details, which I won't repeat here.
Attached Thumbnails
Click image for larger version

Name:	Kindle_I01.gif
Views:	588
Size:	20.7 KB
ID:	13895   Click image for larger version

Name:	WMR_I01.gif
Views:	497
Size:	157.3 KB
ID:	13902   Click image for larger version

Name:	Kindle_I02.gif
Views:	529
Size:	20.0 KB
ID:	13903   Click image for larger version

Name:	WMR_I02.gif
Views:	418
Size:	155.6 KB
ID:	13904   Click image for larger version

Name:	Kindle_I03.gif
Views:	423
Size:	21.8 KB
ID:	13905   Click image for larger version

Name:	WMR_I03.gif
Views:	403
Size:	167.2 KB
ID:	13906   Click image for larger version

Name:	Kindle_I04.gif
Views:	428
Size:	45.4 KB
ID:	13907   Click image for larger version

Name:	WMR_I04.gif
Views:	413
Size:	189.3 KB
ID:	13908
Attached Files
File Type: mobi Kindle_Image_Scaling.mobi (207.7 KB, 415 views)
wallcraft is offline   Reply With Quote
Old 06-28-2008, 04:34 PM   #2
daffy4u
I'm Super Kindle-icious
daffy4u ought to be getting tired of karma fortunes by now.daffy4u ought to be getting tired of karma fortunes by now.daffy4u ought to be getting tired of karma fortunes by now.daffy4u ought to be getting tired of karma fortunes by now.daffy4u ought to be getting tired of karma fortunes by now.daffy4u ought to be getting tired of karma fortunes by now.daffy4u ought to be getting tired of karma fortunes by now.daffy4u ought to be getting tired of karma fortunes by now.daffy4u ought to be getting tired of karma fortunes by now.daffy4u ought to be getting tired of karma fortunes by now.daffy4u ought to be getting tired of karma fortunes by now.

daffy4u's Avatar

Posts: 6,724
Karma: 2429021
Join Date: Apr 2008
Location: Long Drive, Calinadia Candafornia
Device: K1, KTSO, KFHD7, KPW1
Wow, thanks for doing all of that work Wallcraft!

Here is an interesting thread of image experiments with the DTP software and images from last December.
daffy4u is offline   Reply With Quote
Old 06-28-2008, 05:25 PM   #3
DaleDe
Grand Sorcerer
DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.

DaleDe's Avatar

Posts: 9,501
Karma: 4597184
Join Date: Aug 2007
Location: Grass Valley, CA
Device: EB 1150, EZ Reader, Literati, iPad 2
Technically, by the way, if you double the width and length of a picture you are zooming it 4X not just double.

Dale
DaleDe is offline   Reply With Quote
Old 06-30-2008, 11:26 AM   #4
dre95060
Member
dre95060 doesn't litterdre95060 doesn't litter

Posts: 15
Karma: 100
Join Date: Jun 2008
Device: Kindle
Great contribution. We'll get to the bottom of this yet!

Dave E
dre95060 is offline   Reply With Quote
Old 03-17-2010, 01:44 PM   #5
hcobb
Junior Member
hcobb began at the beginning.

Posts: 2
Karma: 10
Join Date: Feb 2010
Device: Kindle
Putting in both height and width attributes seems to suppress resizing.
hcobb is offline   Reply With Quote
Old 04-01-2011, 11:59 AM   #6
cornbread
Junior Member
cornbread began at the beginning.

cornbread's Avatar

Posts: 2
Karma: 10
Join Date: Jan 2011
Location: Columbus, OH
Device: Kindle, Nook
Thanks, hcobb, for the best solution yet, not to mention the simplest (my girlfriend claims she already knew that).
