10-28-2012, 02:54 PM | #331 |
Junior Member
Posts: 7
Karma: 10
Join Date: Oct 2012
Device: Kindle 3
|
|
10-28-2012, 03:29 PM | #332 |
Wizard
Posts: 1,379
Karma: 2155307
Join Date: Nov 2010
Location: Goettingen, Germany
Device: Kindle Paperwhite, Kobo Mini
|
|
Advert | |
|
10-28-2012, 11:11 PM | #333 |
Junior Member
Posts: 7
Karma: 10
Join Date: Oct 2012
Device: Kindle 3
|
T_T Suggestions and comments from experiences much needed.
Also, why does the charge indicator turn off? |
10-28-2012, 11:15 PM | #334 |
Official Lurker
Posts: 1,050
Karma: 7096675
Join Date: Apr 2012
Device: Kindle 3.4
|
Dont quite understand it, but from what I've seen it is because the "thing" that controls said light is firmware powered and when the firmware is bricked, the light controls don't work, IIRC
|
10-29-2012, 12:38 AM | #335 |
Junior Member
Posts: 7
Karma: 10
Join Date: Oct 2012
Device: Kindle 3
|
|
Advert | |
|
10-29-2012, 05:06 AM | #336 |
Wizard
Posts: 1,379
Karma: 2155307
Join Date: Nov 2010
Location: Goettingen, Germany
Device: Kindle Paperwhite, Kobo Mini
|
First: don't trust it.
Second: What color? I think green is only ever toggled by firmware. Yellow/amber might be toggled by the battery/charging controller (exclusively?) which might operate in fall-back mode here (since it isn't controlled by the main firmware). Did you try keeping it plugged to a charger for 2-3 days? |
10-29-2012, 08:19 AM | #337 |
Going Viral
Posts: 17,212
Karma: 18210809
Join Date: Feb 2012
Location: Central Texas
Device: No K1, PW2, KV, KOA
|
First: The led is under firmware control of some of the GPIO pins on the SoC.
Second: Don't trust it when the firmware is known to not be working as intended. Third: It is a tri-color (rgb) led. Fourth: The battery management and charge controller is on an external chip, under firmware control. Fifth: Don't trust it when the firmware is known to not be working as intended. Sixth: Some of the firmware installed on the system does not include control of the external chip, even when working properly. Translation: You may have to remove the battery and re-charge it on a charger external to the Kindle. If this is a K4 with a glued in place battery, doing that will be a challenge. |
10-29-2012, 08:36 AM | #338 |
Wizard
Posts: 1,379
Karma: 2155307
Join Date: Nov 2010
Location: Goettingen, Germany
Device: Kindle Paperwhite, Kobo Mini
|
knc1: Are you sure it's tri-color? I've only ever seen green and amber, neither blue nor red... Or is this about the K4? BTW, I did not forget about having k3flasher talk to the battery controller. It would reeeeally help in situations like these. However, I'm unsure if we can readily use the SPI controller and what we need to do about chip select lines...
|
10-29-2012, 08:46 AM | #339 | |
Going Viral
Posts: 17,212
Karma: 18210809
Join Date: Feb 2012
Location: Central Texas
Device: No K1, PW2, KV, KOA
|
Quote:
On the DX, it should be - the firmware is written to control a tri-color led. But I don't have a DX to bork it bad enough to get it to "flashing red" state. You should find "flashing white" during network boot loading. On the others - not a clue. I have only read the DX firmware in enough detail to say that we can access the battery state via the SPI bus the external chip is on. I have not (yet) read the K3 firmware in enough detail to say the same thing about it. Like nearly everyone else here - I have to use my available hobby time for my own requirements first. Public Service work gets whatever is left over. Last edited by knc1; 10-29-2012 at 08:54 AM. |
|
10-29-2012, 06:37 PM | #340 |
Junior Member
Posts: 7
Karma: 10
Join Date: Oct 2012
Device: Kindle 3
|
I have a K3 keyboard, not a K4. Since the flash and fail reboot, I have kept it on the charger for about 1-2 days now and ongoing.
|
10-29-2012, 08:32 PM | #341 |
Junior Member
Posts: 2
Karma: 5652
Join Date: Oct 2012
Device: Kindle 3 WiFI
|
Infamous "Failed to initial Flash error" bypass
Hi after reading the whole thread I almost lost hope to pass by this error.

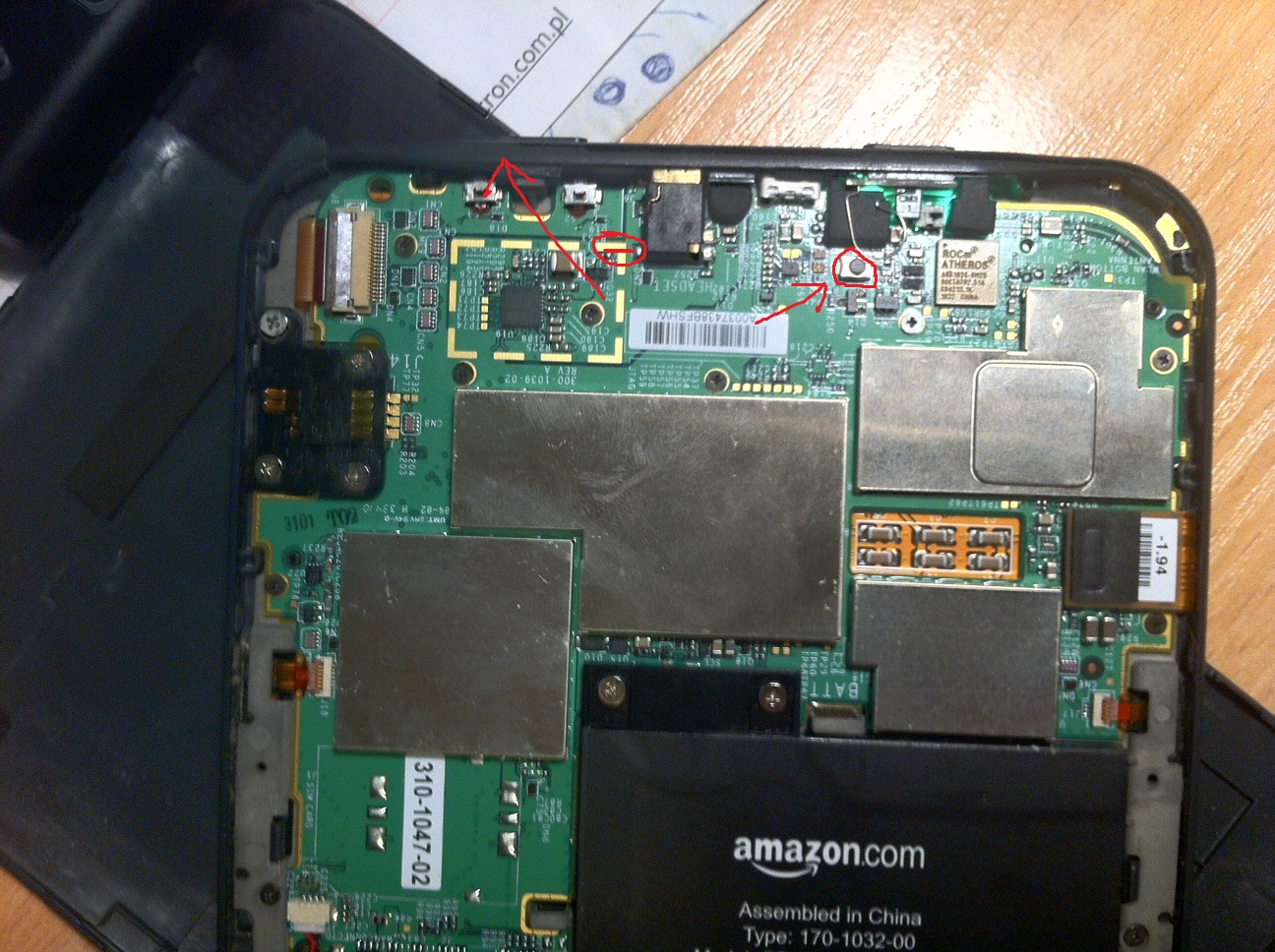

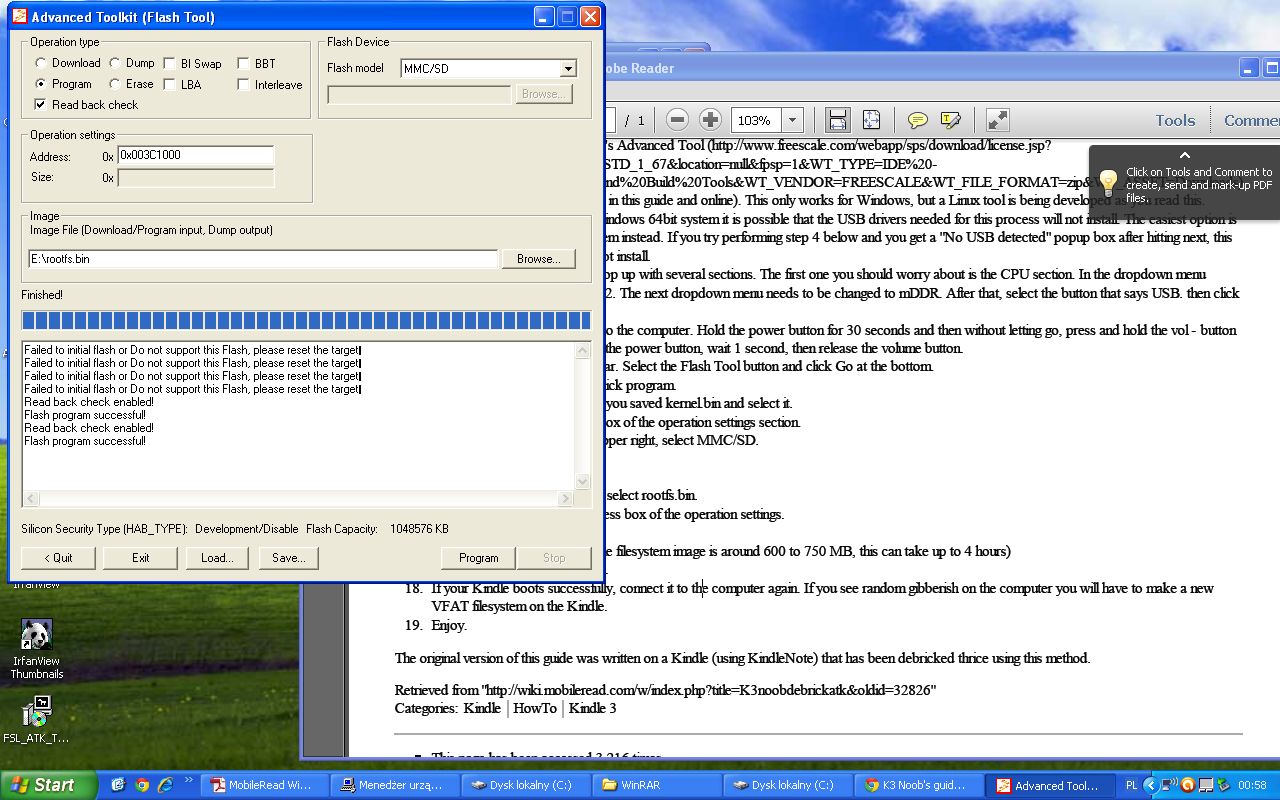

It turned out that once you open the back cover of the kindle, theres a small secondary reset/power button beneath the original power button on the board. What to do? 1) open your kindle and plug it in to the pc 2) set everything in ATK as you would to flash the kernel 3) press the little bugger while holding the vol - button (in my case 3rd press worked the charm) 4) press program in ATK After few tries it should start working (the rest is like in the original tutorial) one pic shows where is the magic button second is a proof that in my case it worked ewentualy ps. Thanks for the tutorial it got me my Kindle back from the dead ! |
10-29-2012, 08:36 PM | #342 |
Going Viral
Posts: 17,212
Karma: 18210809
Join Date: Feb 2012
Location: Central Texas
Device: No K1, PW2, KV, KOA
|
What model Kindle is that?
Once I stood on my head, I recognized it - that is a K3 My K3 does not have the button but the circuit board has the pads for it and the silk screen has the legend: "reset" at that part position. Last edited by knc1; 10-29-2012 at 08:40 PM. |
10-30-2012, 04:26 AM | #343 |
Junior Member
Posts: 2
Karma: 5652
Join Date: Oct 2012
Device: Kindle 3 WiFI
|
Sorry forgot to mention, yes it is a K3 Wifi B008 from 2010. Wonder if short circuit this place on board would have the same effect. With mine unit the problem was as other have mentioned earlier, 90 seconds reset, no reaction on screen, and that ATK (winxp32bit) would recognise it as MX35 from the moment it was pluged in the usb, but refusing to flash and no reaction to holding power button for 30 sec and vol-, even removing the battery didnt have any effect on the process, it worked the moment I started playing with this reset button.
|
10-30-2012, 06:39 AM | #344 | |
Going Viral
Posts: 17,212
Karma: 18210809
Join Date: Feb 2012
Location: Central Texas
Device: No K1, PW2, KV, KOA
|
Quote:
(When buying in lots of a million parts, even 0.1 cent adds up to real money in a hurry.) Note: It will take a very steady pair of hands and some needle sized probes to connect to these pads - they are not very big. Maybe someone with an open K3 can test if the reset pads still work (there might be a few other parts involved that are missing from the reset circuit - not just the missing button). |
|
11-08-2012, 05:04 AM | #345 |
Junior Member
Posts: 1
Karma: 10
Join Date: Nov 2012
Device: Kindle K3
|
Kindle K3
|
