Old 03-12-2012, 09:41 AM   #31
sunlifeng
Enthusiast
sunlifeng doesn't littersunlifeng doesn't litter

Posts: 28
Karma: 122
Join Date: Feb 2012
Device: Kindle touch,EE
I had build your Orion Viewer locally . Sadly ,there still have a problem.
There lcd size is different from eink size .
sunlifeng is offline   Reply With Quote
Old 03-12-2012, 09:43 AM   #32
sunlifeng
Enthusiast
sunlifeng doesn't littersunlifeng doesn't litter

Posts: 28
Karma: 122
Join Date: Feb 2012
Device: Kindle touch,EE
Quote:
Originally Posted by kammerer View Post
I removed rotation and size patching - it should be full sized e-ink!
Both screen shoud be in same orientation!
Ok ,pull the source again .
sunlifeng is offline   Reply With Quote
Old 03-12-2012, 09:48 AM   #33
sunlifeng
Enthusiast
sunlifeng doesn't littersunlifeng doesn't litter

Posts: 28
Karma: 122
Join Date: Feb 2012
Device: Kindle touch,EE
The trick writes frame buffer on EE is here .

add the following source after you write to frame buffer using transfer function.

Quote:
public void renew() throws IOException
{
InputStream fs = new FileInputStream("/dev/graphics/fb" + framebuffer);
byte[] buffer = new byte[1200 * stride];
byte[] buffer2 = new byte[500 * stride];
fs.read(buffer);
fs.close();
System.arraycopy(buffer,0,buffer2,0,buffer2.length );
OutputStream os = new FileOutputStream("/dev/graphics/fb" + framebuffer);
os.write(buffer2);
os.close();
}
sunlifeng is offline   Reply With Quote
Old 03-12-2012, 09:50 AM   #34
fekhner
Addict
fekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animals

Posts: 326
Karma: 6720
Join Date: Sep 2010
Device: DRs, EE, ipad/iphone, Helix
unfortunately still not, rotation still a problem and only half page is being displayed, sorry !
(refers to version 4)
Attached Thumbnails
Click image for larger version

Name:	Photo.jpg
Views:	60
Size:	73.7 KB
ID:	83801
fekhner is offline   Reply With Quote
Old 03-12-2012, 09:58 AM   #35
kammerer
Connoisseur
kammerer doesn't litterkammerer doesn't litter

Posts: 53
Karma: 104
Join Date: Dec 2011
Device: nook
Quote:
Originally Posted by sunlifeng View Post
The trick writes frame buffer on EE is here .

add the following source after you write to frame buffer using transfer function.
what does this code do?
kammerer is offline   Reply With Quote
Old 03-12-2012, 10:05 AM   #36
sunlifeng
Enthusiast
sunlifeng doesn't littersunlifeng doesn't litter

Posts: 28
Karma: 122
Join Date: Feb 2012
Device: Kindle touch,EE
Quote:
Originally Posted by kammerer View Post
what does this code do?
add this renew(); after os.close(); in transfer function write screen the second time with same data. This force the screen full refresh to display the content .


It was a solution with hundreds try.
sunlifeng is offline   Reply With Quote
Old 03-12-2012, 10:07 AM   #37
kammerer
Connoisseur
kammerer doesn't litterkammerer doesn't litter

Posts: 53
Karma: 104
Join Date: Dec 2011
Device: nook
Quote:
Originally Posted by fekhner View Post
unfortunately still not, rotation still a problem and only half page is being displayed, sorry !
(refers to version 4)
This rotation perfomed via Orion Rotation menu?
kammerer is offline   Reply With Quote
Old 03-12-2012, 10:17 AM   #38
fekhner
Addict
fekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animals

Posts: 326
Karma: 6720
Join Date: Sep 2010
Device: DRs, EE, ipad/iphone, Helix
no, with the rotate button on the lcd side, if I am not using this button at least once, almost nothing appears on the-ink side,

after this, when rotating with the orion menu option, the displayed picture stays in the upper half and rotates along with the one on the lcd side, with a difference of 90 degrees in what is being displayed ...
fekhner is offline   Reply With Quote
Old 03-12-2012, 10:26 AM   #39
kammerer
Connoisseur
kammerer doesn't litterkammerer doesn't litter

Posts: 53
Karma: 104
Join Date: Dec 2011
Device: nook
I have added renew code
kammerer is offline   Reply With Quote
Old 03-12-2012, 10:29 AM   #40
fekhner
Addict
fekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animals

Posts: 326
Karma: 6720
Join Date: Sep 2010
Device: DRs, EE, ipad/iphone, Helix

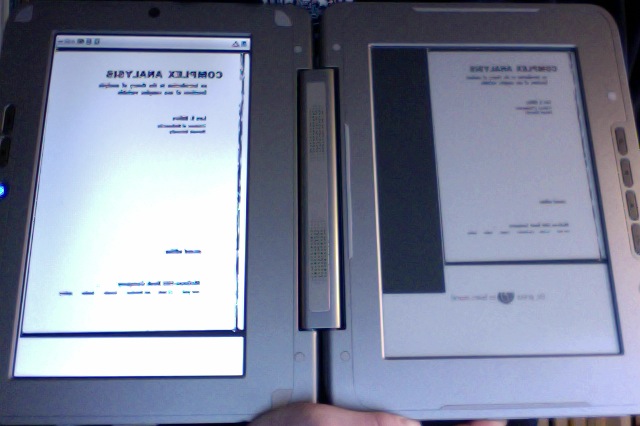

rotation is perfect now, remaining problem: the book displays perfectly on the lcd side, but the e-ink side is not fully used, and it should be the opposite, will attach some pictures ... getting there !
(the second picture is from coolreader, where the text does not fit completely on the lcd side, but fills entirely the e-ink side ...)
Attached Thumbnails
Click image for larger version

Name:	Photo.jpg
Views:	67
Size:	69.6 KB
ID:	83802   Click image for larger version

Name:	Photo2.jpg
Views:	62
Size:	99.4 KB
ID:	83803

Last edited by fekhner; 03-12-2012 at 10:39 AM.
fekhner is offline   Reply With Quote
Old 03-12-2012, 11:09 AM   #41
kammerer
Connoisseur
kammerer doesn't litterkammerer doesn't litter

Posts: 53
Karma: 104
Join Date: Dec 2011
Device: nook
and one more attempt
kammerer is offline   Reply With Quote
Old 03-12-2012, 11:18 AM   #42
fekhner
Addict
fekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animals

Posts: 326
Karma: 6720
Join Date: Sep 2010
Device: DRs, EE, ipad/iphone, Helix
the lcd side is now cut as well, only half the page appears, unfortunately there is no change on the eink side ...
Attached Thumbnails
Click image for larger version

Name:	Photo.jpg
Views:	45
Size:	68.5 KB
ID:	83804

Last edited by fekhner; 03-12-2012 at 11:20 AM.
fekhner is offline   Reply With Quote
Old 03-12-2012, 11:21 AM   #43
sunlifeng
Enthusiast
sunlifeng doesn't littersunlifeng doesn't litter

Posts: 28
Karma: 122
Join Date: Feb 2012
Device: Kindle touch,EE
Quote:
Originally Posted by kammerer View Post
and one more attempt
This time the display in lcd be cut to 600x600
eink is same with lcd .
sunlifeng is offline   Reply With Quote
Old 03-12-2012, 11:28 AM   #44
kammerer
Connoisseur
kammerer doesn't litterkammerer doesn't litter

Posts: 53
Karma: 104
Join Date: Dec 2011
Device: nook
and more...
kammerer is offline   Reply With Quote
Old 03-12-2012, 11:49 AM   #45
fekhner
Addict
fekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animalsfekhner is kind to children and small, furry animals

Posts: 326
Karma: 6720
Join Date: Sep 2010
Device: DRs, EE, ipad/iphone, Helix
in width, you are now using 10,1 out of 14 cm's
in height, 16,7 out of 20,3 cm's
Attached Thumbnails
Click image for larger version

Name:	Photo.jpg
Views:	46
Size:	68.6 KB
ID:	83807

Last edited by fekhner; 03-12-2012 at 11:55 AM.
fekhner is offline   Reply With Quote
