Old 11-01-2011, 01:38 PM   #16
Peter Ahlstrom
Member
Peter Ahlstrom began at the beginning.

Posts: 12
Karma: 10
Join Date: Oct 2011
Device: iPad
The (at least) desktop version of ADE will not display PNGs correctly that have a bit depth less than 8. They instead look very strange, like a linescreen has been applied to them.
Peter Ahlstrom is offline   Reply With Quote
Old 11-14-2011, 04:49 PM   #17
pholy
Booklegger
pholy ought to be getting tired of karma fortunes by now.pholy ought to be getting tired of karma fortunes by now.pholy ought to be getting tired of karma fortunes by now.pholy ought to be getting tired of karma fortunes by now.pholy ought to be getting tired of karma fortunes by now.pholy ought to be getting tired of karma fortunes by now.pholy ought to be getting tired of karma fortunes by now.pholy ought to be getting tired of karma fortunes by now.pholy ought to be getting tired of karma fortunes by now.pholy ought to be getting tired of karma fortunes by now.pholy ought to be getting tired of karma fortunes by now.

pholy's Avatar

Posts: 1,783
Karma: 7999034
Join Date: Jun 2009
Location: Toronto, Ontario, Canada
Device: BeBook(1 & 2010), PEZ, PRS-505, Kobo BT, PRS-T1, Playbook, Kobo Touch
Table Cells with images

After changing the border styles in your test-0, I am convinced you have found a bug in the ADE engine. Note that in the attached picture the solid lines look slightly dotted - this is due to dithering to try to make the line look blue. When I changed the colour to #000000 (test-3) it looks exactly right - the lines, not where they are.

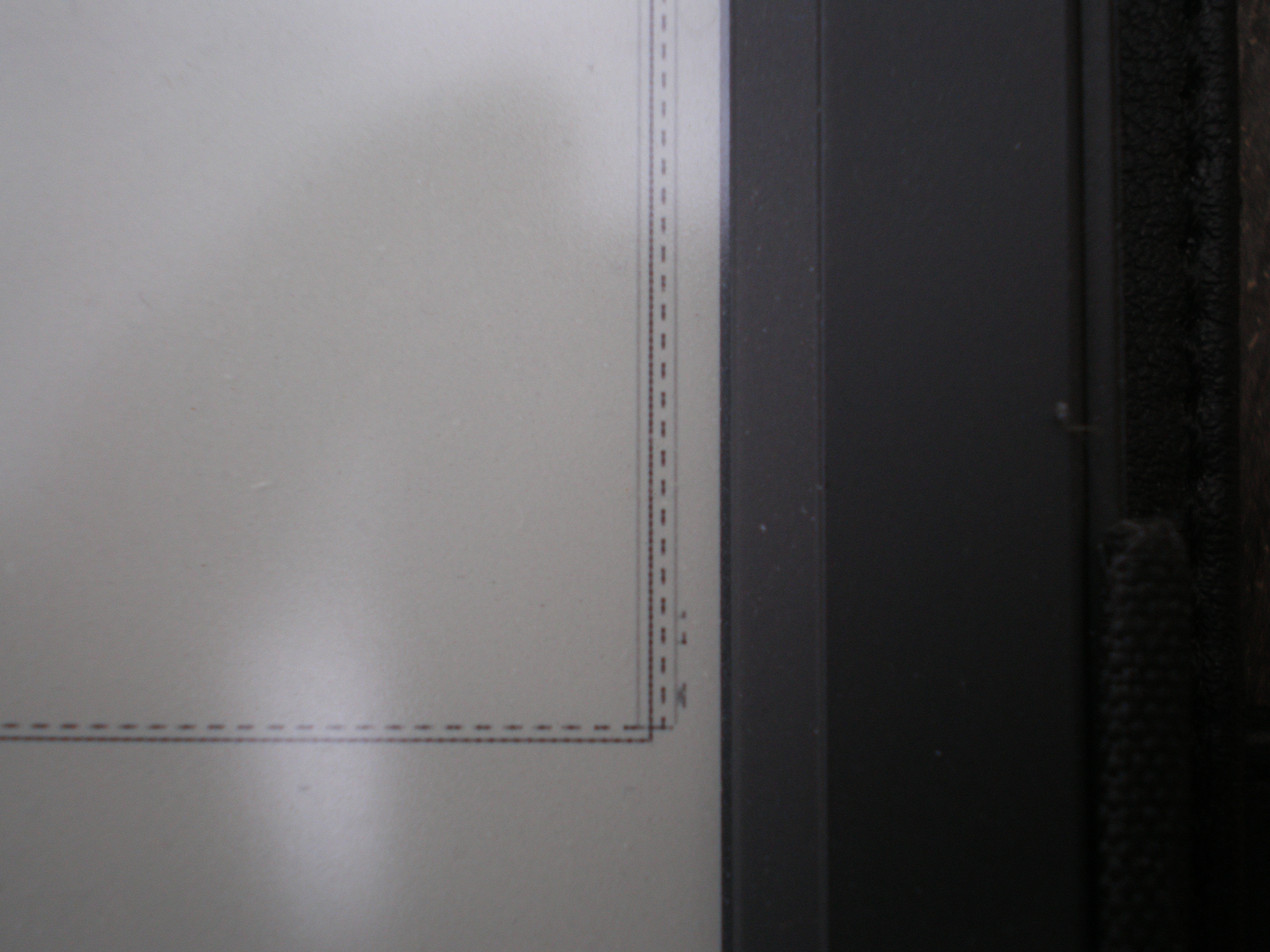

In the pictures you can see that the first data cell border (dashed) extends beyond the table border, and the second cell borders (dotted) start within the table and extend beyond the table and beyond the first cell border.

To me, that's a bug, not a feature.

It gets really weird if you remove the "width=100%" from the image spec, by the way --- another bug, I think. I think the size of the image is controlling the size of the its cell, leaving little left for the other cell.

Basically, there is an interaction in the handling of tables and images, which is handled poorly.
Attached Thumbnails
Click image for larger version

Name:	PB140211.JPG
Views:	211
Size:	1,019.2 KB
ID:	78988   Click image for larger version

Name:	PB140210.JPG
Views:	211
Size:	1.12 MB
ID:	78989
Attached Files
File Type: epub Test-0.epub (47.1 KB, 183 views)
File Type: epub Test-3.epub (46.6 KB, 185 views)
pholy is offline   Reply With Quote

Enthusiast
Old 01-02-2012, 07:54 PM   #18
Pappersvingar
Junior Member
Pappersvingar began at the beginning.

Pappersvingar's Avatar

Posts: 2
Karma: 10
Join Date: Dec 2011
Location: Sweden
Device: Sony PRS-T1
I am so glad I found this sticky. I have been tearing my hair out trying to find out why epubs that look perfect in Calibre and Sigil show up without any formatting at all on my PRS-T1. Thanks to the validator I found a stray } in my stylesheet.

Question: does anyone know of any issues with using font-size for the headings in the CSS? I've had an issue with the headings not showing up at all on my Reader that was resolved by removing the font-sizes I'd defined. The headings worked just fine on my computer.
Pappersvingar is offline   Reply With Quote
Old 01-02-2012, 08:14 PM   #19
Adjust
Addict
Adjust really knows where his or her towel isAdjust really knows where his or her towel isAdjust really knows where his or her towel isAdjust really knows where his or her towel isAdjust really knows where his or her towel isAdjust really knows where his or her towel isAdjust really knows where his or her towel isAdjust really knows where his or her towel isAdjust really knows where his or her towel isAdjust really knows where his or her towel isAdjust really knows where his or her towel is

Adjust's Avatar

Posts: 350
Karma: 70000
Join Date: Jul 2010
Location: Australia
Device: ADE, iPad
Quote:
Originally Posted by Pappersvingar View Post
Question: does anyone know of any issues with using font-size for the headings in the CSS? I've had an issue with the headings not showing up at all on my Reader that was resolved by removing the font-sizes I'd defined. The headings worked just fine on my computer.
You can try using a percentage as your font measurement i.e font size=50%
Adjust is offline   Reply With Quote
Old 01-02-2012, 09:45 PM   #20
JSWolf
Resident Curmudgeon
JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.

JSWolf's Avatar

Posts: 35,974
Karma: 17083916
Join Date: Nov 2006
Location: Roslindale, Massachusetts
Device: Sony Reader PRS-650, iPad, nook STR
Quote:
Originally Posted by Pappersvingar View Post
I am so glad I found this sticky. I have been tearing my hair out trying to find out why epubs that look perfect in Calibre and Sigil show up without any formatting at all on my PRS-T1. Thanks to the validator I found a stray } in my stylesheet.
That's not a bug in ADE. That just means you have to have your stylesheet error free.

Question: does anyone know of any issues with using font-size for the headings in the CSS? I've had an issue with the headings not showing up at all on my Reader that was resolved by removing the font-sizes I'd defined. The headings worked just fine on my computer.[/QUOTE]

Can you post your code? From the description, I don't see any issue.
JSWolf is offline   Reply With Quote
Old 01-04-2012, 02:38 PM   #21
Pappersvingar
Junior Member
Pappersvingar began at the beginning.

Pappersvingar's Avatar

Posts: 2
Karma: 10
Join Date: Dec 2011
Location: Sweden
Device: Sony PRS-T1
Quote:
Originally Posted by Adjust View Post
You can try using a percentage as your font measurement i.e font size=50%
I'll try that the next time I code.

Quote:
Originally Posted by JSWolf View Post
That's not a bug in ADE. That just means you have to have your stylesheet error free.
I am aware of that now, and although that is not a bug in ADE, it was thanks to reading the first post in this sticky that I found out that one error in the CSS will make ADE ignore the whole stylesheet.

Quote:
Originally Posted by JSWolf View Post
Can you post your code? From the description, I don't see any issue.
This is the first part of the stylesheet before I removed all font-sizes:

body {margin-left:2%;
margin-right:2%;
margin-top:2%;
margin-bottom:2%;}

p {text-indent: .3in;
margin-top:0;
margin-bottom:0;
font-size:1em;
text-align: justify;
font-family:"Times New Roman", Times, serif;}

h1 {text-align:center;
font-size:2.5em;
font-family:"Times New Roman", Times, serif;}

h2 {text-align:center;
font-size:1.75em;
font-family:"Times New Roman", Times, serif;}

This did not make ADE ignore the CSS, everything looked the way it was supposed to, except for the headings. The headings simply disappeared when the epub was viewed on my Reader.

When I removed the font-size definitions, everything worked like it should.

Last edited by Pappersvingar; 01-05-2012 at 10:02 AM.
Pappersvingar is offline   Reply With Quote
Old 01-08-2012, 07:00 PM   #22
DaleDe
Grand Sorcerer
DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.DaleDe ought to be getting tired of karma fortunes by now.

DaleDe's Avatar

Posts: 9,498
Karma: 4597184
Join Date: Aug 2007
Location: Grass Valley, CA
Device: EB 1150, EZ Reader, Literati, iPad 2
I suspect that ADE cannot interpret what you want. What is 2.5 times bigger than itself? 2.5em makes no sense since you are asking it to make itself 2.5 bigger but then that would be an em. I suspect font-size units need to be something other than font-size.

Dale
DaleDe is offline   Reply With Quote
Old 01-08-2012, 08:30 PM   #23
JSWolf
Resident Curmudgeon
JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.JSWolf ought to be getting tired of karma fortunes by now.

JSWolf's Avatar

Posts: 35,974
Karma: 17083916
Join Date: Nov 2006
Location: Roslindale, Massachusetts
Device: Sony Reader PRS-650, iPad, nook STR
Quote:
Originally Posted by Pappersvingar View Post
This is the first part of the stylesheet before I removed all font-sizes:
The code looks OK. Can you post an ePub with this code in it and I'll take a look.
JSWolf is offline   Reply With Quote
Old 01-09-2012, 02:11 AM   #24
Toxaris
Wizard
Toxaris ought to be getting tired of karma fortunes by now.Toxaris ought to be getting tired of karma fortunes by now.Toxaris ought to be getting tired of karma fortunes by now.Toxaris ought to be getting tired of karma fortunes by now.Toxaris ought to be getting tired of karma fortunes by now.Toxaris ought to be getting tired of karma fortunes by now.Toxaris ought to be getting tired of karma fortunes by now.Toxaris ought to be getting tired of karma fortunes by now.Toxaris ought to be getting tired of karma fortunes by now.Toxaris ought to be getting tired of karma fortunes by now.Toxaris ought to be getting tired of karma fortunes by now.

Toxaris's Avatar

Posts: 2,850
Karma: 2417001
Join Date: Oct 2009
Location: Heemskerk, NL
Device: PRS-300, PRS-T1
Quote:
Originally Posted by DaleDe View Post
I suspect that ADE cannot interpret what you want. What is 2.5 times bigger than itself? 2.5em makes no sense since you are asking it to make itself 2.5 bigger but then that would be an em. I suspect font-size units need to be something other than font-size.
This is actually fine. I use it for quite some time. 1em will be interpreted as 100%, so 2.5em is equal to 250%.
Toxaris is offline   Reply With Quote
Old 02-09-2012, 05:18 PM   #25
theducks
Grand Sorcerer
theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.

theducks's Avatar

Posts: 14,104
Karma: 5468860
Join Date: Aug 2009
Location: The (original) Silicon Valley, USA
Device: Galaxy Tab 2, Astak Pocket Pro, K4NT
drive ADE (DT and Reader) Catatonic

I was having fun styling chapter headings.
The results looked great in Sigil (validated in FC also) and Calibre.
When I tried on my PEz (ADE) all stop. Tried on my PC ADE, All stop

Note: if you view this file in ADE be prepared to Kill the process
Attached Files
File Type: epub Catatonic_ADE.epub (2.3 KB, 146 views)
theducks is offline   Reply With Quote
Old 02-09-2012, 05:38 PM   #26
nrapallo
GuteBook/Mobi2IMP Creator
nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.

nrapallo's Avatar

Posts: 2,958
Karma: 2530531
Join Date: Dec 2007
Location: Toronto, Canada
Device: REB1200 EBW1150 Device: T1 NSTG iLiad_v2 NC Device: Asus_TF Next1 WPDN
Quote:
Originally Posted by theducks View Post
Tried on my PC ADE, All stop

Note: if you view this file in ADE be prepared to Kill the process
I got to view it on ADE v1.7.2.1131 on a WinXP pc, but not correctly; the first letter styles were ignored. ADE did indicate in the item info that minor difficulties prevented the proper display of the .epub.

It did (beautifully ) render in Sigil, ePubFixer (preview option), EPUBReader for firefox, calibre's viewer, (and probably on the kitchen sink as well!!! ). But yes, not on ADE.... (but no crash for me)
nrapallo is offline   Reply With Quote
Old 02-09-2012, 10:30 PM   #27
theducks
Grand Sorcerer
theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.

theducks's Avatar

Posts: 14,104
Karma: 5468860
Join Date: Aug 2009
Location: The (original) Silicon Valley, USA
Device: Galaxy Tab 2, Astak Pocket Pro, K4NT
Quote:
Originally Posted by nrapallo View Post
I got to view it on ADE v1.7.2.1131 on a WinXP pc, but not correctly; the first letter styles were ignored. ADE did indicate in the item info that minor difficulties prevented the proper display of the .epub.

It did (beautifully ) render in Sigil, ePubFixer (preview option), EPUBReader for firefox, calibre's viewer, (and probably on the kitchen sink as well!!! ). But yes, not on ADE.... (but no crash for me)
This time it did not lock up. and yes, the styling was ignored.
(same version as you)

I was having fun and it turned out to be simple to make it similar to those old woodcut initial letters in my old DT books.
theducks is offline   Reply With Quote
Old 02-11-2012, 05:59 AM   #28
Jellby
frumious Bandersnatch
Jellby ought to be getting tired of karma fortunes by now.Jellby ought to be getting tired of karma fortunes by now.Jellby ought to be getting tired of karma fortunes by now.Jellby ought to be getting tired of karma fortunes by now.Jellby ought to be getting tired of karma fortunes by now.Jellby ought to be getting tired of karma fortunes by now.Jellby ought to be getting tired of karma fortunes by now.Jellby ought to be getting tired of karma fortunes by now.Jellby ought to be getting tired of karma fortunes by now.Jellby ought to be getting tired of karma fortunes by now.Jellby ought to be getting tired of karma fortunes by now.

Jellby's Avatar

Posts: 5,905
Karma: 4269879
Join Date: Jan 2008
Location: Spaniard in Sweden
Device: Cybook Orizon, Kobo Aura
You have "style001.css" in the XHTML, but the file is "Style001.css", note the capital S.
Jellby is online now   Reply With Quote
Old 02-11-2012, 11:38 AM   #29
nrapallo
GuteBook/Mobi2IMP Creator
nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.nrapallo ought to be getting tired of karma fortunes by now.

nrapallo's Avatar

Posts: 2,958
Karma: 2530531
Join Date: Dec 2007
Location: Toronto, Canada
Device: REB1200 EBW1150 Device: T1 NSTG iLiad_v2 NC Device: Asus_TF Next1 WPDN
Jellby, that fixed it! Now it DOES crash in ADE!!!!!!!!!!!!!

It doesn't even display in ADE now....
Attached Files
File Type: epub Catatonic_ADE_fixed_NOT.epub (2.3 KB, 139 views)
nrapallo is offline   Reply With Quote
Old 02-11-2012, 02:44 PM   #30
theducks
Grand Sorcerer
theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.theducks ought to be getting tired of karma fortunes by now.

theducks's Avatar

Posts: 14,104
Karma: 5468860
Join Date: Aug 2009
Location: The (original) Silicon Valley, USA
Device: Galaxy Tab 2, Astak Pocket Pro, K4NT
Quote:
Originally Posted by Jellby View Post
You have "style001.css" in the XHTML, but the file is "Style001.css", note the capital S.
Good catch
I made up a sample (from my original work) and muffed it

This time I did get ADE to crash, not just lock-up
theducks is offline   Reply With Quote
